Unify Enclosure IP67 100x75x38mm with Mounting Plate
Unify Enclosure IP67 100x75x38mm with Mounting Plate
The Unify Enclosures are modular IP67-rated outdoor enclosures that include tailored features to support WisBlock baseboards and WisBlock Modules but are highly adaptable to any application with spacious internals and thoughtfully designed universal mounting options.
Deployment of your IoT solution is easy thanks to a range of swappable mounting accessories that enable you to install your IoT solution in any setting. These accessories are hosted on the rear surface of the enclosure using the integrated mounting locations and are secured with M3 fasteners into robust and reusable brass threaded inserts.
The 100x75x38mm enclosure has enough internal space to support the following WisBlock Base Boards - RAK19003, RAK19007, RAK5005-O.
There is also space for a flat profile LiPo battery to be hosted under an internal mounting plate. The space available below a mounting plate in standard configuration is approximately 55x34x6mm excluding narrow sections where there are enclosure features.
Accessories supported:
- Unify WisBlock Mounting Plate 100x75x38mm - Allowing you to create your own custom internal mounting solution easily with WisBlock hardware
- Unify WisBlock Mounting Plate 100x75x38mm with integrated LoRa antenna, 863 - 870 MHz for RU864, IN865 and EU868
- Unify WisBlock Mounting Plate 100x75x38mm with integrated LoRa antenna, 902 - 928 MHz for AU915, US915, KR920 and AS923
- Unify Mounting Plate Blank 100x75x38mm - Allowing you to create your own custom internal mounting solution for any hardware
- Unify Pole Mounting Vertical Kit (Type A)
- Unify Wall Mounting Kit (Type D)
- Unify Belt Clip Kit (Type E)
- Unify DIN Rail Mounting Kit (Type F)
- Unify Magnet Mounting Kit (Type G)
- Unify Belt Loop Kit (Type H)
- Unify Label Kit (Type I)
- Unify Hook Loop Kit (Type J)
Accessories NOT supported:
- Unify Pole Mounting Horizontal Kit (Type B)
- Unify Pole Mounting Horizontal Kit (Type C)
Enclosure Specifications:
- Material: ABS UL94V-0
- External Size：100x75x38mm(including lid)
- Internal Space: Approx 86x61x29mm (Usable space varies due to internal features)
- General Wall Thickness: 4.5mm
- Silicone waterproof seal (square profile to prevent twisting upon install)
- Brass threaded inserts throughout (blind type)
Mounting Plate

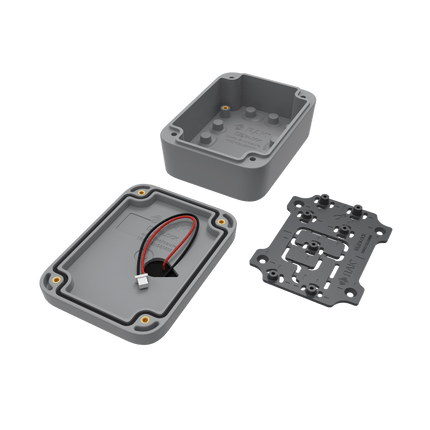

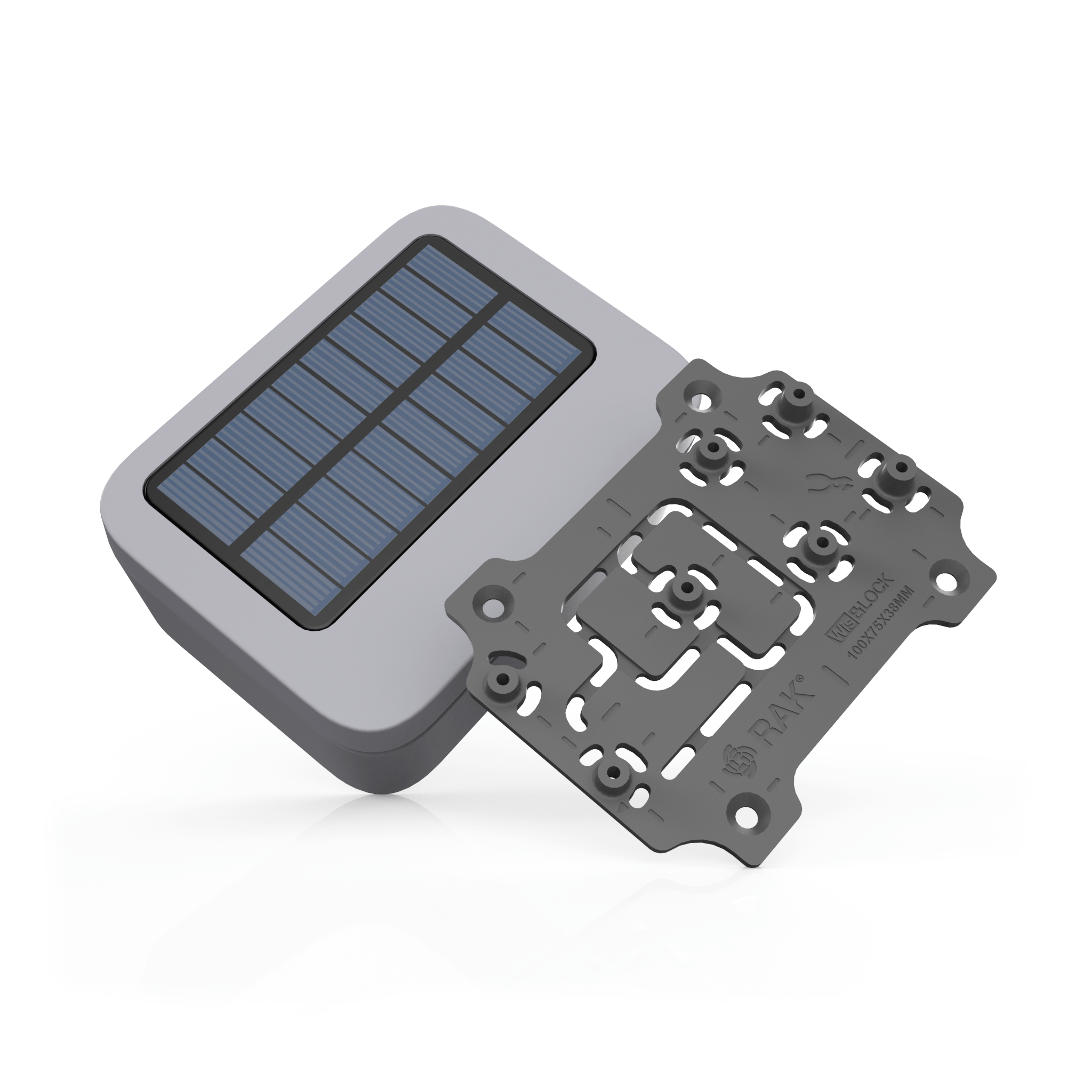

1. Unify WisBlock Mounting Plate with screw bosses for 100x75x38mm Enclosure(Bespoke Plate)
This mounting plate fits perfectly into the Unify Enclosure 100x75x38mm and has integrated screw bosses to support RAK19003, RAK19007 and RAK5005-O.
The mounting plate can be adapted easily to accommodate each of the Base Boards and any attached sensors by the removal of sections of the mounting plate that are not required by using of simple hand-operated side-cutters to cut away the unnecessary sections.
Unify WisBlock Mounting Plate with Screw Bosses Specifications:
- Compatible only with Unify Enclosure IP67 100x75x38mm
- Supports RAK19003
- Supports RAK19007
- Supports RAK5005-O
- Thickness：2mm
- Includes M3 countersink screws to mount to the enclosure
- Includes self-tapping screws to mount the WisBlock Base Board to the mounting plate
There is also space for a flat profile LiPo battery to be hosted under the mounting plate. The space available below a mounting plate in standard configuration is approximately 55x34x6mm excluding narrow sections where there are enclosure features.
Unify Mounting Plate Blank Specifications:
- Compatible only with Unify Enclosure IP67 100x75x38mm
- Thickness：1.2mm
- Includes M3 countersink screws to mount to the enclosure
