PLC Arduino ARDBOX 20 I/Os Relay - Open Industrial PLC

$269.00
Save $30
(Exc. GST)

Available to order with a short lead time. Ship within 10-20 days.

$ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST

$ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)

$ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts

PLC Arduino ARDBOX 20 I/Os Relay - Open Industrial PLC

10 Inputs (5-24Vdc)
10 Outputs (5-24Vdc)
Communications: USB, RS485 (Half-Full Duplex), I2C, SPI, MODBUS RTU Available

Get into Industrial Internet of Things with Industrial Shields PLC's, All Equipped with Original Arduino Boards

10 Inputs: (5-24Vdc)

(10x) Digital (5-24Vdc).

(6x) of 10x, Analog (0-10Vdc) configurable by Software.
10 Outputs:
(8x) Relay outputs (220Vac – 5A)
Communications:
USB, RS485 (Half-Full Duplex), I2C, SPI. MODBUS RTU Available
12-24Vdc Input Voltage

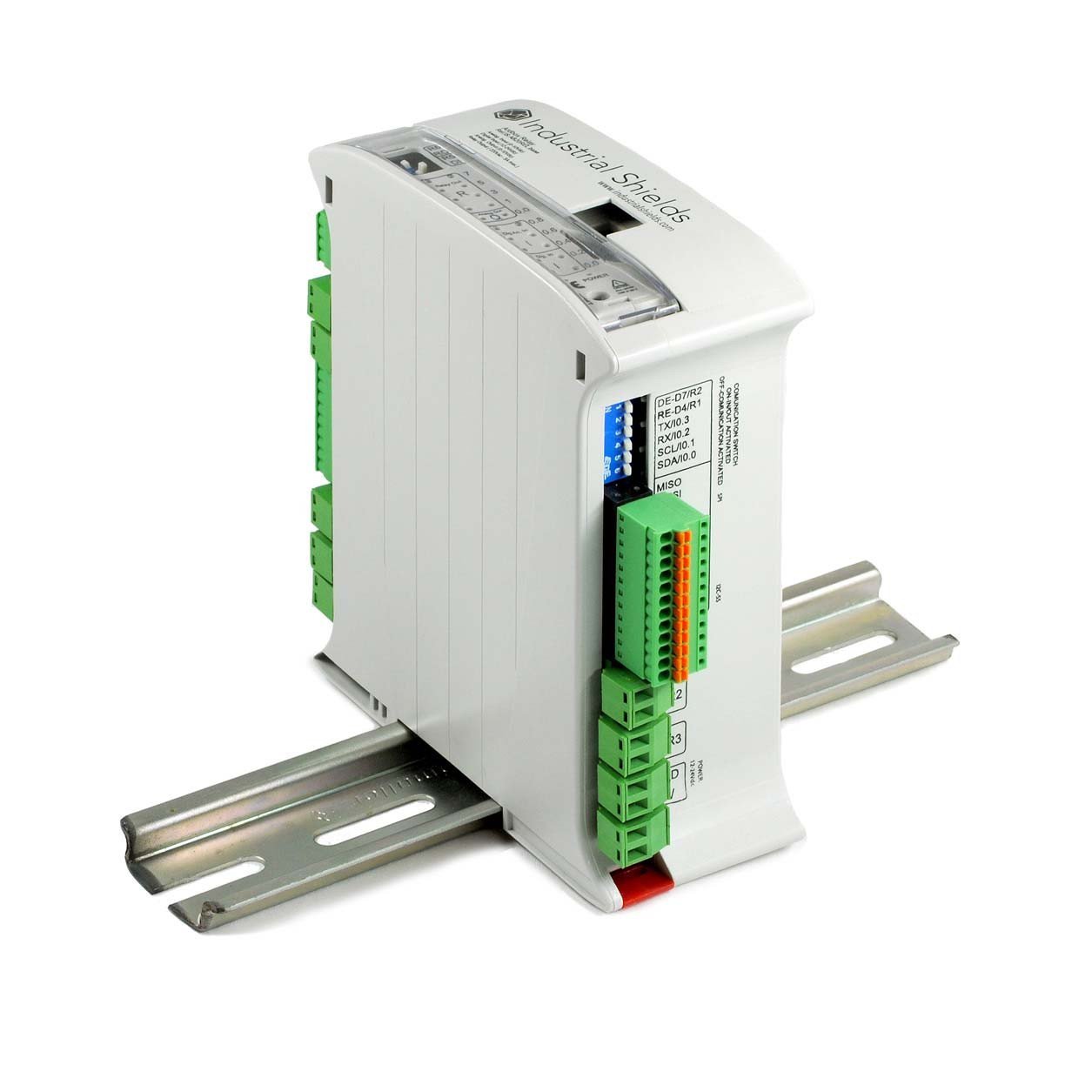

Compact DIN rail mounting
Com ports USB,RS485, RS232, I2C, SPI

Arduino-based PLC.
This PLC has 18 digital inputs/outputs. 10x analog or digital inputs (see specifications), and 8x Relay output (see specifications).

Basic Controllers family offers the possibility of communication between two computers using I2C obtaining a master-slave connection.

Instant connection and programming.
The Basic Controllers family, as it uses an Original Arduino LEONARDO, lets you program it through the USB. This feature lets it an immediate access in order to program, maintain and prepare it for its set up. It lets you control your equipment without no limits.

Standardized modules.
The different Basic Controllers devices are programmed exactly in the same way. Once you have used one of them, the rest can be configured on using the same methodology.

Expandable
Using the I2C connection which all the Basic Controllers family have you can connect up to 127 modules, which it means that you can have up to 2.540 Input / Outputs in Master-Slave connection. NOTE: for I2C you need to explain to us that requirement.

Flexible and dynamic
All the components are configurable both configure like make your jobs as Master or Slave when used on Master-Slave connection through I2C.

(Original Arduino Leonardo included)
10 Inputs:

(10x) Digital (5-12-24Vdc)
(6x) of 10x, Analog (0-10Vdc) configurable by Software.

10 Outputs:

(8x) Relay outputs (220Vac 5A)

Communications:

(1x) USB port.
(1x) RS485 (Half-Full Duplex)*
(1x) I2C* (you need a pull up accessory)
(1x) SPI*

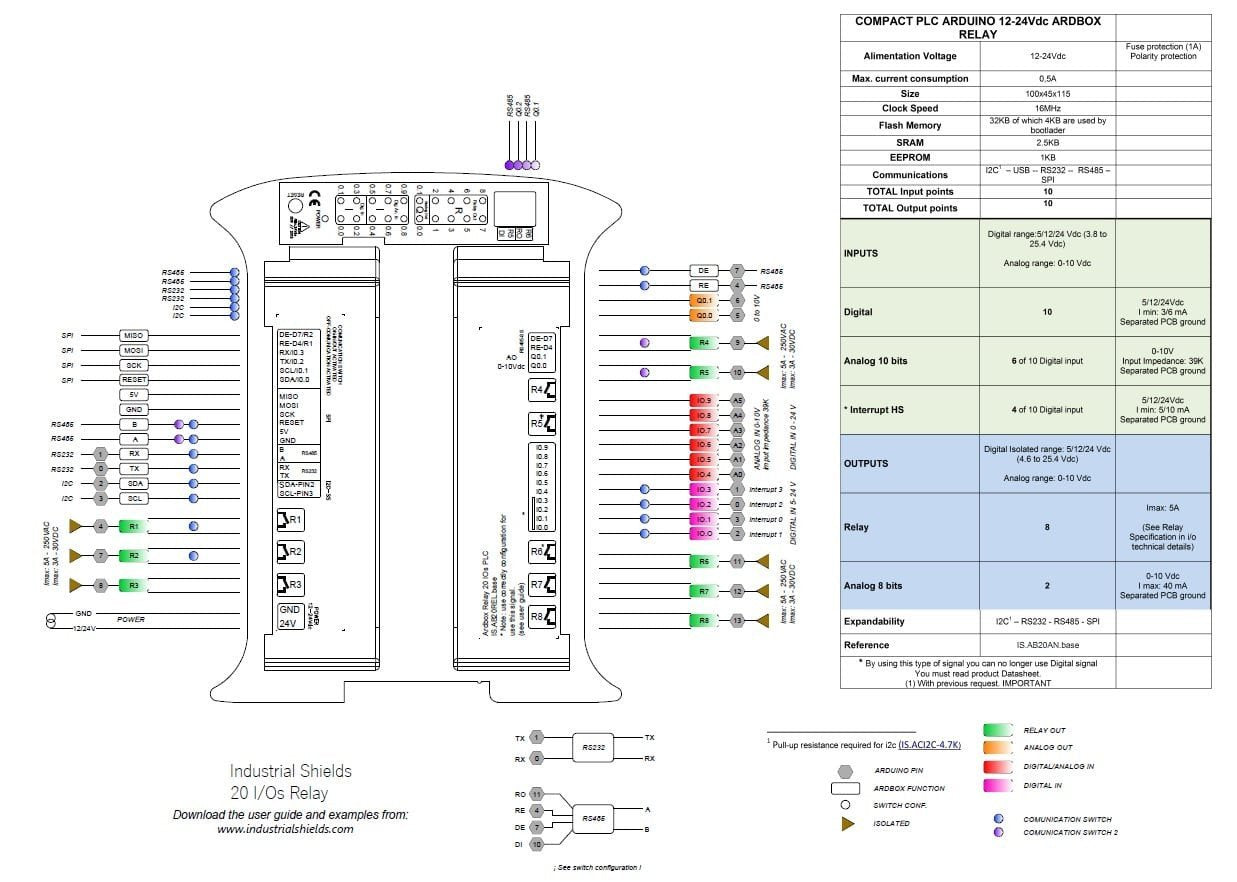

* See pinout to use communications ports because the number of inputs/outputs can be reduced.

Other specifications:

Pot: 30W
Flash Memory: 32kB of which 0.5kB used by bootloader.
SRAM: 2kB
EEPROM: 1kB
Clock Speed: 16MHz
