Bluetooth BLE 4.0 Motor Driver Board Based on Arduino UNO

  • $30.00
  • Save $40
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  • Bluetooth BLE 4.0 Motor Driver Board Based on Arduino UNO

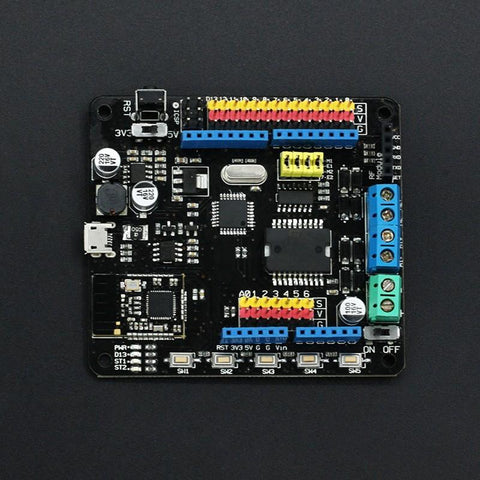

    BLE Motor, abbreviated for BLE Bluetooth 4.0 Motor Driver Board Based on Arduino UNO, is a kind of motor driver board compatible with Arduino UNO. It has integrated BLE Bluetooth 4.0 module, MEGA328 Main Control and L298P motor driver chip. We can use it to drive a one-way stepping motor or two-way DC motor. BLE Motor has integrated a sensor port so that we can plug into all kinds of sensors. At the same time, it can support various Shield extensions because it has a port compatible with Arduino Shield. BLE Motor supports outer power supply device. It can realize 3.3V and 5V voltage switch(sensor voltage change with it too). It has a reserved RF connector (CC1101 UART module), which can support wireless control with further distance. Besides, it has 5 prepared undefined keys with functions all defined by users. A BLE Motor equals to an integration of “Arduino Uno+BLE module+Sensor Shield+L298P Motor Shield”. We integrate all these components with aims to avoid too many messy cables and instability it caused while the whole size is well controlled. The integrated BLE 4.0 makes us easier to connect it to mobile. It is a convenient development board for robots or intelligent cars.

    Component List:

    1 x USB Cable

    1 x BLE Bluetooth 4.0 Motor Driver Board Based on Arduino UNO
