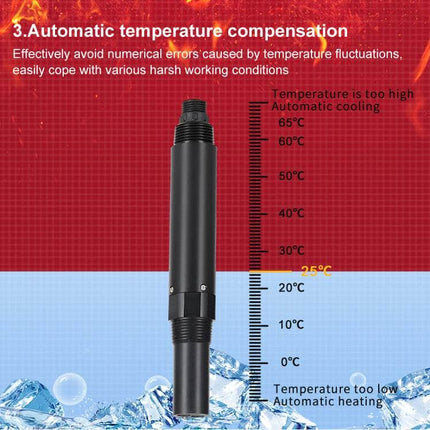

IQEC Industrial Electrical Conductivity EC Sensor Modbus RS485 5m Cable
IQEC Industrial Electrical Conductivity EC Sensor Modbus RS485 5m Cable
Technical Specifications:
|
model
|
IQEC
|
|
Measuring range
|
0-20uS/cm/0-200uS/cm/0-5000uS/cm/0-200mS/cm
|
|
resolution
|
0.01/0.1/1/0.1
|
|
Accuracy
|
±1.5%FS,±0.3℃
|
|
Operating temperature
|
0~65℃
|
|
work pressure
|
＜0.6MPa
|
|
Temperature compensation
|
Automatic temperature compensation (Pt1000)
|
|
powered by
|
12~24VDC
|
|
Signal output
|
RS-485(Modbus/RTU)
|
|
shell material
|
POM
|
|
Installation method
|
Submersible installation, 3/4" NPT pipe thread
|
|
Cable length
|
5 meters, other lengths can be customized
|
|
Calibration method
|
Two point calibration
|
|
Power consumption
|
0.2W@12V
|
|
Protection level
|
IP68 |
Documents:
IQEC Conductivity Sensor Datasheet
IQEC Conductivity Sensor User Manual
