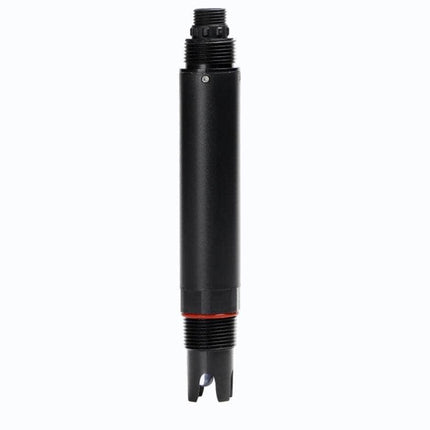

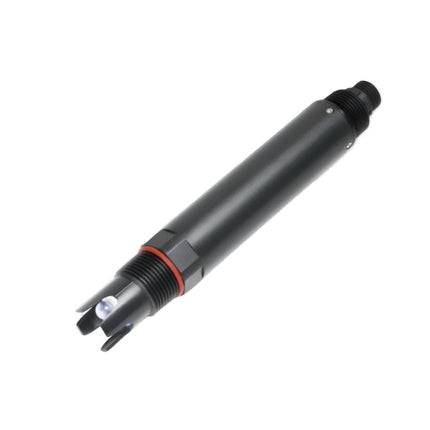

IQPH Industrial pH Sensor Modbus RS485 5m Cable
IQPH Industrial pH Sensor Modbus RS485 5m Cable
The IQPH water pH sensor can be used for environmental water quality monitoring, acid/alkali/salt solutions, chemical reaction processes, and industrial production processes, and can meet the requirements for online pH measurement in most industrial applications.
Technical Specifications:
|
model
|
IQPH
|
|
Measuring range
|
0~14.00pH
|
|
resolution
|
0.01pH
|
|
Accuracy
|
±0.1pH,±0.3℃
|
|
Operating temperature
|
0~65℃
|
|
work pressure
|
＜0.2MPa
|
|

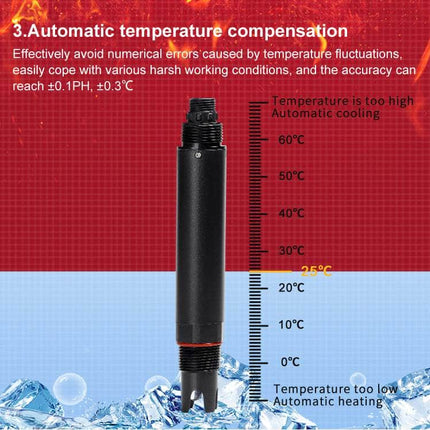

Temperature compensation
|
Automatic temperature compensation (NTC)
|
|
powered by
|
12~24VDC
|
|
Signal output
|

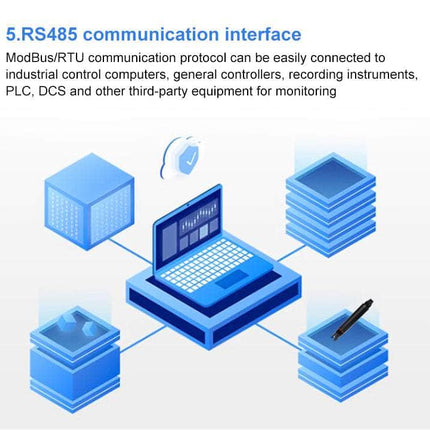

RS-485(Modbus/RTU)
|
|
shell material
|
POM
|
|
Installation method
|

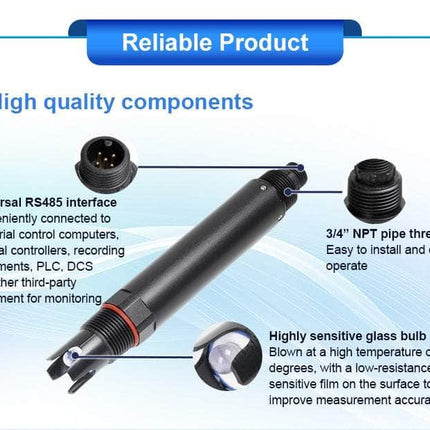

Submersible installation, 3/4" NPT pipe thread
|
|
Cable length
|
5 meters, other lengths can be customized
|
|

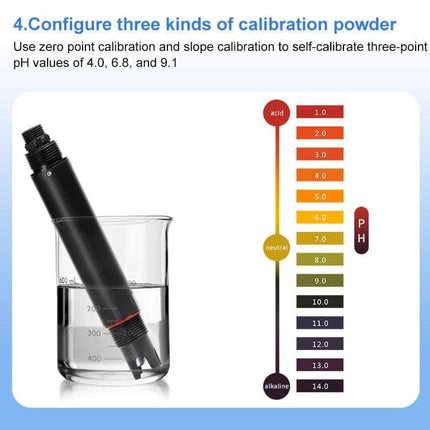

Calibration method
|
Two point calibration
|
|
Power consumption
|
0.2W@12V
|
|
Protection level
|
IP68 |
