Milesight VS330 Bathroom Occupancy Sensor PIR ToF

Milesight VS330 Bathroom Occupancy Sensor PIR ToF

Enable Analytic Work Rather Than Guesswork

For traditional public or commercial bathrooms or washrooms, the most common issue is that they get trafficked easily and usually hard to identify their status, making both users and cleaners have to knock on the door to check one by one. VS330 LoRaWAN® Bathroom Occupancy Sensor, combining ToF and PIR detection, solves the ultimate difficulty in public toilets and bathrooms at ease.

• Dual Technology, Maximal Possibility
• Industry-leading Accuracy exceeding 99.5%
• Compliant with GDPR & 100% Anonymous Detection
• Real-time Updates & Ultra-low Power Consumption
• Artful Design & Flexible Applications

Dual Technology Maximal Possibility

Many occupancy sensors on the market usually adopt one single technology to detect motion or movement which often results in low accuracy, and low accuracy will not only lead to a bad user experience but may also cause problems in some data-critical emergency situations!

To optimize accuracy and efficiency, VS330 adopts PIR and ToF to detect space occupancy in each partition of bathrooms. With PIR detecting human motion, and ToF measuring the distance from the objects, VS330 can definitely secure the detection results by achieving unparalleled accuracy and ensuring 100% anonymity.

Industry-leading Accuracy Exceeding 99.5%

Milesight develops a smart trigger logic of detection for VS330. PIR detection combined with ToF reconfirmation enables VS330 to accurately monitor the occupancy status of bathroom partitions. The embedded self-calibration algorithm further elevates the accuracy to an industry-leading level of over 99.5%.

Compliant with GDPR & 100% Anonymous Detection

PIR detects infrared radiation from objects/human while ToF (Time of Flight）measures the time for a wave to travel to the object and back. No personal information is involved in the whole process.

Real-time Update

In high traffic but low capacity environment such as public bathrooms, it is crucial to update occupancy status immediately for better flow management and higher facility efficiency.
When users enter or leave the bathroom partition, PIR is triggered firstly and then ToF technology will be used to collect data at a 5-second intervals to realize prompt and accurate updates on the occupancy status of the bathroom partition.

Ultra Low Power Consumption

High accuracy does not mean high power consumption. VS330 has sophisticated trigger logic of PIR and ToF detection, which improves power efficiency and guarantees a minimum of 4 years battery life.

Artful Design

VS330 has an artful design with chic and dainty enclosure. With rotatable probe, it can be adjusted within the range of 0~75°, providing high flexibility and minimal detection blind spot.

Also, conformal coating on PCBA of VS330 will prevent the sensor from moisture damage which may occur in damp environments of bathrooms.

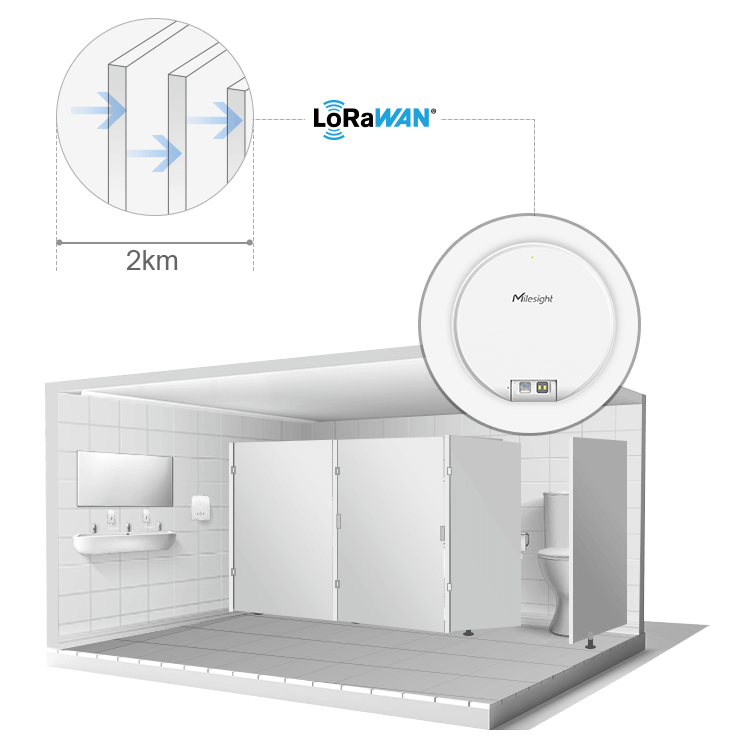

LoRaWAN® Based

• Compatible with Standard LoRaWAN® Gateway and network servers
• Data transmission range up to 15 km in rural areas and 2 km in urban areas
