10.1" 1200 x 1920 IPS Display

Description

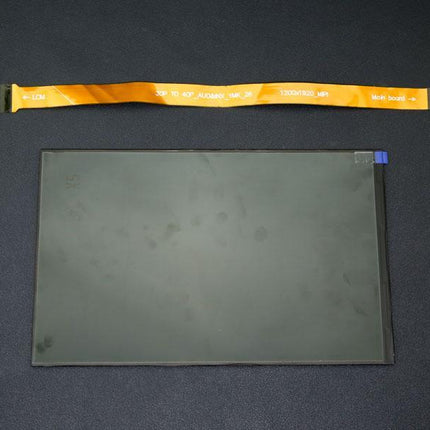

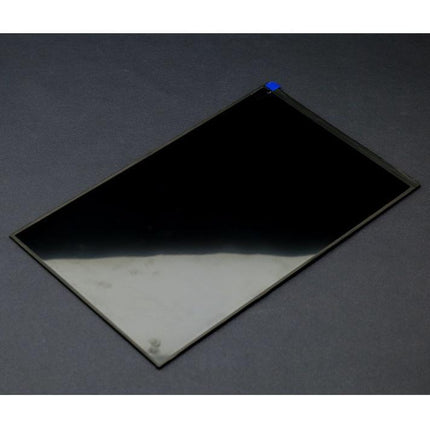

10.1" 1200 x 1920 IPS Display

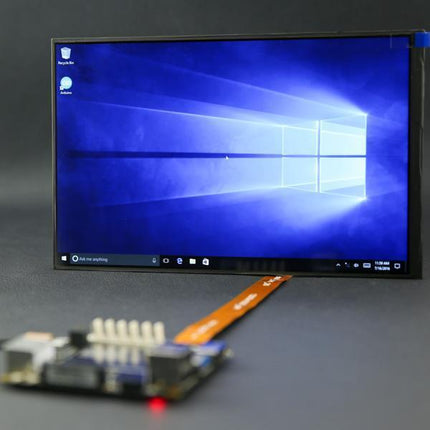

This 10.1 inch high-resolution 1200*1920 IPS display gives users the ability to create all-in-one, integrated projects such as tablets, infotainment systems and embedded projects,even adding a face for your robot, you can expand your imagination, make more fun.

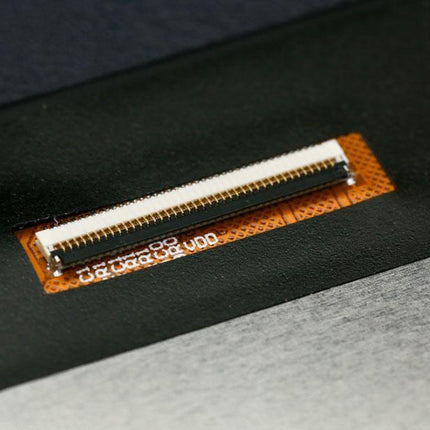

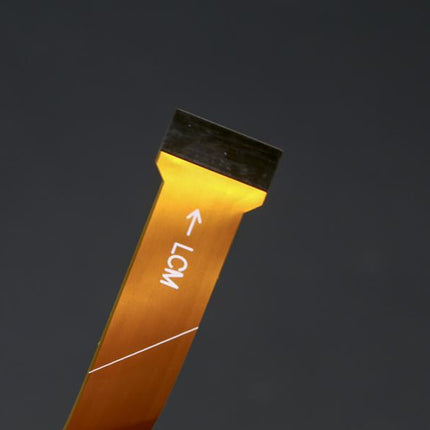

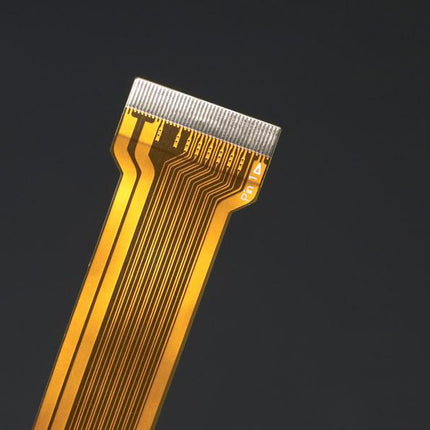

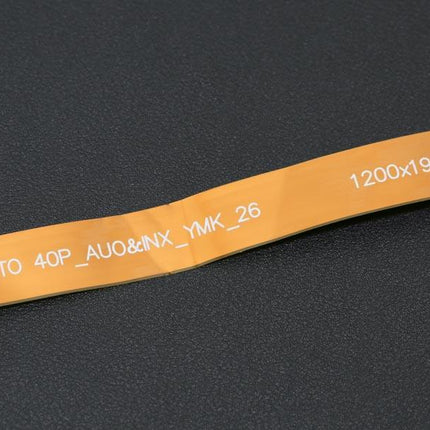

Up to 224 PPI, this 1200x1920 display will creating an impression of sharp print-like text. And only one connection to the LattePanda is required, it connects via an FPC cable which handles power and signal conversion. So, there is no need for the adapter board and it releases HDMI port to build dual-screen.


SPECIFICATION

  • Screen Size: 10.1 inch
  • Active area Dimensions: 135 * 217mm/5.31 * 8.54 inches (10:16)
  • Display Dimensions: 143 * 230 * 2.2mm/5.6 * 9.05 * 0.1 inches
  • Panel Type: TFT-LCD
  • Resolution (RGB): 1200x1920, WUXGA
  • Brightness: 300 cd/m^2
  • Contrast Ratio: 800:1 (Typ.)
  • Rated power: 3W
  • Signal input: MIPI-DSI
  • Weight: 190g
  •

    DOCUMENTS

  • Dimension Diagram with Pinout
  • BIOS Update Tutorial
  • BIOS for 32G/64G
  •



    10.1" 1200 x 1920 IPS Display

    Product form
    Free pickup in our shop(s)

    SKU: FIT0515

    $200.00 $120.00 Excl. GST

    $120.00
    Product available in stock.

      • We ship from our stock in AU (Perth), pickup by prior booking
      • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
      • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

      Description

      10.1" 1200 x 1920 IPS Display

      This 10.1 inch high-resolution 1200*1920 IPS display gives users the ability to create all-in-one, integrated projects such as tablets, infotainment systems and embedded projects,even adding a face for your robot, you can expand your imagination, make more fun.

      Up to 224 PPI, this 1200x1920 display will creating an impression of sharp print-like text. And only one connection to the LattePanda is required, it connects via an FPC cable which handles power and signal conversion. So, there is no need for the adapter board and it releases HDMI port to build dual-screen.


      SPECIFICATION

    • Screen Size: 10.1 inch
    • Active area Dimensions: 135 * 217mm/5.31 * 8.54 inches (10:16)
    • Display Dimensions: 143 * 230 * 2.2mm/5.6 * 9.05 * 0.1 inches
    • Panel Type: TFT-LCD
    • Resolution (RGB): 1200x1920, WUXGA
    • Brightness: 300 cd/m^2
    • Contrast Ratio: 800:1 (Typ.)
    • Rated power: 3W
    • Signal input: MIPI-DSI
    • Weight: 190g
    •

      DOCUMENTS

    • Dimension Diagram with Pinout
    • BIOS Update Tutorial
    • BIOS for 32G/64G
    •
