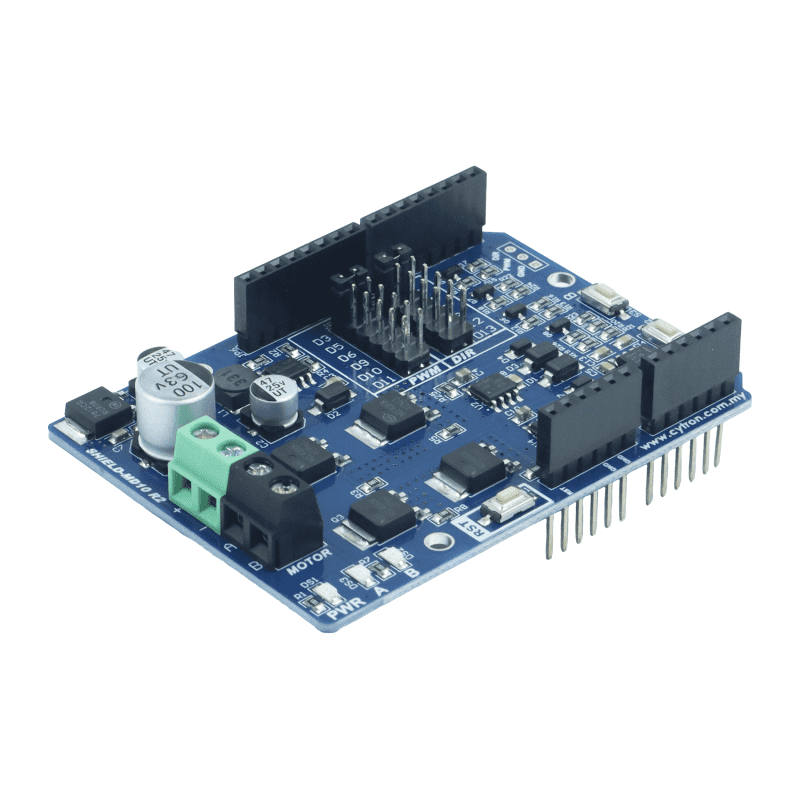

10Amp 7V-30V DC Motor Driver Shield for Arduino

Description

10Amp 7V-30V DC Motor Driver Shield for Arduino

Features

  • Bi-directional control for 1 brushed DC motor.
  • Support motor voltage ranges from 7V to 25V (Rev1.0), 7V to 30V (Rev2.0).
  • Maximum current up to 10A continuous and 15A peak (10 seconds).
  • 3.3V and 5V logic level input.
  • Solid-state components provide faster response time and eliminate the wear and tear of mechanical relay.
  • Fully NMOS H-Bridge for better efficiency and no heat sink is required.
  • Regenerative Braking.
  • Speed control PWM frequency up to 10KHz.
  • Stackable I/O header pin.
  • Selectable digital pins for PWM and DIR.


Packing List

  • 1 x Shield-MD10 (with components soldered and two mini jumpers)

Read more

10Amp 7V-30V DC Motor Driver Shield for Arduino

Product form
Free pickup in our shop(s)

SKU: SHIELD-MD10

Product Out of Stock.

Description

10Amp 7V-30V DC Motor Driver Shield for Arduino

Features

  • Bi-directional control for 1 brushed DC motor.
  • Support motor voltage ranges from 7V to 25V (Rev1.0), 7V to 30V (Rev2.0).
  • Maximum current up to 10A continuous and 15A peak (10 seconds).
  • 3.3V and 5V logic level input.
  • Solid-state components provide faster response time and eliminate the wear and tear of mechanical relay.
  • Fully NMOS H-Bridge for better efficiency and no heat sink is required.
  • Regenerative Braking.
  • Speed control PWM frequency up to 10KHz.
  • Stackable I/O header pin.
  • Selectable digital pins for PWM and DIR.


Packing List

  • 1 x Shield-MD10 (with components soldered and two mini jumpers)

Read more
