- 4K HD High-Res: Based on 12MP high resolution image sensor. Max resolution: 3840x3032
- Wide-Angle: Armed with a 110°(HFOV) M12 Lens, which is more useful for Landscape photography and so on.
- Manual Focus: You can manually adjust the focus by rotating the M12 Lens. Manual Focus is usually effective for specific conditions like low light and macro.
- Wide Compatibility: Compatible with Raspberry Pi, Windows, Android, Linux, and Mac OS with UVC protocol.
- More Applications: Embedded applications like Video systems, 3D scanners, VR cameras, electronic microscopes, and medical machines.

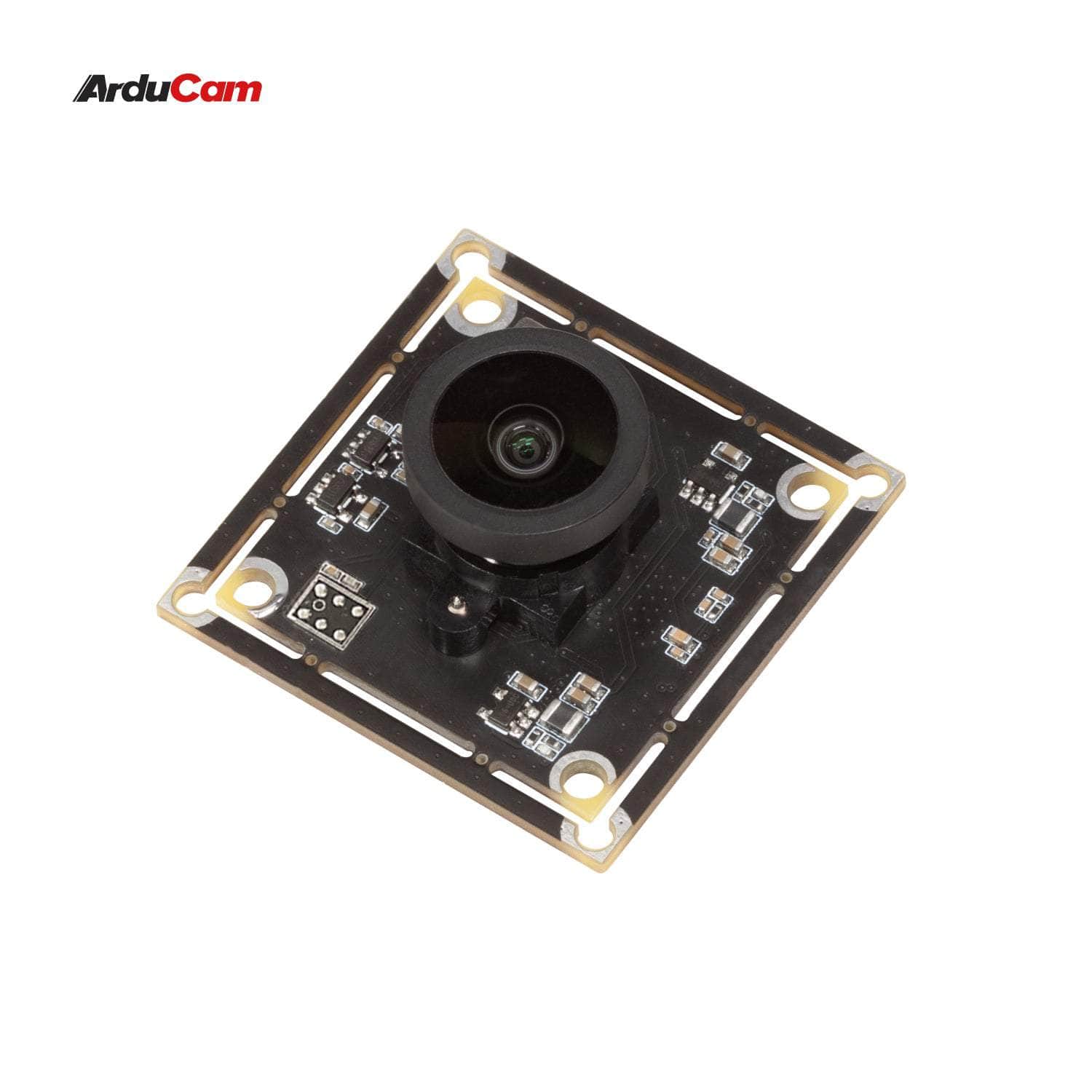

This camera is Arducam NEW UVC camera. This camera is based on 12MP High Resolution image sensor. The max resolution&frame rate is 15fps@3840(H)×3032(V). In addition, we have equipped the camera with a wide-angle M12 manual focus Lens. Arducam team is committed to creating more convenient and more efficient camera solutions. We have expanded the using scope of the image sensor, enabling the camera to realize your various projects. It is armed with a 110°(H) wide-angle M12 lens. Wide-angle lenses allow more foreground to be included, and deeper depth of field improves the overall composition and coherence of the subject in the shot. It is compatible with Windows, Linux, Android, and MAC and no additional driver is required. If you have any other requirements, please communicate with our sales team, we look forward to further cooperation with you.
Applications
- 3D Scanner
- VR Camera
- Lightburn Laser Engraver Machine
- Surveillance
- Video System
Features
- 4K HD High Resolution: Based on a 12MP CMOS image sensor with M12 lens; Max Resolution: 3840(H)×3032(V). 4k Ultra HD Capable of Capturing the most exciting detail at 15fps@3840×3032/30fps@8MP(3840×2160). Compression format: MJPG / YUY2
- Wide-Angle M12 Lens: Armed with a 110°(HFOV) wide-angle M12 Lens. Wide-angle lenses allow more foreground to be included, and deeper depth of field improves the overall composition and coherence of the subject in the shot. Additionally, the M12 lens mount allows you to swap out other lenses that are compatible with the M12 lens mount (note: lens optical size must match the sensor optical size).

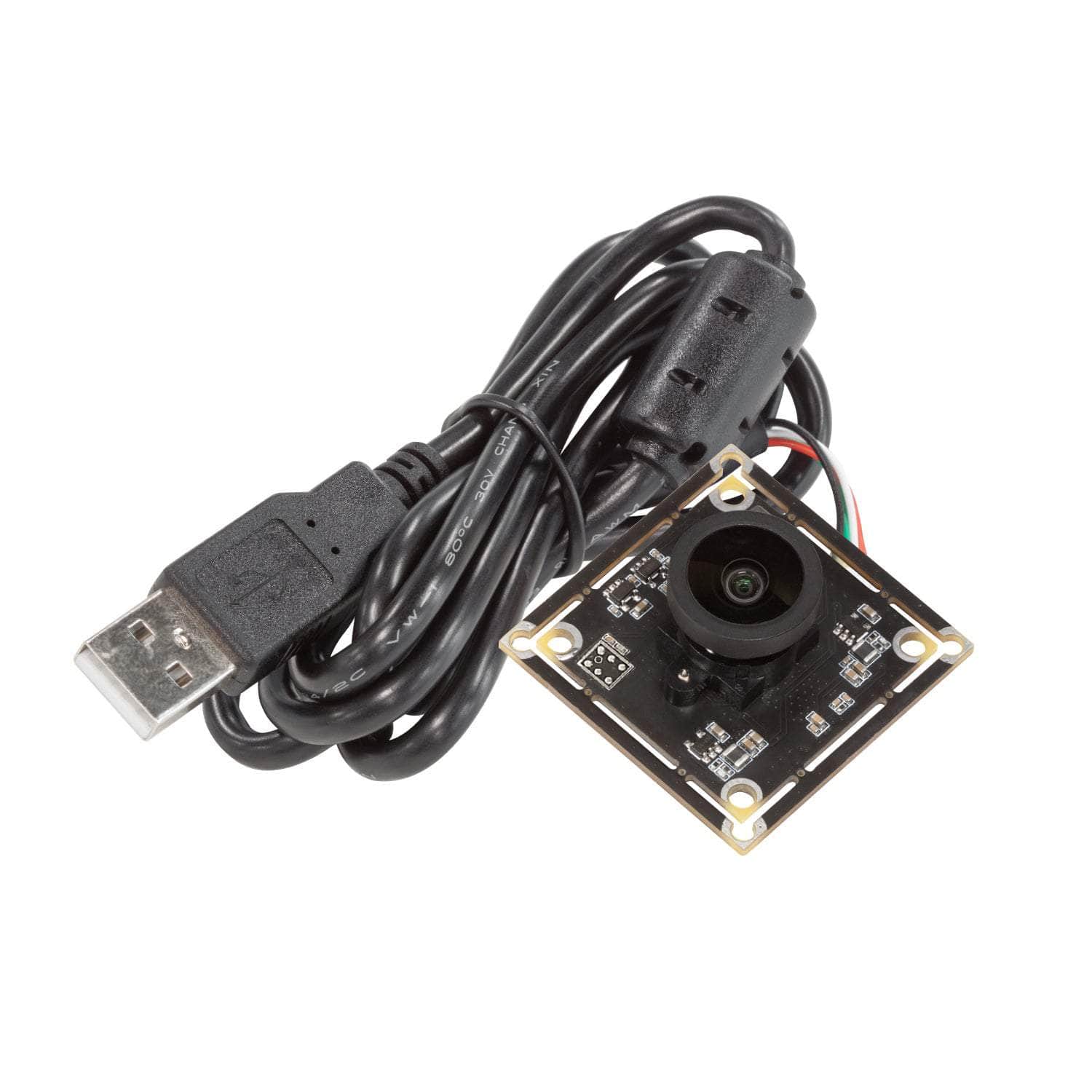

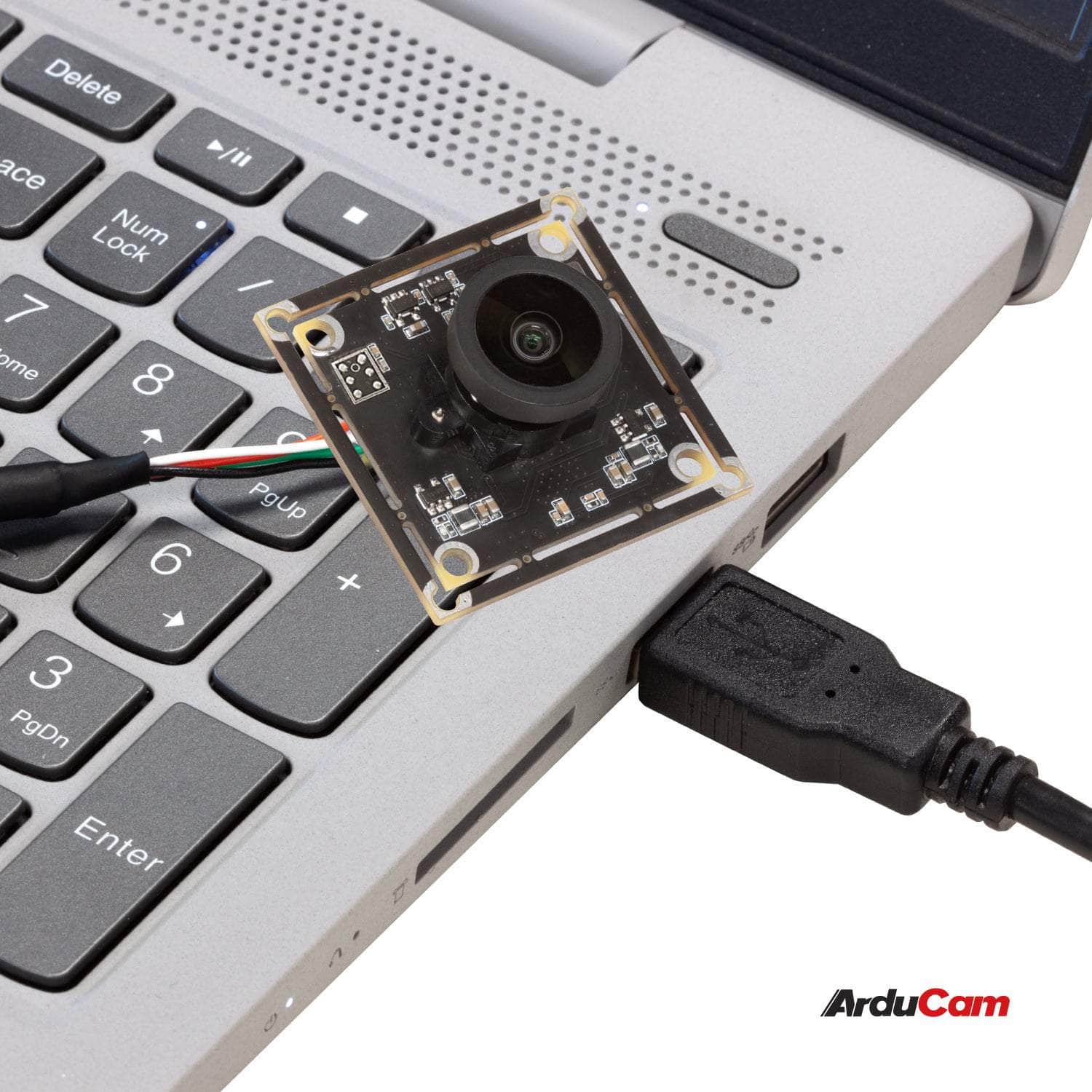

- UVC Compliant: OTG supported just plug the USB cable into your PC’s USB port, and running the software can capture the high-level video and continuous recording, no driver needed.

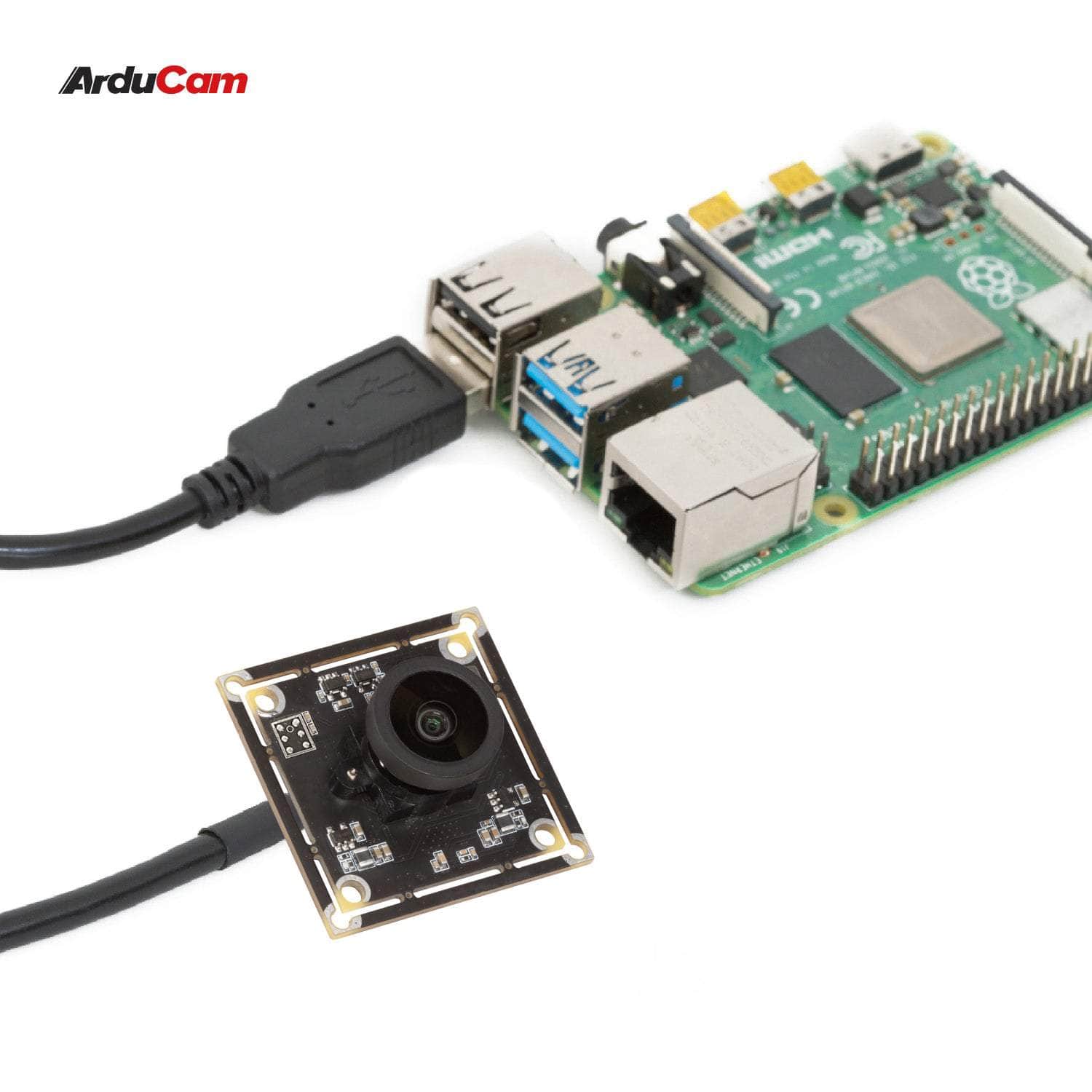

- Wide Compatibility: USB cameras are widely available for Raspberry Pi, Windows, Android, Linux, and Mac OS with UVC protocol.
- More Application: Perfect for embedded applications, Video systems, 3D scanners, VR cameras, electronic microscopes, and medical machines.
Specifications
