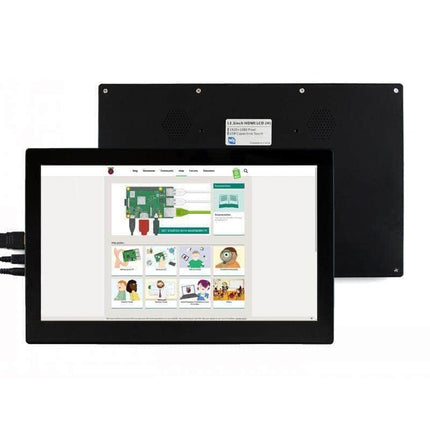

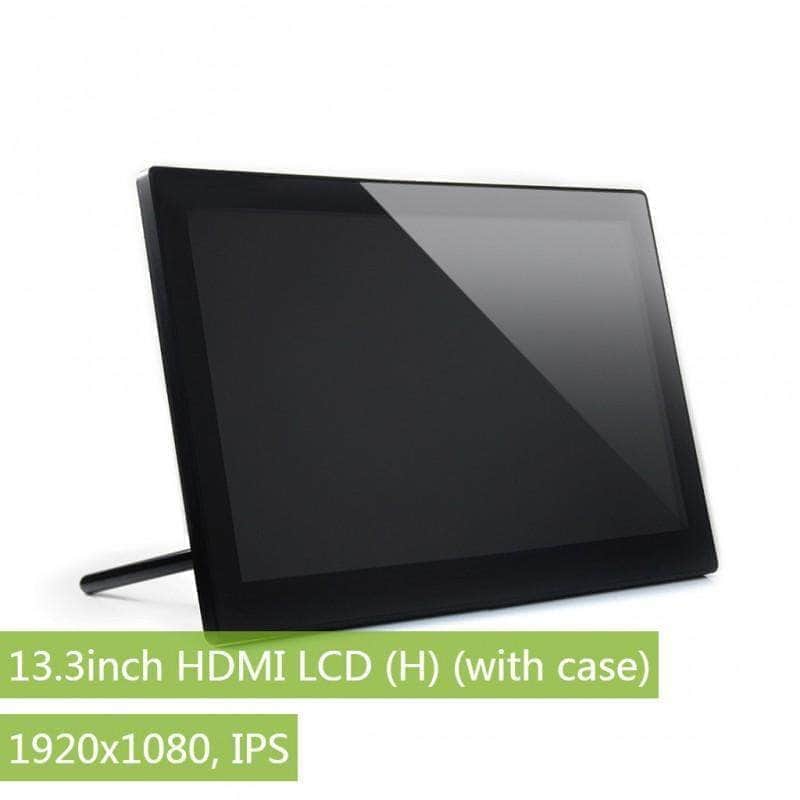

13.3 Inch HDMI LCD 1920x1080 (H) V2 Capacitive Touch Screen (with case)
13.3inch, IPS, 1920x1080, Capacitive Touch Screen LCD with Toughened Glass Cover, Supports Multi mini-PCs, Multi-Systems.
Features
- 13.3inch IPS screen,1920x1080 high resolution
- Toughened glass capacitive touch panel, 6H hardness
- Supports popular mini PCs such as Raspberry Pi, BB Black, as well as general desktop computers

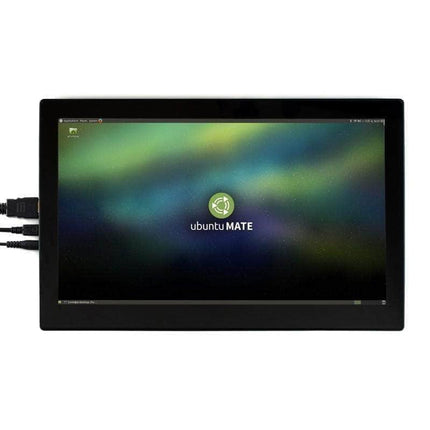

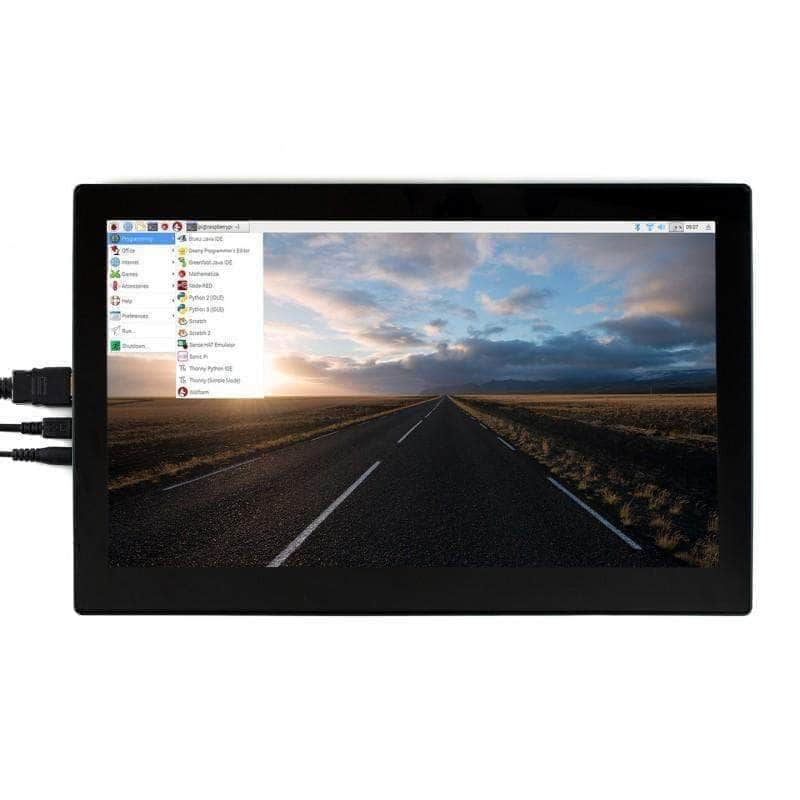

- When works with Raspberry Pi, supports Raspbian, Ubuntu, WIN10 IOT, single touch, and driver free
- When work as a computer monitor, supports Windows 10/8.1/8/7, ten-point touch, and driver free
- Multi-languages OSD menu, for power management, brightness/contrast adjustment, etc.
- 3.5mm audio jack supports HDMI audio output
- Embedded ferrite Hi-Fi speaker
- Also supports VGA input
- 100x100mm spacing mounting holes (M4 screw hole) for general wall mount

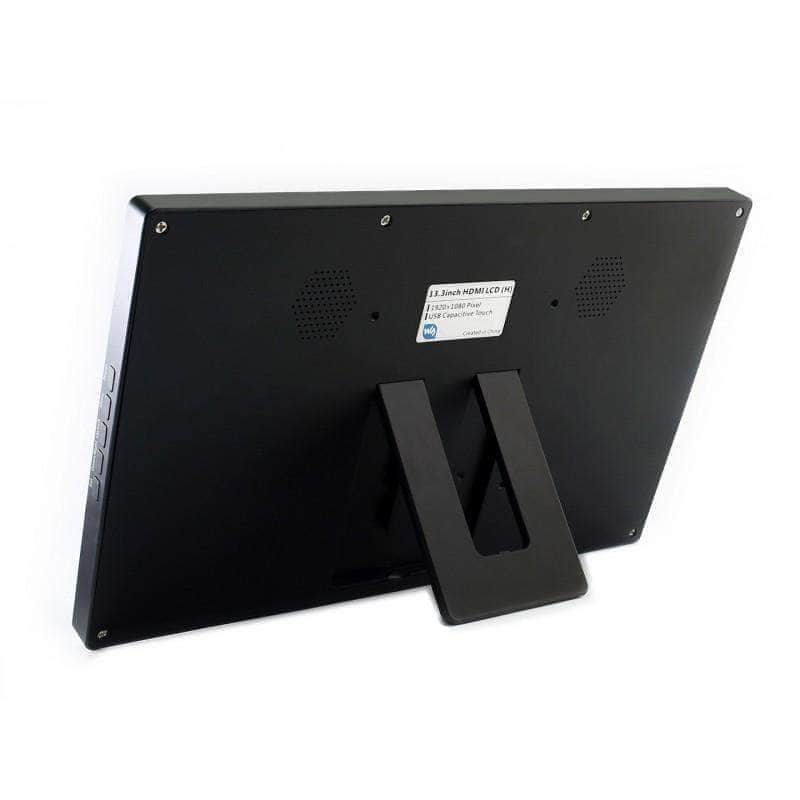

- Comes with 75° tilt angle stand
External Dimension
Connection Examples

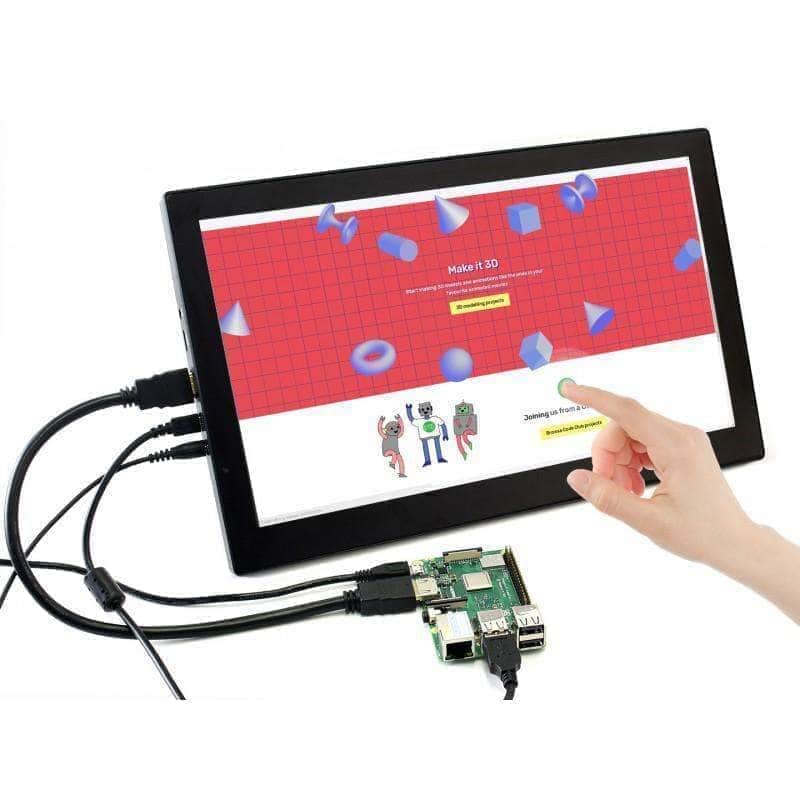

Working With Raspberry Pi 4
Working With Raspberry Pi Zero W
Working With AI Computer Jetson Nano
Working With Mini PC
Display
IPS Panel
Touch Control
1) up to 10-points touch, depending on the operating system. 2) up to 6H hardness toughened glass panel.
Audio Feature
Enjoy Gaming
Appearance And Dimensions
Package Includes:
- 13.3inch HDMI LCD (H) (with case) x1
- Power adapter 12V x1
- HDMI cable x1
- USB type A plug to micro B plug cable x1
FAQ
- Why doesn't the LCD work with my Raspbian?
- To use the LCD with the Raspberry Pi official image, the driver should be installed first. Please refer to the user manual.
However, for the first testing, you may want to use the provided image directly.
-
Why the LCD still doesn't work with the provided image?
- Make sure the hardware connection is correct and connects fine.
Make sure the image in TF card is burnt correctly.
The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact.
- Which power supply should I use?
- It is recommended to use a 5V/2A power adapter for the Raspberry Pi other than USB connection, otherwise, the Pi may fail to start up because the PC's USB port might have not enough power.
For large size LCDs, say, 10 inches diagonal or more, another stand-alone power adapter is also required to provide power to the LCD.
