16MP IMX519 Camera Module with M12 Lens, Raspberry Pi and OpenHD B0449
16MP IMX519 Camera Module with M12 Lens, Wide Angle Color Rolling shutter for Raspberry Pi and OpenHD
Arducam IMX519 camera module is a high-quality camera designed for an excellent image and video capturing capabilities. With a 16MP high-pixel sensor and an M12 HD lens, it delivers exceptional image quality with clear details and vibrant colors.
The manual focus adjustment feature allows users to customize their photography and videography experience, while the wide FoV captures more details of the image.
Arducam is committed to creating diverse and convenient camera solutions for embedded camera users. We are not only engaged in the production and development of optical products but also strive to provide complete solutions for embedded cameras, optical components, etc.
Applications
- Astrophotography
- Surveillance cameras
- FA cameras
- Industrial/Agricultural cameras
- Autonomous mobile robots, UGV/UAV, ADAS, etc.
Features
- 16MP for All Pis: Based on a 16MP IMX519 image sensor with a pixel resolution of 4656 x 3496, twice as high as the v2 camera and 40% higher than the HQ camera.
- V1/V2/V3 size: With a compact size of 25*24mm, this camera is perfect for drones and other embedded applications, providing excellent versatility.

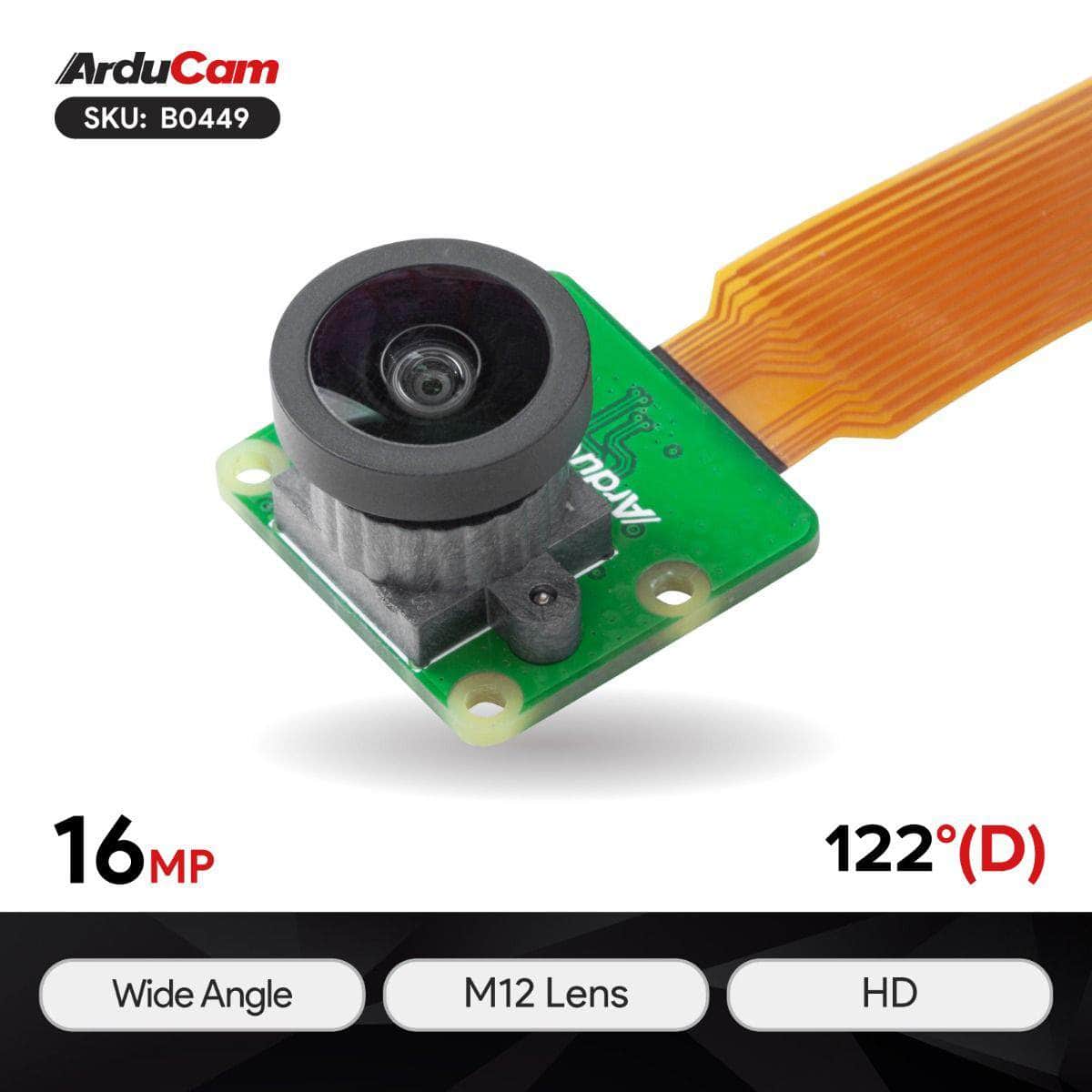

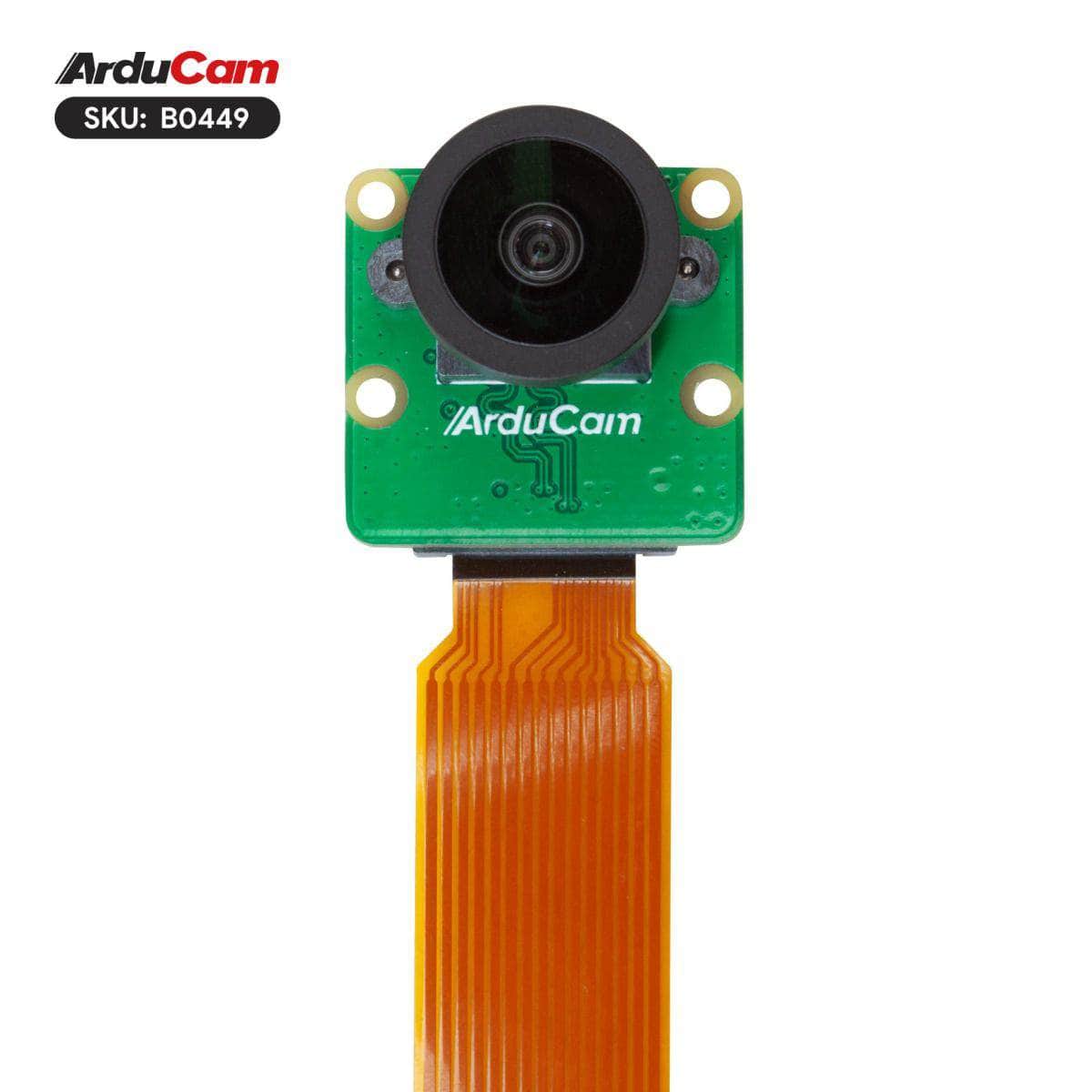

- M12 Manual Focus: Easy to manually adjust focus distance with the M12 HD lens, the 120° ultra-wide angle Lens captures exceptional detail and clarity for any project.
- Crisper Images/Video: Captures smooth and clear 1080p30 and 720p60 video, making it perfect for streaming or recording your next project.

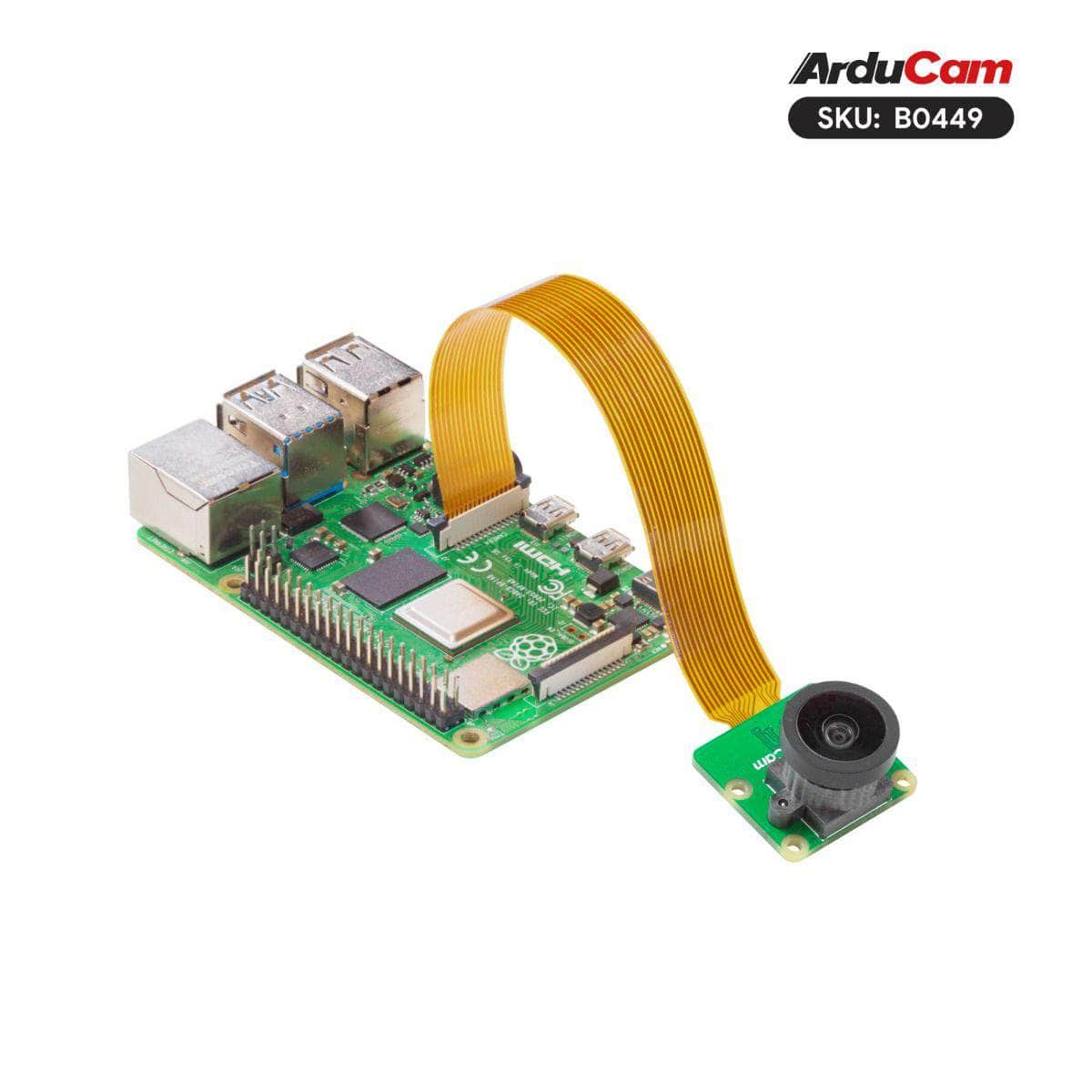

- Wide Compatible: Compatible with all Raspberry Pi camera boards, including the Raspberry Pi Zero, this camera offers a hassle-free, versatile solution for all your camera needs.
Specifications
| Image Sensor | IMX519 |
|---|---|
| Resolution | 16MP |
| Optical Size | Type 1/2.53" |
| Number of effective pixels | 4656(H)×3496(V) |
| Pixel Size | 1.22μm×1.22μm |
| Support Platform | Raspberry Pi 4/Jetson Nano |
| Shutter Type | Rolling shutter |
| Color Filter Array | Quad-Bayer RGB |
| Frame Rate | 1080p30, 720p60 |
| Output Format | RAW 10/RAW 8, COMP8 |
| F.NO | 2.85±5% |
| Focus Type | Manual Focus |
| Focal Length | 2.87±5% |
| Lens Size | M12*P0.5mm |

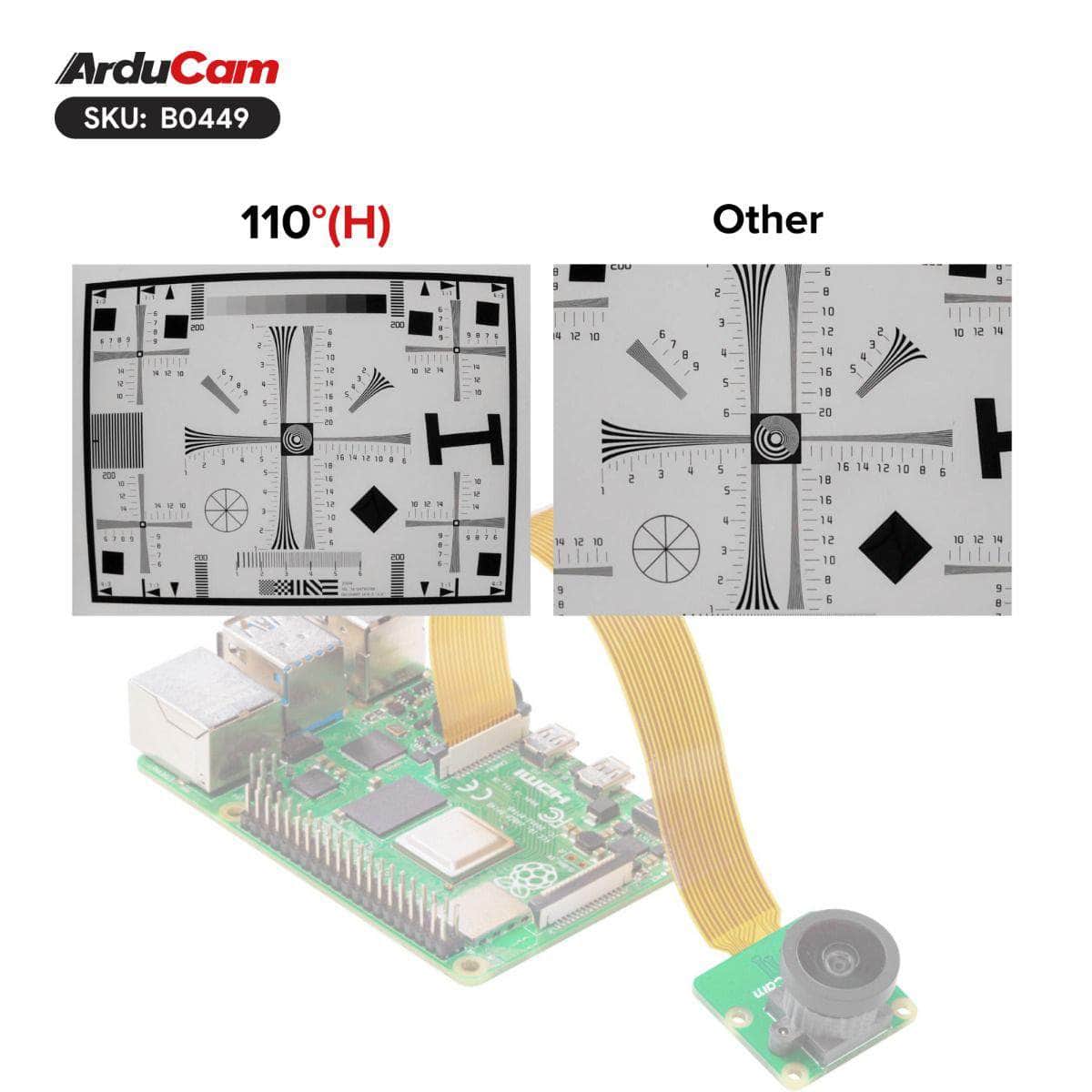

| Field of View(FOV) | 122°(D)×110°(H)×94°(V) |
| IR Sensitivity | Integral IR-cut Filter, visible light only |

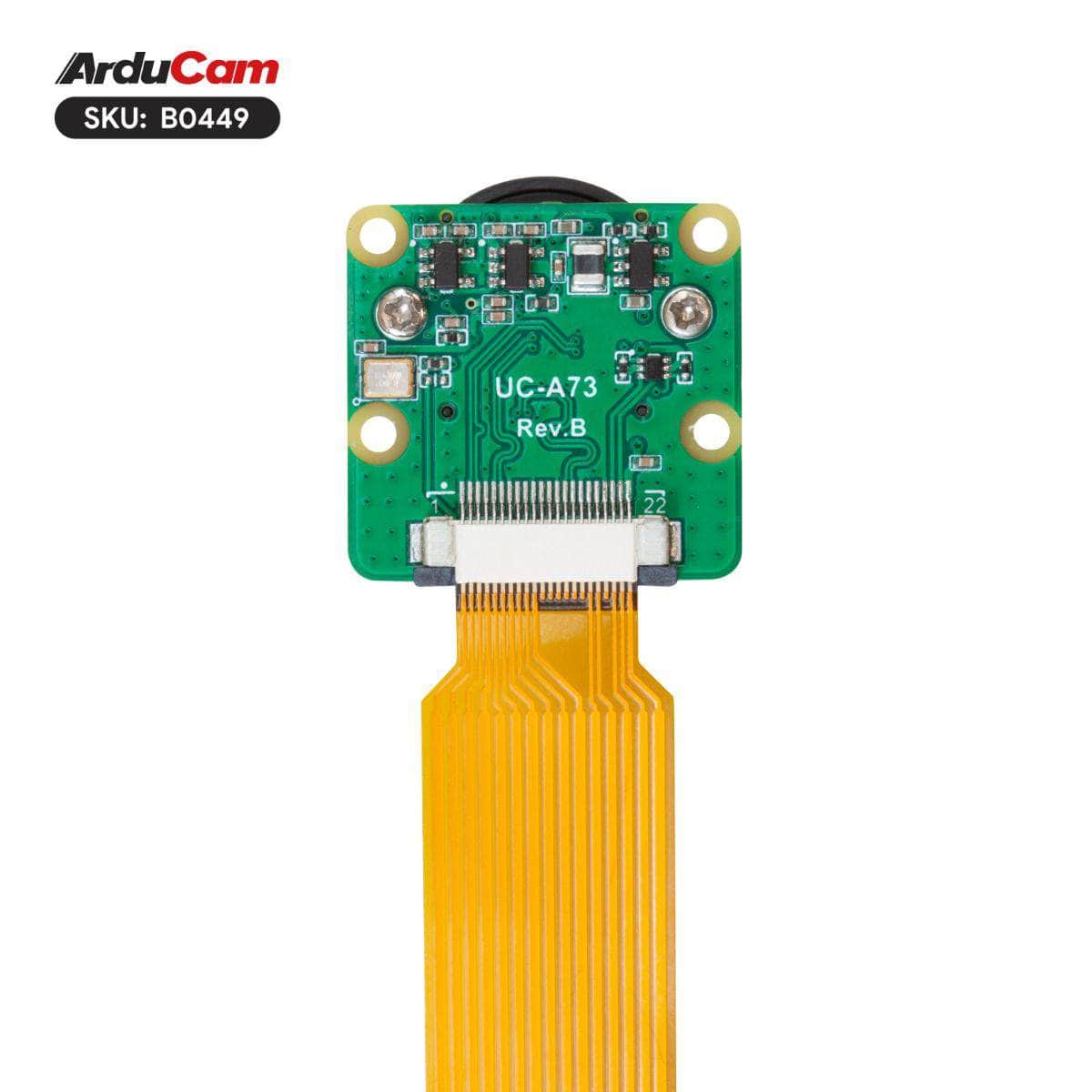

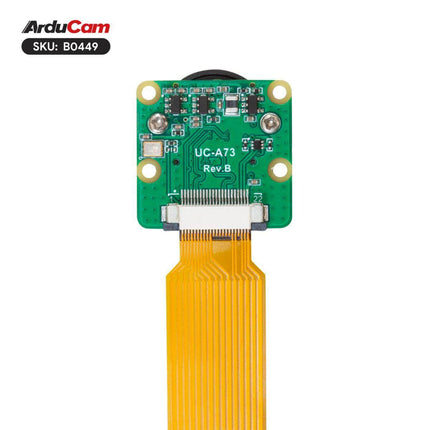

| Camera Board Size | 25*24mm(Hole Pitch: 21*12.5mm) |
Package Including

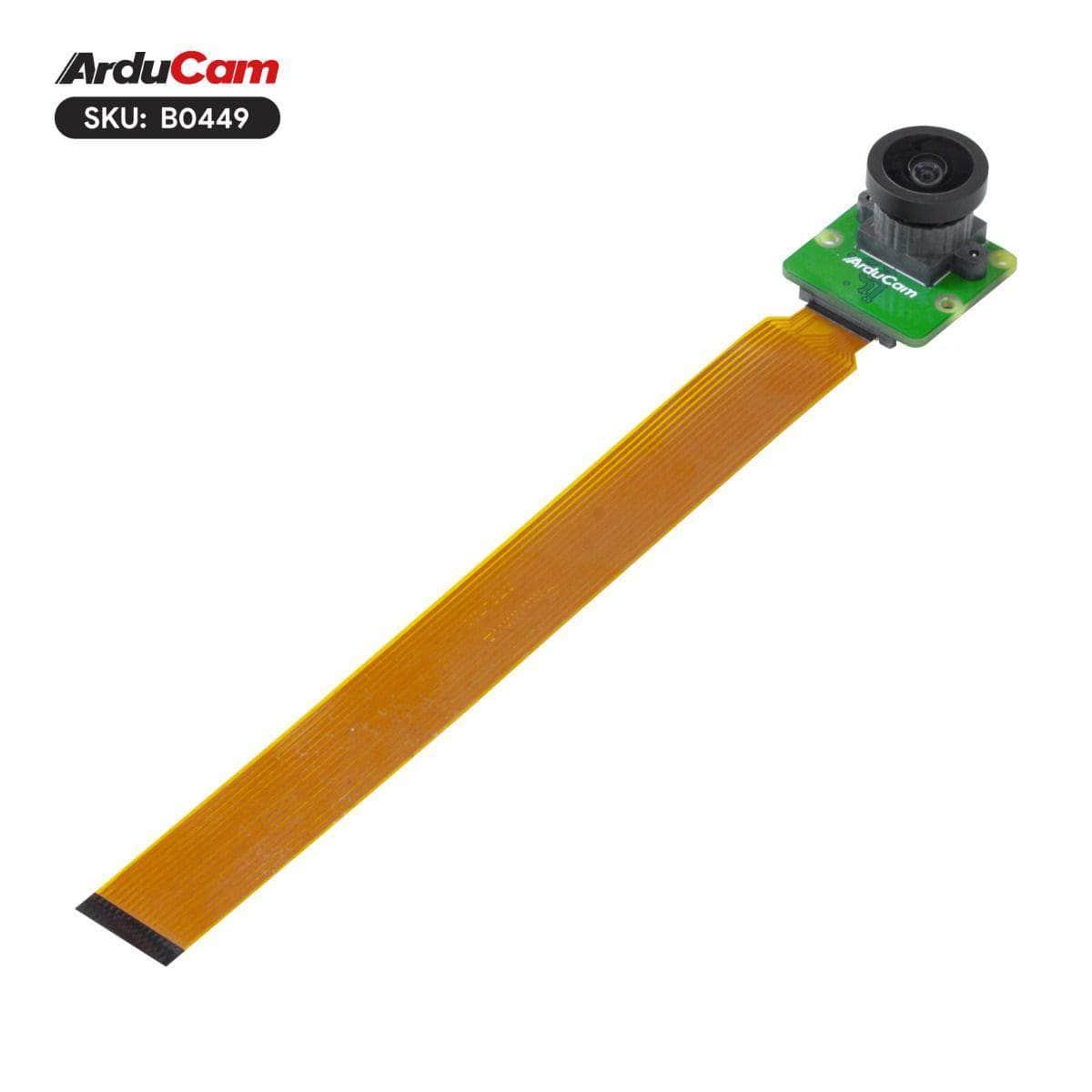

- 1 x IMX519 M12 Camera Module with 15-22pin FPC Cable
- 1 x Quick Start Guide

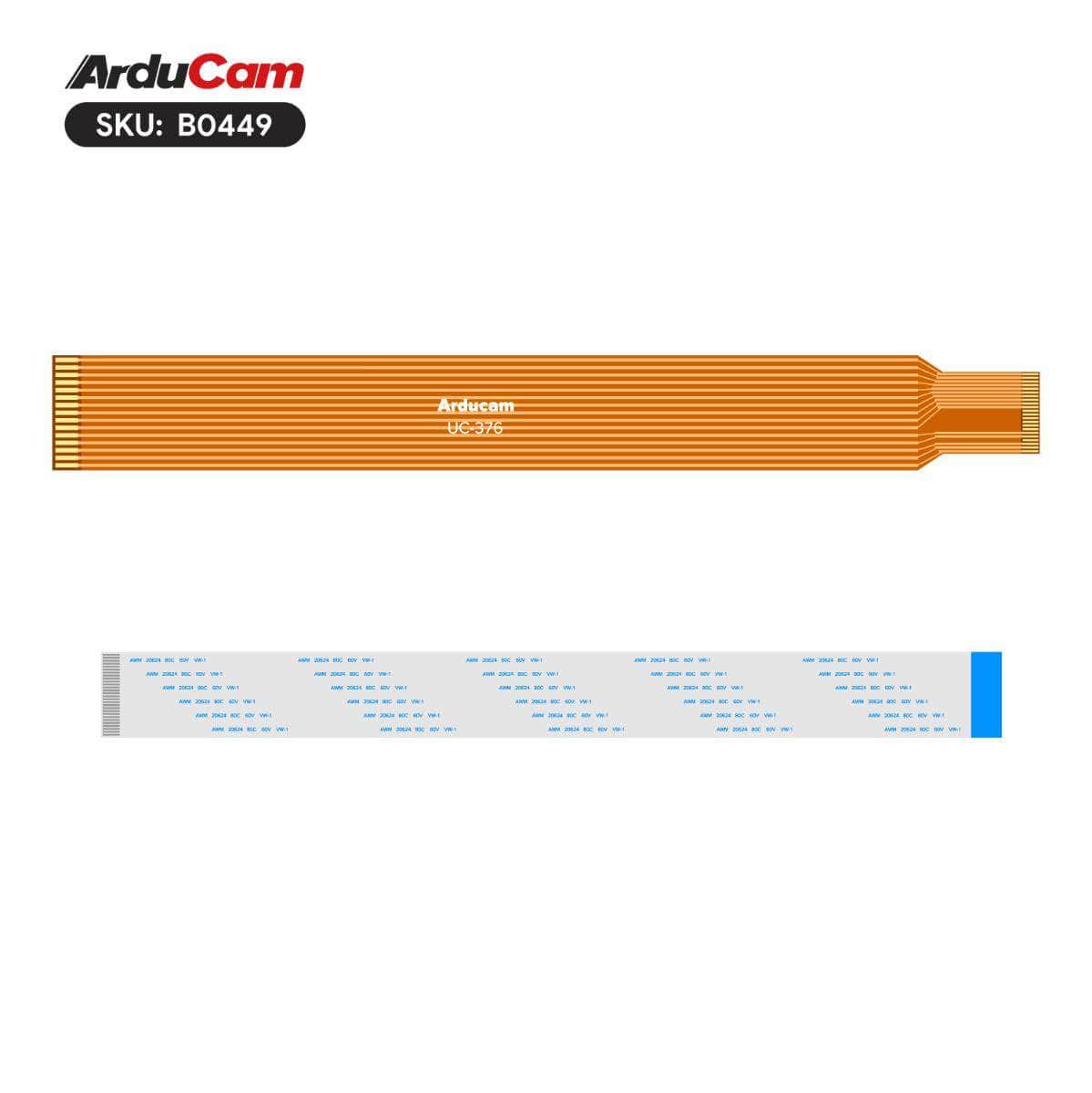

- 1 x 150mm 22-22pin FPC Cable
Notes
- The package contains small contents, please keep it away from children to avoid accidental ingestion
- After receiving the package, please confirm whether the contents of the package are consistent with the description
- No Raspberry Pi board is included in the package
