16x12 G click - MikroElektronika LED Display

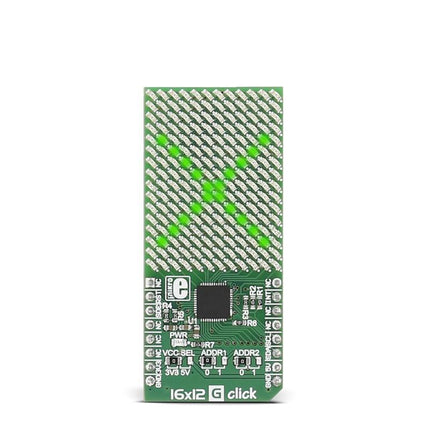

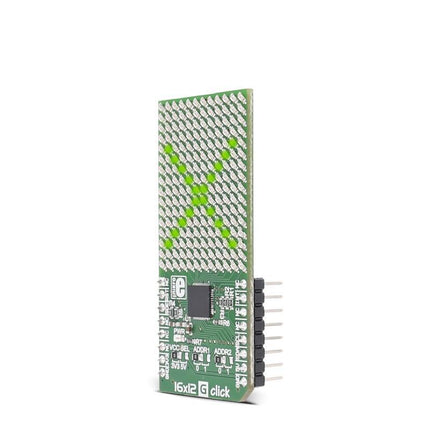

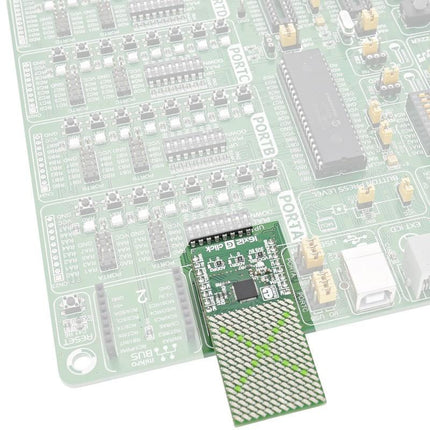

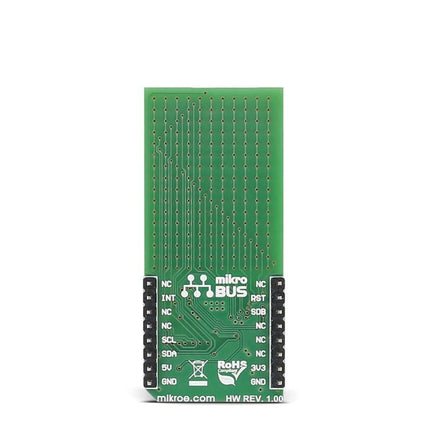

16x12 G click carries a 16x12 LED display and the IS31FL3733 matrix driver. The click is designed to run on either 3.3V or 5V power supply. It communicates with the target microcontroller over I2C interface, and the following pins on the mikroBUS™ line: INT, RST, CS.
Each LED can be controlled individually – both for on/off control and light intensity.
IS31FL3733 driver features
The IS31FL3733 is a general purpose 12×16 LEDs matrix driver with 1/12 cycle rate.
Each of the 192 LEDs can be dimmed individually with 8-bit PWM data, which allows 256 steps of linear dimming.
The driver has selectable 3 Auto Breath Modes for each LED ( ABM-1, ABM-2, and ABM-3).
Specifications
| Type |
LED Matrix |
| Applications |
Gaming devices, small handheld devices, home appliances, IoT devices, etc. |
| On-board modules |
IS31FL3733 matrix driver |
| Key Features |
Selectable 3 Auto Breath Modes for each dot, Individual 256 PWM control steps |
| Key Benefits |
Each of the 192 LEDs can be dimmed individually |
| Interface |
GPIO,I2C |
| Input Voltage |
3.3V or 5V |
| Click board size |
L (57.15 x 25.4 mm) |
