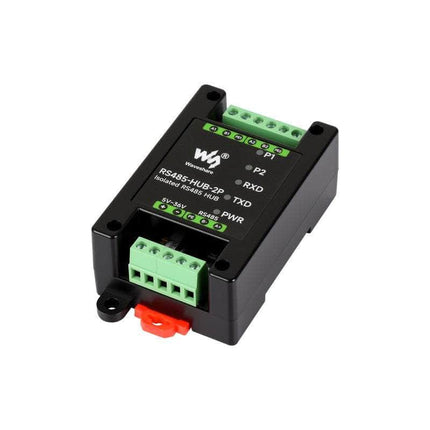

Industrial Isolated 2-Ch RS485 Hub Wide Baud rate Range with Signal Relay

Description

Industrial Isolated 2-Ch RS485 Hub Wide Baud rate Range with Signal Relay

Features

RS485-HUB-2P is an industrial grade isolated RS485 hub that can expand 2-ch RS485 sub ports through 1-ch RS485 master port. It can realize signal relay, extension and isolation functions of RS485 network, with screw terminal for power input. Rail-mount case design, easy to install, and cost-effective. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...

Specifications

Interface standard Compliant with RS485 standard
Physical interface RS485 screw terminals
Baud rate 300~460800bps (self-adaptive)
supported nodes Each RS485 port supports up to 32 nodes
Communication distance 1200m (9600bps), the higher rate the shorter distance
Operating mode RS485 two-wire (A, B), half-duplex transparent transmission
Power supply DC 5V ~ 36V
Operating temperature -45 ~ +85℃
Environment humidity <95%RH
Transmission medium Normal parallel cables/twisted-pair cables

Primary function

Supports RS485 network relay, extension and isolation functions

RS485-HUB-2P, Primary function
Application Diagram

Point-to-point RS485 Relay Communication

Supports RS485 one-to-two expansion, point-to-point, half-duplex, and relay communication

RS485-HUB-2P, Point-to-point RS485 Relay Communication

Point-to-multipoint RS485 Relay Communication

Supports RS485 bus star topology connection for flexible networking, with built-in signal relay and amplification

RS485-HUB-2P, Point-to-multipoint RS485 Relay Communication

Multi-Device RS485 Cascading Communication

Supports cascading of multiple RS485 devices to solve multi-node networking connection issues in large systems, ensuring stable and reliable signal amplification

RS485-HUB-2P, RS485 Cascading Communication

Industrial isolation protection

Built-in optoelectronic isolation circuit, can effectively isolate RS485 master and sub devices, provides multiple protection such as anti-electrostatic, lightningproof & anti-surge, which is suitable for the industrial environment with high reliability and safety requirements.

RS485-HUB-2P, Industrial isolation protection


Wide baud rate range

Supports 300~460800bps Wide Baud Rate Communication Range (self-adaptive)

RS485-HUB-2P, Wide baud rate range

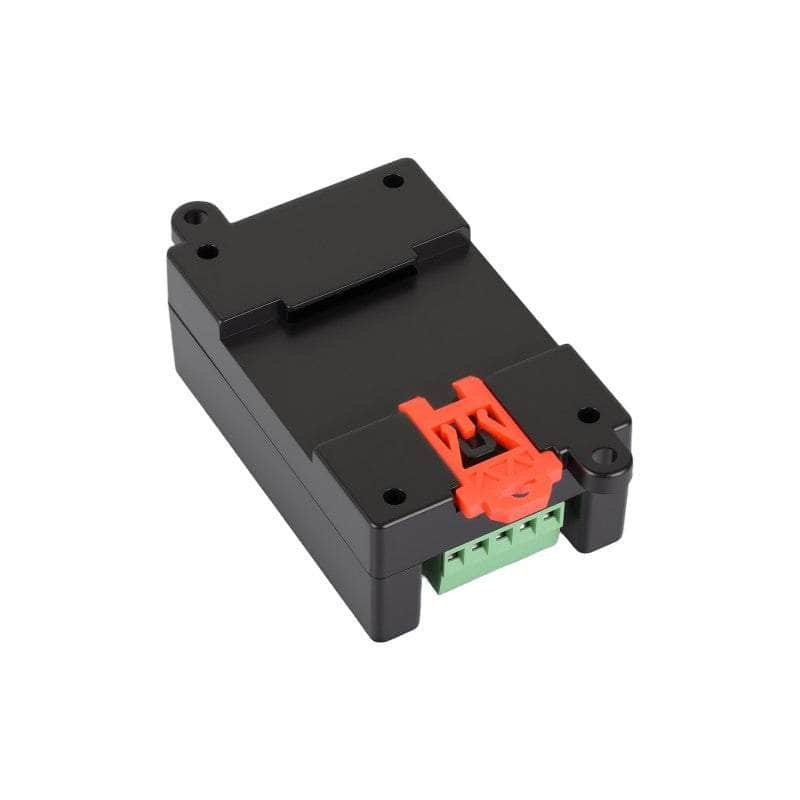

Wall-mount and Rail-mount Support

Supports 35mm standard guide rail, with rail-mount buckle, easy to install

RS485-HUB-2P, Rail-mount Support RS485-HUB-2P, DIN-rail Support

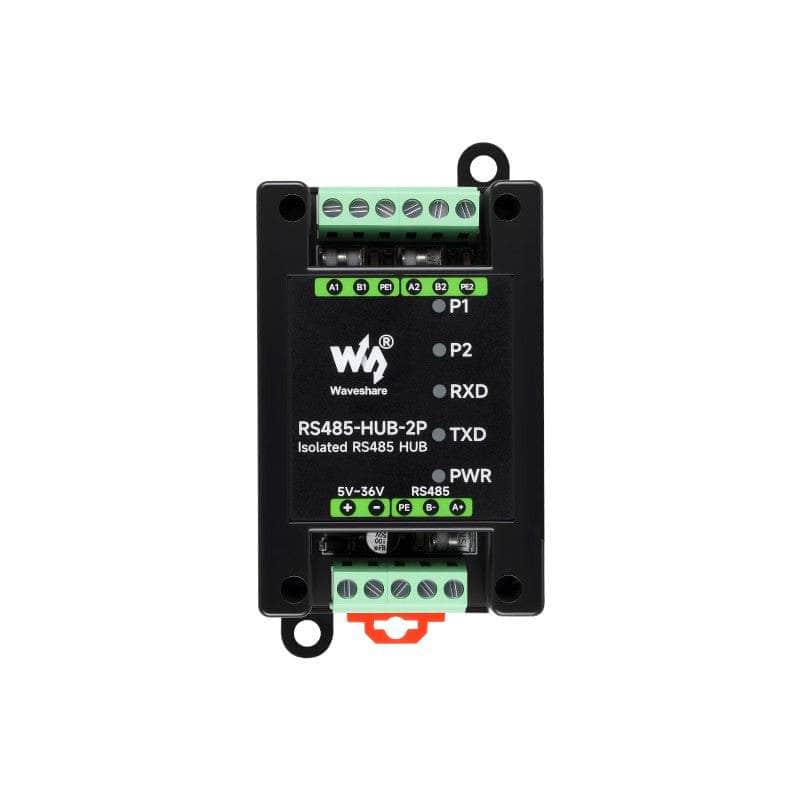

Interface introduction
RS485-HUB-2P, Interface introduction


Outline Dimensions

RS485-HUB-2P, Outline Dimensions





Industrial Isolated 2-Ch RS485 Hub Wide Baud rate Range with Signal Relay

Product form
Free pickup in our shop(s)

SKU: RS485-HUB-2P

$49.00 $39.00 Excl. GST

$39.00
New stock coming, dispatch in 5-6 days.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description

    Industrial Isolated 2-Ch RS485 Hub Wide Baud rate Range with Signal Relay

    Features

    RS485-HUB-2P is an industrial grade isolated RS485 hub that can expand 2-ch RS485 sub ports through 1-ch RS485 master port. It can realize signal relay, extension and isolation functions of RS485 network, with screw terminal for power input. Rail-mount case design, easy to install, and cost-effective. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...

    Specifications

    Interface standard Compliant with RS485 standard
    Physical interface RS485 screw terminals
    Baud rate 300~460800bps (self-adaptive)
    supported nodes Each RS485 port supports up to 32 nodes
    Communication distance 1200m (9600bps), the higher rate the shorter distance
    Operating mode RS485 two-wire (A, B), half-duplex transparent transmission
    Power supply DC 5V ~ 36V
    Operating temperature -45 ~ +85℃
    Environment humidity <95%RH
    Transmission medium Normal parallel cables/twisted-pair cables

    Primary function

    Supports RS485 network relay, extension and isolation functions

    RS485-HUB-2P, Primary function
    Application Diagram

    Point-to-point RS485 Relay Communication

    Supports RS485 one-to-two expansion, point-to-point, half-duplex, and relay communication

    RS485-HUB-2P, Point-to-point RS485 Relay Communication

    Point-to-multipoint RS485 Relay Communication

    Supports RS485 bus star topology connection for flexible networking, with built-in signal relay and amplification

    RS485-HUB-2P, Point-to-multipoint RS485 Relay Communication

    Multi-Device RS485 Cascading Communication

    Supports cascading of multiple RS485 devices to solve multi-node networking connection issues in large systems, ensuring stable and reliable signal amplification

    RS485-HUB-2P, RS485 Cascading Communication

    Industrial isolation protection

    Built-in optoelectronic isolation circuit, can effectively isolate RS485 master and sub devices, provides multiple protection such as anti-electrostatic, lightningproof & anti-surge, which is suitable for the industrial environment with high reliability and safety requirements.

    RS485-HUB-2P, Industrial isolation protection


    Wide baud rate range

    Supports 300~460800bps Wide Baud Rate Communication Range (self-adaptive)

    RS485-HUB-2P, Wide baud rate range
    Wall-mount and Rail-mount Support

    Supports 35mm standard guide rail, with rail-mount buckle, easy to install

    RS485-HUB-2P, Rail-mount Support RS485-HUB-2P, DIN-rail Support
    Interface introduction
    RS485-HUB-2P, Interface introduction


    Outline Dimensions

    RS485-HUB-2P, Outline Dimensions
