3D Motion click - MikroElektronika 9-axis Sensor Fusion Motion Module

Description

3D Motion click - MikroElektronika 9-axis Sensor Fusion Motion Module

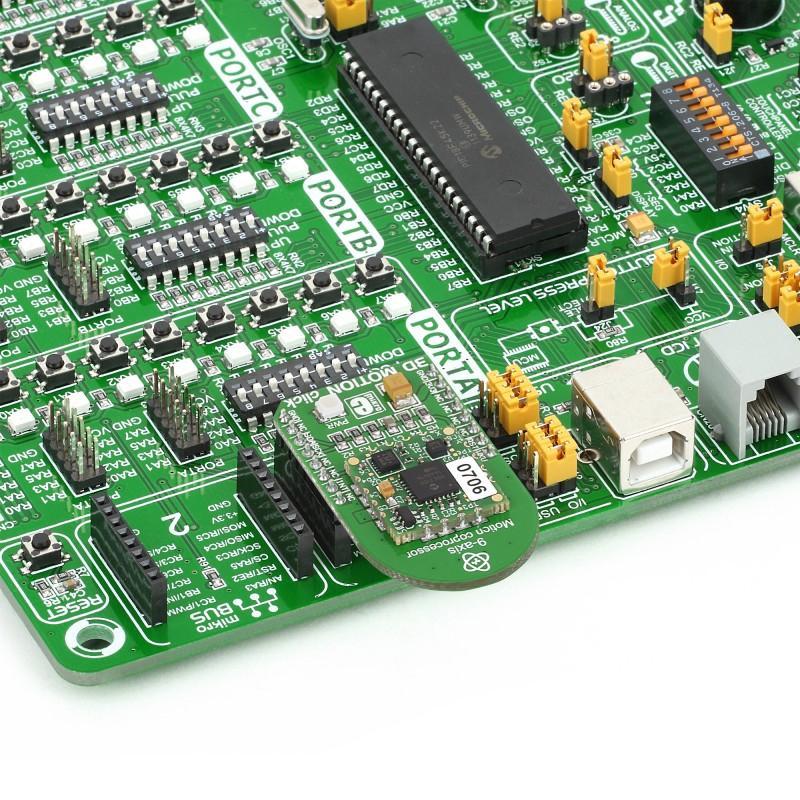

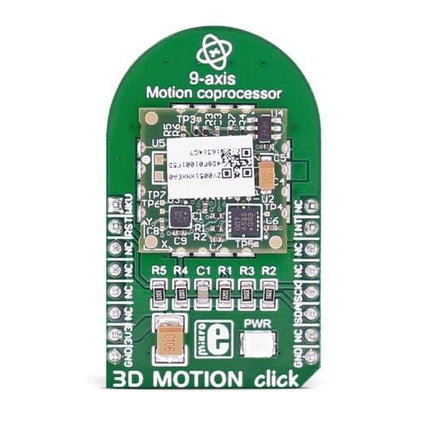

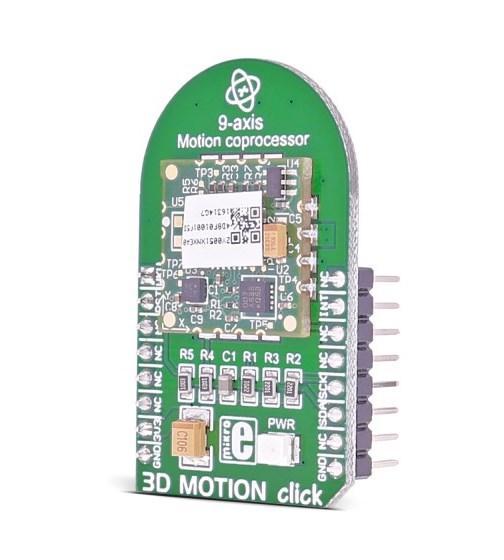

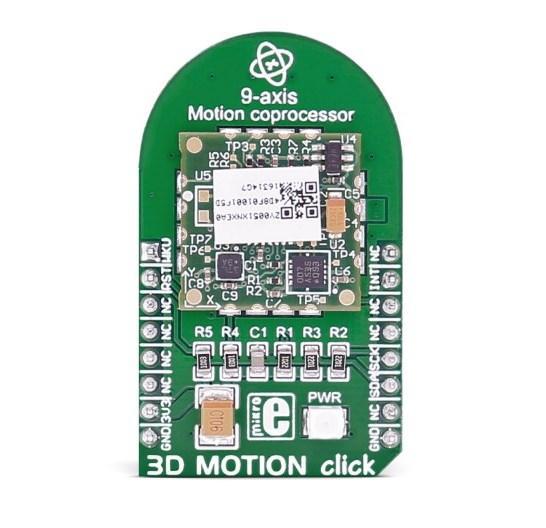

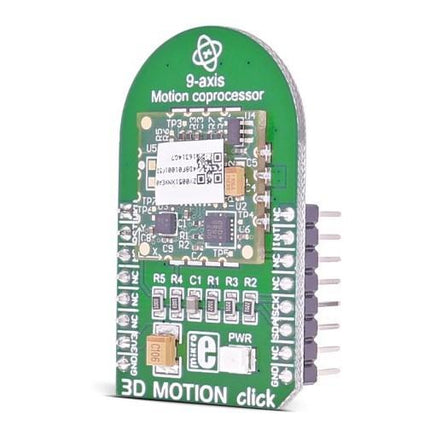

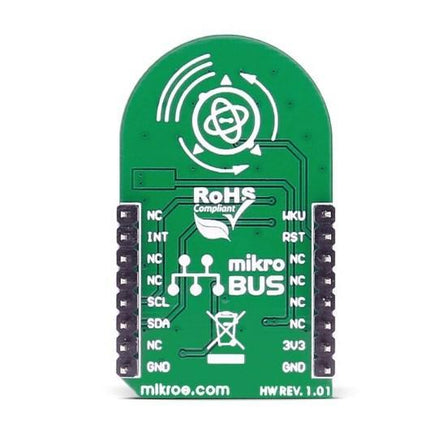

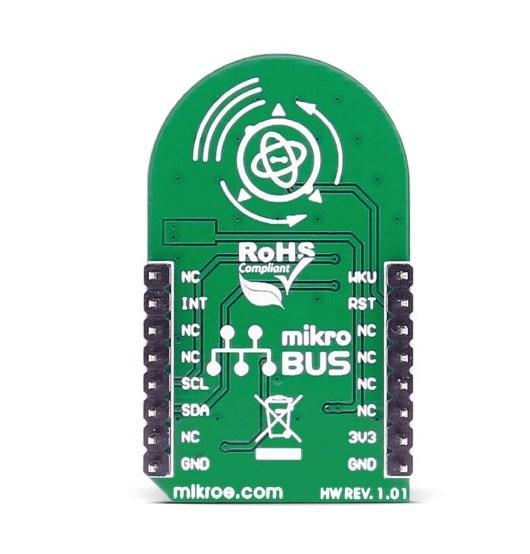

3D Motion click carries Microchip’s MM7150 9-axis sensor fusion motion module. It’s a completely self-contained solution comprising a 3-axis accelerometer, a gyroscope, a magnetometer, and a SSC7150 motion coprocessor. The motion coprocessor has sensor fusion algorithms that take raw data from individual sensors and filter, compensate and combine them together. The resulting output provides reliable and accurate positioning and orientation information. The board communicates with the target MCU through the mikroBUS I2C interface; WAKE and RESET pins are also used (in place of default mikroBUS AN and RST respectively), as well as an interrupt pin (INT).

Downloads

Read more

3D Motion click - MikroElektronika 9-axis Sensor Fusion Motion Module

Product form
Free pickup in our shop(s)

SKU: MIKROE-1877

$100.00 $70.00 Excl. GST

$70.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description

    3D Motion click - MikroElektronika 9-axis Sensor Fusion Motion Module

    3D Motion click carries Microchip’s MM7150 9-axis sensor fusion motion module. It’s a completely self-contained solution comprising a 3-axis accelerometer, a gyroscope, a magnetometer, and a SSC7150 motion coprocessor. The motion coprocessor has sensor fusion algorithms that take raw data from individual sensors and filter, compensate and combine them together. The resulting output provides reliable and accurate positioning and orientation information. The board communicates with the target MCU through the mikroBUS I2C interface; WAKE and RESET pins are also used (in place of default mikroBUS AN and RST respectively), as well as an interrupt pin (INT).

    Downloads

    Read more
