High Gain 4 in 1 Combo 5G 4G LTE WiFi LoRa GPS Antenna Cabinet Roof Mount SMA-Male 1m-cable

Description

High Gain 4 in 1 Combo 5G 4G LTE WiFi LoRa GPS Antenna Cabinet Roof Mount SMA-Male 1m-cable

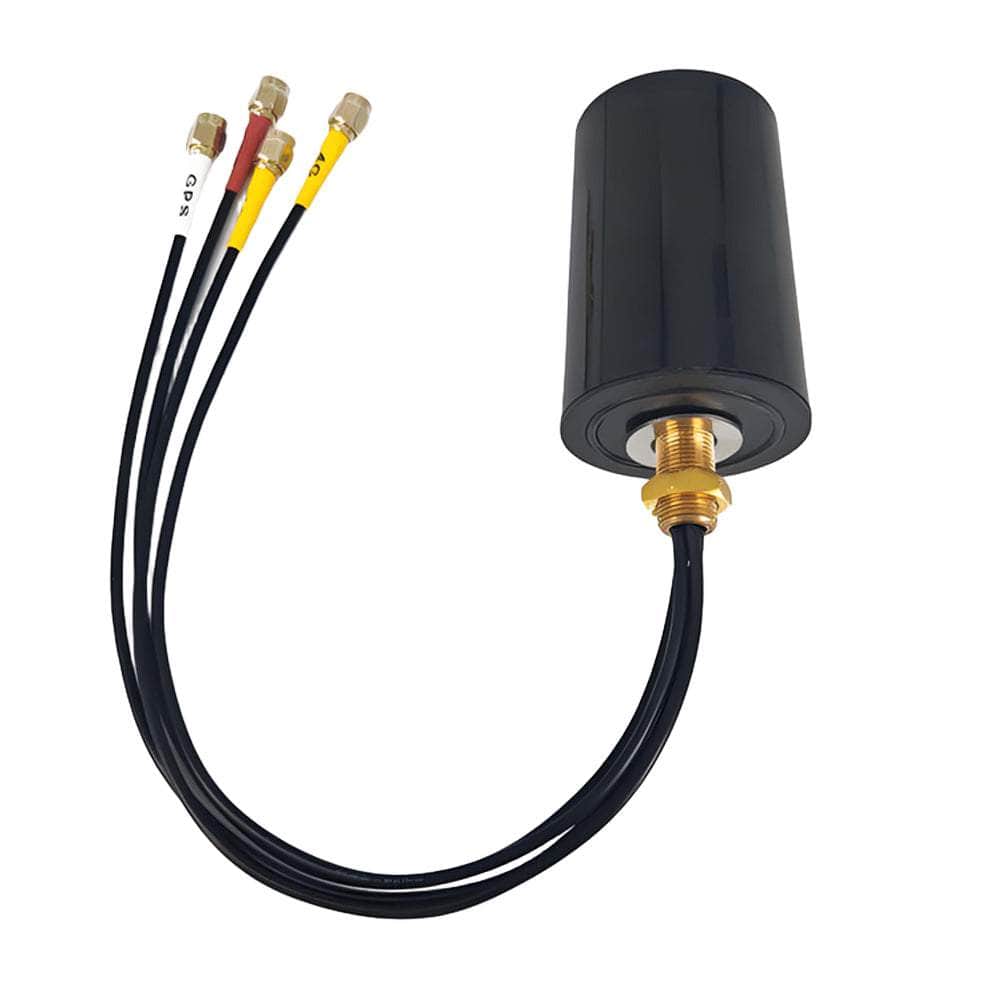

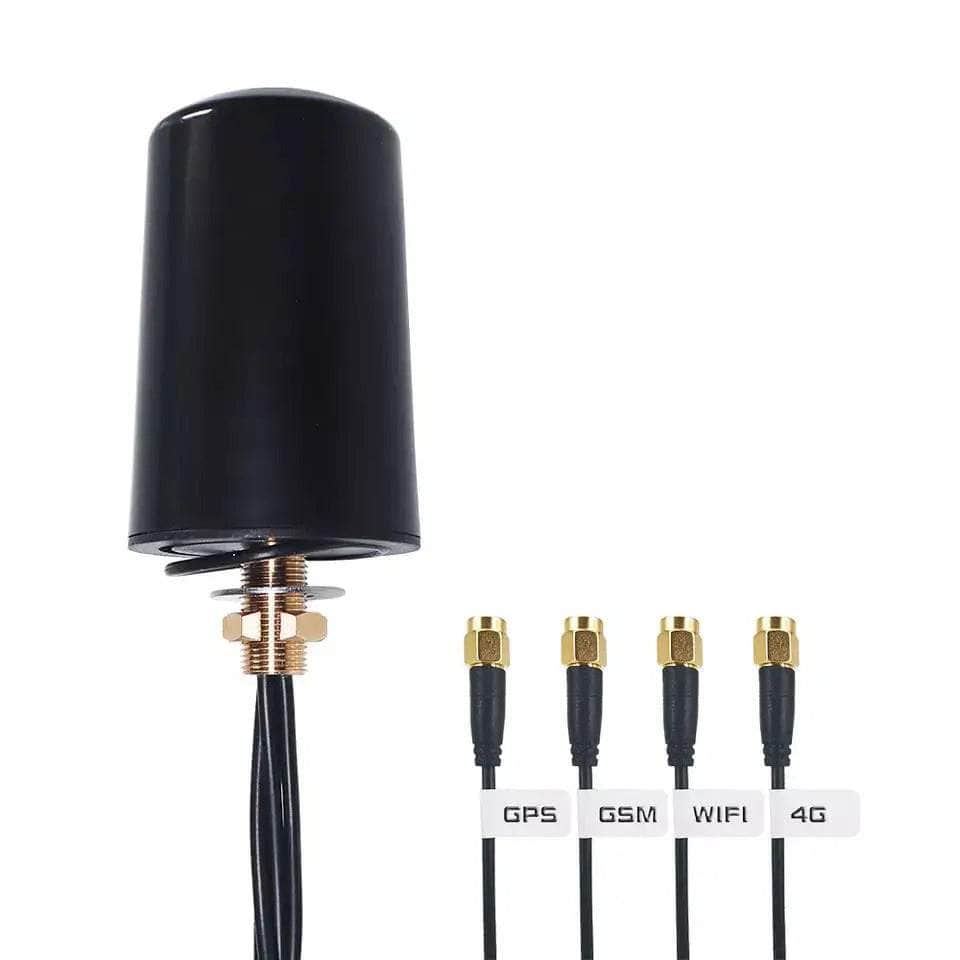

This high-gain 4 in 1 Combo 5G 4G LTE WiFi LoRa GPS Antenna Cabinet Roof Mount is a compact puck antenna designed to be mounted onto a plate (i.e. metal surface) such as a cabinet, enclosure, kiosk or roof. Permanently mounted via a threaded stud (M12) underneath, the antenna is fed by a single cable. It measures just 50mm in diameter and 84mm in height and offers a robust, discreet solution for modems, gateways and controller devices where an antenna needs to be mounted externally.

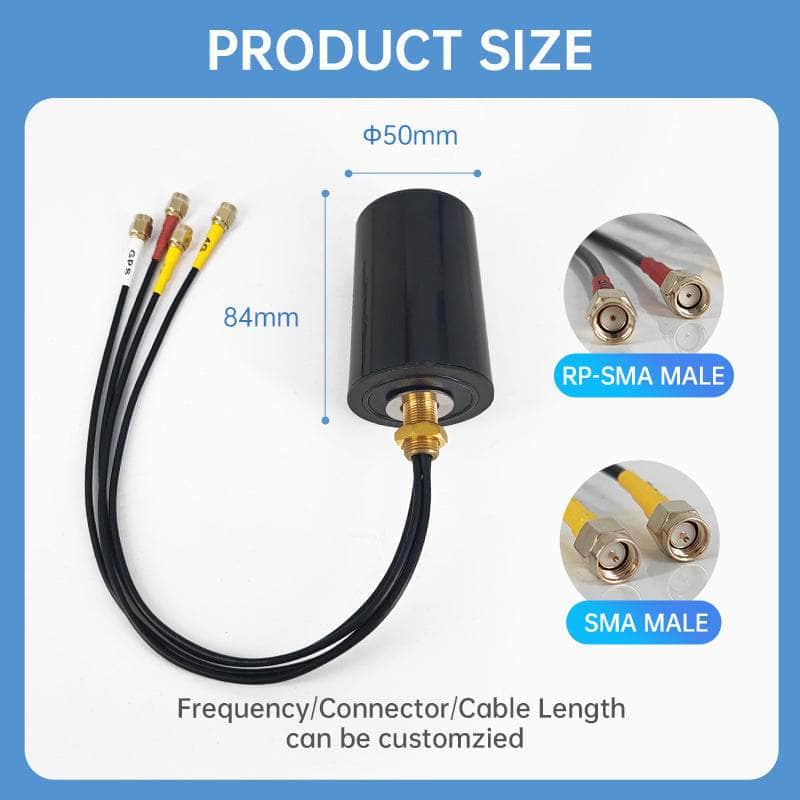

Antenna Size: Ф50*84mm

Antenna Base Material: ABS

Operating Temp: -40℃~+85℃

Impedance(Ω): 50

Gain: 4-5dBi

Connector: SMA Male

Cable Length: 1m

Thread stud Size: M12

Frequency Range:

  • LTE: 698-3800MHz
  • WiFi: 2400-2500Mhz/5150-5850MHz
  • LoRa: 900-930MHz
  • GPS: 1575.42MHz



High Gain 4 in 1 Combo 5G 4G LTE WiFi LoRa GPS Antenna Cabinet Roof Mount SMA-Male 1m-cable

Product form
Free pickup in our shop(s)

SKU: 4-in-1 Combo ANT-1

$79.00 $69.00 Excl. GST

$79.00 $69.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description

    High Gain 4 in 1 Combo 5G 4G LTE WiFi LoRa GPS Antenna Cabinet Roof Mount SMA-Male 1m-cable

    This high-gain 4 in 1 Combo 5G 4G LTE WiFi LoRa GPS Antenna Cabinet Roof Mount is a compact puck antenna designed to be mounted onto a plate (i.e. metal surface) such as a cabinet, enclosure, kiosk or roof. Permanently mounted via a threaded stud (M12) underneath, the antenna is fed by a single cable. It measures just 50mm in diameter and 84mm in height and offers a robust, discreet solution for modems, gateways and controller devices where an antenna needs to be mounted externally.

    Antenna Size: Ф50*84mm

    Antenna Base Material: ABS

    Operating Temp: -40℃~+85℃

    Impedance(Ω): 50

    Gain: 4-5dBi

    Connector: SMA Male

    Cable Length: 1m

    Thread stud Size: M12

    Frequency Range:

    • LTE: 698-3800MHz
    • WiFi: 2400-2500Mhz/5150-5850MHz
    • LoRa: 900-930MHz
    • GPS: 1575.42MHz
