4 Port USB HUB HAT for Raspberry Pi

Description

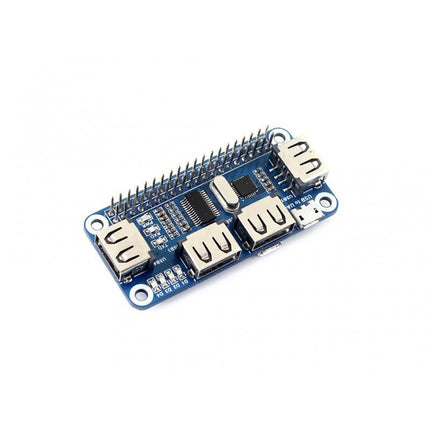

4 Port USB HUB HAT for Raspberry Pi

This is a 4 port USB hub for Raspberry Pi, provides more USB capability to your Pi, what's more, it features USB to UART converter for easy serial communication.

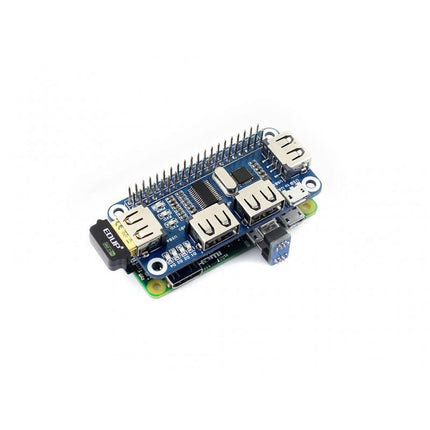

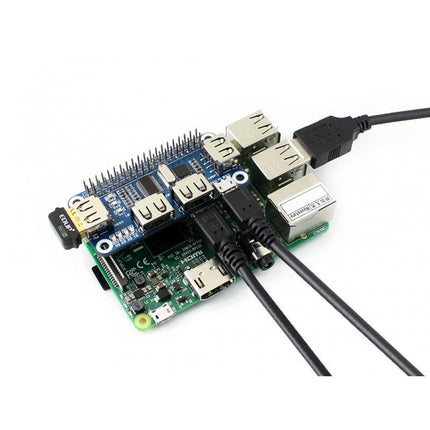

It can work with various versions of the Pi, and the size of the board is designed to perfectly fit the Zero / Zero W.

USB HUB HAT Features

  • 4 USB Ports, compatible with USB2.0/1.1
  • Onboard USB to UART, convenient for Raspberry Pi serial debugging
  • Onboard multi indicators, for monitoring the status of power, USB to UART, and each USB port

What's on the USB HUB HAT

Raspberry Pi Expansion Board on board resource

  1. Raspberry Pi GPIO interface: for connecting Raspberry Pi
  2. USB to UART: for controlling the Raspberry Pi via serial terminal

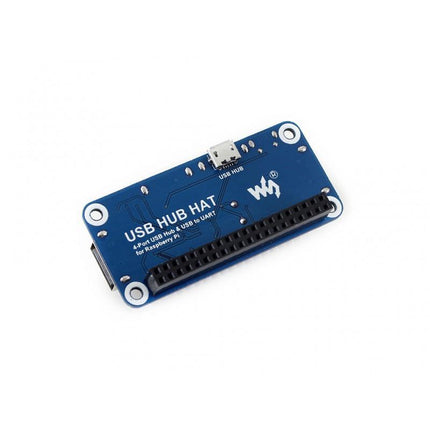

  3. USB HUB interface (bottom): for connecting the HUB to the Raspberry Pi USB port
  4. USB extended ports: USB1~USB4
  5. USB port indicators: dedicated indicator for each USB port, D1~D4 for USB1~USB4 respectively
  6. Power indicator
  7. USB to UART indicator
  8. FE1.1S: USB HUB chip
  9. 12MHz crystal
  10. CP2102: USB to UART converter

Specifications

  • Operating voltage: 5V
  • Dimension: 65mm × 30mm
  • Mounting hole size: 3.0mm

Dimensions

USB HUB HAT dimensions

Development Resources

Wiki: www.waveshare.com/wiki/USB_HUB_HAT



4 Port USB HUB HAT for Raspberry Pi

Product form

SKU: USB HUB HAT

$45.00 $35.00 Excl. GST

$35.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description

    4 Port USB HUB HAT for Raspberry Pi

    This is a 4 port USB hub for Raspberry Pi, provides more USB capability to your Pi, what's more, it features USB to UART converter for easy serial communication.

    It can work with various versions of the Pi, and the size of the board is designed to perfectly fit the Zero / Zero W.

    USB HUB HAT Features

    • 4 USB Ports, compatible with USB2.0/1.1
    • Onboard USB to UART, convenient for Raspberry Pi serial debugging
    • Onboard multi indicators, for monitoring the status of power, USB to UART, and each USB port

    What's on the USB HUB HAT

    Raspberry Pi Expansion Board on board resource

    1. Raspberry Pi GPIO interface: for connecting Raspberry Pi
    2. USB to UART: for controlling the Raspberry Pi via serial terminal
    3. USB HUB interface (bottom): for connecting the HUB to the Raspberry Pi USB port
    4. USB extended ports: USB1~USB4
    5. USB port indicators: dedicated indicator for each USB port, D1~D4 for USB1~USB4 respectively
    6. Power indicator
    7. USB to UART indicator
    8. FE1.1S: USB HUB chip
    9. 12MHz crystal
    10. CP2102: USB to UART converter

    Specifications

    • Operating voltage: 5V
    • Dimension: 65mm × 30mm
    • Mounting hole size: 3.0mm

    Dimensions

    USB HUB HAT dimensions

    Development Resources

    Wiki: www.waveshare.com/wiki/USB_HUB_HAT
