4G EM06-E LTE Cat-6 HAT for Raspberry Pi, Multi Band, GPS GNSS

Description



4G EM06-E LTE Cat-6 HAT for Raspberry Pi, Multi Band, GPS GNSS

Multi-Constellation High-Accuracy GNSS, Cloud Platform Communication, LTE-A Networking

This is an LTE Cat 6 Raspberry Pi communication HAT with GNSS and up to 300Mbps (downlink) / 50Mbps (uplink) data rate. It is applicable for countries/regions including Europe, the Middle East, Africa, Asia-Pacific, Brazil... By connecting it to PC, Raspberry Pi or Jetson Nano host boards, it is easy to enable LTE-A high speed networking, cloud platform communication, SMS, and global GNSS positioning functions.

  • Multi-constellation high-accuracy GNSS positioning: GPS, GLONASS, BeiDou/Compass, Galileo, QZSS
  • Integrates extensive network protocols, with multi drivers and software support, compatible with different OS including Windows / Linux / Android
  • USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed LTE-A communication

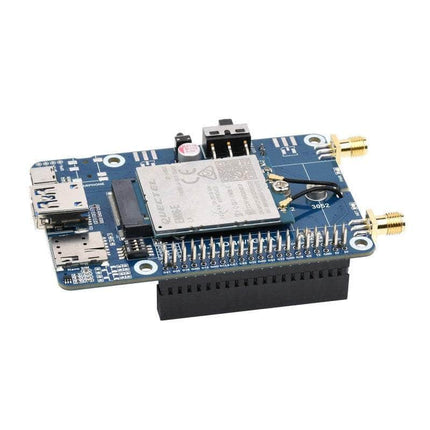

  • Standard M.2 B KEY slot, compatible with different core modules: EM06-E, EM06-J, EM06-A series
  • Onboard PWR and RST control pin, enabled via DIP switch, for connecting to external IO to turn on/off or reset the module
  • Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply
  • Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status
  • Reserved 4x SMA to IPEX antenna interfaces, with pre-soldered 2x connectors for easily using antennas, allows changing the SMA antenna position
  • High efficiency power supply circuit, up to 3A output current

Module Specifications:

LTE CAT 6
Region / Provider EMEA / APAC (except Japan and CMCC) / Brazil
Module dimensions 42.0 × 30.0 × 2.3 (mm)
TEMPERATURE RANGE
Operating temperature -30°C ~ +70°C
Extension temperature -40°C ~ +85°C
FREQUENCY BAND
LTE-FDD B1, B3, B5, B7, B8, B20, B28, B32
LTE-TDD B38, B40, B41
2xCA B1+B1, B5, B8, B20, B28;
B3+B3, B5, B7, B8, B20, B28;
B7+B5, B7, B8, B20, B28;
B20+B32 (B32 is used for aux component carrier only), B38+B38, B40+B40, B41+B41
WCDMA B1, B3, B5, B8
GNSS GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS
DATA RATE
LTE-FDD 300 Mbps (DL) / 50 Mbps (UL)
LTE-TDD 226 Mbps (DL) / 28 Mbps (UL)
DC-HSPA+ 42 Mbps (DL) / 5.76 Mbps (UL)
WCDMA 384 Kbps (DL) / 384 Kbps (UL)

Just plug it into USB port, go through some simple configuration, the high speed LTE-A network connection will be ready to use

Connection Examples

For Windows PC Or Jetson Nano Series, Use A USB Cable
For Raspberry Pi 4B/3B+, Or CM4-IO-BASE-A/B, Use The Purpose-Made USB Adapter

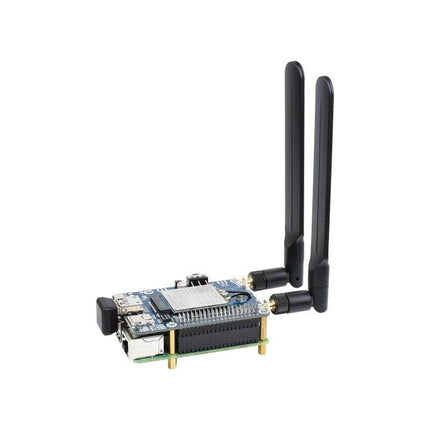

connecting with Raspberry Pi 4B



connecting with Raspberry Pi 3B+



connecting with CM4 IO Base

Multi-Constellation High-Accuracy GNSS

Supports GPS, GLONASS, BeiDou/Compass, Galileo, QZSS

Standard Raspberry Pi 40PIN GPIO Header

Compatible With Raspberry Pi Series And Jetson Nano, Stackable Design For More HATs

* for reference only, please check the Package Content section for exact part list.

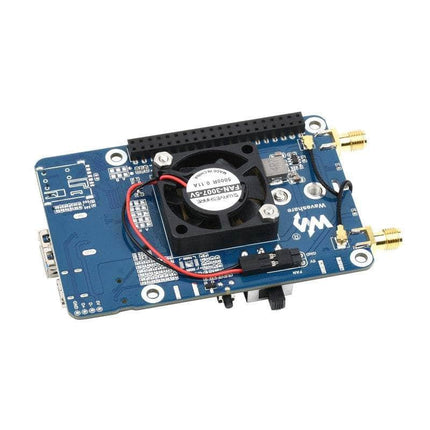

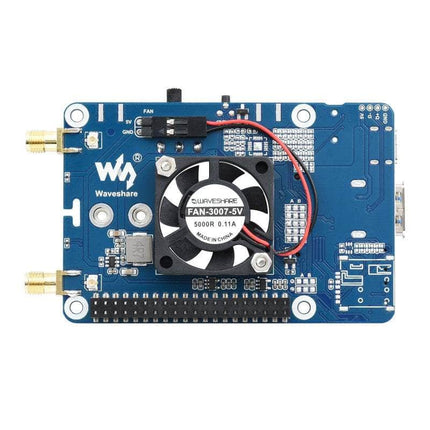

High Speed Cooling Fan

Better Heat Dissipation For Both Raspberry Pi And The LTE-A Module

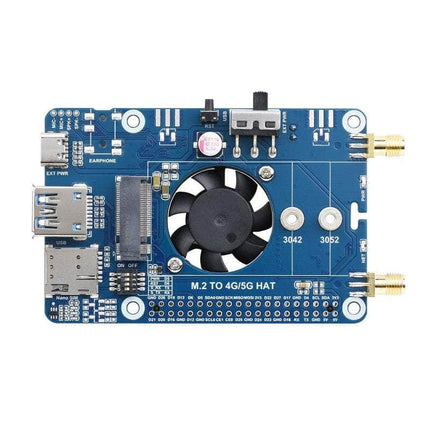

Standard M.2 B KEY Slot

Compatible With EM06-E, EM06-J, EM06-A Series Modules

LTE CAT 6 EM06-E EM06-J EM06-A
Region / Provider EMEA/APAC①/Brazil Japan North America/Mexico
Operating temperature -30 °C ~ +70 °C
Extension temperature -40 °C ~ +85 °C
Dimensions 42.0 × 30.0 × 2.3 (mm)
Power supply 3.135V~4.4V, typical 3.7V
Power consumption 50μA @ shutdown
4.1mA @ hibernate, typical
22.1mA @ idle
 47μA @ shutdown
3.8mA @ hibernate, typical
19.5mA @ idle		 50μA @ shutdown
3.8mA @ hibernate, typical
21.3mA @ idle
FREQUENCY BAND
LTE-FDD B1, B3, B5, B7, B8, B20, B28, B32② B1, B3, B8, B18, B19, B26, B28 B2, B4, B5, B7, B12, B13, B25, B26, B29②, B30, B66
LTE-TDD B38, B40, B41 B41 B41
2xCA B1+B1, B5, B8, B20, B28;
B3+B3, B5, B7, B8, B20, B28;
B7+B5, B7, B8, B20, B28;
B20+B32②; B38+B38; B40+B40; B41+B41		 B1+B1, B8, B18, B19, B26, B28;
B3+B3, B8, B18, B19, B26, B28;
B41+B41		 B2+B2, B5, B12, B13, B29②;
B4+B4, B5, B12, B13, B29②;
B7+B5, B7, B12, B26;
B25+B5, B12, B25, B26;
B30+B5, B12, B29②;
B66+B5, B12, B13, B29②, B66;
B41+B41
WCDMA B1, B3, B5, B8 B1, B3, B6, B8, B19 B2, B4, B5
GNSS GPS / GLONAS S/ BeiDou (Compass) / Galileo / QZSS (configurable)
DATA RATE
LTE-FDD 300 Mbps (DL); 50 Mbps (UL)
LTE-TDD 226 Mbps (DL); 28 Mbps (UL)
DC-HSPA+ 42 Mbps (DL); 5.76 Mbps (UL)
WCDMA 384 kbps (DL); 384 kbps (UL)
① except Japan and CMCC;
② B29/B32 is only used for receiving in LTE-FDD, while only for aux component carrier wave in 2×CA;
Comes with EM06-E module by default, for other modules or hardware customization, feel free to contract us.

Application Examples

LTE-A Wireless Router
Combined with OpenWrt, turns the Raspberry Pi into a LTE-A wireless router, providing WiFi hotspot for smartphones to easily access the LTE-A Network.



LTE-A Live Streaming
While mounting an additional camera, it is able to do live streaming on webpage or live platform through ffmpeg video stream.

More Possibilities

Outline Dimensions

Resources & Services

EM06-E_LTE_Cat-6_HAT



4G EM06-E LTE Cat-6 HAT for Raspberry Pi, Multi Band, GPS GNSS

Product form

SKU: EM06-E LTE Cat-6 HAT

$189.00 $159.00 Excl. GST

$159.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
