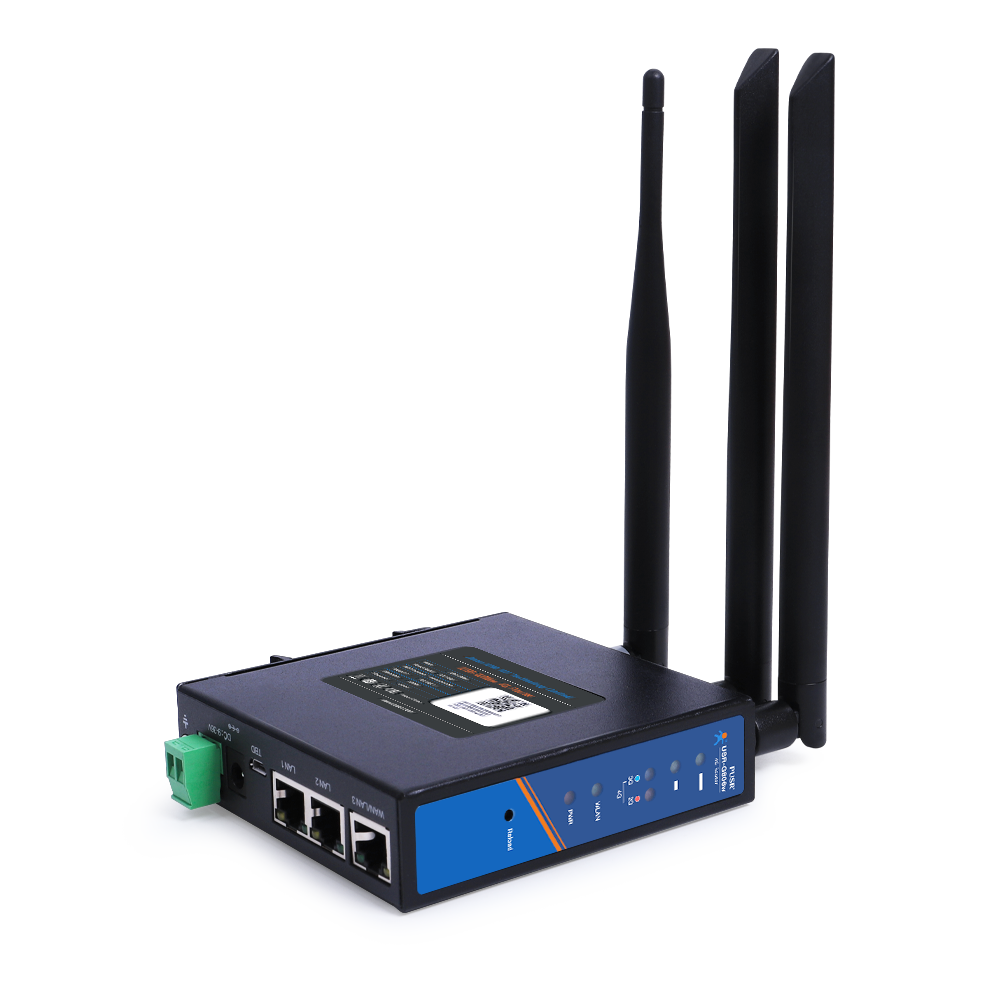

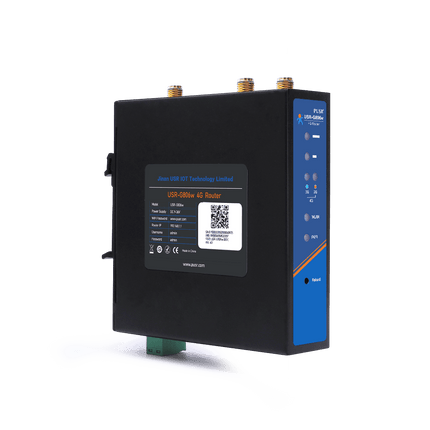

USR-G806w hardware specification
|
|
|
Cellular Interface
|
Frequency
|
-E
|
-AU
|
|
|
TDD-LTE:B38/40/41
FDD-LTE：B1/3/7/8/20/28A
WCDMA：B1/8
GSM/EDGE:B3/8
|
TDD-LTE:B40
FDD-LTE：B1/2/3/5/7/8/28
WCDMA：B1/2/4/5/8
GSM/EDGE:B2/3/5/8
|
|
|
Antenna
|
1 x SMA-K
|
|
|
SIM card
|
1 x (3 V & 1.8 V) Standard 4FF SIM
|
|
|
Ethernet
|
WAN
|
1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance with IEEE 802.3, supports auto MDI/MDIX,1.5KV network isolation transformer protection
|
|
|
LAN
|
1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX,1.5KV network isolation transformer protection
|
|
|
Indicators
|
PWR
|
red, always on after powered on
|
|
|
WIFI
|
green, always solid on when WiFi is enabled and working properly
|
|
|
2/3/4G mode indicator
|
2G led is on after connected to 2G network
3G led is on after connected to 3G network
Both leds is on after connected to 4G network
|
|
|
SIG
|
Signal strength：2 LED issolidon,strongest signal
|
|
|
Wi-Fi
|
Standards & Frequency
|
IEEE 802.11b/g/n, 2.4GHz, AP/STA/Repeater mode
|
|
|
Data speed
|
300Mbps
|
|
|
Antenna
|
2 x RP-SMA-K
|
|
|
MIMO
|
2×2
|
|
|
Transmission distance
|
500 meters by line of sight.Actual transmission distance depends on environment of the site.
|
|
|
WiFi users
|
Up to 20 simultaneous connections
|
|
|
Power Supply
|
Adaptor
|
DC 12V/1A
|
|
|
Connector
|
DC Power Jack Barrel Type Female 5.5*2.1mm Round socket or 2 PIN industrial terminal block, reverse polarity protection
|
|
|
Input voltage
|
DC 9-36V
|
|
|
Power consumption
|
Average 260mA/12V
|
|
|
Physical Characteristics
|
Casing material
|
Metal shell, IP30
|
|
|
Dimensions
|
104.0*102.0*28.0 (L*W*H, antenna pedestal, terminal block, and DIN Rail are not included）
|
|
|
Installation
|
Panel mounting, DIN-Rail mounting
|
|
|
EMC
|
Static IEC61000-4-2, level 3
Pulsed Electric Field IEC61000-4-4, level 3
Surge IEC61000-4-5, level 3
|
|
|
Operating temperature
|
-20℃~+70℃
|
|
|
Storage temperature
|
-40℃～+125℃（non-condensing）
|
|
|
Operating humidity
|
5%~95%（non-condensing）
|
|
|
Others
|
Reload
|
Pinhole reset button
|
|
|
TBD
|
Debug interface (TTL Level)
|
|
|
Ground protection
|
Screw
|
|
|
USR-G806w Software Specifications
|
|
Network Connection
|
WAN protocol
|
PPP, PPPoE, DHCP client
|
|
LAN protocol
|
ARP, DHCP server, NAT, VLAN
|
|
4G network access
|
Auto APN/VPDN, private network
Access authentication: CHAP/PAP
|
|
WLAN security
|
Open system,WPA/WPA2 PSK
TKIP/AES encryption
|
|
IP routing
|
Static routing
|
|
Network diagnosis
|
Ping, route trace, DNS
|
|
Device management
|
Configuration
|
Web
|
|
Remote management
|
SSH, AT command,SNMP,SMS
|
|
PUSR platform
|
Remote monitoring,remote upgrade,alarming,base station location,remote access to web pages of the router
|
|
Security
|
Failover backup
|
WiFi WAN, Mobile, Wired options, each of which can be used as an automatic Failover
|
|
Firewall
|
DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
|
|
VPN
|
Supports PPTP, L2TP, GRE, IPSEC VPN (IKEv1), OPENVPN protocols
|
|
Service
|
DDNS
|
Remote access the device through domain name
|
|
Alarm
|
Email,SMS
|
|
Others
|
NTP client
Timing task
|
