4x Digital Output Phidget VINT Hub - OUT1100_0

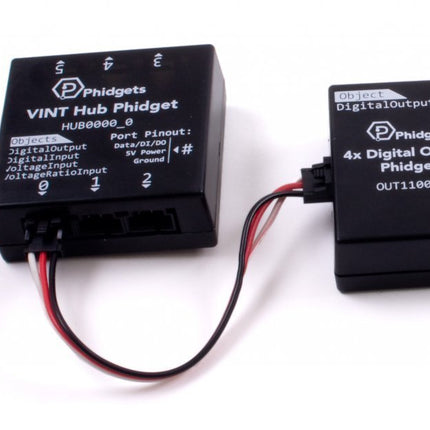

If the 3.3V digital output mode of your hub's VINT port is not powerful enough, or if you just need more digital outputs, this cost-effective output module has you covered. This board adds four 5V digital outputs to your VINT hub, allowing you to control LEDs, relays, and other logic-level electronics. See the "Compatible Products" tab for a list of VINT Hubs.
PWM-Enabled
Each digital output is capable of pulse-width modulation, allowing you to select a duty cycle between 0% and 100% power. This is particularly useful for dimmable electronics such as LEDs or fans. Wiring is simple since each output terminal has a ground terminal beside it, leading to the board's shared ground.
Product Specifications
| Board Properties |
| Controlled By |
VINT |
| Digital Outputs |
| Number of Digital Outputs |
4 |
| Series Resistance |
127 Ω |
| Digital Output Voltage Min |
0 V DC |
| Digital Output Voltage Max |
5 V DC |
| Digital Output Current Max |
16 mA |
| PWM Frequency |
16 kHz |
| PWM Resolution |
0.1 % |
| Electrical Properties |
| Current Consumption Min |
23 μA |
| Current Consumption Max |
150 mA |
| Physical Properties |
| Recommended Wire Size |
16 - 26 AWG |
| Operating Temperature Max |
85 °C |
| Operating Temperature Min |
-40 °C |
