6DOF IMU 2 Click - MikroElektronika Bosch BMI160 Low Power Inertial Measurement Unit

Description

6DOF IMU 2 Click - MikroElektronika Bosch BMI160 Low Power Inertial Measurement Unit

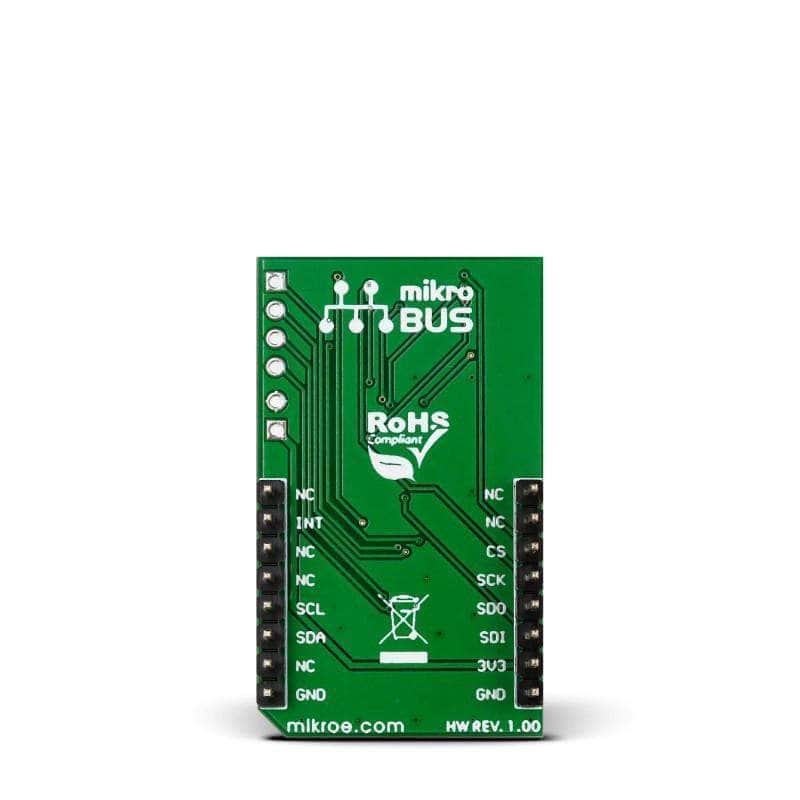

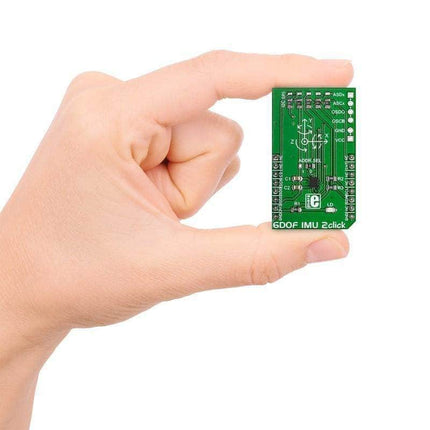

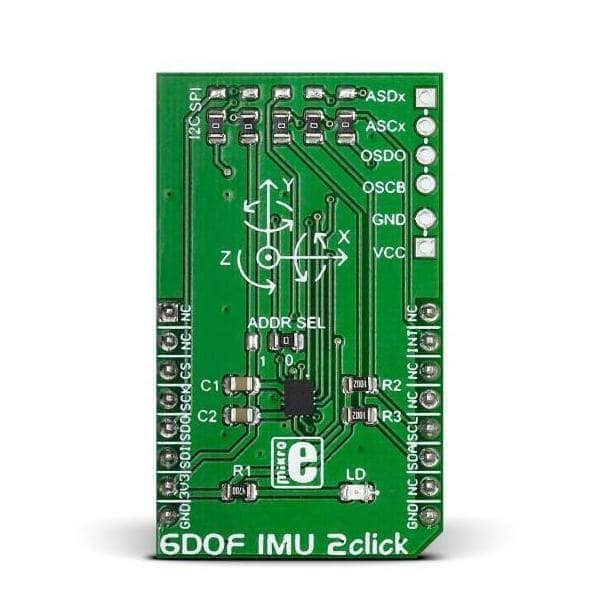

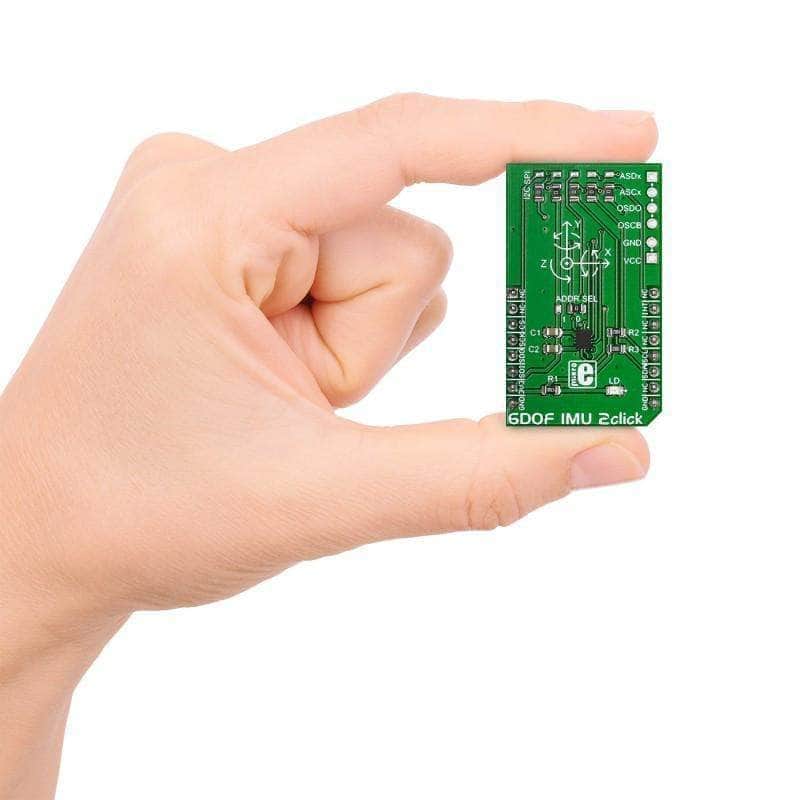

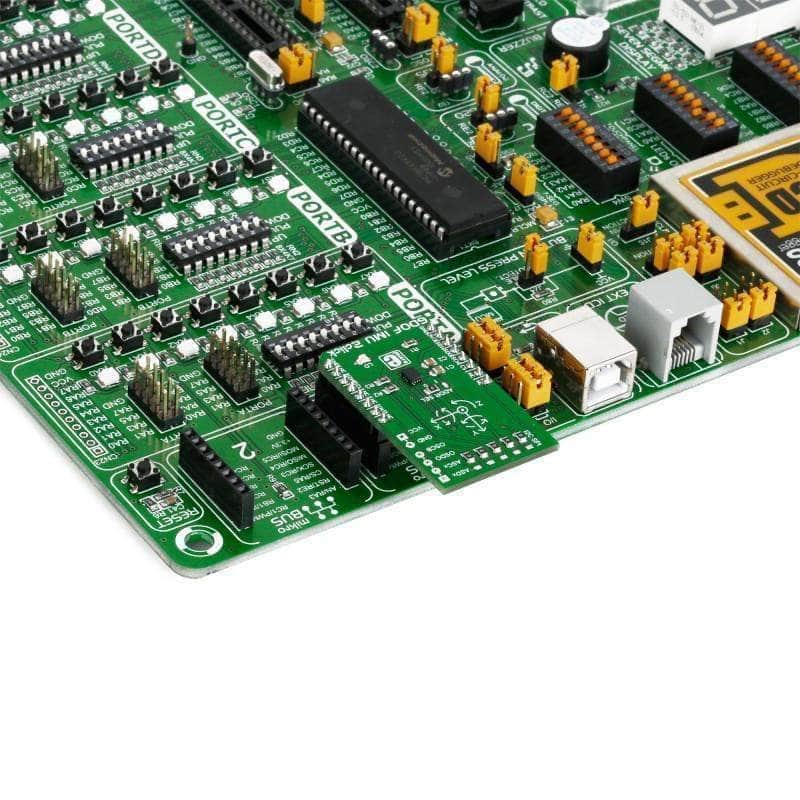

6DOF IMU 2 click is a mikroBUS™ add-on board with Bosch's BMI160 low power inertial measurement unit (IMU). The BMI160 is capable of precise acceleration and angular rate (gyroscopic) measurement.

The IMU consists of a state-of-the-art 3-axis, low-g accelerometer, and a low-power 3-axis gyroscope, designed for 6-axis and 9-axis applications. The BTI160 also includes built-in power management unit (PMU) for advanced power management and power-saving modes, as well as allocated FIFO buffer of 1024 bytes for handling external sensor data.

6DOF IMU 2 click communicates with the target MCU through the I2C or SPI bus (user-selectable), with additional functionality provided by the INT pin (for enhanced autonomous motion detection).
The board is designed to use a 3.3 power supply only.

Downloads

 6DOF IMU 2 click Examples
 BMI160 datasheet
 6DOF IMU 2 click schematic

Read more

6DOF IMU 2 Click - MikroElektronika Bosch BMI160 Low Power Inertial Measurement Unit

Product form
Free pickup in our shop(s)

SKU: MIKROE-2337

$50.00 $30.00 Excl. GST

$30.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description

    6DOF IMU 2 Click - MikroElektronika Bosch BMI160 Low Power Inertial Measurement Unit

    6DOF IMU 2 click is a mikroBUS™ add-on board with Bosch's BMI160 low power inertial measurement unit (IMU). The BMI160 is capable of precise acceleration and angular rate (gyroscopic) measurement.

    The IMU consists of a state-of-the-art 3-axis, low-g accelerometer, and a low-power 3-axis gyroscope, designed for 6-axis and 9-axis applications. The BTI160 also includes built-in power management unit (PMU) for advanced power management and power-saving modes, as well as allocated FIFO buffer of 1024 bytes for handling external sensor data.

    6DOF IMU 2 click communicates with the target MCU through the I2C or SPI bus (user-selectable), with additional functionality provided by the INT pin (for enhanced autonomous motion detection).
    The board is designed to use a 3.3 power supply only.

    Downloads

     6DOF IMU 2 click Examples
     BMI160 datasheet
     6DOF IMU 2 click schematic

    Read more
