ADC3 click - MikroElektronika 16-Bit Multichannel Analog-to-Digital Converter

Description

ADC3 click - MikroElektronika 16-Bit Multichannel Analog-to-Digital Converter

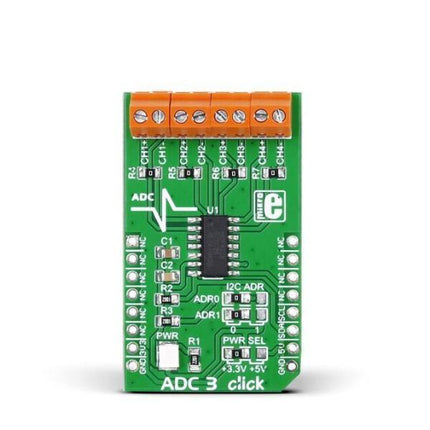

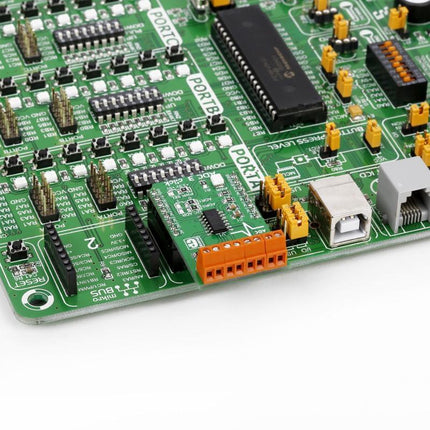

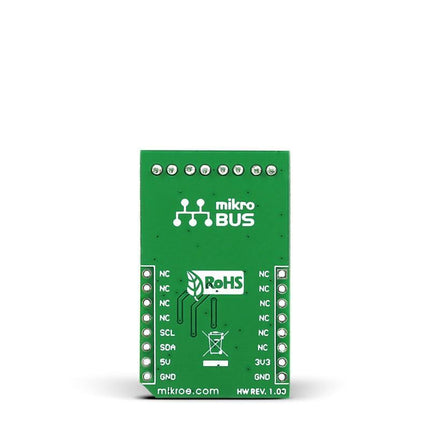

ADC3 click carries Microchip’s MCP3428 16-bit multichannel analog-to-digital converter. The click has four pairs of screw terminals onboard, letting you access the chip’s four differential input channels. At the highest resolution of 16-bits, the chip outputs conversion results at 15 samples per second. At 14-bits, the sample rate is 60 SPS. The maximum conversion speed is achieved in 12-bit mode, 240 samples per second. A pair of onboard jumpers allows switching between different I2C addresses. ADC3 click communicates with the target MCU through mikroBUS I2C pins (SCL, SDA). It is designed to use either a 3.3V or 5V power supply.

Downloads

 ADC 3 click user manual
 ADC 3 click example



Specifications

Type ADC
Applications Especially suitable for applications where high sample rate is required
On-board modules Microchip’s MCP3428 16-bit multichannel analog-to-digital converter
Key Features Sample rate up to 240 SPS. Four channel 16-bit ADC
Key Benefits Built-in gain amplifier. Automatic offset and gain error calibration
Interface I2C
Input Voltage 3.3V or 5V
Compatibility mikroBUS
Click board size M (42.9 x 25.4 mm)



ADC3 click - MikroElektronika 16-Bit Multichannel Analog-to-Digital Converter

Product form

SKU: MIKROE-1894

$40.00 $25.00 Excl. GST

$25.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description

    ADC3 click - MikroElektronika 16-Bit Multichannel Analog-to-Digital Converter

    ADC3 click carries Microchip’s MCP3428 16-bit multichannel analog-to-digital converter. The click has four pairs of screw terminals onboard, letting you access the chip’s four differential input channels. At the highest resolution of 16-bits, the chip outputs conversion results at 15 samples per second. At 14-bits, the sample rate is 60 SPS. The maximum conversion speed is achieved in 12-bit mode, 240 samples per second. A pair of onboard jumpers allows switching between different I2C addresses. ADC3 click communicates with the target MCU through mikroBUS I2C pins (SCL, SDA). It is designed to use either a 3.3V or 5V power supply.

    Downloads

     ADC 3 click user manual
     ADC 3 click example



    Specifications

    Type ADC
    Applications Especially suitable for applications where high sample rate is required
    On-board modules Microchip’s MCP3428 16-bit multichannel analog-to-digital converter
    Key Features Sample rate up to 240 SPS. Four channel 16-bit ADC
    Key Benefits Built-in gain amplifier. Automatic offset and gain error calibration
    Interface I2C
    Input Voltage 3.3V or 5V
    Compatibility mikroBUS
    Click board size M (42.9 x 25.4 mm)
