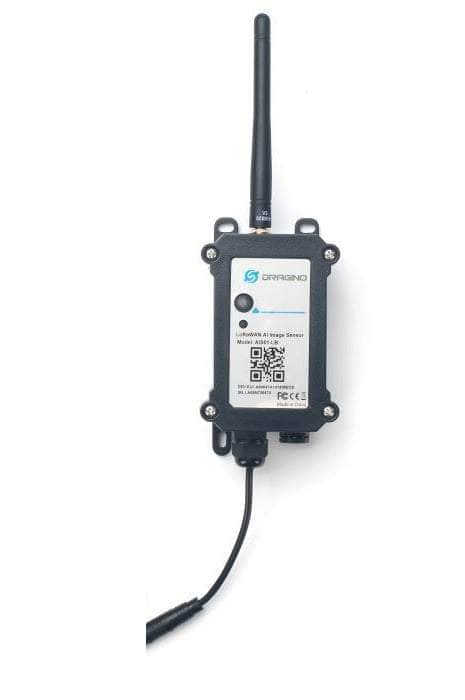

AIS01-LB LoRaWAN AI Image End Node
AIS01-LB LoRaWAN AI Image End Node

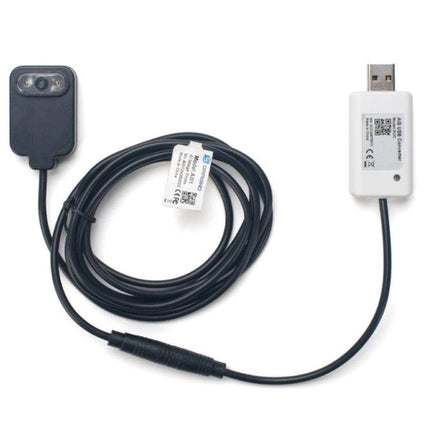

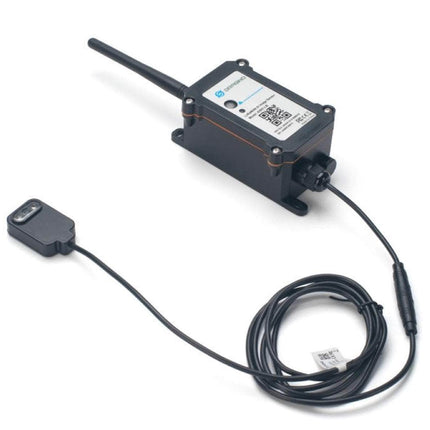

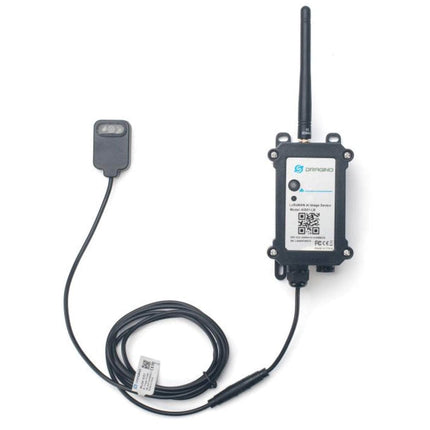

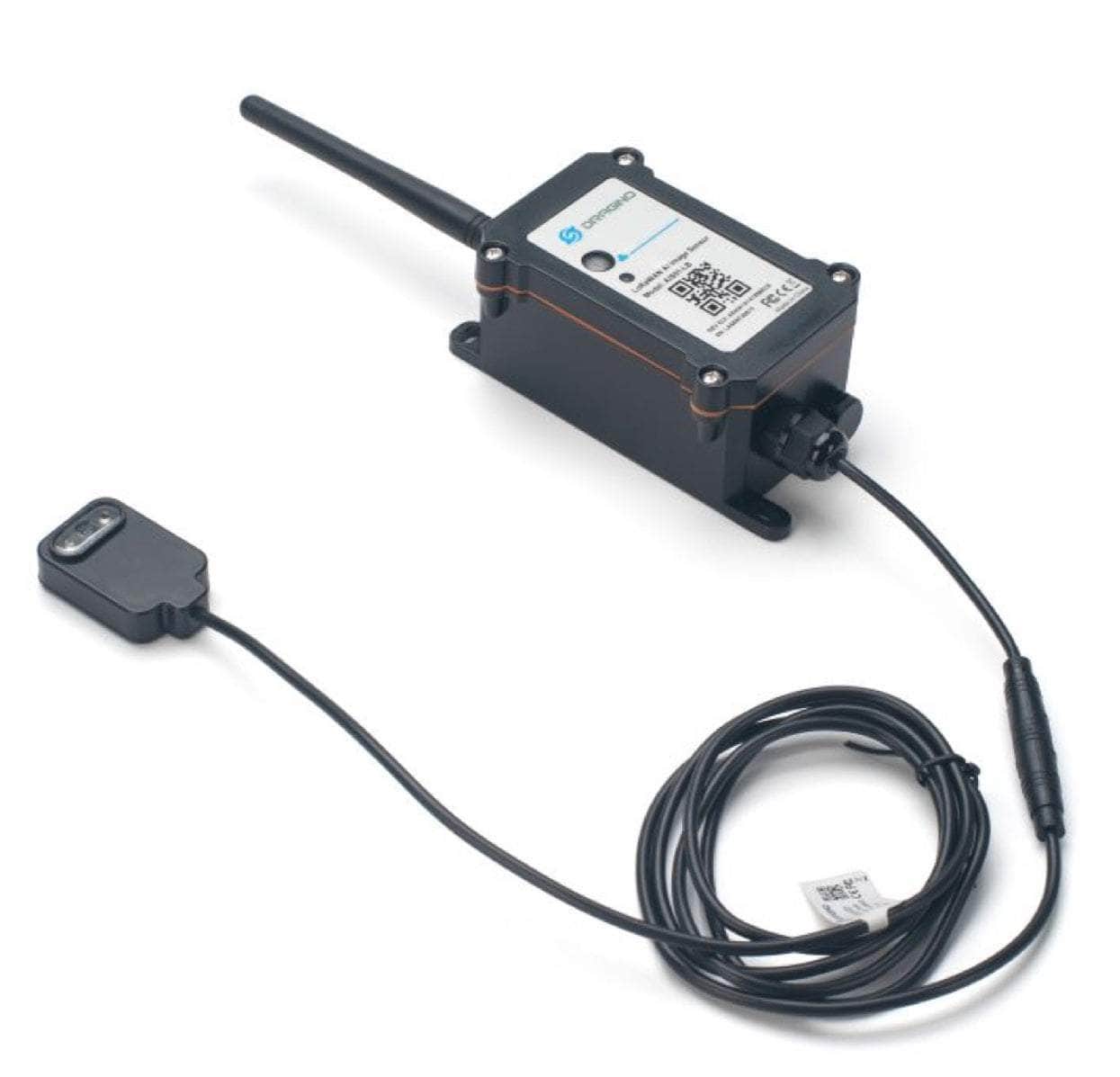

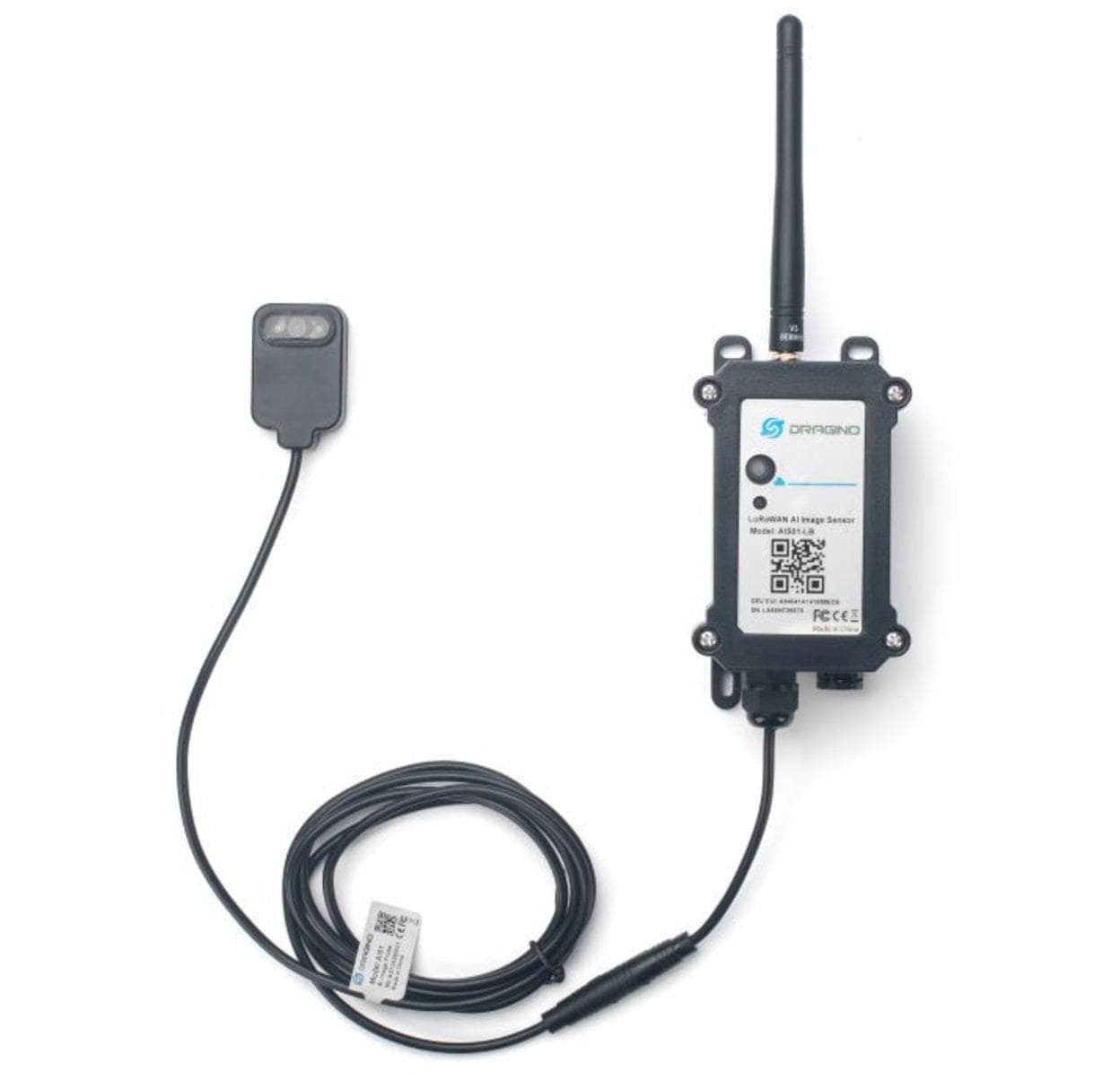

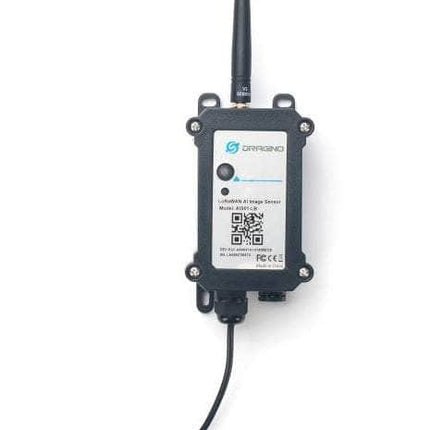

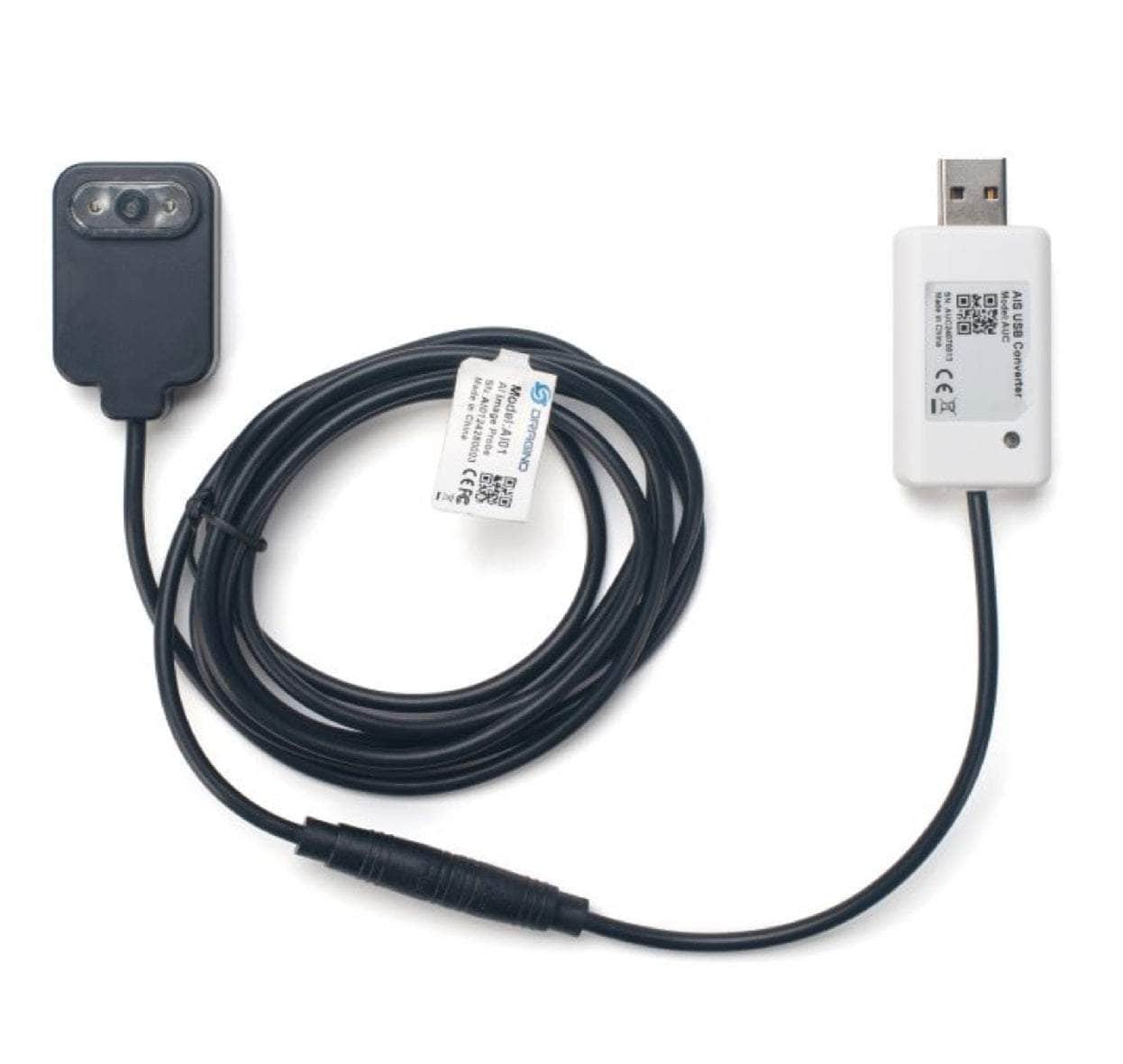

AIS01-LB is a LoRaWAN AI Image End Node. AIS01-LB has a camera and AI processor in the probe. It can take photo, analyze the photo to get digital reading and send the info to IoT server via LoRaWAN Network.AIS01-LB is pre-trained to support image recognized of water meter, gas meter and power meter. It can be trained to support more image recognized for different application.AIS01-LB can send the digital reading after recognized and it can also send the original photo via LoRaWAN as well.AIS01-LB is fully compatible with LoRaWAN v1.0.3 protocol, it can work with standard LoRaWAN gateway.
Features:
- LoRaWAN v1.0.3 Class A protocol
- Low power consumption
- AI Image Sensor
- Send image to IoT server
- Recognize digits from Image and send data to IoT server
- Trained for common reading for Water Meter, Gas Meter, Power Meter
- Frequency Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915
- Support Interrupt uplink
- Support Bluetooth v5.1 and LoRaWAN remote configure
- Support wireless OTA update firmware
- AT Commands to change parameters
- Uplink on periodically
- Downlink to change configure
- 8500mAh Li/SOCl2 Battery
Applications:
Specification:
Common DC Characteristics:
- Supply Voltage: Built-in Battery , 2.5v ~ 3.6v
- Operating Temperature: -40 ~ 85°C

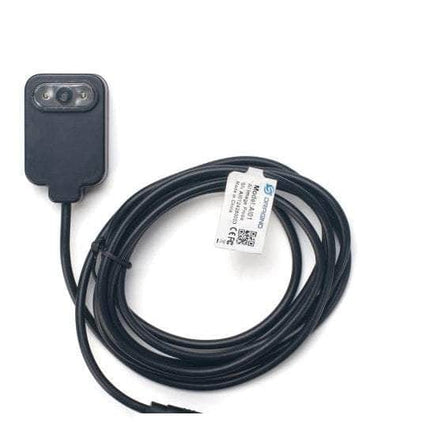

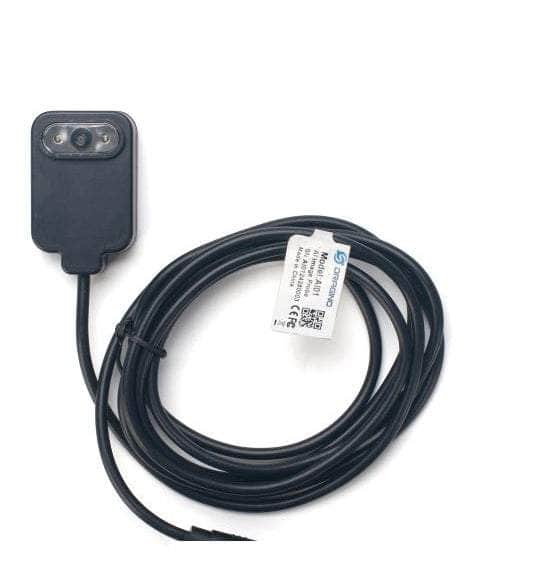

Image Sensor - Camera:
- Mono: black & white
- Angle: 110°
- Image size: 64kb
- Image resolution: 640x480
LoRa Spec:
- Frequency Range, Band 1 (HF): 862 ~ 1020 Mhz
- Max +22 dBm constant RF output vs.
- RX sensitivity: down to -139 dBm.
- Excellent blocking immunity
Battery:
- Li/SOCI2 un-chargeable battery
- Capacity: 8500mAh
- Self-Discharge: <1% / Year @ 25°C
- Max continuously current: 130mA
- Max boost current: 2A, 1 second
Power Consumption:
- Sleep Mode: 5uA @ 3.3v
-
LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm
