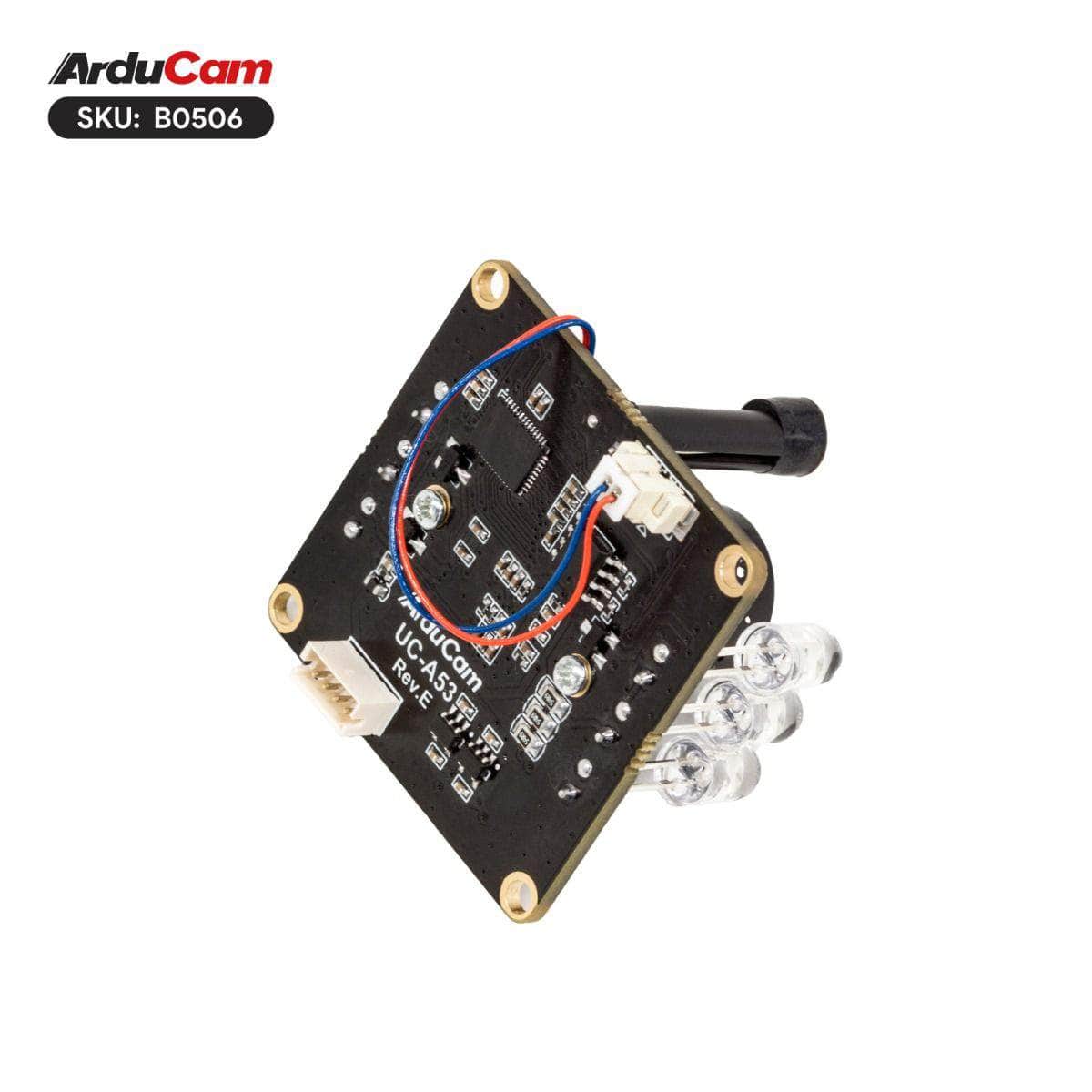

Arducam 1080P Day/Night USB Camera 2MP Auto IR-Cut B0506
Arducam 1080P Day/Night USB Camera 2MP Infrared Webcam Auto IR-Cut B0506
- Full HD 1080P USB Camera: Smooth 30fps@1080p video with 1/2.7" OV2710 CMOS sensor.
- Day/Night Vision: 6pcs 850nm IR LEDs & photoresistor for clear imagery in low light.
- Wide-Angle Lens: 105° starlight lens with F1.6 aperture captures intricate details.
- Automatic IR-Cut Switching: Seamless day-night transitions for enhanced vision.
- Plug-and-Play: UVC compliant, connect to PC, laptop, Android, or Raspberry Pi for versatile surveillance.
Introducing the latest Arducam USB2.0 camera, featuring a 1/2.7" CMOS OV2710 sensor for seamless 30fps@1080P video capture. With its exceptional day and night performance, this camera ensures clear and sharp imagery around the clock.
Equipped with a built-in IR LED and photoresistor, it seamlessly transitions between day and night modes, automatically activating IR light for optimal low-light performance. Coupled with its starlight-rated wide-angle M12 lens, it maximizes light intake for superior surveillance capabilities.
Forget about driver installations – simply connect via USB to your PC, laptop, Android device, or Raspberry Pi. Versatile and adaptable, this mini USB camera is perfect for home surveillance, 3D printer monitoring, video conferencing, dashcam, and more.
Applications
- Animal Monitoring
- Video Surveillance
- 3D Scanning and Metrology
- Home Surveillance System
- Dashcam
Features
- Full HD 1080P: Based on the 1/2.7" OV2710 CMOS, delivering smooth 30fps@1080p video recording for unparalleled clarity and detail.
- Day/Night Vision USB Cam: Equipped with a photoresistor and 6pcs 850nm IR LEDs, experience superior visibility even in low-light scenarios, ensuring sharp and vivid imagery round the clock.
- Expansive Perspective with Wide-Angle Lens: Enjoy maximized light intake with the 105°(D) wide-angle starlight lens boasting an F1.6, enabling remarkable sensitivity and intricate detail capture across the entire frame.
- Seamless Day-to-Night Transitions: Effortlessly adapt to changing light conditions with automatic IR-cut switching. Experience enhanced night vision without manual adjustments as the camera seamlessly activates its 850nm IR LEDs for unparalleled clarity.
- Hassle-Free Setup: Enjoy instant usability with plug-and-play convenience. Compliant with the UVC protocol, no additional drivers are needed. Simply connect via USB to your preferred device for versatile applications including security monitoring, home surveillance, dashcam, and more.
Specifications
| Image Sensor | |
| SENSOR | OV2710 |
|---|---|
| Still Resolution | 2 Megapixels |
| Color Filter Type | Color/Mono |
| Shutter Type | Rolling |
| Optical Size | 1/2.7" |
| Output Format | MJPG/YUY2 |
| Pixel Size | 3 µm x 3 µm |
| Sensor Active Area | 1920(H)×1080(V) |
| Frame Rate | MJPG: 30fps@320*240, 352*288, 640*480, 800*600, 1024*768, 1280*720, 1280*960, 1280*1024, 1920*1080 YUY2: 30fps@320*240,352*288; 15fps@640*480; 20fps@800*600; 10fps@1024*768, 1280*720; 5fps@1280*960,1280*1024,1920*1080 |
| Lens | |
| Focus Type | Manual |
| FoV | 105°(D) × 92°(H) × 76°(V) |
| Lens Mount | M12 (S-mount) |
| F.NO | F1.6±10% |
| E.F.L | 4.3±5% |
| IR Sensitivity | Integral IR-Cut Filter (Only sensitive to visible light during the day, sensitive to IR at night with 850 IR LEDs on) |
| Default Focus Range | 2m-∞ |
| USB Interface | |
| Interface | USB 2.0 Device |
| Connector | B4B-ZR |
| UVC Compliant | No additional drivers required |
| Electrical and Mechanical | |
| Operating Voltage | 5 V +/- 5% |
| Operating Temp. | 32°F-158°F (0°C to 70°C) |
| Power Requirements | Max: 2.0W |
| Camera Board Size | 38×38 mm |
| Functionality and Compatibility | |
| Audio | Single Microphone |
| Supported OS | Windows, Linux, Android and MAC OS |
| Recommend Sample Application | Amcap for Windows |
| UVC Controls | Brightness, Hue, Contrast, Saturation, Sharpness, Gamma, White Balance (Manual/Auto), Gain, Backlight Comp, Exposure (Manual/Auto) |
Package Including
- 1 x OV2710 USB2.0 Camera
- 1 x 1m USB 2.0 Cable
Notes
- The package contains small contents, please keep it away from children to avoid accidental ingestion
- After receiving the package, please confirm whether the contents of the package are consistent with the description.
