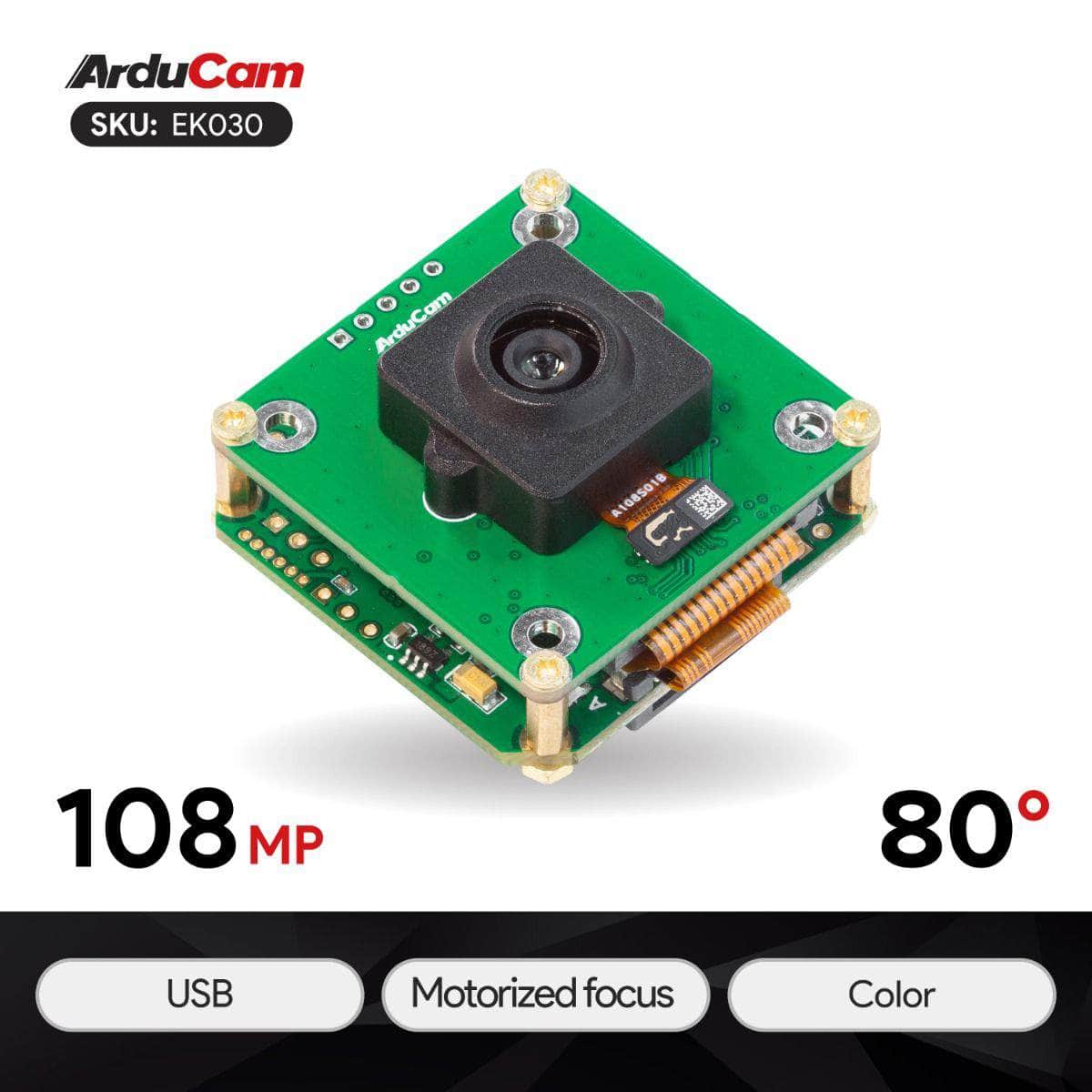

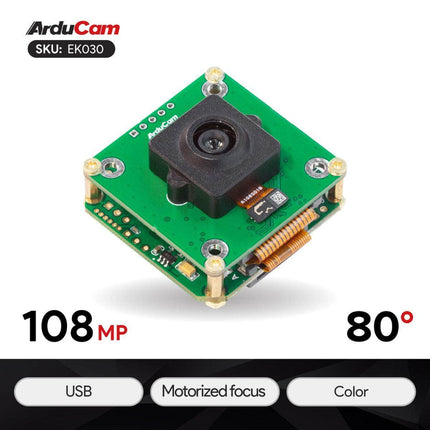

Arducam 108MP USB 3.0 Camera Evaluation Kit, Motorised Focus EK030

A USB 3 camera evaluation kit with a 108MP camera module and our USB 3.0 camera adapter for you to build quick prototypes and proofs-of-concept with any backend hardware.
The dev kit also comes with a complete SDK you can reply on to make easy integration into any machine vision applications.

Learn more:

SPECIFICATIONS

	108MP Evaluation Kit
Optical Size	1/1.5“
Number of effective pixels	12000×9000
Frame Rate	RAW10, 4000×3000@11fps RAW10, 12000×9000@1.3fps RAW8, 4000×3000@14fps RAW8, 12000×9000@1.7fps
Interface	MIPI 2-Lane
Focus	8cm ～ INF
Focal ratio (F-Stop)	1.89
Focal length	5.89
View Angle	82 diagonal

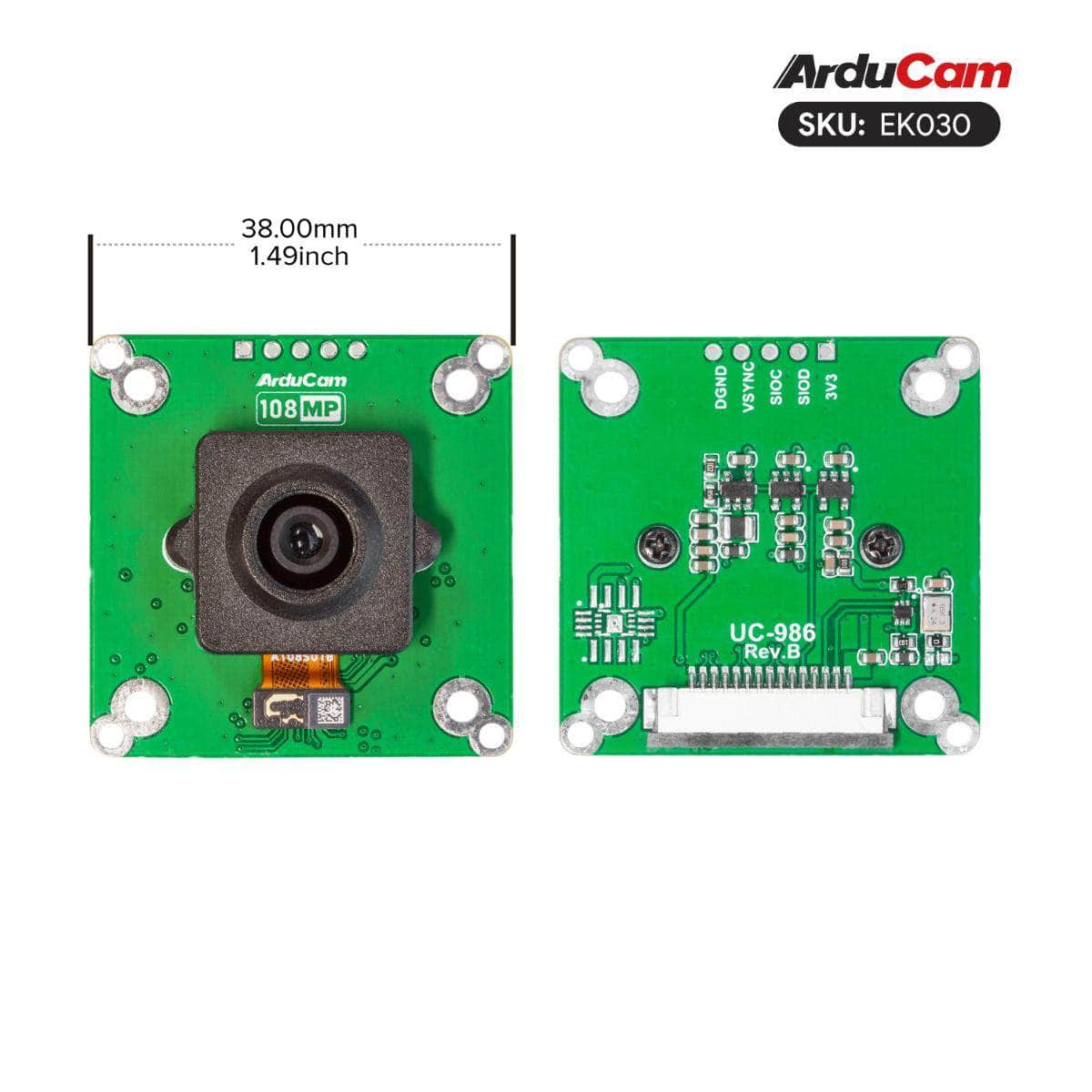

Dimensions	38x38mm
Shutter Type	Rolling
Color Filter	RGB
Output Format	RAW10

DOCUMENTATIONS

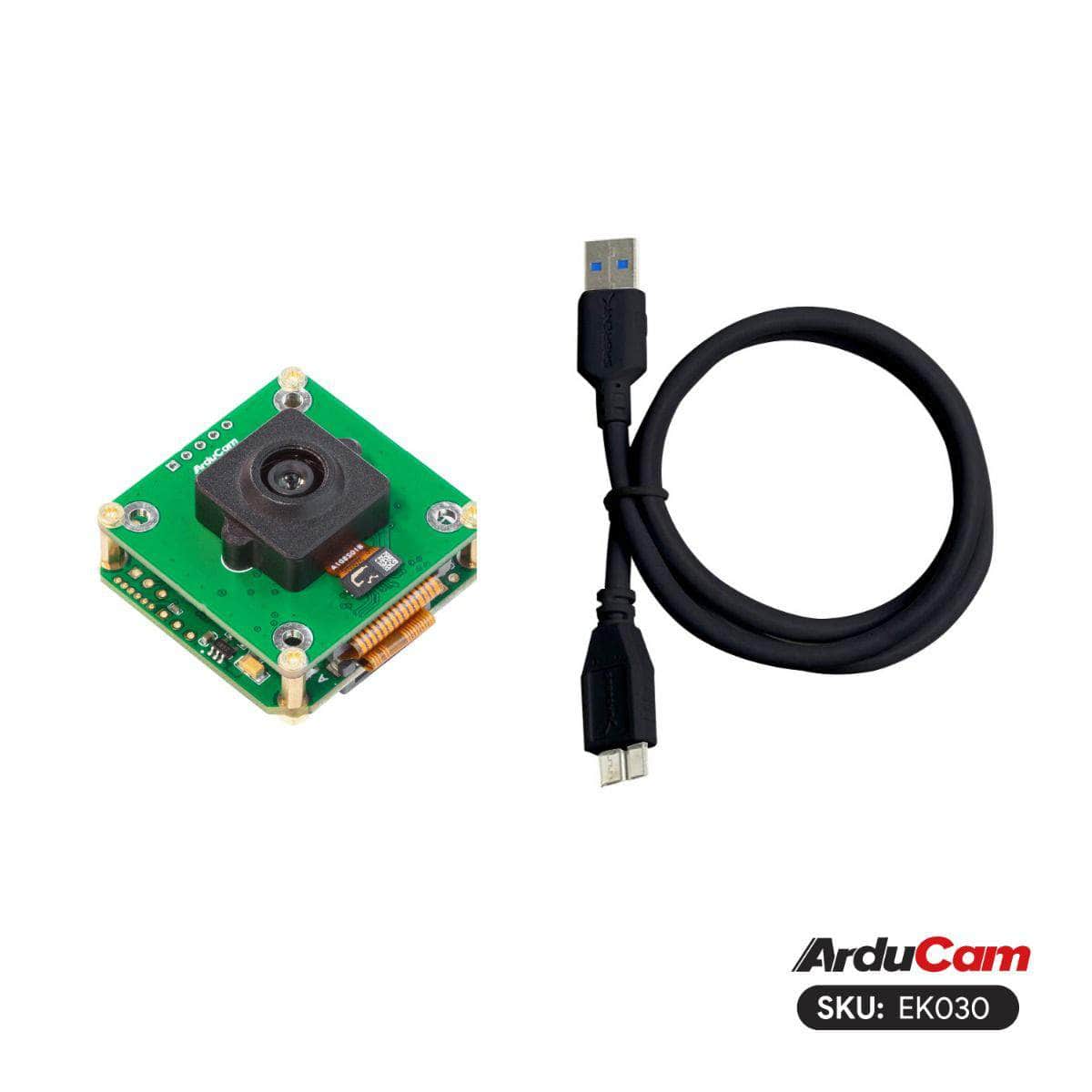

PACKING LIST

1 x Arducam 108MP Camera Module

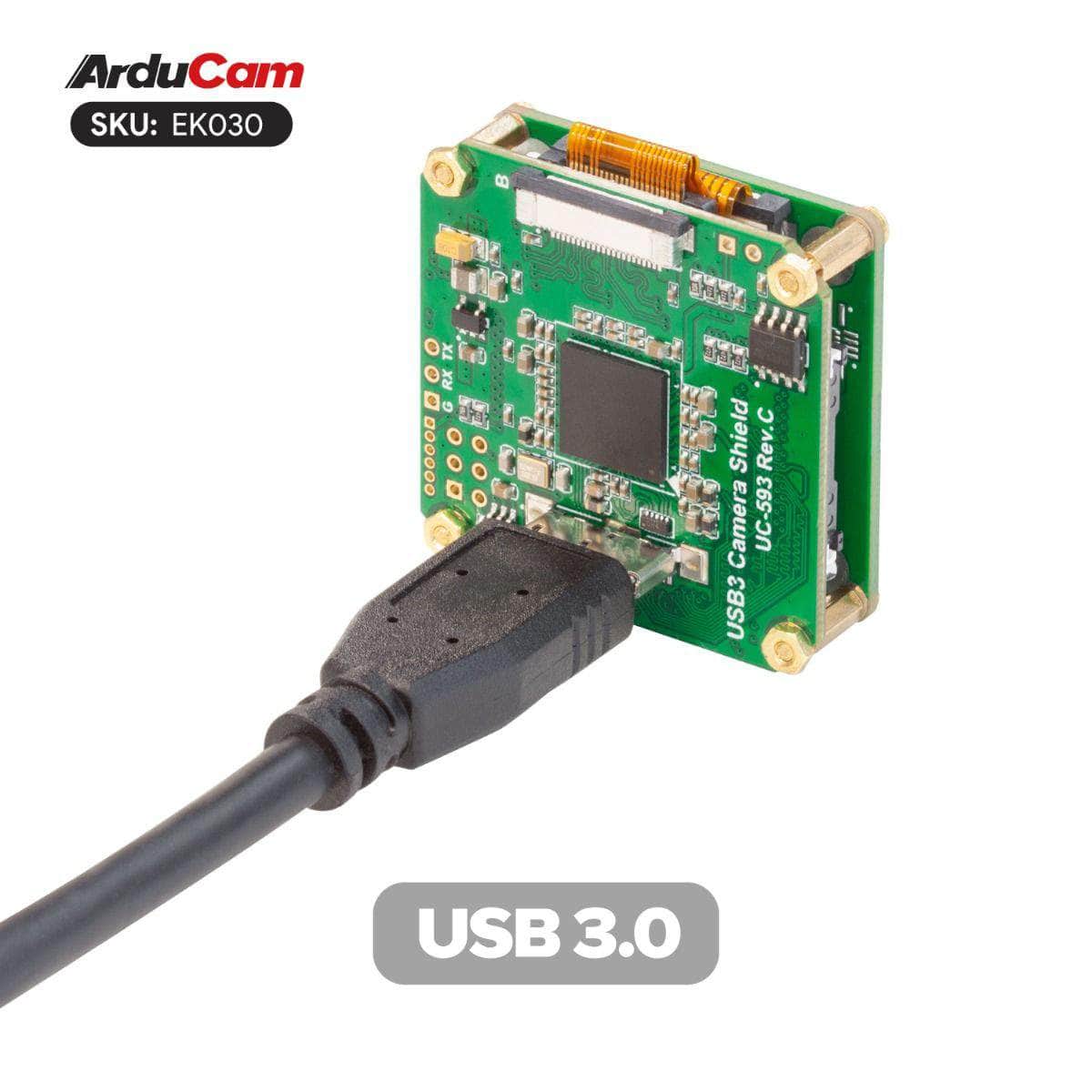

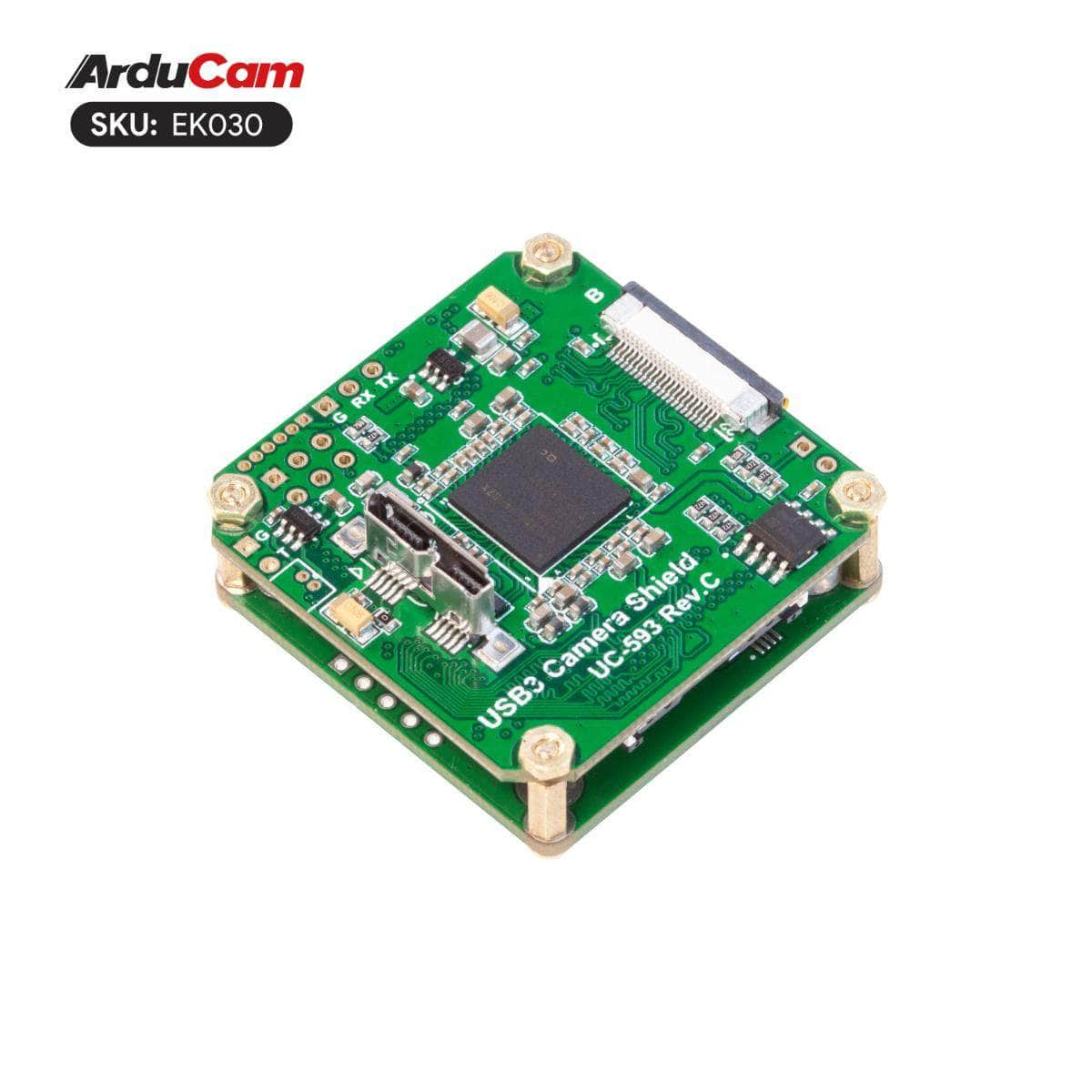

1 x Arducam USB 3.0 Camera Shield Plus
1 x USB 3.0 Camera Cable
