Arducam 12MP IMX477 Pan Tilt Zoom (PTZ) IR-Cut Camera (B016712MP)
Arducam 12MP IMX477 Pan Tilt Zoom (PTZ) IR-Cut Camera (B016712MP)
Arducam PTZ camera is a complete solution to turn your Raspberry Pi/Jetson Nano/Xavier NX, and it is capable of remote directional and zoom control, so it could move the camera and the lens, and that means a single camera can be used to monitor places that should be covered by multiple ones. You can save a lot of cost and time in purchasing and deploying the camera. What’s more, this kit is based on the IR-CUT switchable 13MP camera to get sharp imaging all day and night.
Application
This cost-effective and flexible PTZ camera performs better in Day&night vision security camera system, motion detection, wildlife photography and other machine vision projects.
Features
- Resolution: High Resolution
- Shutter Type: Rolling Shutter
- Color Type: Color
- Interface: MIPI
- Platform Support: Raspberry Pi/Jetson Nano/Xavier NX
Specification
- Sensor: IMX477
- Pixel Size: 1.55 µm x 1.55 µm
- Resolution: 4056(H) x 3040(V) 12.3MP
- Optical Size: 1/2.3″
- Video Modes on Raspberry Pi: 1080p30, 720p60 and 640 × 480p60/90
- Frame Rate on Jetson Nano/Xavier NX:1920×1080 @ 60fps,4032×3040 @ 30fps
- IR sensitivity: Optional with additional Motorized IR-Cut filter
- Focus: Front group – focus, Back group – Zoom
- Field of View: 96° – 33° (Horizontal)
- Focal length: 4.38-10.71mm±5%

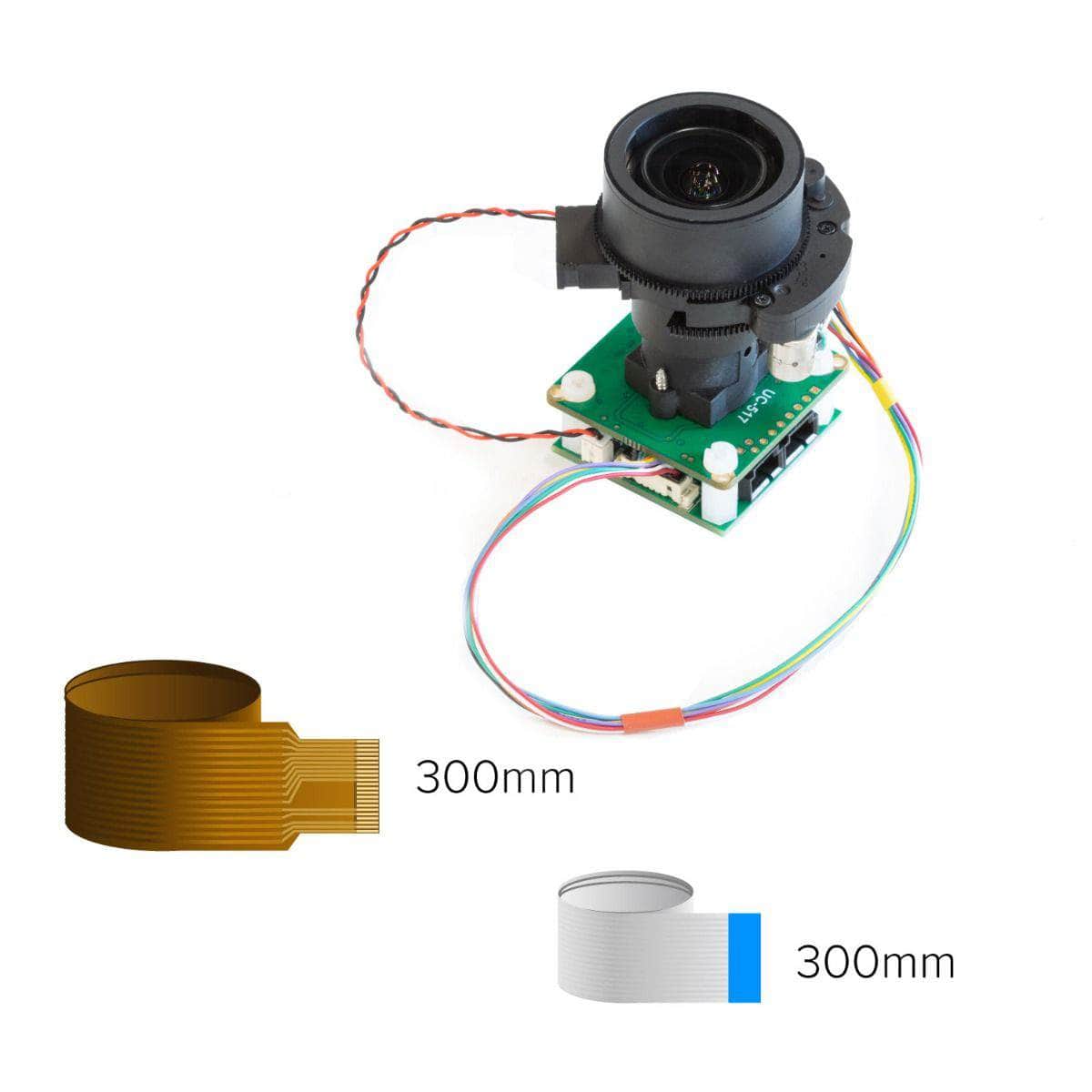

Package Contents
- 1pcs Arducam PTZ Lens, assembled with a 12MP IR-CUT switchable camera board and camera control board
- 1pcs 15-Pin to 22-Pin Ribbon Cable (11.8 in/30 cm)
- 1pcs 22-Pin Ribbon Cable (11.8 in/30 cm)
- 1pcs XH2.54 Jumper wire with 6-Pin Female Connector (11.8 in/30 cm)
- 4pcs Copper Standoffs for the Base
Note: For the new version(R32 4.4), please refer to the following link: https://github.com/ArduCAM/MIPI_Camera/releases/tag/v0.0.2
Documentation
Video

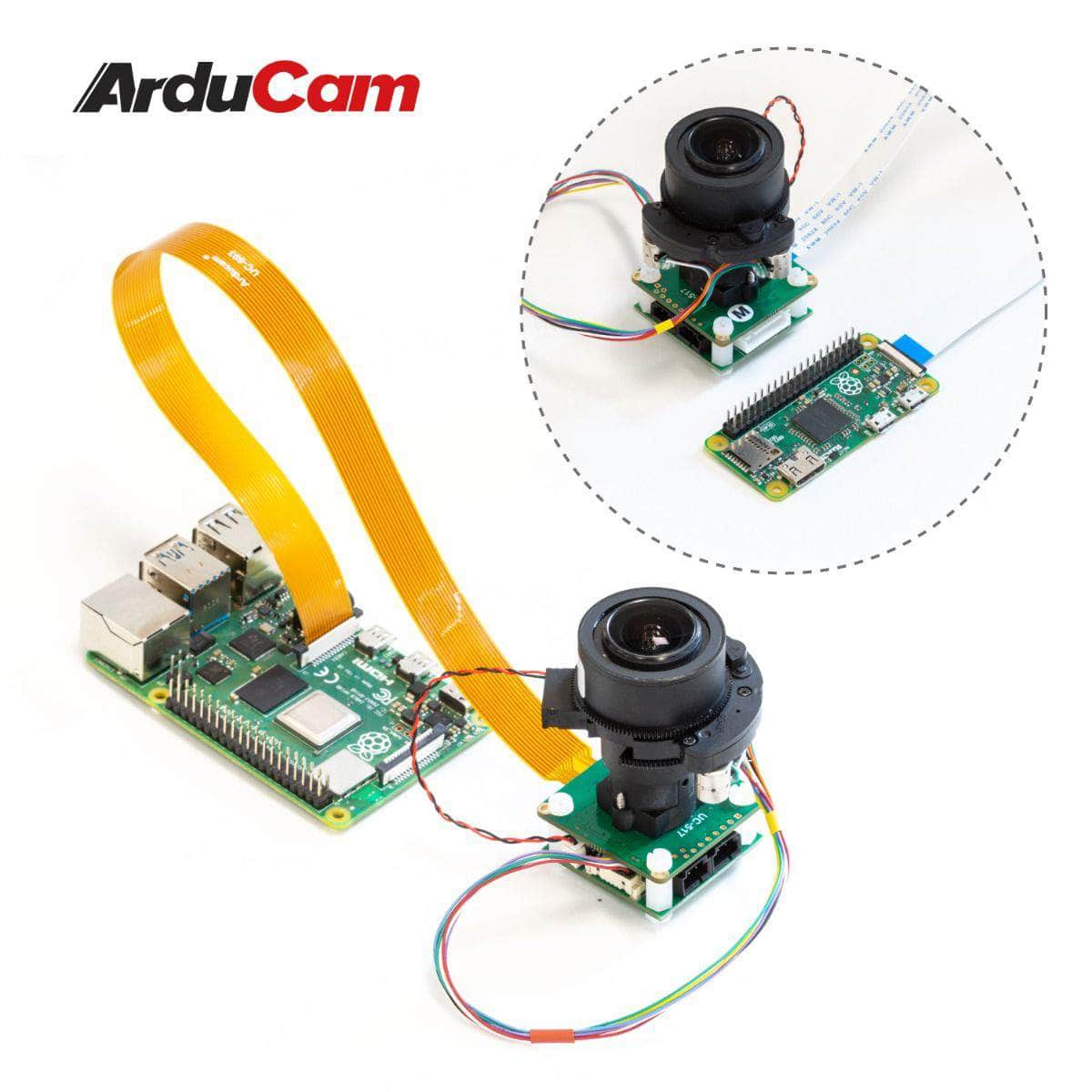

Used on Raspberry Pi-Raspberry Pi IMX477 Pan Tilt Zoom Camera Guide

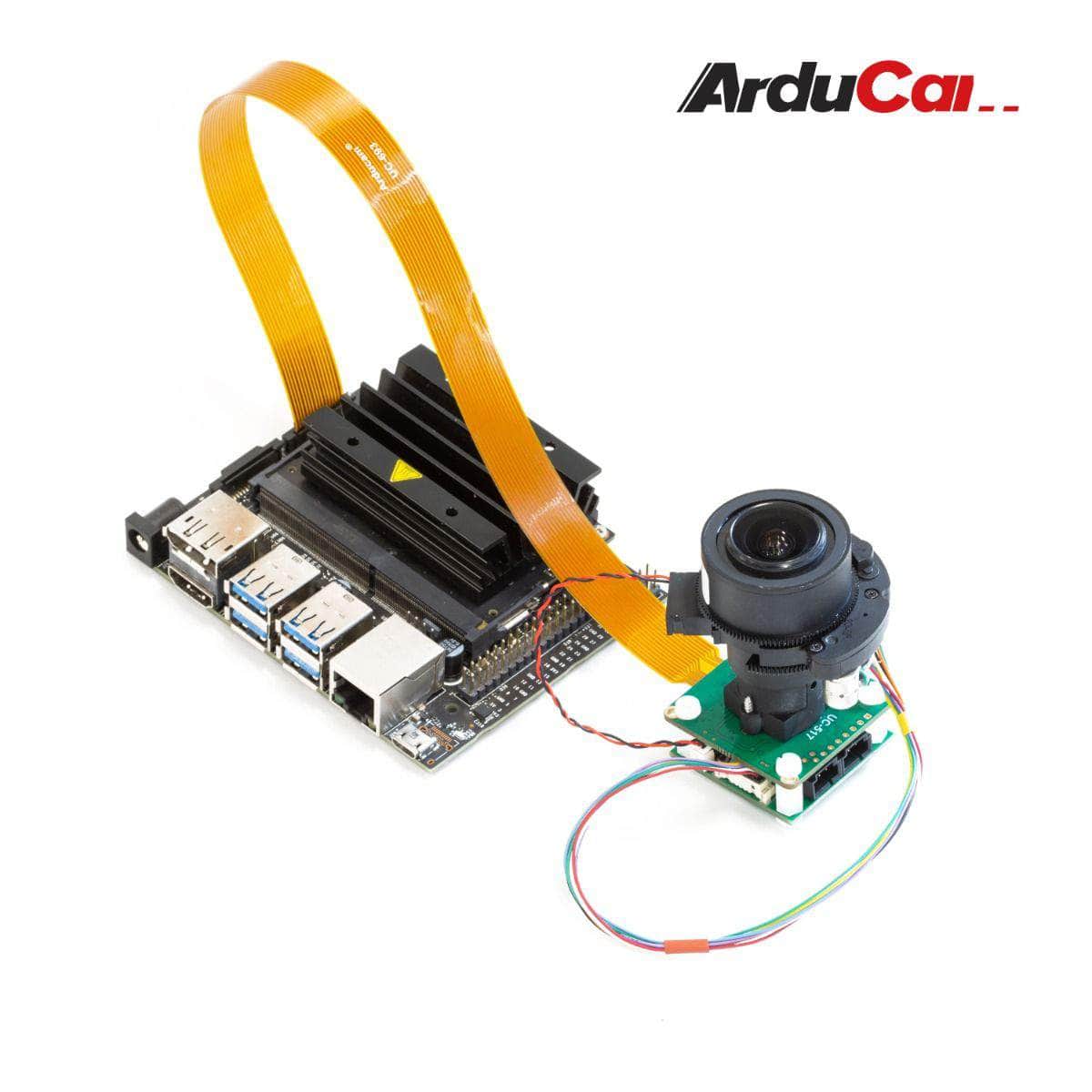

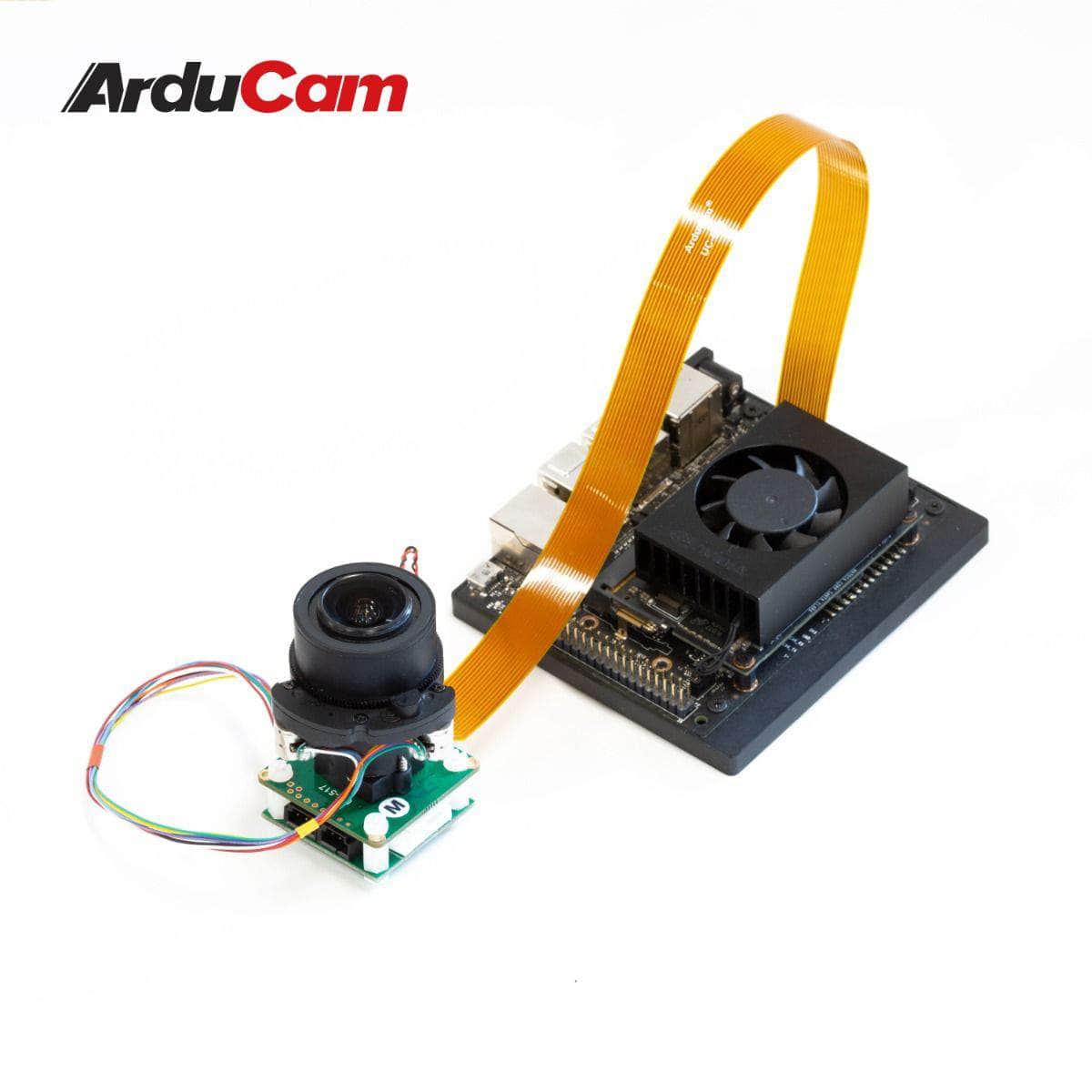

Used on Jetson Nano/Xavier NX-Jetson Nano NX IMX477 Pan Tilt Zoom Camera Guide
