Arducam 12MP IMX708 Compact Camera Kit with Raspberry Pi CM5 B0584

Description

Arducam 12MP IMX708 Compact Camera Kit with Raspberry Pi CM5 B0584

  • [Complete Setup] All-in-one camera kit with both camera module and computing platform
  • [Superior Sensor] Reputable Sony's IMX708 imaging sensor with 12MP clarity and HDR
  • [User-Friendly] Super compact, fixed focus, low-power & ready in minutes
  • [Robust Enclosure] Metal CNC housing design, both for heatsink and protection
  • [Versatile Applications] Ideal for both PoC and mass deployment

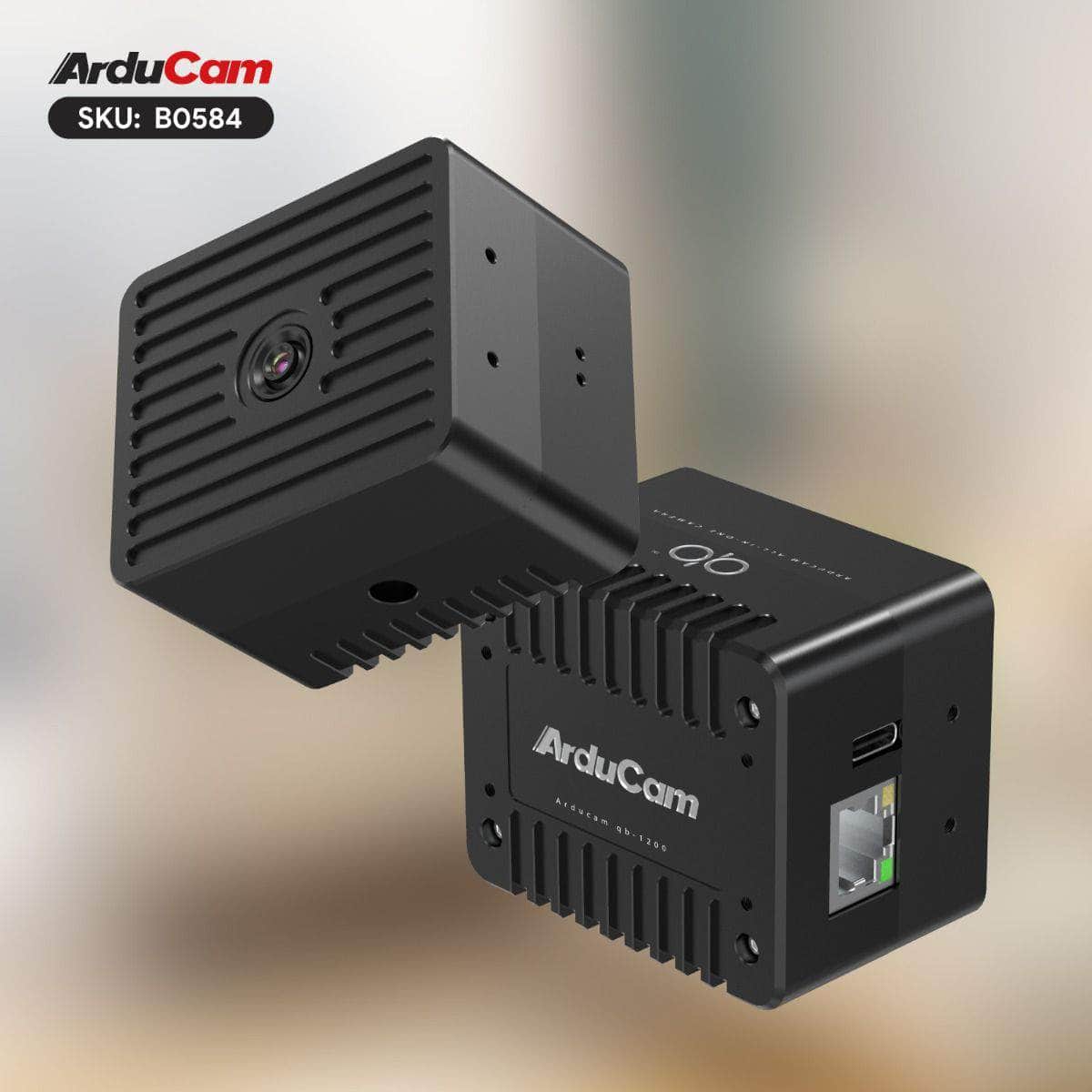

The Arducam 12MP IMX708 All-in-One Compact Camera Kit is a ready-to-deploy embedded vision solution, combining a high-performance Sony IMX708 camera module with a built-in Raspberry Pi Compute Module. Housed in a precision CNC metal enclosure for durability and passive cooling, this compact system offers 12MP resolution, HDR imaging, and low power consumption—all in a plug-and-play form factor. Ideal for rapid prototyping and scalable deployment, it’s engineered for convenience, reliability, and versatility.

Applications

  • Edge AI Vision Systems
  • Smart Kiosks & Terminals
  • Automation & Robotics
  • Environmental Monitoring
  • Retail & Occupancy Analytics
  • Prototype to Production

Features

  • Complete Setup An all-in-one camera kit that integrates both a high-quality camera module and a Raspberry Pi Compute Module, eliminating the need for additional components or assembly. Perfect for rapid deployment and simplified system integration.
  • Superior Sensor Powered by Sony’s trusted IMX708 12MP sensor, this camera delivers excellent image quality with high resolution and HDR support, making it suitable for demanding imaging applications in various lighting conditions.
  • User-Friendly Design Engineered for ease of use, the compact, fixed-focus design ensures a quick start with minimal setup. Its low-power operation and space-saving footprint make it an ideal choice for embedded and mobile applications.
  • Robust Enclosure Built with a CNC-machined metal housing, the enclosure not only protects internal components but also serves as an effective heatsink, ensuring long-term durability and thermal stability even in challenging environments.
  • Versatile Applications Whether you’re building a proof-of-concept or rolling out a large-scale deployment, this camera kit offers the flexibility and reliability required for a wide range of applications, including AI vision, automation, and edge computing.

Specifications

Image Sensor
Sensor IMX708

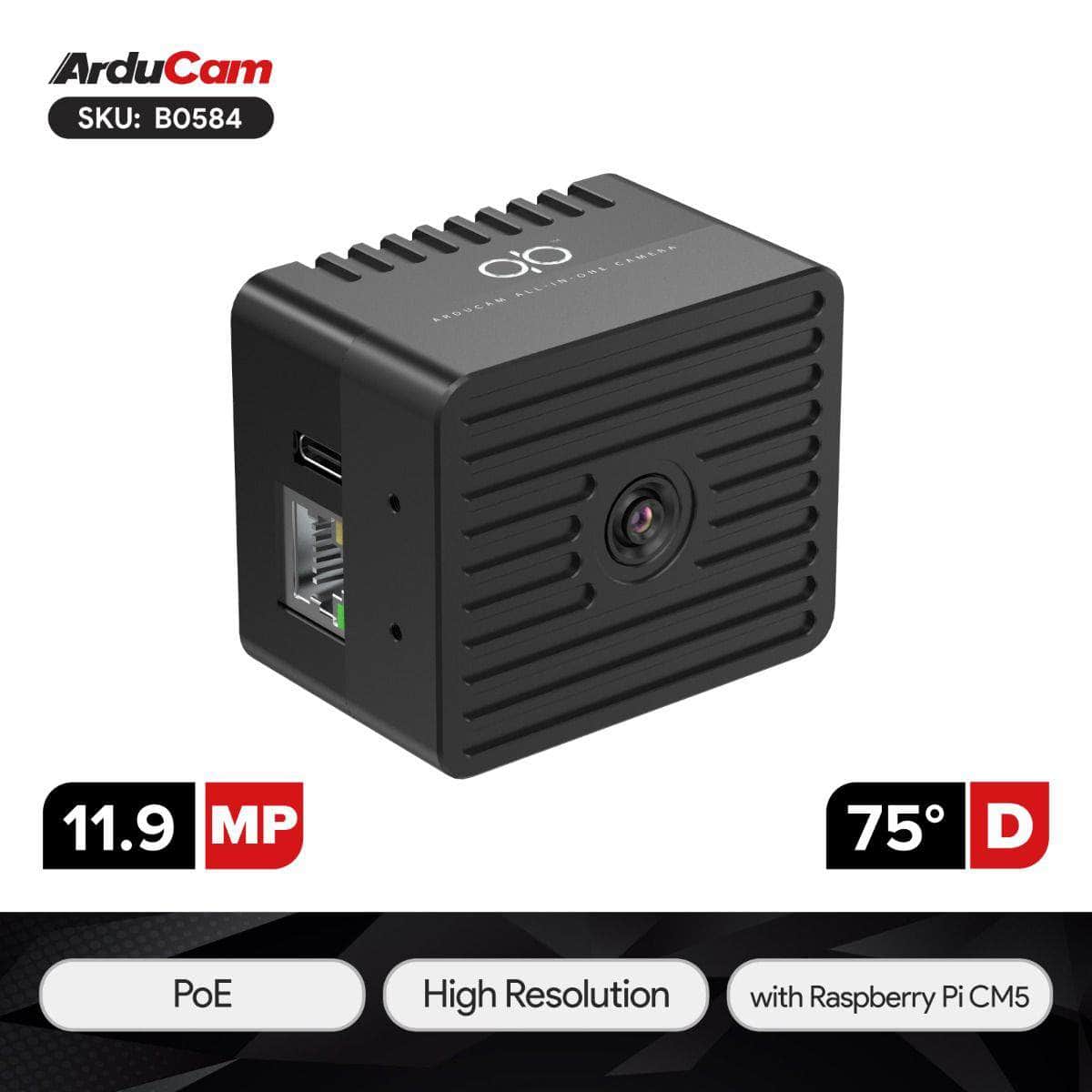

Still Resolution 11.9 Megapixels
Color Filter Type Color
Shutter Type Rolling Shutter
Optical Size 1/2.43"
Output Format RAW10
Sensor Image Area 6.45 mm x 3.63 mm (7.4 mm diagonal)
Pixel Size 1.4 µm x 1.4 µm
Sensor Active Area 4608 x 2592 pixels
Frame Rate 2304×1296@56fps, 2304×1296@30fps HDR;
1536x864@120fps;
Lens
Focus Type Fixed Focus

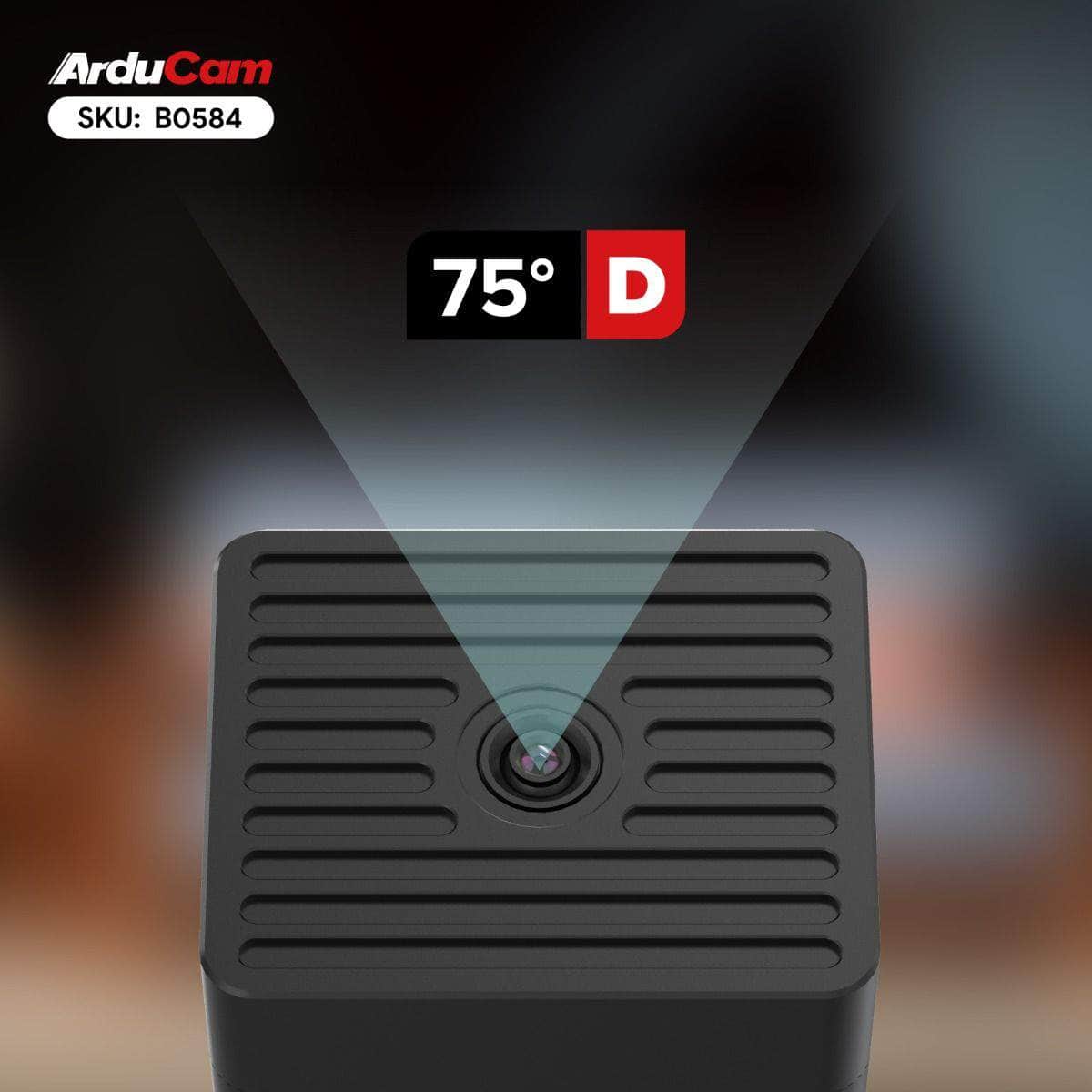

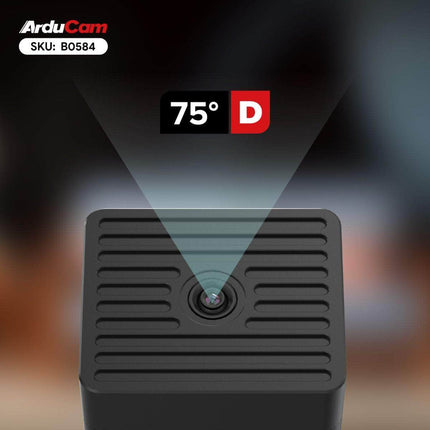

FOV 75°(D)×66°(H)×41°(V)
Lens Mount Stock Lens
F.NO F1.8
E.F.L 4.74 mm
Default Focus Range 150cm to infinity
IR Sensitivity Integrated 650nm IR filter
Functionality and Compatibility

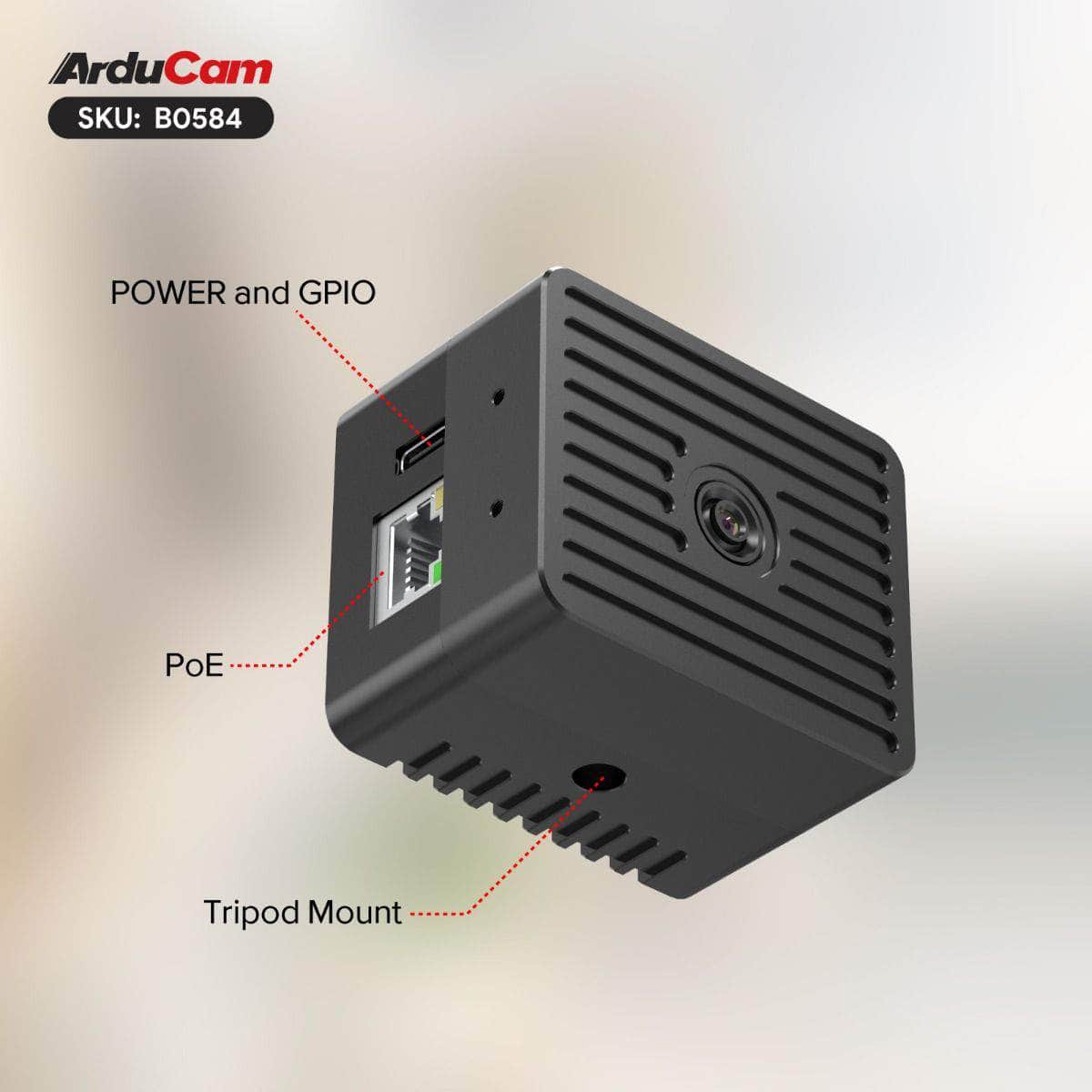

Interface PoE/USB-C
Network Support Ethernet
Supported OS Raspberry Pi OS

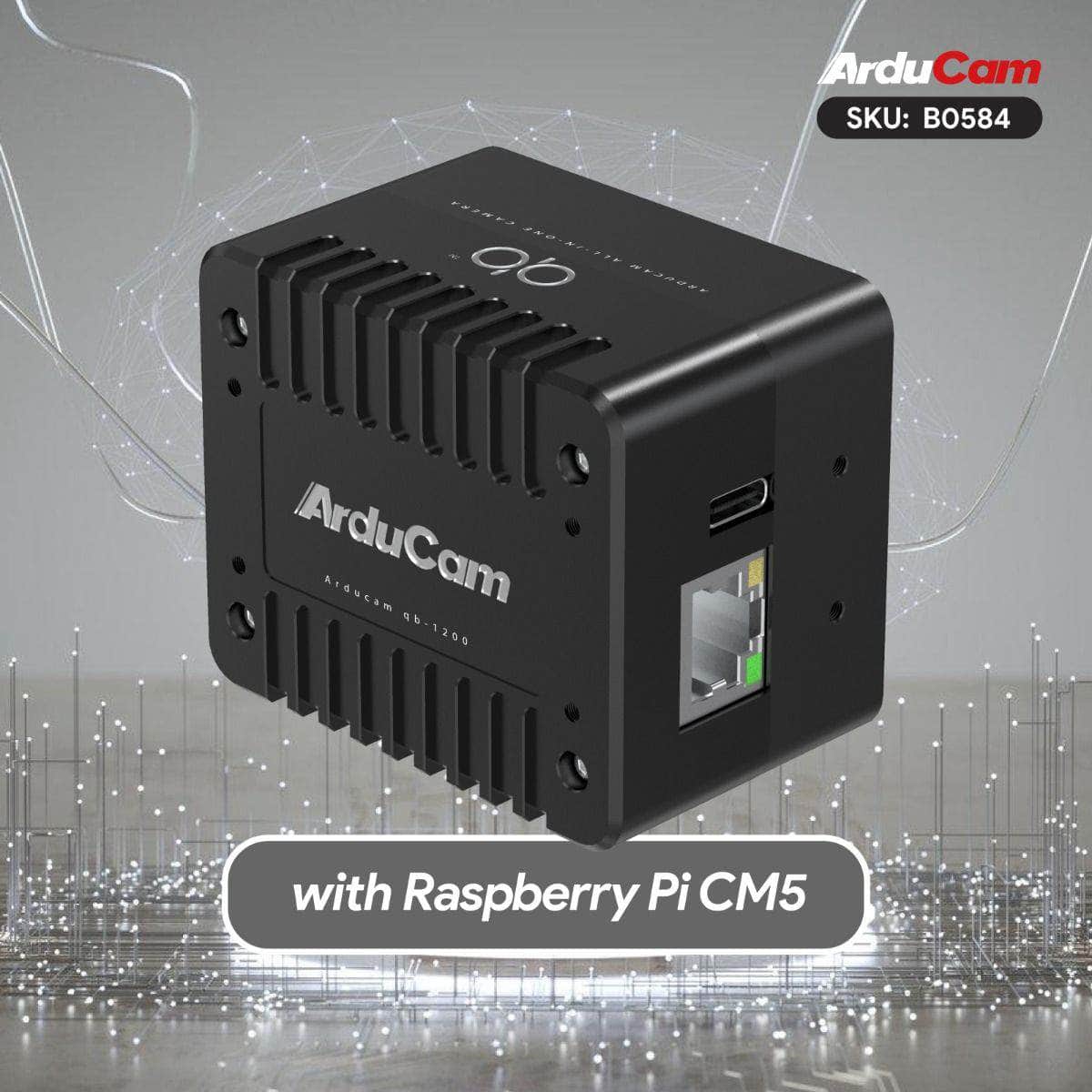

Supported Platform Raspberry Pi CM5
Electrical and Mechanical
Operating Voltage USB-C: 5.1V/3.0A PoE Power Input: IEEE 802.3at PoE/50-57V 600mA
Temperature range (Operating) -14°F-167°F (-10°C to +75°C)
Temperature range (Stable image) 32°F-122°F (0°C to +50°C)
Power Requirements (Kit) 15W
Camera Board Size 24×25 mm

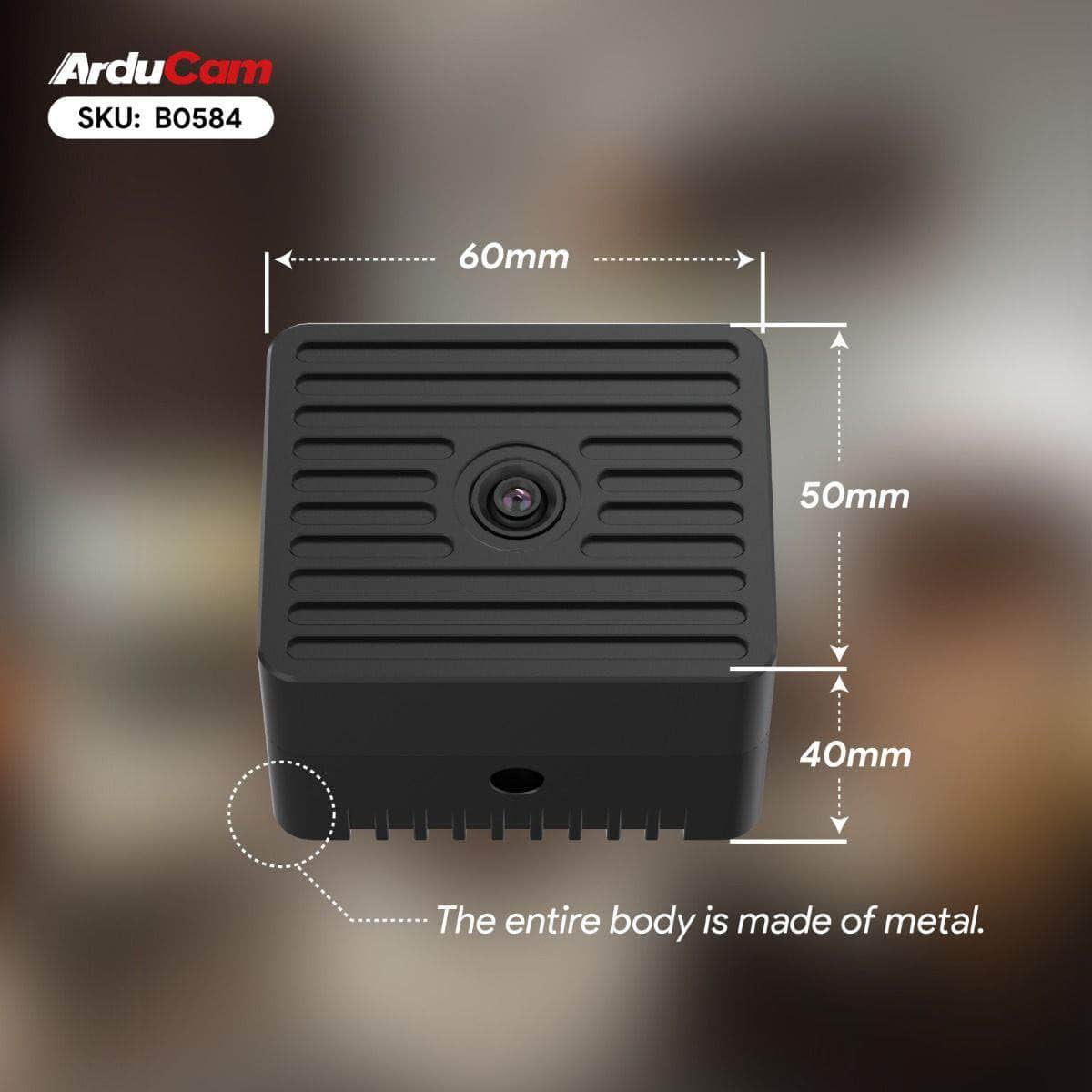

Overall Size 60x50x40 mm

Package Including

  • 1 x 12MP IMX708 Raspberry Pi CM5 All-in-one Camera Kit, Arducam qb-1200

Notes

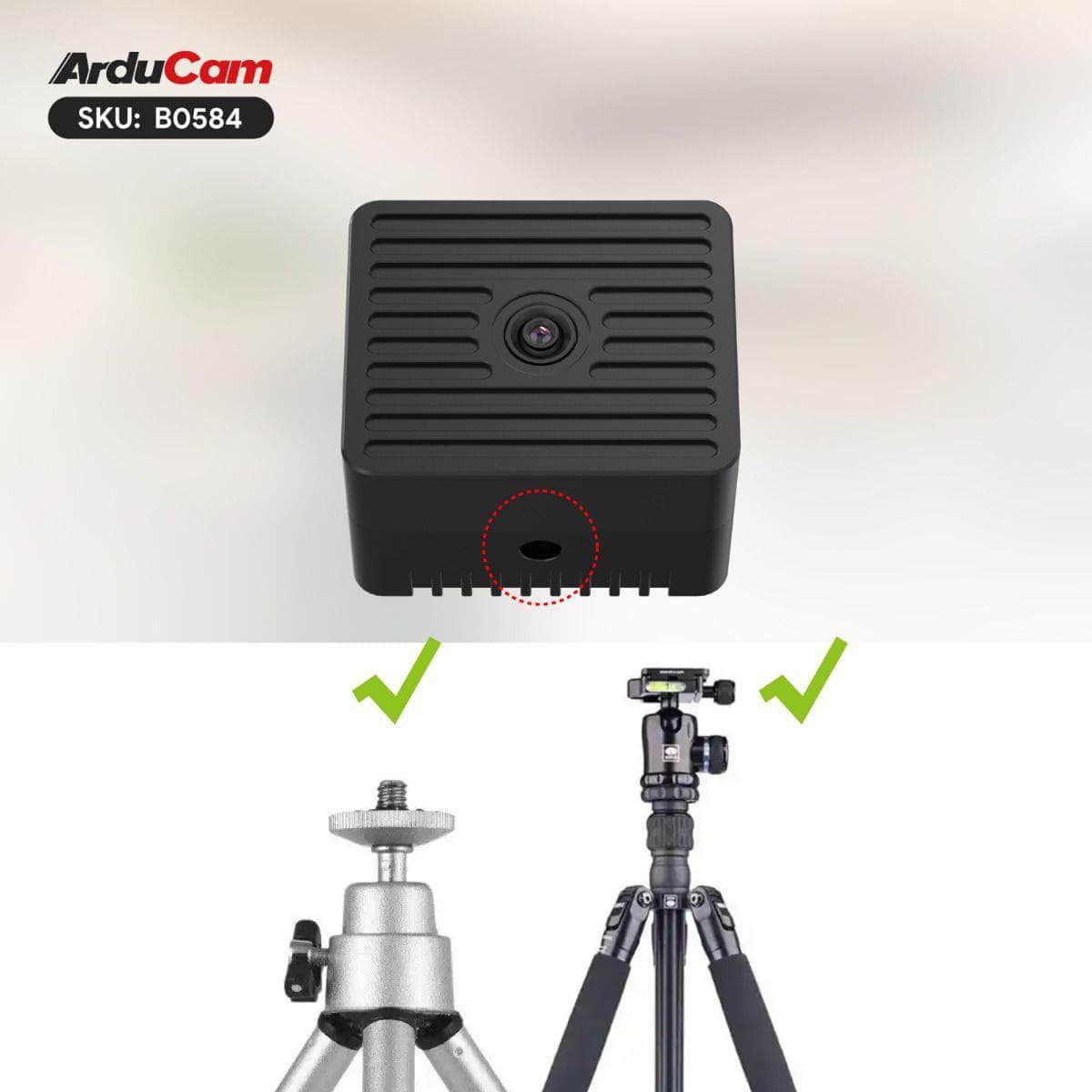

  • Tripod is not included in the package; please check UB0224 and UB0216 for additional purchase.
  • This product kit includes the Raspberry Pi CM5 preloaded with OS and software. It is recommended to use only this platform.
  • When PoE power supply is not used, for optimal performance, we suggest using the official Raspberry Pi 27W power supply.

Documentation



Arducam 12MP IMX708 Compact Camera Kit with Raspberry Pi CM5 B0584

Product form
Free pickup in our shop(s)

SKU: B0584

$549.00 $499.00 Excl. GST

$499.00
Special order, dispatch in about 20-30 days.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts
