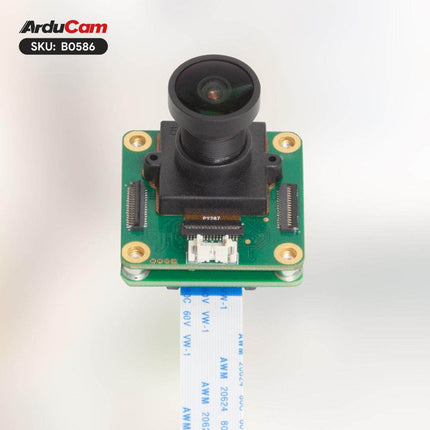

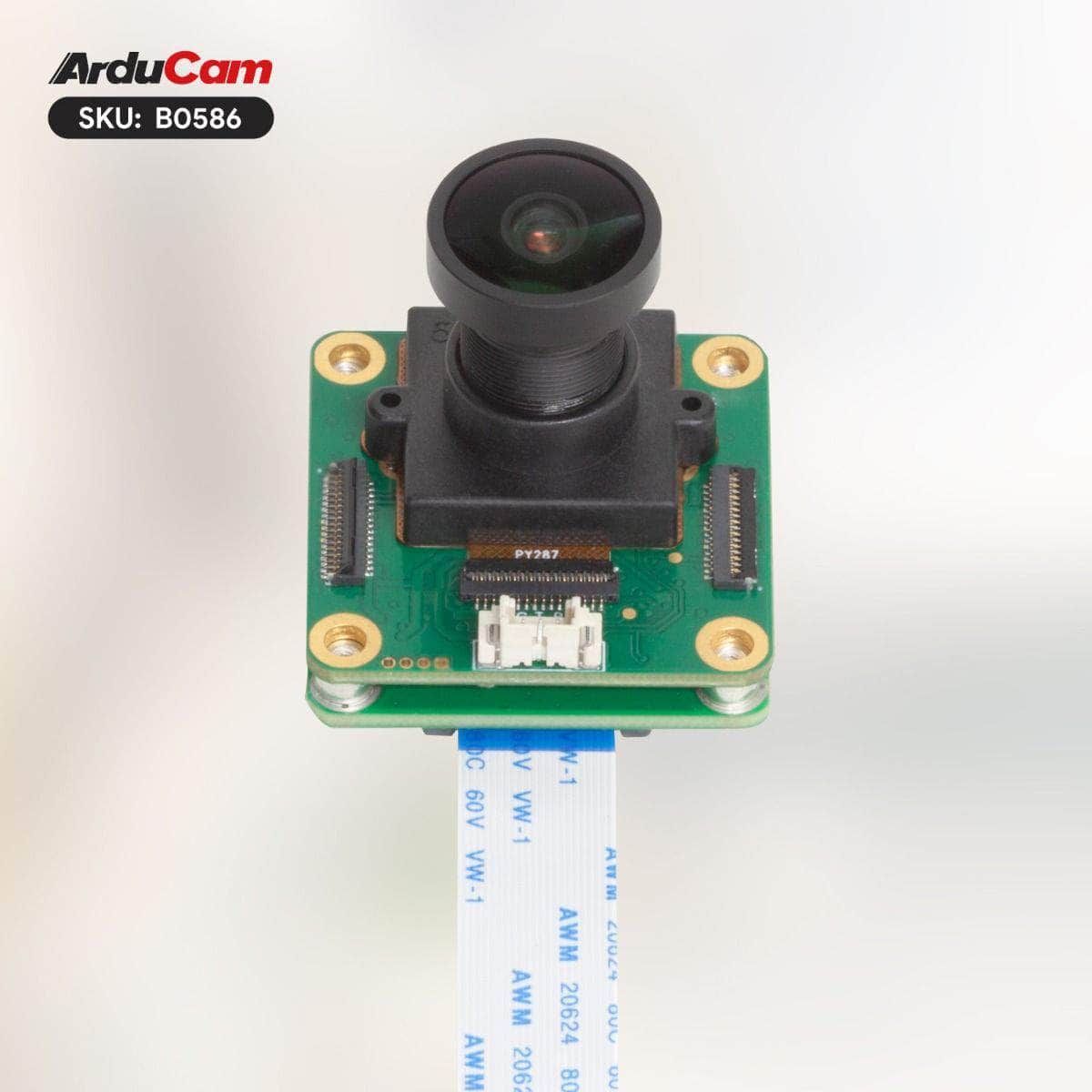

Arducam 4K HDR High Framerate MIPI Camera for NVIDIA Jetson Orin Nano/NX (B0586)

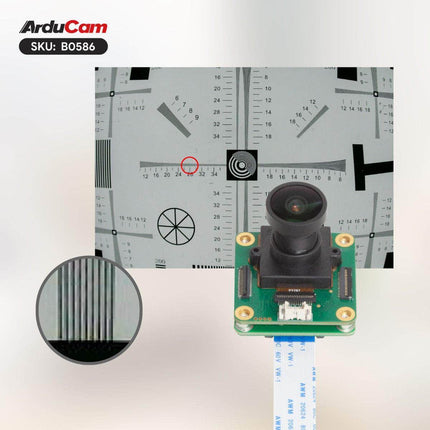

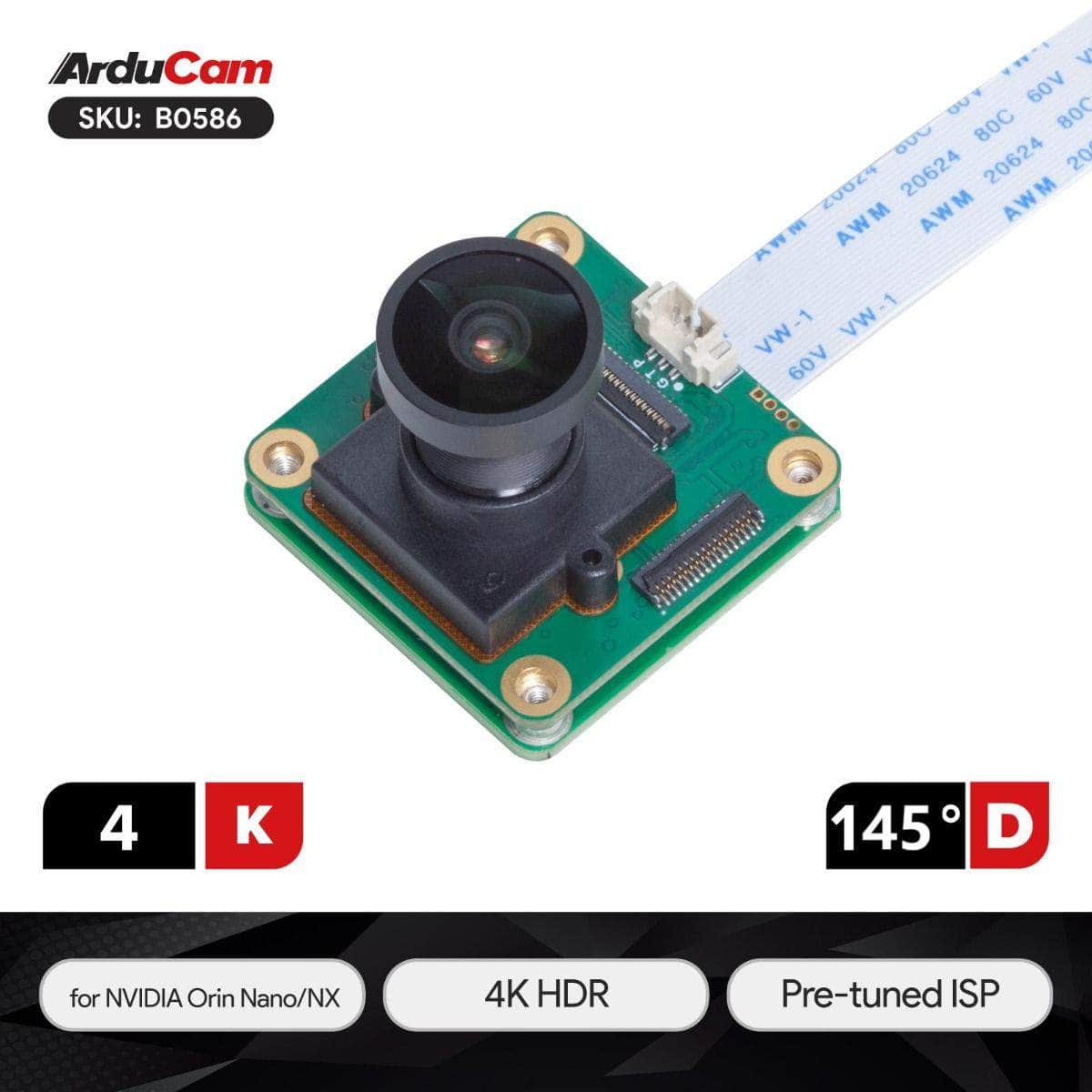

The Arducam 4K HDR MIPI Camera delivers ultra-high-definition 4K resolution with HDR and smooth 60FPS Full HD video, featuring a pre-tuned onboard ISP for optimized image processing. Designed specifically for NVIDIA Jetson Orin Nano and NX platforms, this camera includes a wide-angle 145° M12 lens and supports customizable options such as framerate, lens types, external triggers, and flash strobe control, making it ideal for advanced embedded vision applications.
Applications
Drones: High-res aerial footage with smooth motion.
- Sports: Capture fast action in soccer, tennis, and more.
- Robotics: Vision for navigation and object detection.
- Industrial Inspection: Detailed quality control imaging.
- Live Streaming: Crisp video for events and webinars.
- Security: Wide-angle, clear surveillance footage.
- Scientific Research: High-quality data capture for experiments.
Features
- Onboard ISP Features a pre-tuned Image Signal Processor on the camera board for fast, high-quality image processing without extra hardware.

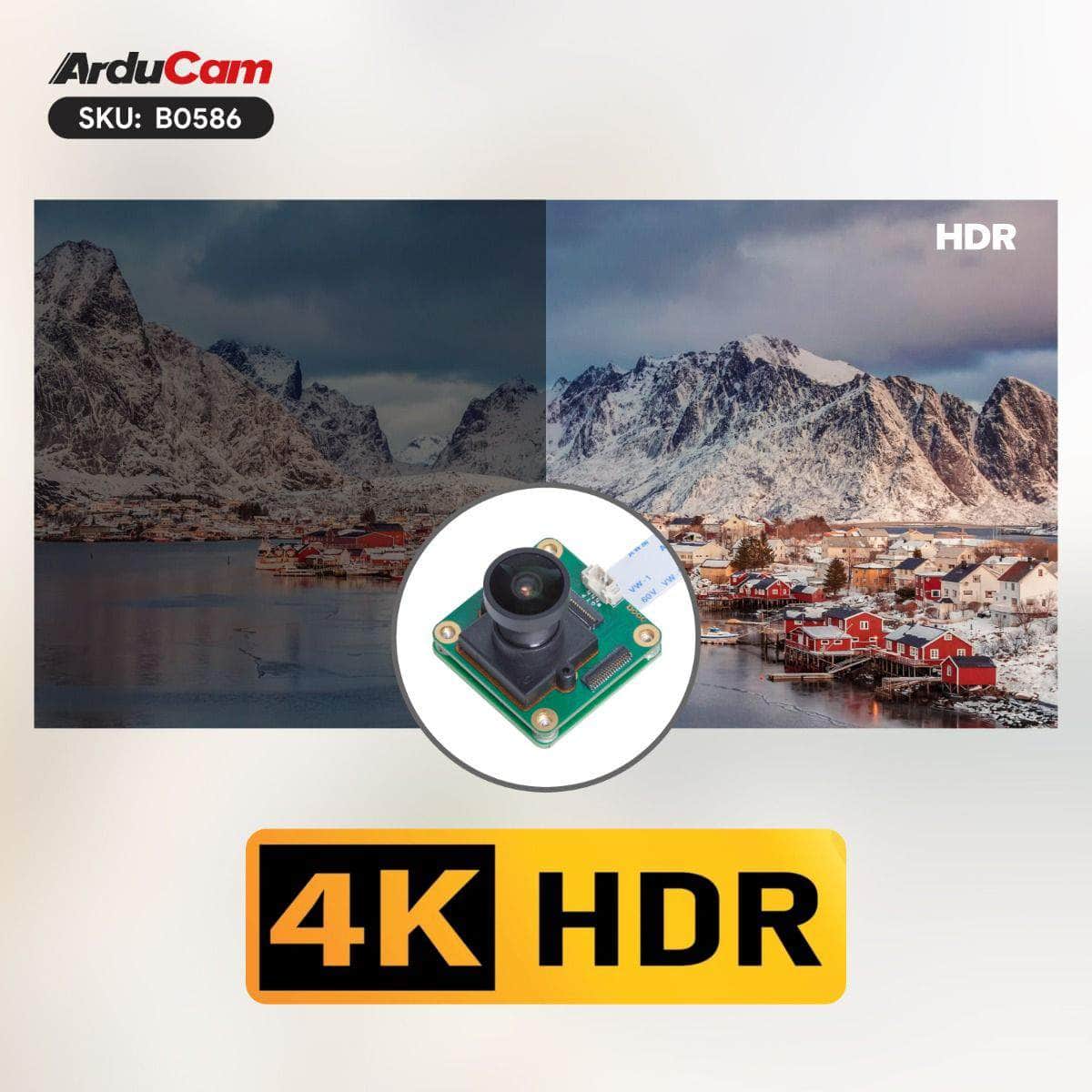

- 4K HDR delivers ultra-high-definition 3840x2160 resolution with HDR mode for clear, vibrant images in varied lighting.
- High Framerate Supports smooth 60FPS video at 1080p Full HD in UYUV formats, ideal for real-time applications.

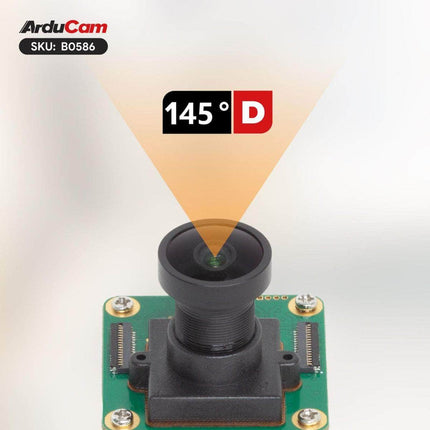

- Wide Angle Equipped with an M12 lens offering a 145° diagonal field of view to capture wide scenes easily.
- Custom Supported Offers customizable options like framerate, lens choices, external trigger, and flash strobe control for versatile use.
Specifications
| Image Sensor |
| Sensor |
4K HDR Image Sensor |
| Still Resolution |
8.3 Megapixels |
| Color Filter Type |
Color |
| Shutter Type |
Rolling Shutter |
| Optical Size |
1/1.8" |
| Output Format |
UYVY |
| Pixel Size |
2 µm x 2 µm |
| Sensor Active Area |
3840(H)×2160(V) |
| Frame Rate (YUV) |
3840x2160@15fps, 1920x1080@60fps; 1280*720@60fps,640x480@60fps; |
| Lens |
| Focus Type |
Fixed Focus |
| FOV(DxHxV) |
145°(D)×120°(H)×65°(V) |
| Lens Mount |
M12 Mount |
| F.NO |
F1.5±5% |
| E.F.L |
3.8±5% mm |
| Default Focus Range |
260cm to infinity |
| IR Sensitivity |
Integrated 650nm IR filter |
| TV-Distortion |
<-20.00% |
| Electrical and Mechanical |
| Operating Voltage |
3.3V |
| Power Consumption |
1W |
| Operating Temp. |
32°F-158°F (0°C to 70°C) |
| Camera Board Size |
34mm x 34mm |
| Functionality and Compatibility |
| Exposure Time Range |
1-66ms |
| Camera Interface |
MIPI CSI-2 |
| Supported JetPack Versions |
JetPack6.2/L4T36.4.3 and later versions |
| Supported Platform |

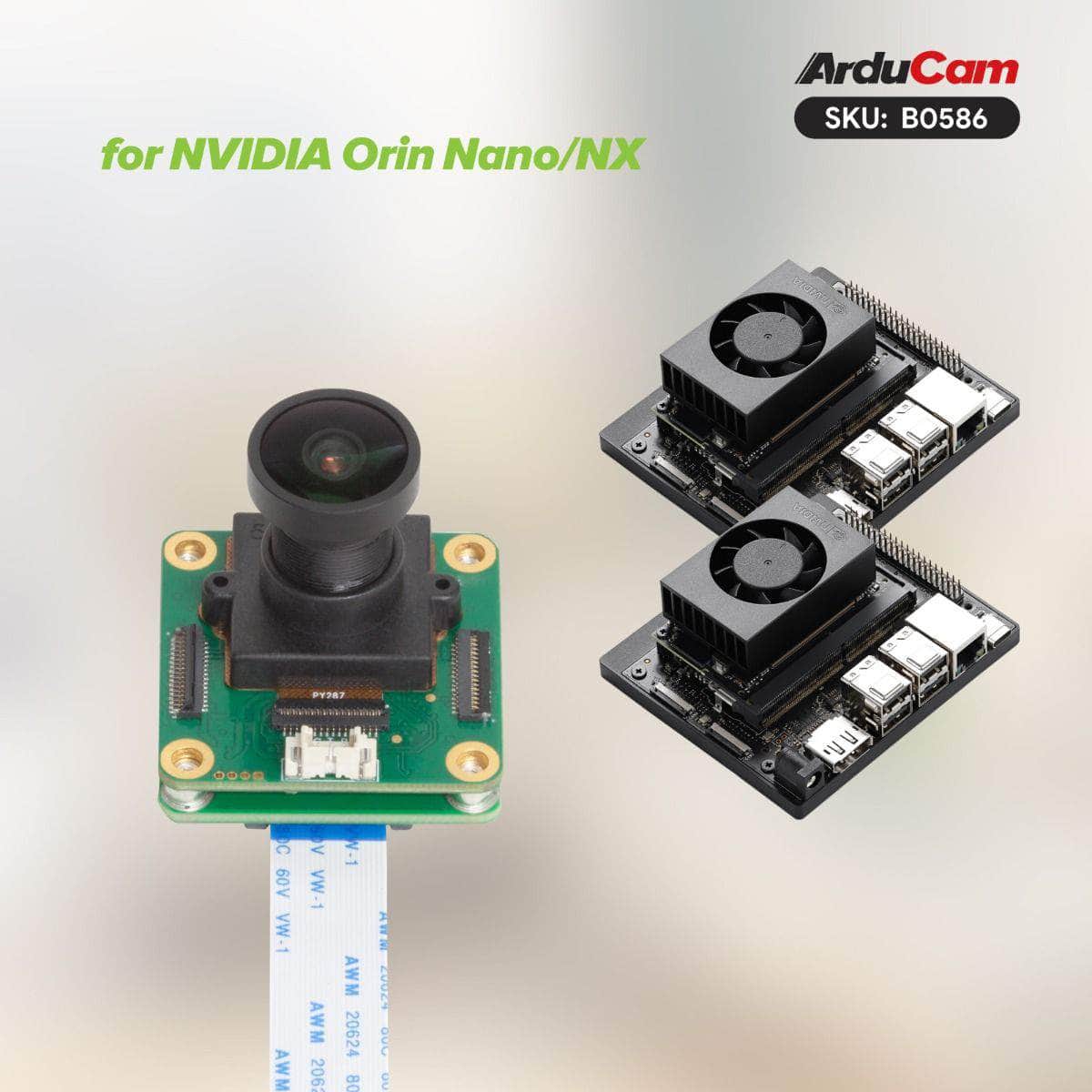

NVIDIA Orin Nano/Orin NX |
Package Including
- 1 x Arducam 4K HDR Camera Module for NVIDIA Orin Nano/NX
- 1 x 15cm 22-22pin FPC Cable
