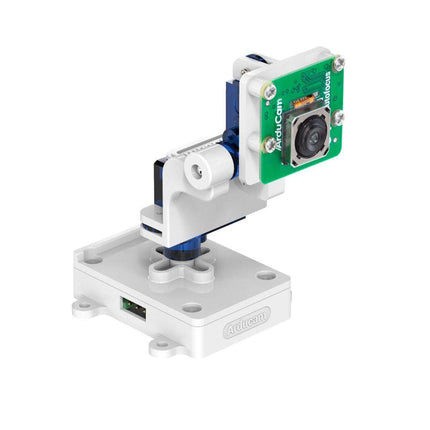

Arducam 64MP Camera and Pan-Tilt Kit for Raspberry Pi

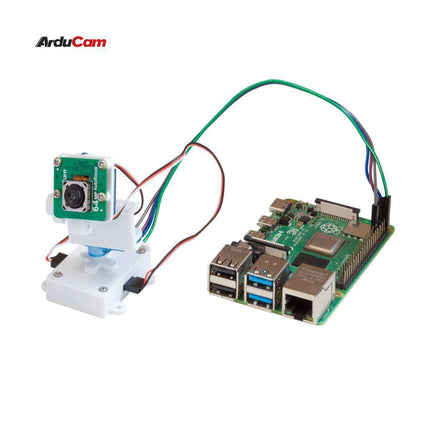

The most powerful pan-tilt camera kit ever made for Raspberry Pi. With the 64MP-AF camera, a handy PT system, and the help of OpenCV, you can build a mini face/movement tracking solution like this:
- PTZ-capable: pan-tilt bracket with a camera that supports digital zooming.
- 64-megapixel: ultra high resolution for Pi.
- Autofocus: AF/Manual/Continuous-AF out of the box.
- Easy to use: compatible with the official software. (libcamera)
- V1/V2 ready: bracket also supports any camera in v1/v2 form factors.
The camera itself works with most Pi models, older ones like Pi 2 or Pi 0 may suffer from performance drops. And the PT kit is also compatible with both the official V1/V2/HQ cameras and Arducam OV5647/IMX219/IMX477 series.
Specification
Specification - PAN-TILT KIT
Digital Servo
- Torque: 0.6 kg/cm at 3.6V, 0.8 kg/cm at 4.8V
- Operating Speed: 0.13sec/60° at 3.6V, 0.09sec/60° at 4.8V
- Operating Voltage: 3.6v～4.8v
- Operating Current: ＜350mA
- Dead Band: 3 usec
- Dimension: 20mm x 8.75mm x 22mm

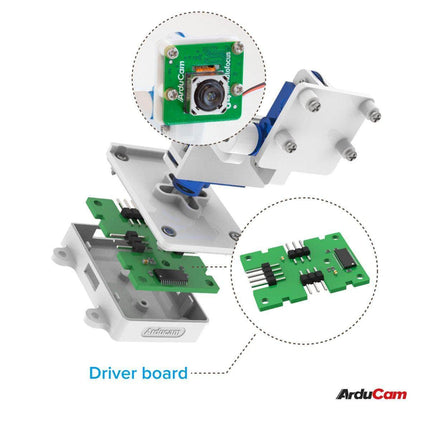

Customized Control Board
- PWM resolution: 12-bit
- Communication interface: I2C
- Operating voltage: 3V-5V
- Dimension: 38mm x 28mm
Documentation
Note
The arducam 64MP cameras can only get maximum resolution and video streaming on Pi4 and CM4 platforms. The resolution and video streaming of the camera will be limited on other Raspberry Pi platforms.
