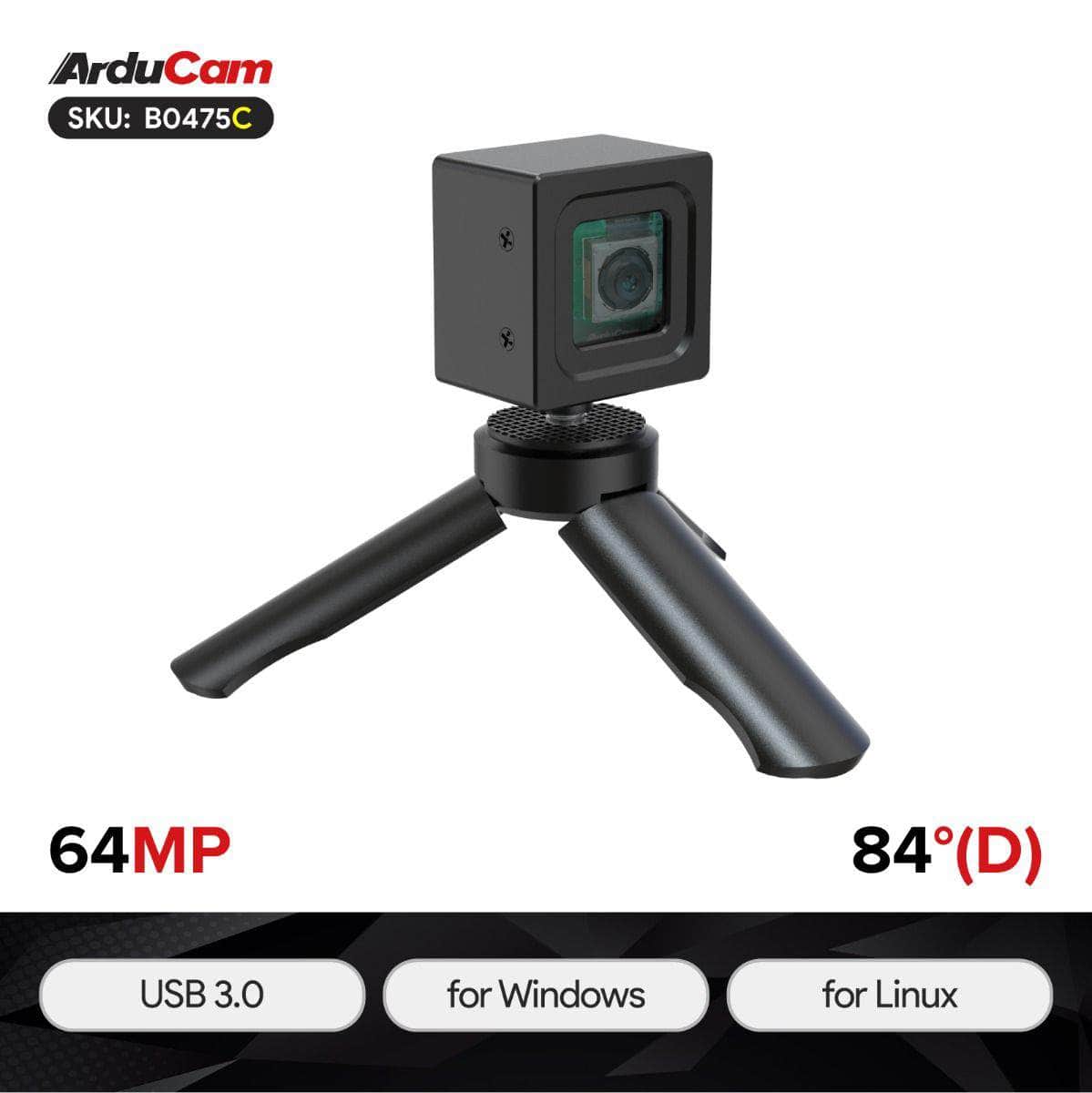

Arducam 64MP Motorized Focus USB 3.0 Camera with Case B0475C

Description

Arducam 64MP Motorized Focus USB 3.0 Camera with Case B0475C

Overview
  • Plug and play
  • Based on 64MP CMOS
  • Maximum still resolution of 9248x6944 pixels
  • Proprietary on-board ISP advances image enhancement
  • Programmable frame rates, reach up to 120fps@720p

This  USB 3.0 camera boasts a maximum resolution of 64 megapixels utilizing the advanced  image sensor. With a maximum still resolution of 9248×6944, users can capture incredibly detailed images. Moreover, the camera's frame rate can reach up to 120fps@720P, ensuring smooth and fluid video capture.

With its high quality motorized focus lens offering a field of view of 84°(D), this camera captures stunningly accurate images.

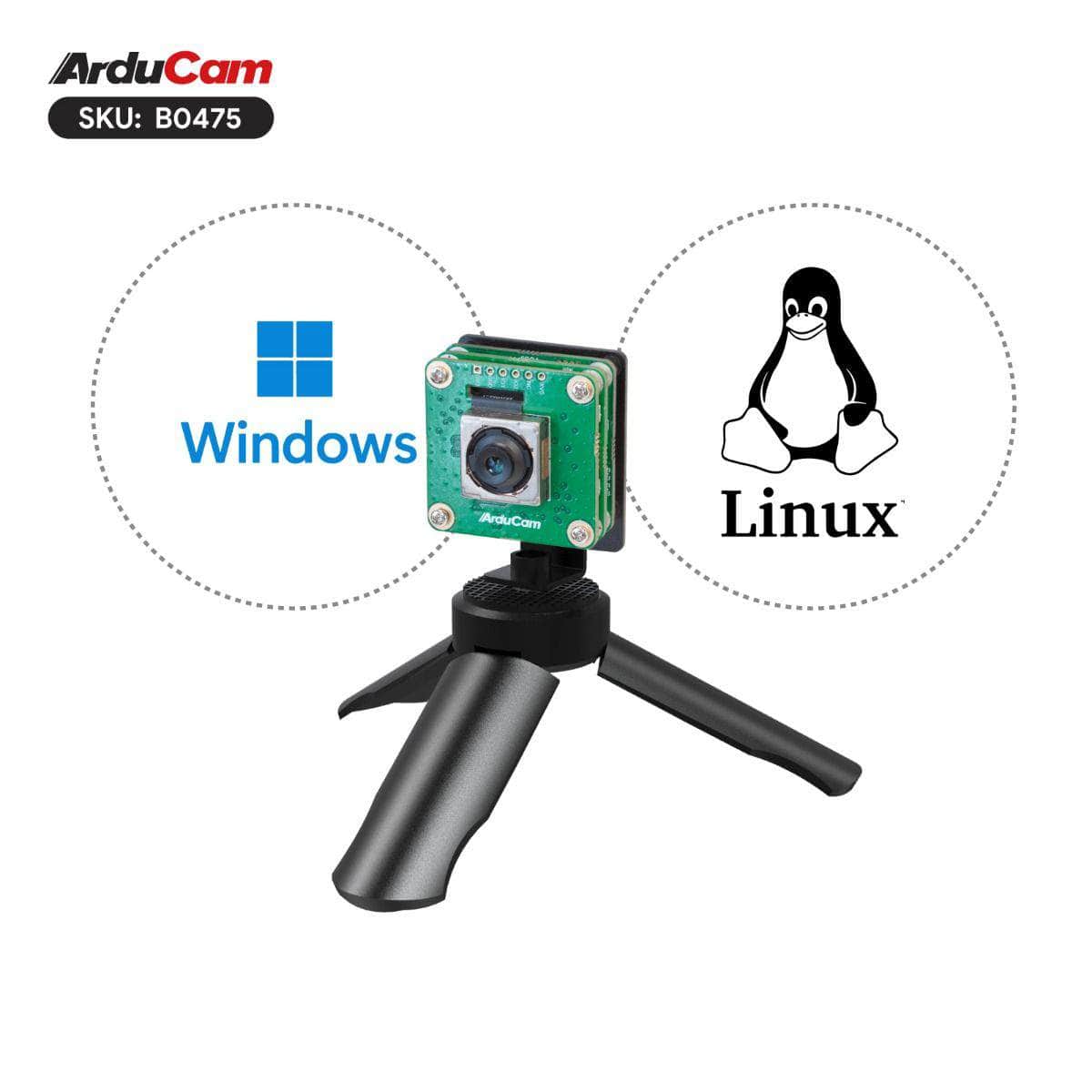

Arducam latest USB 3.0 camera stands out with its user-friendly plug-and-play functionality. Offering compatibility with Windows and Linux OSs, no additional drivers are needed, simplifying the setup process. Moreover, its backward compatibility with USB 2.0 host ports ensures flexibility and seamless connectivity.

Applications
  • Machine Vision
  • Automated Optical Inspection
  • 3D Scanning and Metrology
  • Robotics and Automation
  • Biomedical Imaging
Features
  • Utilizing a 64MP image sensor, achieving a maximum still resolution of 9248x6944 pixels.
  • Enjoy programmable frame rates, with the potential to reach up to 120fps at 720p resolution.
  • Proprietary on-board ISP advances image enhancement: de-Bayer, gamma, BLC, AE, AWB, CCM, RGB2YUV.
  • Features an 84° DFoV motorized lens for exceptional image quality.
  • Effortless compatibility with Windows and Linux through plug-and-play functionality, eliminating the need for additional drivers.
Specifications

Image Sensor
Sensor OV64A40
Still Resolution 64 Megapixels
Color Filter Type Color
Shutter Type Rolling
Optical Size 1/1.32"
Output Format YUY2
Pixel Size 1.008 µm x 1.008 µm
Sensor Active Area 9248(H)×6944(V)
IR Sensitivity Integral IR-cut Filter, visible light only
Frame Rate (USB 3.0) 9248×6944@1fps, 4624×3472/3840×2160@5fps, 2312×1736@30fps, 1920×1080@60fps, 1280×720@120fps
Frame Rate (USB 2.0) 1280*720@10fps
Lens
Focus Type Motorized Focus
FOV 84°(D)×68°(H)×54°(V)
Lens Mount Stock Lens
F.NO F1.9
E.F.L 6.65mm
Default Focus Range 3m-∞
Programmable Focus Range 10cm-∞
IR Sensitivity Integral IR-cut Filter, visible light only
USB Interface
Interface USB 3.2 Gen 1 device, backward compatible with USB 2.0 hosts

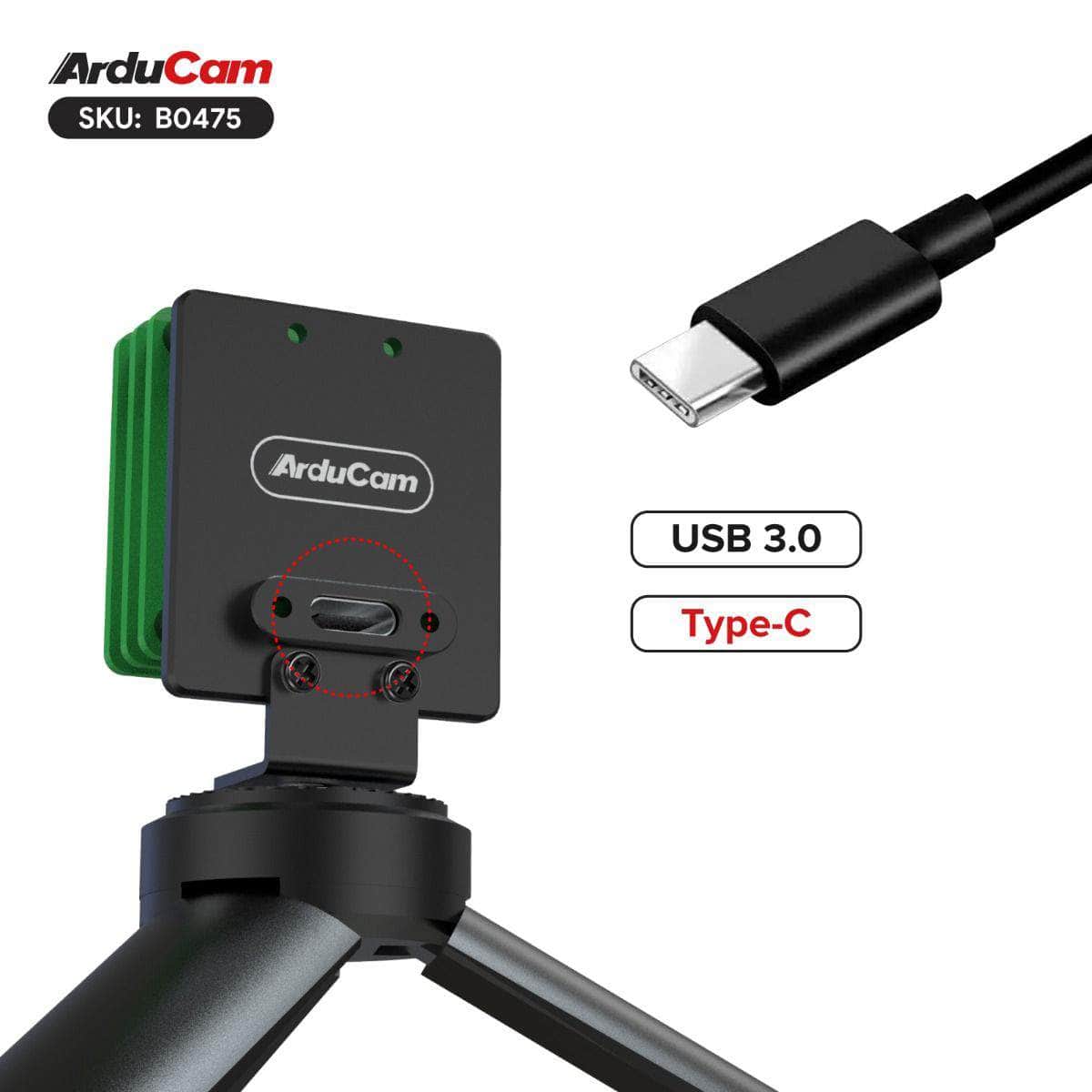

Connector Type-C reversible interface connector
UVC Complaint No additional drivers required
Electrical and Mechanical
Operating Voltage 5 V +/- 5%
Operating Temp. 32°F-158°F (0°C to 70°C)
Power Requirements Max: 2W  , Min: 1.36W
Camera Board Size 34×34 mm
Functionality and Compatibility
Supported OS Windows, Linux
Recommend Sample Application PotPlayer for Windows, qv4l2 for Linux
UVC Controls Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Focus (Manual), Exposure (Manual/Auto)

Package Including

  • 1 x 64MP USB3.0 Camera Module with Back Cover and Tripod Adapter
  • 1 x 1m USB A to Type-C Cable
Notes
  • Tripod is not included in the package, please check UB0224 and UB0216 for additional purchase.
Documentation

Read more
