- Four in One: Combine four cameras into one frame, each camera with a resolution of 1640(H)x1232(V)
- Wide Compatibility: Supports Raspberry Pi, Nvidia Jetson Board and more
- Native to Raspberry Pi and Jetson: No need to install additional driver
- More Applications: Could be used for many use-cases (e.g., stitching, 3D sensing, tracking, …)
- We have enabled VR (Virtual Reality), AR(Augmented Reality), and other applications like SLAM (Simultaneous Localization and Mapping)

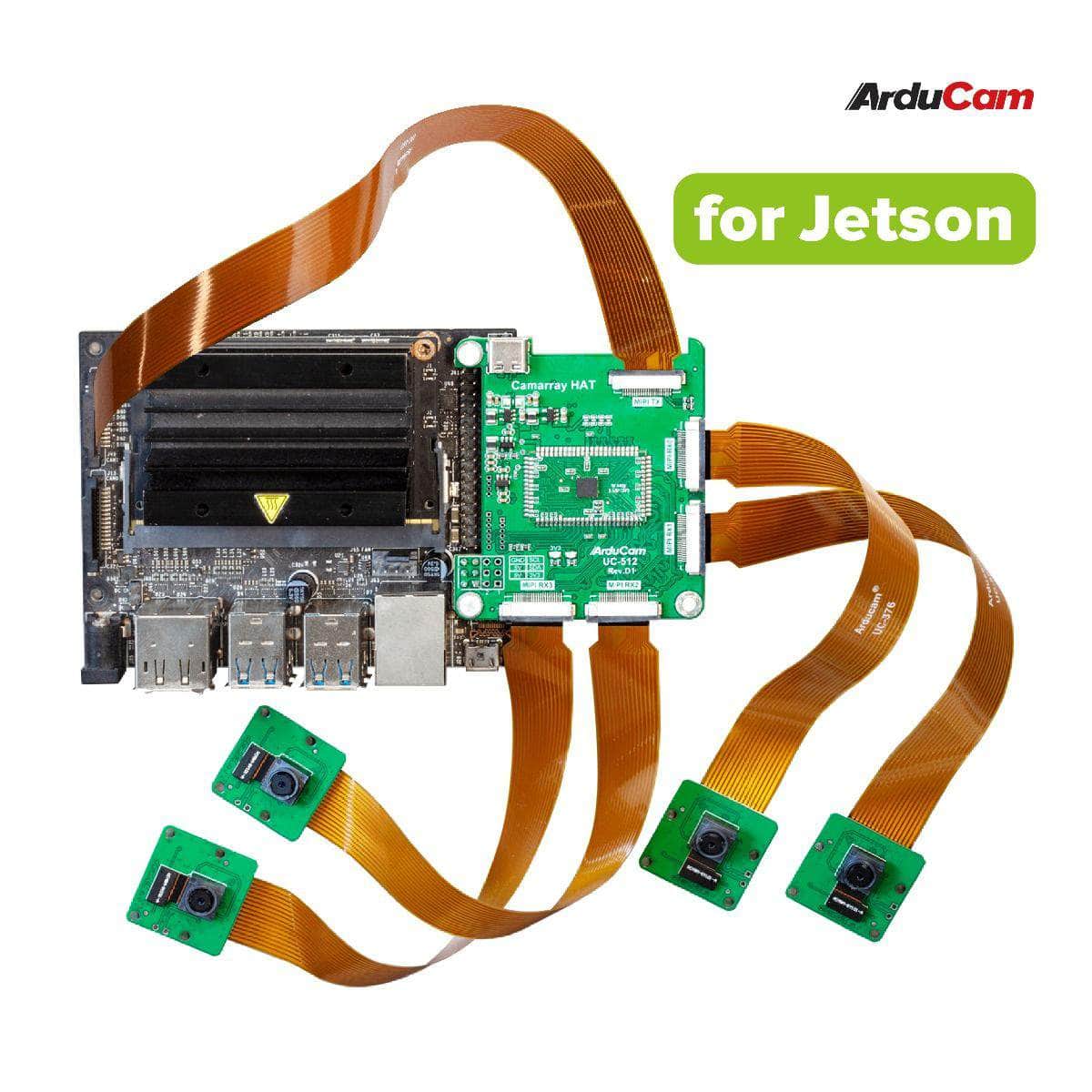

- For NVIDIA JetsonL4t 35.x Jetpack5.x and above versions , you will need the latest CamArray Kit firmware (no earlier than the 2023.02.03 version) to access it.(otherwise you can only use them on previous JetPack versions).
This Arducam quadrascopic camera bundle incorporates four 8MP IMX219 cameras, and the cutting-edge MIPI stereo camera breakthrough from Arducam – The Arducam Camarray HAT.
As the upgraded version of Arducam Synched Stereo Camera HAT, the Camarray further pushes the multi-camera limits and doubles the interfacing capabilities to allow 4 synchronized MIPI camera modules to be interfaced to a single MIPI CSI-2 slot on prevailing single-board computers like Raspberry Pi, Nvidia Jetson Board.
Feature

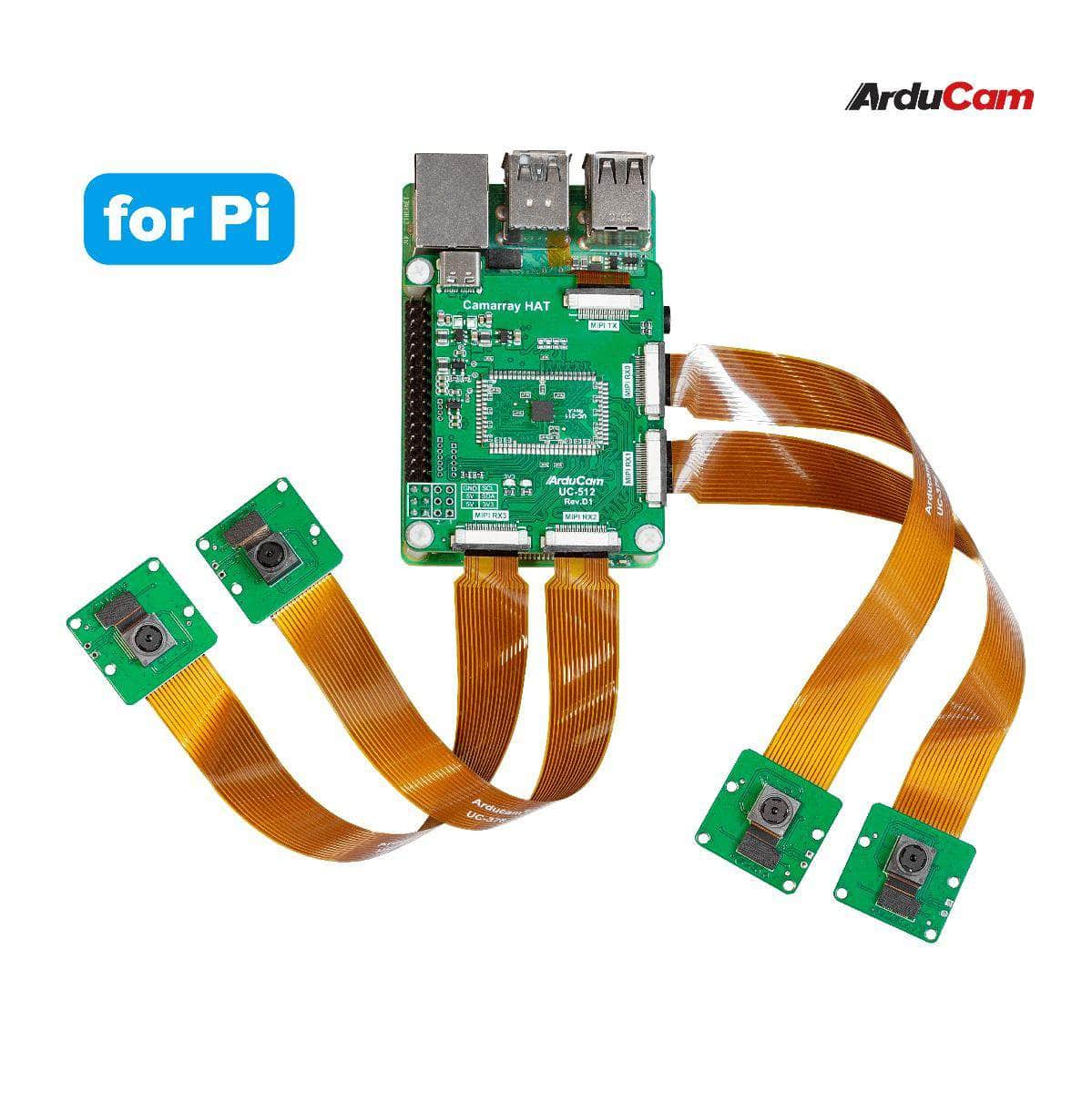

- Designed for Raspberry Pi Camera: This Quad- Camera kit allows you to connect four 8MP IMX219 raspberry pi cameras to a single standard pi board and capture images or video at the same time.
- Four in One: Combine four cameras into one frame, each with a resolution of 1/4(820(H)x616(V)); the maximum output you can get: 3280 x 2464 for still images and 1920x1080 for video. Please note the frame rate for video and still images will drop to half the frame rate you would normally get with a single camera
- Wide compatibility: It is compatible with the latest Raspberry Pi camera software (libcamera) and uses the official Pi camera tuning algorithm. It also supports multi-platform multi-camera solutions such as Raspberry Pi, Nvidia Jetson Board, and many more.
- Applications: Multiple camera processing technologies have enabled VR (Virtual Reality), AR(Augmented Reality), and other applications like SLAM (Simultaneous Localization and Mapping). Synchronized video streams with Raspberry Pi could be used for many use-cases (e.g., stitching, 3D sensing, tracking, …) before investing in an expensive video multiplexer hardware.
Specifications
| Support Platform |
Raspberry Pi/Nvidia Jetson |
| Output/CSI-2 Speed |
x1 CSI-2 2-lane Output Port/1.0 Gbps/Lane |
| Output Format |
RAW8/RAW10 |
| ISP Support |
Supported on Raspberry Pi |
| External Trigger |
Not Support |
| Aggregate mode |
1/4 Spelling Combine |
| Frame Rate(On Raspberry Pi) |
103fps@640x480,20fps@1640x1232,
23fps@1920x1080,10fps@3280x2464
|
| Frame Rate(On NVIDIA Jetson)* |
L4t 32.x: 8MP@10.5fps, 1080p@15, 720p@30fps
L4t 35.x:
3280×2464@10.5fps,
3280×1848@14fps,
1920×1080@15fps,
1640×1232@15fps,
1280×720@30fps |
| Image Sensor |
Sony IMX219 |
| Pixel Size |
1.12 μm x 1.12 μm |
| Active Array Size |
3280 x 2464 |
| Optical Format |
1/4” |
| Camera Interface |
2-lane MIPI CSI-2 |
| IR Sensitive |
Integral IR Cut filter, Visible Light Only |
| Camera Board Size |
24mm x 25mm |
| Camarray Hat Size |
65mm x 55 mm |
| Default Lens Mount |
Stock Lens |
| Effective Focal Length |
3.04mm |
| FOV on 1/4” RPi Camera |
62.2° (H), 48.8(V) |
*: JetPack4.6/L4T32.6.1 on Nvidia Jetson Board

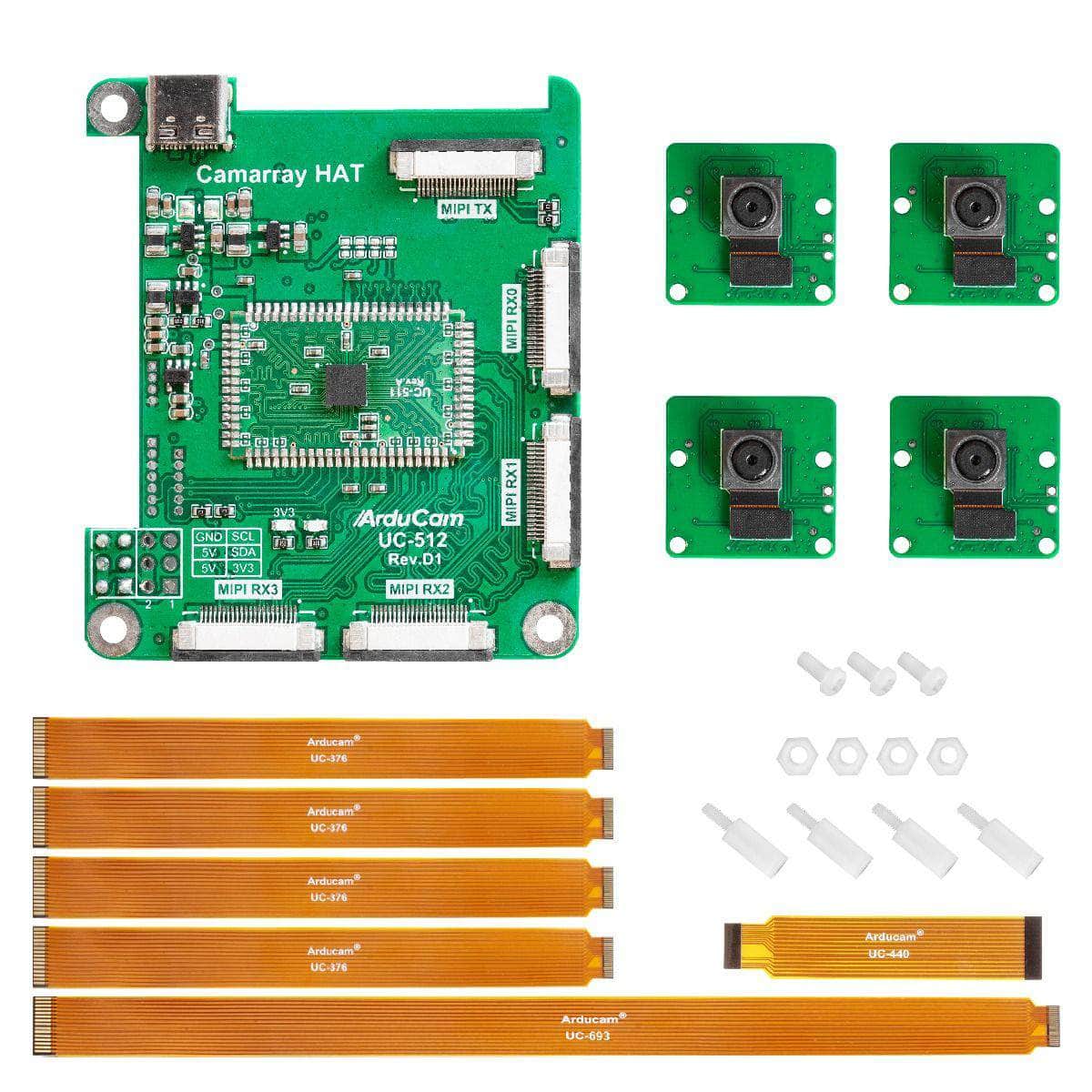

Package Including

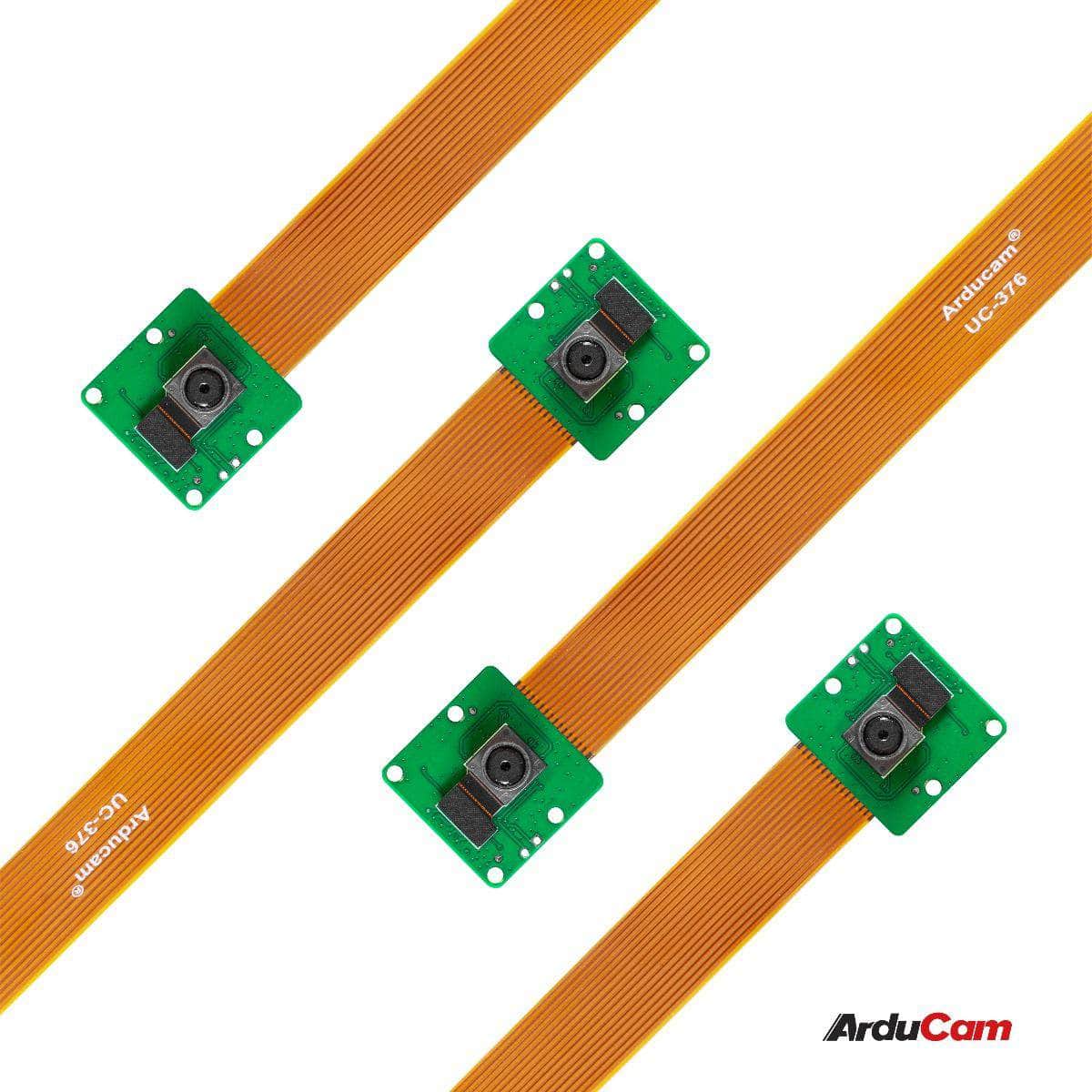

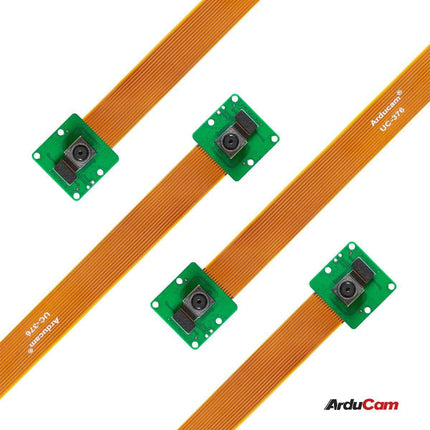

- 4 × IMX219 Camera Module

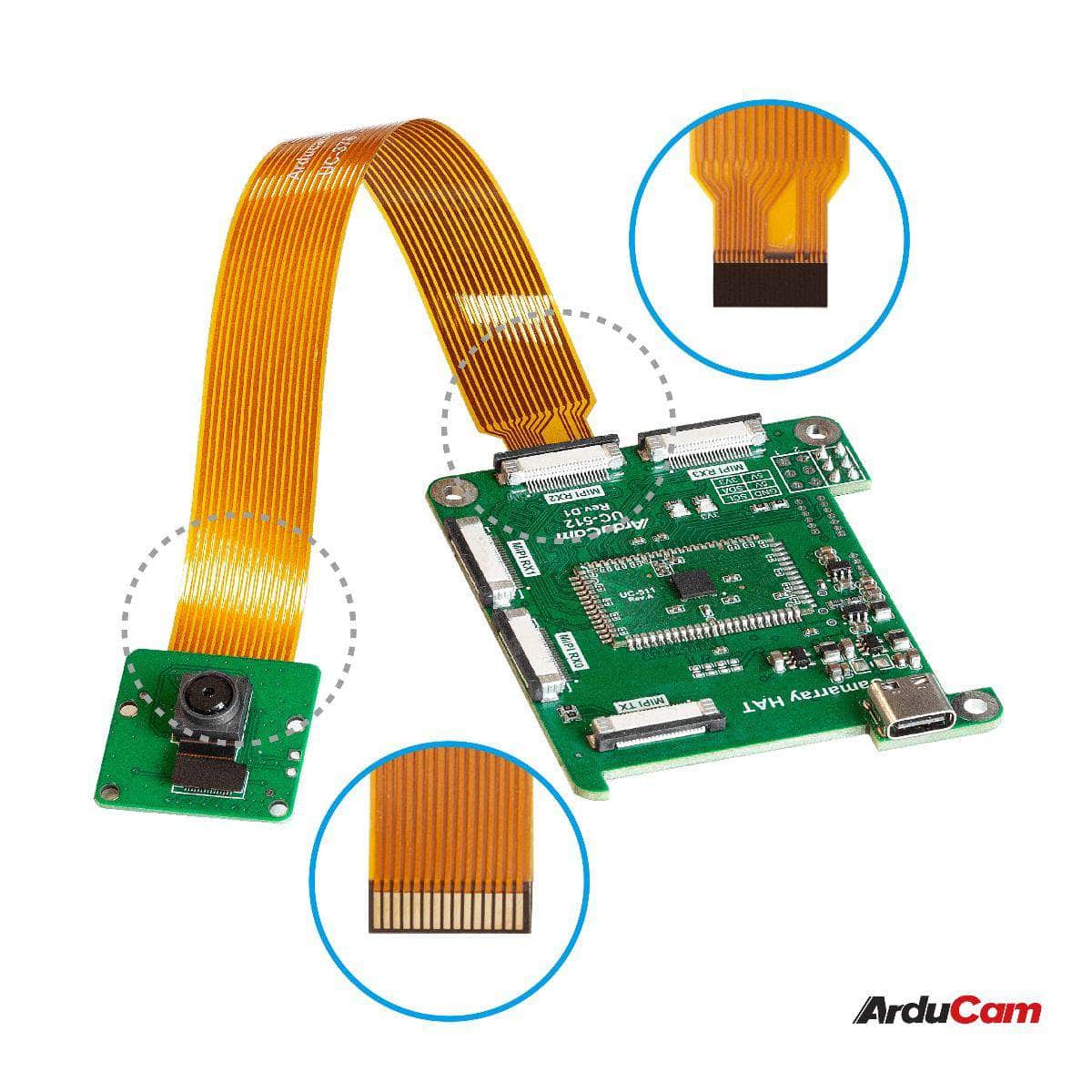

- 1 × Arducam Camarray HAT
- 4 × 15cm 22-22pin Camera FPC Cable
- 1 × 30cm 15-22pin Camera FPC Cable
- 1 × 30cm 22-22pin Camera FPC Cable
- 1 × 7cm 15-22pin Camera FPC Cable
- 1 × Screw Pack
Note
1. The four-channel camera adopts the 2×2 synthesis method. The images of cameras 0 and 1 are completely synchronized, the images of cameras 2 and 3 are completely synchronized, and the images of cameras 2/3 are one frame behind the images of cameras 0/1.
2. The resolution of the synthesized image remains unchanged, but the frame rate is halved.
3. If any camera fails, the composite image can still be output, with the corresponding area of the failed camera being black.
4. Official Commands and ISP are supported.
5. The four-channel camera is a customized model, requiring HAT to provide a clock. It cannot be removed and is directly connected to the Raspberry Pi.
6. The driver of the kit is mainly developed based on the Raspberry Pi/ Nvidia Jeston official board, and there is no guarantee that the third-party board can be used (Due to the different allocation of hardware resources, it may not be compatible)
