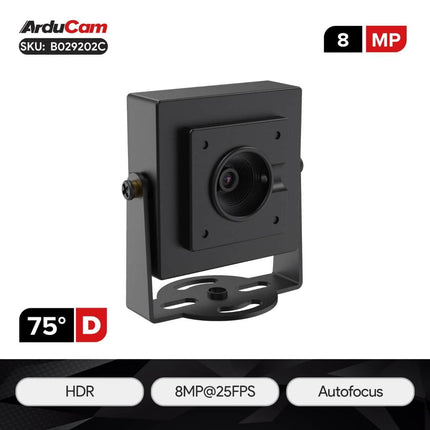

Arducam 8MP HDR Autofocus USB Camera Metal Housing 1080P Webcam B029202C

Description

Arducam 8MP HDR Autofocus USB Camera Metal Housing 1080P Webcam B029202C

A compact 8MP USB camera module with HDR and autofocus, housed in a durable metal case for enhanced heat dissipation and protection. It delivers high-resolution imaging up to 3264×2448 and 1080P video over USB 2.0, with a 72° DFOV autofocus lens for wide-angle clarity. With plug-and-play support on Windows, Linux, Android, and macOS, the A219 is a reliable choice for embedded vision applications requiring sharp detail and strong dynamic range.

Applications

  • Robotics
  • Precision Agriculture
  • Medical and Scientific Research
  • Document Scanning and Archiving
  • Broadcast and Media Production

Features

  • [Plug-and-Play]
    This camera module offers effortless plug-and-play connectivity across Windows, Linux, Android, and macOS platforms. No extra drivers or software installations are required—just connect via USB and begin capturing high-quality images immediately.

  • [HDR]
    Equipped with High Dynamic Range (HDR) technology, the camera delivers balanced images with enhanced detail in both bright and dark areas. This ensures clear and vivid visuals even in challenging lighting conditions.

  • [Autofocus]
    Featuring a 72° diagonal field of view (DFOV) autofocus lens, the camera automatically adjusts focus to maintain sharp and clear images across various distances, making it suitable for dynamic scenes and versatile applications.

  • [High Resolution]
    With an 8MP sensor capable of capturing still images up to 3264 × 2448 pixels, the camera provides high-definition visuals ideal for detailed inspection, monitoring, and embedded vision tasks.

  • [Metal Case]
    Housed in a robust metal enclosure, the camera benefits from effective heat dissipation and enhanced durability. The metal case ensures reliable performance and product integrity during extended use or in demanding environments.

Specifications

General Sepcs B029202C B029201-1
Image Sensor
Still Resolution 8MP 8MP
Color Filter Type Color Color
Shutter Type Rolling Rolling
Optical Size 1/4" 1/4"
Output Format MJPG/YUY2 MJPG/YUY2
Pixel Size 1.12µm x 1.12µm 1.12um x 1.12um
Sensor Active Area 3280(H)×2464(V) 3280(H)×2464(V)
Frame Rate(MJPG) 3264x2448@25fps, 2592x1944@30fps;
1920x1080@30fps, 1280x720@30fps;
640x480@30fps;		 3264x2448@15fps, 2592x1944@15fps;
1920x1080@30fps, 1280x720@30fps;
640x480@30fps;
Frame Rate(AI Resolution(YUV)) 640x480@30fps, 320x240@30fps;
320x320@30fps, 128x128@30fps;
96x96@30fps;		 640x480@10fps, 320x240@10fps;
Lens
IR Sensitivity Integral 650nm IR Filter, visible light only Integral 650nm IR Filter, visible light only
Focus Type Autofocus Autofocus
FOV 75°(D)×61°(H)×50°(V) 72°(D)×60°(H)×47°(V)
Lens Mount Stock Lens Stock Lens
F.NO F1.8 F2.0
E.F.L 3.95mm 2.96mm
Default Focus Range 10cm-∞ 10cm-∞
USB Interface
Interface USB 2.0 Device USB 2.0 Device
Connector B4B-ZR JST B4B-ZR JST
UVC Compliant No additional drivers required No additional drivers required
Electrical and Mechanical
Operating Voltage 5V 5V
Operating Temp. 32°F-158°F (0°C to 70°C) 32°F-158°F (0°C to 70°C)
Power Consumption 1.75W 1W
Camera Board Size 32mm x 32mm x 1.6mm 38mm x 38mm
Functionality and Compatibility
HDR Support YES NO
Enclosure with Metal Enclosure with Metal Enclosure
Supported OS Windows, Linux, MacOS Windows, Linux, MacOS
Recommend Sample Application Amcap for Windows, qv4l2 for Linux Amcap for Windows, qv4l2 for Linux
UVC Controls Brightness, Contrast, Saturation, White Balance (Auto/Manual), Lowlight Compensation, Gain, Focus (Auto/Manual), Exposure (Manual/Auto) Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Focus (Auto/Manual), Exposure (Manual/Auto)

Documentation

Read more

Arducam 8MP HDR Autofocus USB Camera Metal Housing 1080P Webcam B029202C

Product form
Free pickup in our shop(s)

SKU: B029202C

$109.00 $89.00 Excl. GST

$109.00 $89.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description

    Arducam 8MP HDR Autofocus USB Camera Metal Housing 1080P Webcam B029202C

    A compact 8MP USB camera module with HDR and autofocus, housed in a durable metal case for enhanced heat dissipation and protection. It delivers high-resolution imaging up to 3264×2448 and 1080P video over USB 2.0, with a 72° DFOV autofocus lens for wide-angle clarity. With plug-and-play support on Windows, Linux, Android, and macOS, the A219 is a reliable choice for embedded vision applications requiring sharp detail and strong dynamic range.

    Applications

    • Robotics
    • Precision Agriculture
    • Medical and Scientific Research
    • Document Scanning and Archiving
    • Broadcast and Media Production

    Features

    • [Plug-and-Play]
      This camera module offers effortless plug-and-play connectivity across Windows, Linux, Android, and macOS platforms. No extra drivers or software installations are required—just connect via USB and begin capturing high-quality images immediately.

    • [HDR]
      Equipped with High Dynamic Range (HDR) technology, the camera delivers balanced images with enhanced detail in both bright and dark areas. This ensures clear and vivid visuals even in challenging lighting conditions.

    • [Autofocus]
      Featuring a 72° diagonal field of view (DFOV) autofocus lens, the camera automatically adjusts focus to maintain sharp and clear images across various distances, making it suitable for dynamic scenes and versatile applications.

    • [High Resolution]
      With an 8MP sensor capable of capturing still images up to 3264 × 2448 pixels, the camera provides high-definition visuals ideal for detailed inspection, monitoring, and embedded vision tasks.

    • [Metal Case]
      Housed in a robust metal enclosure, the camera benefits from effective heat dissipation and enhanced durability. The metal case ensures reliable performance and product integrity during extended use or in demanding environments.

    Specifications

    General Sepcs B029202C B029201-1
    Image Sensor
    Still Resolution 8MP 8MP
    Color Filter Type Color Color
    Shutter Type Rolling Rolling
    Optical Size 1/4" 1/4"
    Output Format MJPG/YUY2 MJPG/YUY2
    Pixel Size 1.12µm x 1.12µm 1.12um x 1.12um
    Sensor Active Area 3280(H)×2464(V) 3280(H)×2464(V)
    Frame Rate(MJPG) 3264x2448@25fps, 2592x1944@30fps;
    1920x1080@30fps, 1280x720@30fps;
    640x480@30fps;    		 3264x2448@15fps, 2592x1944@15fps;
    1920x1080@30fps, 1280x720@30fps;
    640x480@30fps;
    Frame Rate(AI Resolution(YUV)) 640x480@30fps, 320x240@30fps;
    320x320@30fps, 128x128@30fps;
    96x96@30fps;    		 640x480@10fps, 320x240@10fps;
    Lens
    IR Sensitivity Integral 650nm IR Filter, visible light only Integral 650nm IR Filter, visible light only
    Focus Type Autofocus Autofocus
    FOV 75°(D)×61°(H)×50°(V) 72°(D)×60°(H)×47°(V)
    Lens Mount Stock Lens Stock Lens
    F.NO F1.8 F2.0
    E.F.L 3.95mm 2.96mm
    Default Focus Range 10cm-∞ 10cm-∞
    USB Interface
    Interface USB 2.0 Device USB 2.0 Device
    Connector B4B-ZR JST B4B-ZR JST
    UVC Compliant No additional drivers required No additional drivers required
    Electrical and Mechanical
    Operating Voltage 5V 5V
    Operating Temp. 32°F-158°F (0°C to 70°C) 32°F-158°F (0°C to 70°C)
    Power Consumption 1.75W 1W
    Camera Board Size 32mm x 32mm x 1.6mm 38mm x 38mm
    Functionality and Compatibility
    HDR Support YES NO
    Enclosure with Metal Enclosure with Metal Enclosure
    Supported OS Windows, Linux, MacOS Windows, Linux, MacOS
    Recommend Sample Application Amcap for Windows, qv4l2 for Linux Amcap for Windows, qv4l2 for Linux
    UVC Controls Brightness, Contrast, Saturation, White Balance (Auto/Manual), Lowlight Compensation, Gain, Focus (Auto/Manual), Exposure (Manual/Auto) Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Focus (Auto/Manual), Exposure (Manual/Auto)

    Documentation

    Read more
