Arducam HQ Camera 12.3MP IMX477 6mm CS-Mount Lens Raspberry Pi B0249
Arducam HQ Camera 12.3MP IMX477 6mm CS-Mount Lens Raspberry Pi B0249

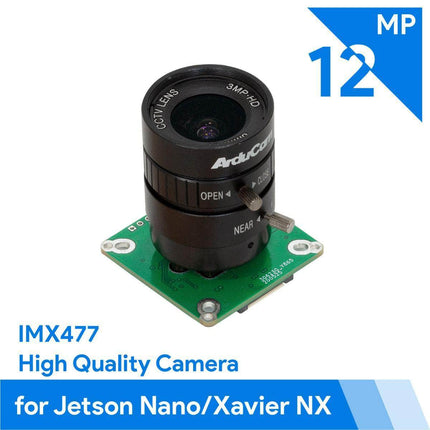

Arducam just released this High-Quality camera module for Jetson Nano/Xavier NX/Raspberry Pi Compute Module CM4, CM3, CM3+, an IMX477 camera board with three-hole pitches, a 6mm CS lens. The customers can use this camera module on Jetson Nano/Xavier NX/Raspberry Pi Compute Module CM4, CM3, CM3+ natively with hardware ISP features.
★ KERNEL CAMERA DRIVER USED
This camera relies on kernel drivers to work – one kernel version, one camera driver.
- Versions earlier than JetPack 4.3 (L4T 32.3.1) are not supported.
- Up or downgrading your OS leads to a kernel bump, and you’ll need to re-install a matching driver.
- Future JetPack/kernel updates require future drivers. When that happens, please allow us some time to process. And if you don’t see it released in time, kindly remind us.
Features:
- For the new version(R32 4.4), please refer to the following link: link:https://github.com/ArduCAM/MIPI_Camera/releases/tag/v0.0.2
- Get Clearer Images: This camera adopts 1/2.3" 12.3 Megapixel IMX477 sensor for sharp image, max. still resolution 4056(H) x 3040(V).
- Less Hassle: No more wasting time looking for the CS lens and camera case. A 1/2.3" 6mm focal length CS lens is included.
- More Lanes: The Arducam high-quality camera module has a 4-lane MIPI CSI-2 interface to make it possible to get more data through.
- Support More Platforms: It supports all Raspberry Pi camera models. Pi 4, Pi 3/3B+/3A+, CM3/3+, Pi Zero, and more.
Specifications
- Camera
- Sensor: IMX477
- Optical Format: 1/2.3" (diagonal 7.857mm)
- Resolution: 4056(H) x 3040(V) 12.3MP
- Pixel Size: 1.55um x 1.55um
- IR Sensitivity: Visible light
- Interface: 4-lane MIPI CSI-2

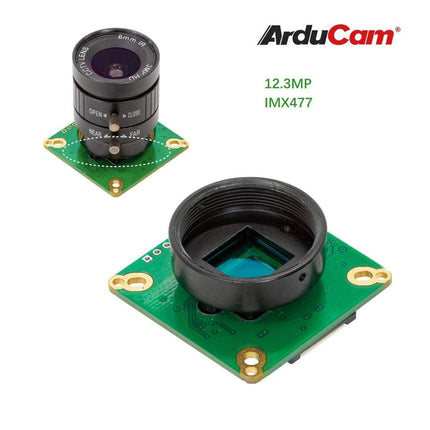

- Default Lens Mount: CS-Mount
- Frame Rate:
Note: Due to Jetson Xavier NX/Nano hardware only supports 4K@30fps encoding, you cannot use it for 4k@60fps h.264/h.265 encoding.

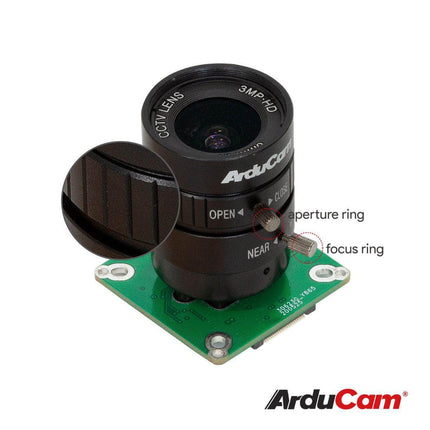

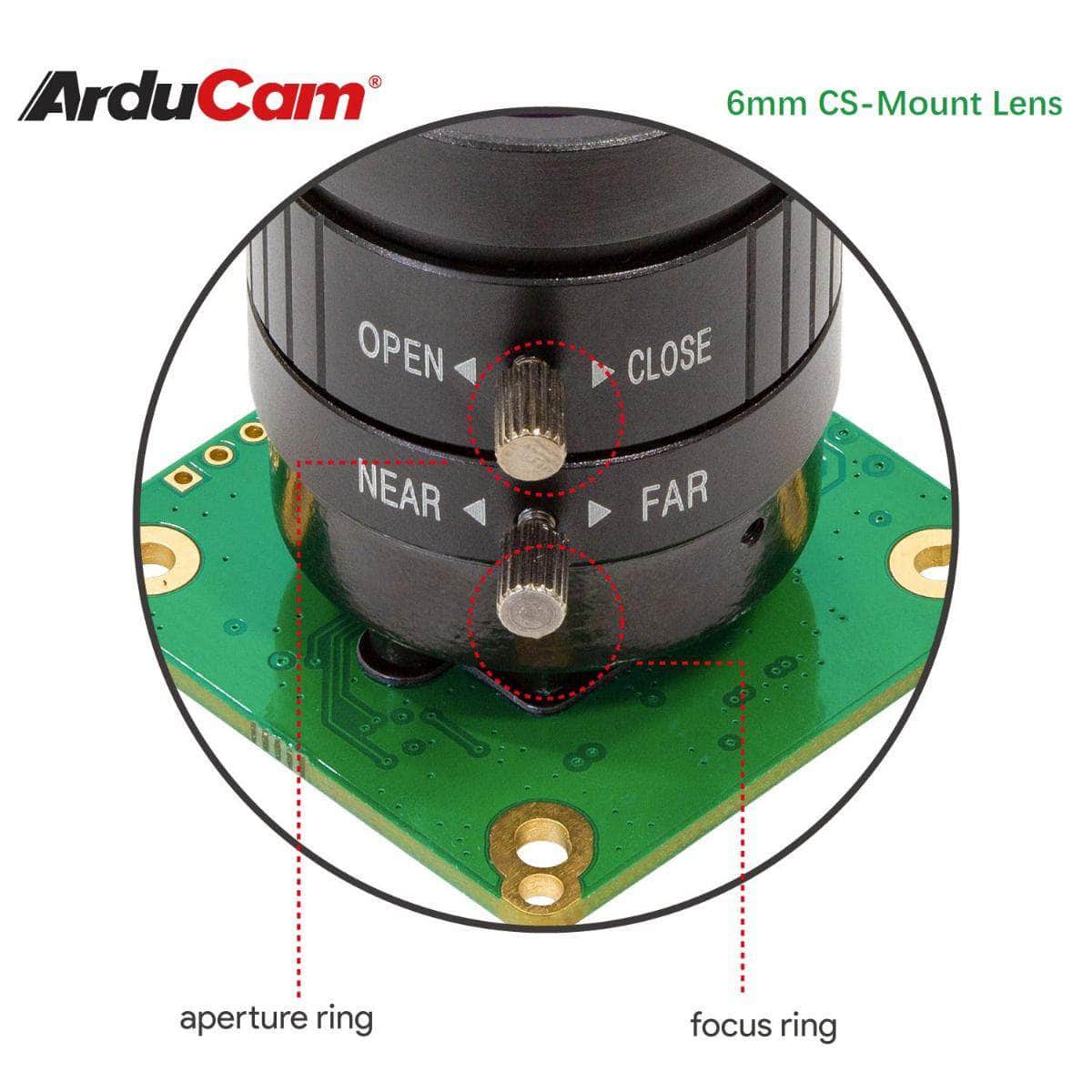

- Lens
- Format: 1/2.3 inch
- Focal Length: 6mm
- Aperture (F): Max. F1.2
- Field of View (FOV): 65° (H)
- Mount: CS-Mount
- Back Focal Length: 7.53mm
- MOD: 0.2m
- Dimension: Φ30×31mm
- Weight: 53g
- Camera board
- Board Size: 38mm×38mm
- Hole Pitch: Compatible with 29mm, 30mm, 34mm
Note：For the new version(R32 4.4), please refer to the following link:
https://github.com/ArduCAM/MIPI_Camera/releases/tag/v0.0.2

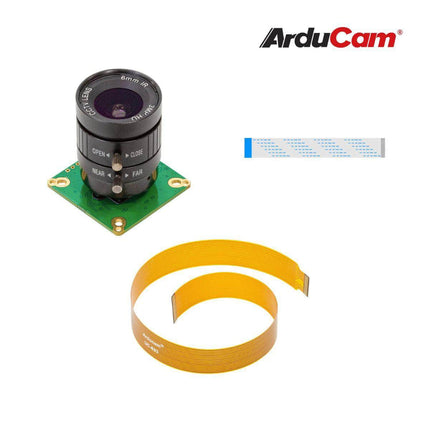

Package Includes:
-
1 pcs 12.3MP IMX477 color camera module
-
1 pcs 6mm focal length CS-mount camera lens
-
1 pcs 300mm/12inch 15pin to 22pin camera cable
- 1 pcs 80mm/3.15inch 22pin camera cable
Documentation:
Troubleshooting IMX477 Camera with Nano & NX (Hardware & Driver)
Sony IMX477 & CS Lens on Jetson Nano & NX: Quick Start Guide (B0249)
