Arducam 12MP Multi-Camera Kit for NVIDIA Jetson AGX Orin (B0473)

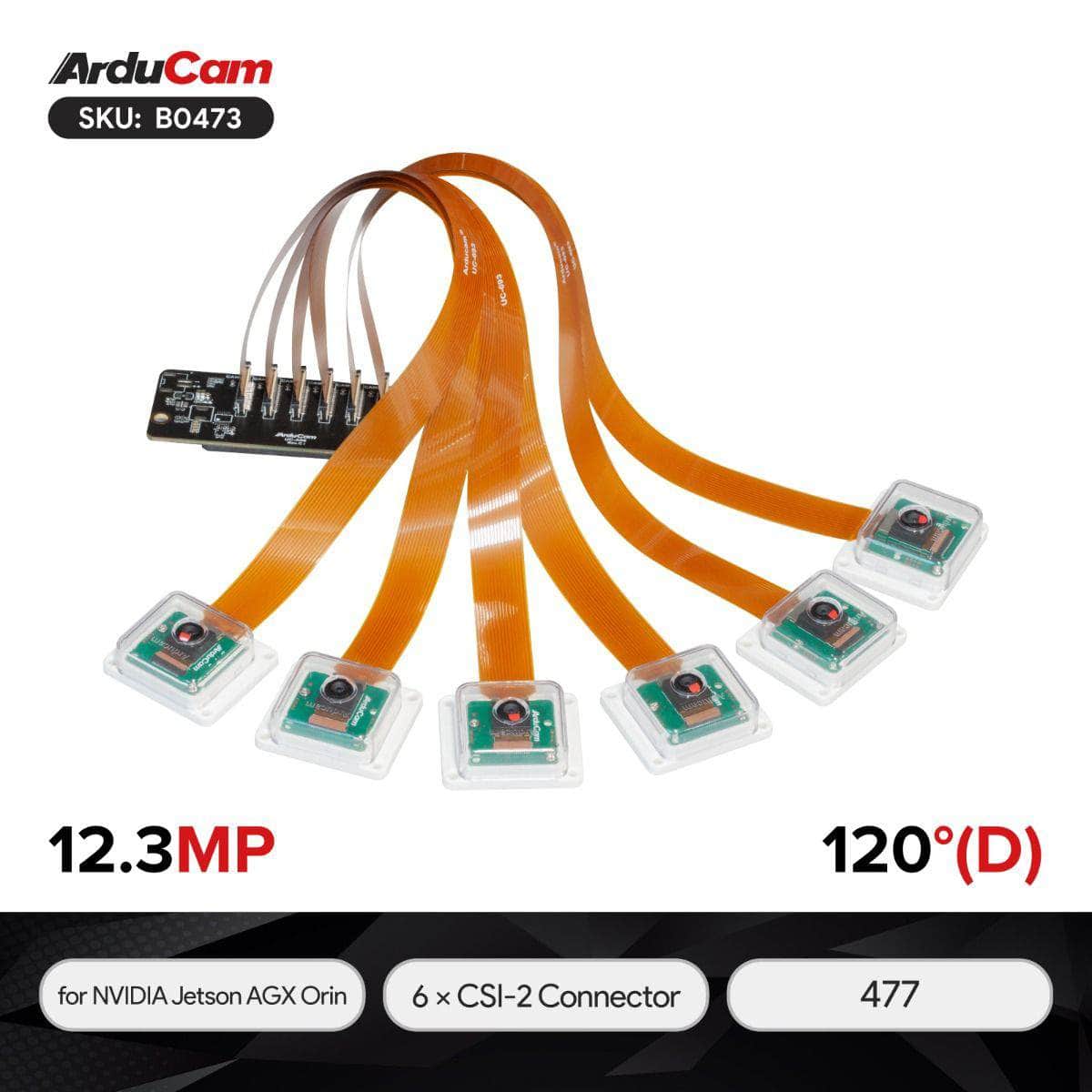

Arducam 12MP Camera Kit - A multi-camera solution designed for the NVIDIA Jetson AGX Orin. The kit comes with 6 × 12 MP camera modules with case, 6 × 30cm 15-22pin FPCs, 1× camera adapter with 6 CSI-2 interfaces.

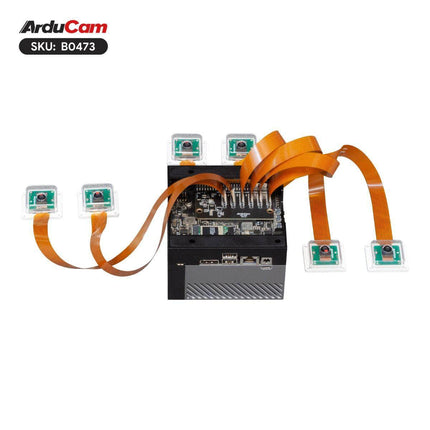

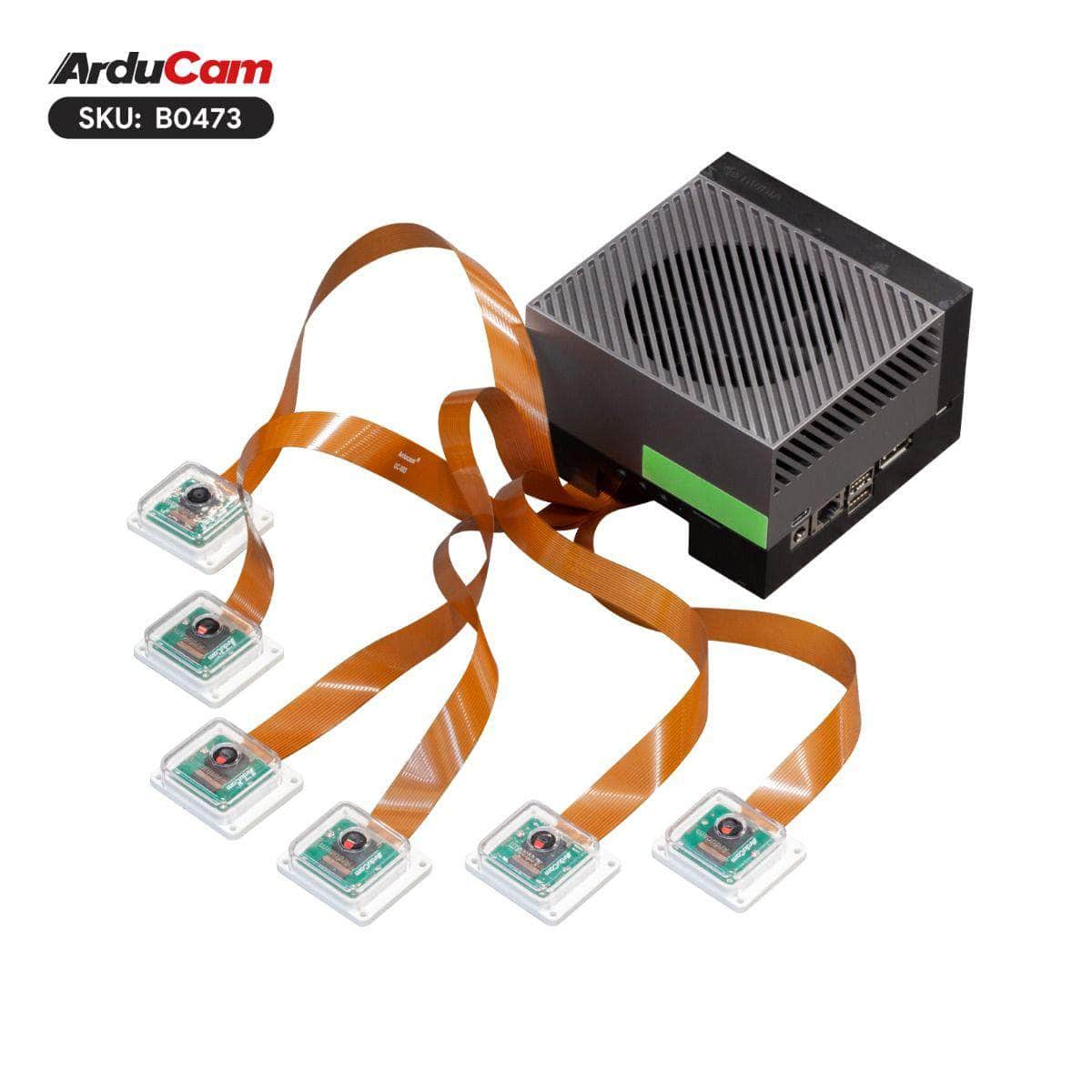

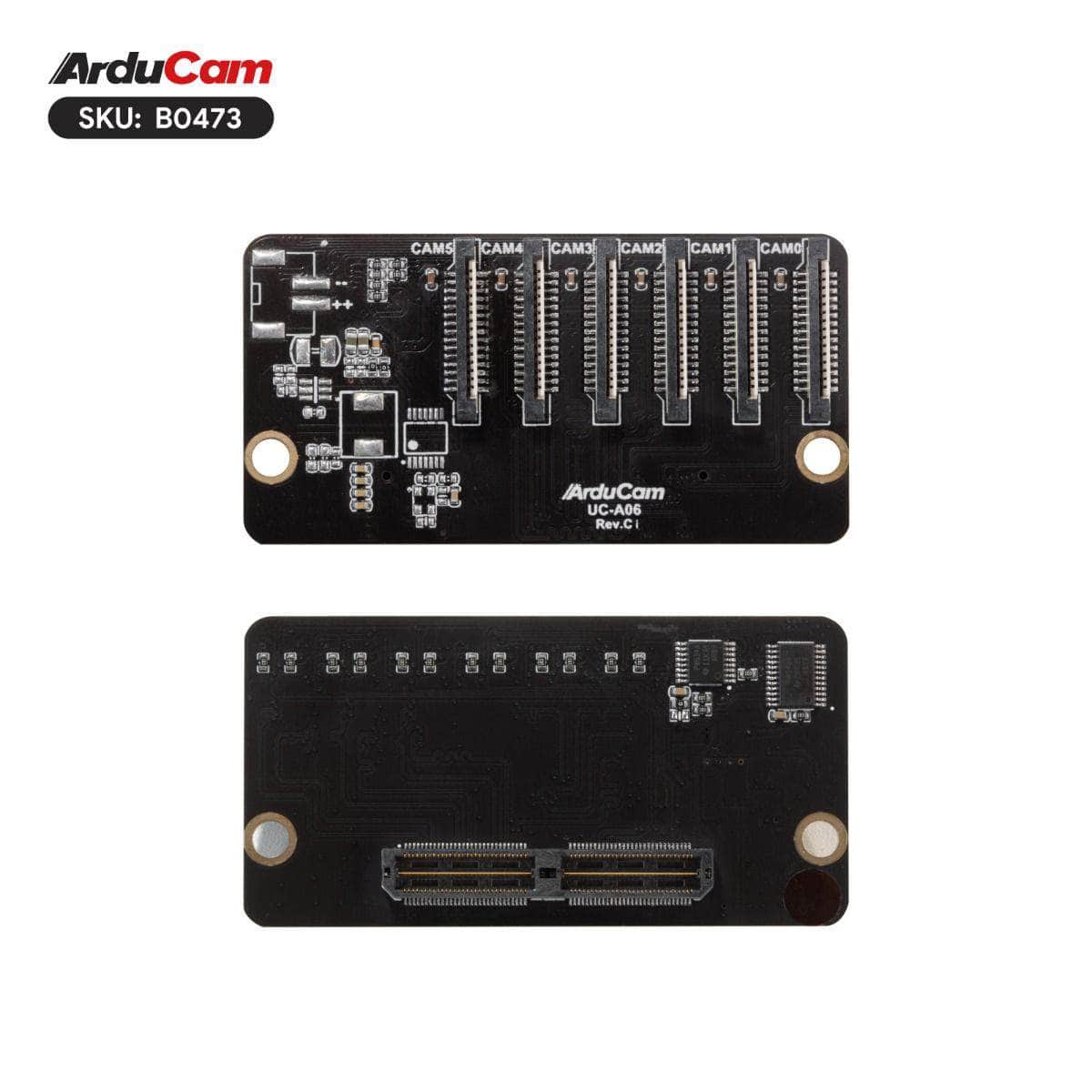

A distinctive feature of the AGX Orin is its lack of a native camera interface. Recognising this gap, we present this innovative camera adapter board. Outfitted with 6 CSI-2 15-pin connectors, this adapter empowers you to seamlessly integrate up to 6 camera modules. A remarkable advantage of this multi-camera setup is the independent operation of each camera module. Please note that these modules must be of the same model and cannot be mixed to ensure optimal performance.
This breakthrough engineering ensures that you can harness the full potential of each camera module simultaneously, capturing diverse perspectives and enhancing your project's scope.
Applications
- Machine Vision
- Automated Optical Inspection
- 3D Scanning and Metrology
- Robotics and Automation
- Biomedical Imaging
Specifications
| Camera |
| Still Resolution |
12.3 Megapixels |
| Video Modes |
L4t 32.x: 4032x3040@30fps, 3840x2160@30fps, 1920x1080@60fps
L4t 35.x: 4032x3040@20fps, 3840x2160@30fps, 1920x1080@60fps |
| Sensor Resolution |
4056 x 3040 pixels |
| Sensor image area |
6.287mm x 4.712 mm (7.9mm diagonal) |
| Pixel Size |
1.55 µm x 1.55 µm |
| Optical Size |
1/2.3" |
| IR Sensitivity |
Integral IR-Cut Filter, visible light only |
| Lens |
| Focus Type |
Fixed Focus |
| FOV |
120°(D) |
| Lens Type |
Stock Lens |
| F.NO |
F2.8 |
| E.F.L |
2.75mm |
| Electrical & Mechanical |
| Camera Board Size |
25 × 24 mm |
| Peaking Current |
300mA |

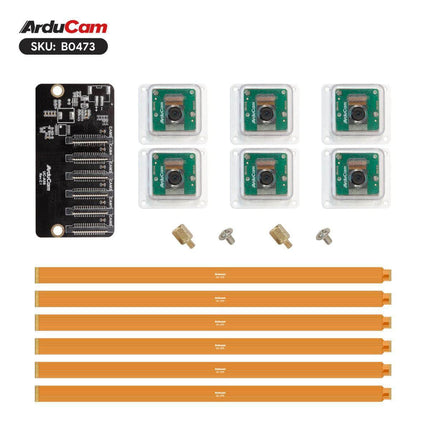

Package Including

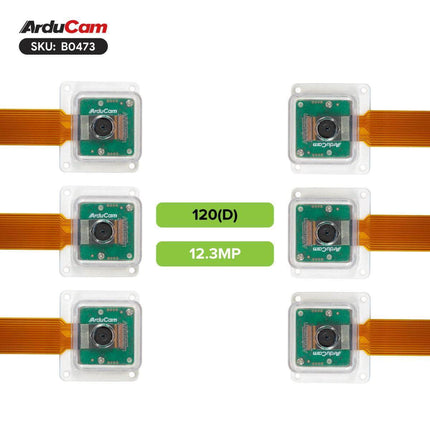

- 6 x 12MP Camera Module with Case

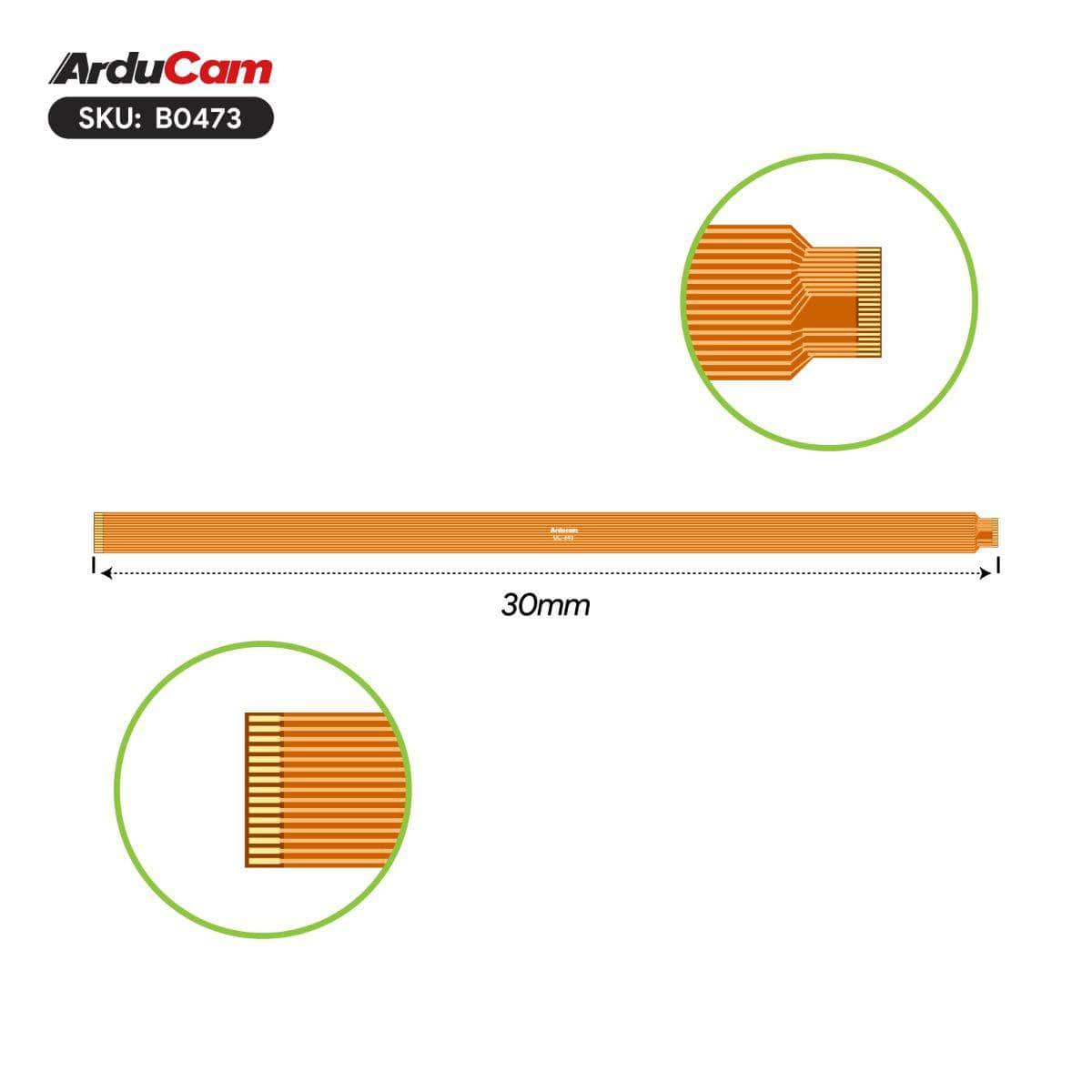

- 6 x 30cm 15-22pin FPC

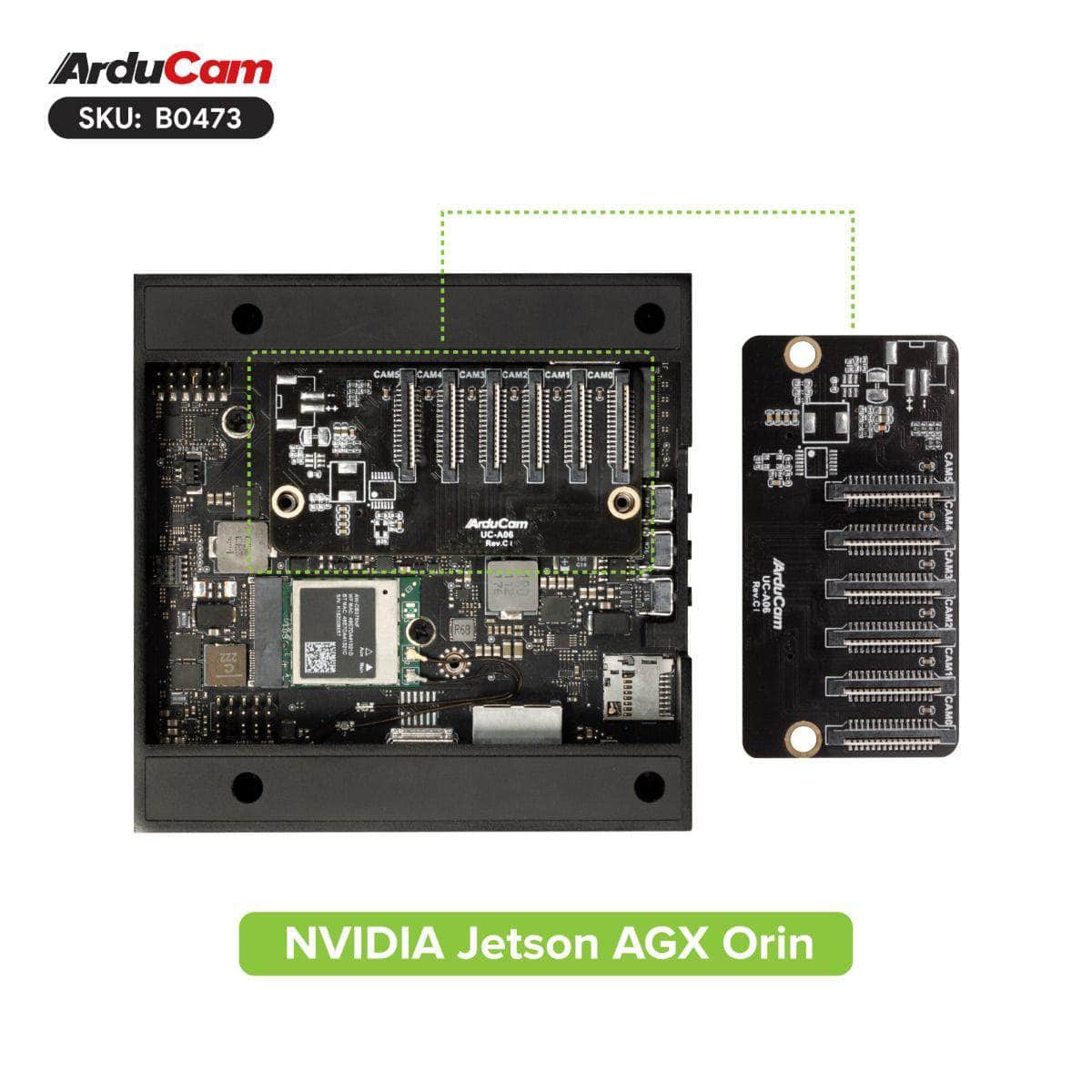

- 1 x Camera Adapter for NVIDIA Jetson AGX Orin
- 1 x Screw Pack
Notes
- For NVIDIA Jetson Official Developer Kits only, third-party carrier boards are not supported.
- The camera kit supports JetPack 5.1.1/L4T 35.3.1 and above. Additional driver configuration is required before use, see the documentation below for details.
Documentation
