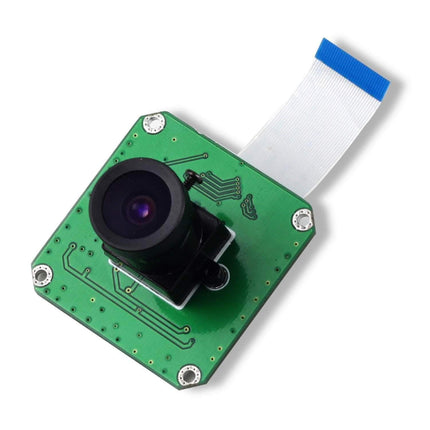

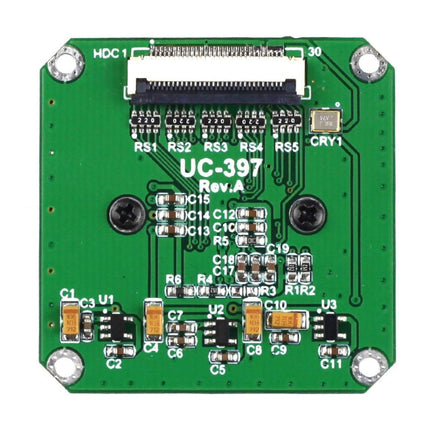

Arducam CMOS AR0135 1/3-Inch 1.2MP Color Camera Module (B0125)

Description

Arducam CMOS AR0135 1/3-Inch 1.2MP Color Camera Module (B0125)

The AR0135 module is a 1/3 inch 1.2MP global shutter Color camera module which can be operated in its default mode or programmed for frame size, exposure, gain, and other parameters. The default mode output is a full-resolution image at 54 frames per second (fps). It outputs 12-bit raw data, using either the parallel output ports. The device may be operated in video (master) mode or in frame trigger mode.

Note:

Please note that camera module only can be used together with Arducam USB shield.
Please check the following link: https://www.iot-store.com.au/collections/sensors/products/arducam-usb-camera-shield

Feature

  • 1/3" optical format
  • 1.2MP 1280 x 960 AR0135 global shutter sensor
  • 6.0 x 6.0 um Pixel size
  • High frame rate, high dynamic range, good sensitivity for machine vision with an external trigger.
  • 54fps at full resolution
  • 5.3V/lux-sec responsivity
  • 64dB dynamic range
  • single 3.3V power input
  • Parallel camera interface
  • Default M12 mount 6mm LS-6020 lens

Application

  • Security
  • High dynamic range imaging
  • Unattended surveillance
  • Stereo vision
  • Machine vision
  • Automation



Arducam CMOS AR0135 1/3-Inch 1.2MP Color Camera Module (B0125)

Product form

SKU: B0125

$199.00 $179.00 Excl. GST

$179.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description

    Arducam CMOS AR0135 1/3-Inch 1.2MP Color Camera Module (B0125)

    The AR0135 module is a 1/3 inch 1.2MP global shutter Color camera module which can be operated in its default mode or programmed for frame size, exposure, gain, and other parameters. The default mode output is a full-resolution image at 54 frames per second (fps). It outputs 12-bit raw data, using either the parallel output ports. The device may be operated in video (master) mode or in frame trigger mode.

    Note:

    Please note that camera module only can be used together with Arducam USB shield.
    Please check the following link: https://www.iot-store.com.au/collections/sensors/products/arducam-usb-camera-shield

    Feature

    • 1/3" optical format
    • 1.2MP 1280 x 960 AR0135 global shutter sensor
    • 6.0 x 6.0 um Pixel size
    • High frame rate, high dynamic range, good sensitivity for machine vision with an external trigger.
    • 54fps at full resolution
    • 5.3V/lux-sec responsivity
    • 64dB dynamic range
    • single 3.3V power input
    • Parallel camera interface
    • Default M12 mount 6mm LS-6020 lens

    Application

    • Security
    • High dynamic range imaging
    • Unattended surveillance
    • Stereo vision
    • Machine vision
    • Automation
