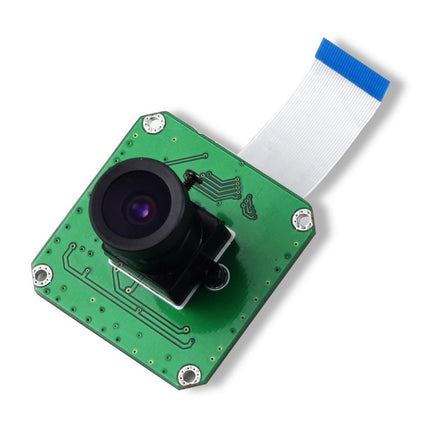

Arducam CMOS MT9F001 1/2.3-Inch 14MP Color Camera Module (B0097)
The MT9F001 camera module features Aptina’s breakthrough low-noise CMOS imaging technology that achieves near-CCD image quality (based on signal-to-noise ratio and low-light sensitivity) while maintaining the inherent size, cost, and integration advantages of CMOS.
Please note that the camera module only can be used together with one of the following Arducam USB shields:
https://www.iot-store.com.au/collections/sensors/products/arducam-usb-camera-shield
https://www.iot-store.com.au/collections/sensors/products/arducam-usb3-0-camera-shield
Specs:
- 1/2.3" 14MP CMOS color rolling shutter with global reset release camera module MT9F001.
- World-Class 1.4 Mega Pixel Sensitivity, Produced on Aptina’s world-class with Aptina A-Pix technology.
- Full HD Video Modes and EIS, supports 1080p at 60 fps—for max video performance and 20% extra imaging area for image stabilization.
- Improved Low Light Performance Equivalent level as CCD sensor to support DSC applications.
- Preprocessing Features, including resampling for sub-sampled video and 2D defect correction, provide improved image quality.
Feature
- 1/2.3" optical format
- RGB Bayer pattern
- 14MP 4608 x 3288 MT9F001 sensor
- 1.4 x 1.4 um Pixel size
- 6.3fps at full resolution
- 0.724V/lux-sec responsivity
- 65.3dB dynamic range
- single 3.3V power input
- Parallel camera interface
- Default M12 mount 4.2mm LS-18023 lens
Application
- Digital video cameras
- Digital still cameras
- Industrial camera
- Medical camera
- Microscopy camera
- UAV camera
