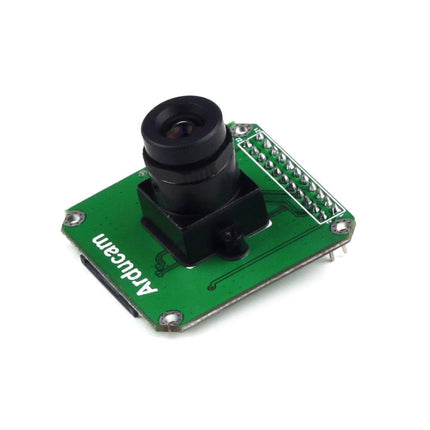

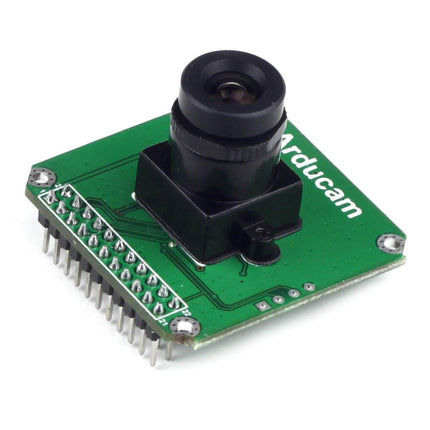

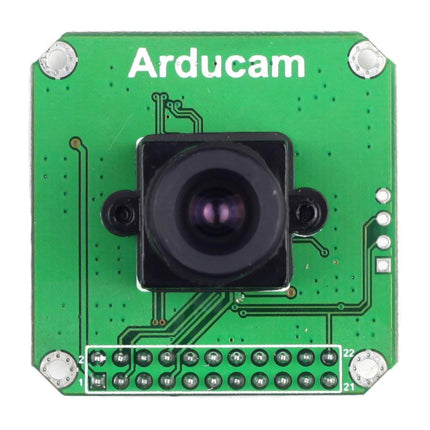

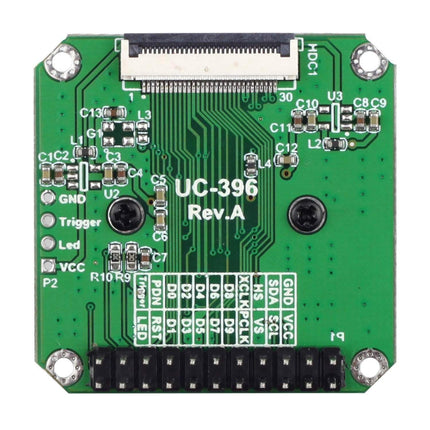

Arducam CMOS MT9V022 1/3-Inch 0.36MP Monochrome Camera Module (B0109)

Description

Arducam CMOS MT9V022 1/3-Inch 0.36MP Monochrome Camera Module (B0109)

The MT9V022 is a 1/3-inch monochrome wide-VGA format CMOS active-pixel digital image sensor with global shutter and high dynamic range (HDR) operation. The sensor has specifically been designed to support the demanding interior and exterior surveillance imaging needs, which makes this part ideal for a wide variety of imaging applications in real-world environments.

This camera module can be used together with Arducam USB shield for Windows, Linux and Raspberry Pi.

Please check the following link: https://www.iot-store.com.au/products/arducam-usb-camera-shield

Features

  • 1/3" optical format
  • 0.36MP 752 x 480 MT9V022 global shutter sensor
  • 6.0 x 6.0 um Pixel size
  • High frame rate, high dynamic range, good sensitivity for machine vision with an external trigger.
  • 60fps at full resolution
  • 4.8V/lux-sec responsivity
  • 55db linear, 110db HDR dynamic range
  • single 3.3V power input
  • Default M12 mount 6mm LS-6020 lens

Application

  • Security
  • High dynamic range imaging
  • Unattended surveillance
  • Stereo vision
  • Video as input
  • Machine vision
  • Automation

Download

MT9V022 Camera Breakout Datasheet

MT9V022 Camera Breakout Application Note

Arducam USB Camera Shield User Guide





Arducam CMOS MT9V022 1/3-Inch 0.36MP Monochrome Camera Module (B0109)

Product form
Free pickup in our shop(s)

SKU: B0109

$109.00 $79.00 Excl. GST

$109.00 $79.00
Product available in stock, Express post same business day.

    • 100% Australian Owned and Operating
    • Local Australian Stock — Fast Same-Day Dispatch or Pickup
    • Price Matching & Bulk Discounts — Request a Quote
    • Purchase Orders & 30-Day Accounts for Approved Accounts
    • Accounts Auto Apply to AU/NZ Universities, Schools, ASX-Listed Companies & Government Departments
    • Free Local Technical Support from a Qualified Scientist — Before & After Purchase
    • Custom Industrial IoT Solutions & Project Assistance
    • Trusted by Australian Industry, Utilities, Agriculture & Government
    • 30-Day Free Return and Refund Policy
    • Min 1-Year Warranty on All Products — Extension on Selected Ranges

    Description

    Arducam CMOS MT9V022 1/3-Inch 0.36MP Monochrome Camera Module (B0109)

    The MT9V022 is a 1/3-inch monochrome wide-VGA format CMOS active-pixel digital image sensor with global shutter and high dynamic range (HDR) operation. The sensor has specifically been designed to support the demanding interior and exterior surveillance imaging needs, which makes this part ideal for a wide variety of imaging applications in real-world environments.

    This camera module can be used together with Arducam USB shield for Windows, Linux and Raspberry Pi.

    Please check the following link: https://www.iot-store.com.au/products/arducam-usb-camera-shield

    Features

    • 1/3" optical format
    • 0.36MP 752 x 480 MT9V022 global shutter sensor
    • 6.0 x 6.0 um Pixel size
    • High frame rate, high dynamic range, good sensitivity for machine vision with an external trigger.
    • 60fps at full resolution
    • 4.8V/lux-sec responsivity
    • 55db linear, 110db HDR dynamic range
    • single 3.3V power input
    • Default M12 mount 6mm LS-6020 lens

    Application

    • Security
    • High dynamic range imaging
    • Unattended surveillance
    • Stereo vision
    • Video as input
    • Machine vision
    • Automation

    Download

    MT9V022 Camera Breakout Datasheet

    MT9V022 Camera Breakout Application Note

    Arducam USB Camera Shield User Guide
