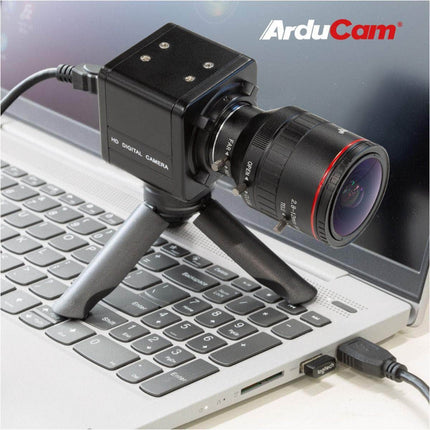

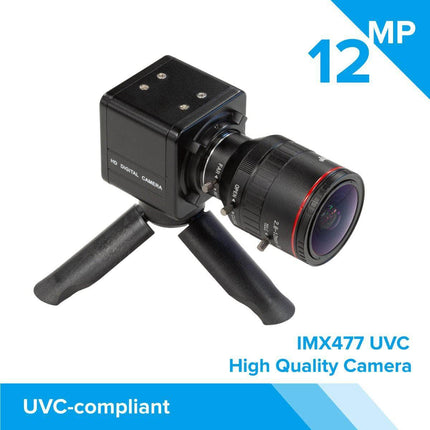

Arducam HQ USB Camera 12MP IMX477 with Tripod B0288
Arducam HQ USB Camera 12MP IMX477 with Tripod B0288
Arducam has been a professional designer and manufacturer of SPI, MIPI, DVP and USB cameras since 2012. We also offer customized turnkey design and manufacturing solution services for customers who want their products to be unique.
Arducam B0288 is a new member of Arducam’s USB camera family. It’s a 12MP, based on the 1/2.3″ Sony IMX477 image sensor, UVC compliant, 2.8-12mm USB 2.0 camera with the metal shell.
No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.
Features & Specs
Camera
- Sensor: 1/2.3” IM477
- Resolution: 4032(H) x 3040(V) 12.3MP
- Data Format: MJPG
- Frame Rate: 4032×3040@10fps; 3840×2160@20fps; 2592×1944@30fps; 2560×1440@30fps; 1920×1080@60fps; 1600×1200@50fps; 1280×960@100fps; 1280×760@100fps; 640×480@80fps

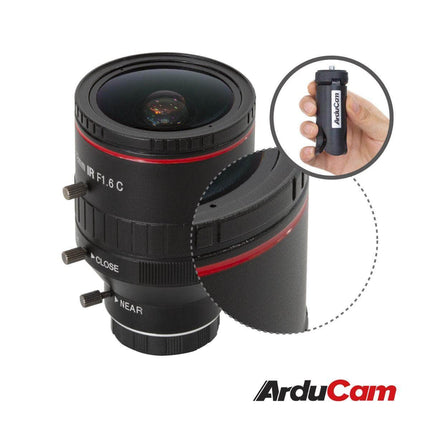

Lens
- Field of View (FOV): 120°(H)-38°(H) on 1/2.3″ IMX477 High Quality Camera
- Lens Mount: C
- Focal Length:2.8-12mm
- Aperture: F1:1.6
- MOD: 0.3m
- Focus Type: Manual
Functionality and Compatibility
- Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
- System Compatibility: Windows, Linux, Mac, and Android with UVC
Power
- Power Supply: USB powered 5V
- Working Current: MAX 200mA
Physical
- Operating Temp.: -4°F~158°F (-20°C~+70°C).
- Dimension: 50mmx50mmx120mm
- Cable Length: default 6.56ft (2M)
Documentation
Applications
- Video conference
- Home video surveillance system
- Live streaming
- Record lesson and conference
- ……
Package Including
- 1 × 12MP IMX477 2.8-12mm varifocal USB 2.0 camera with full metal shell

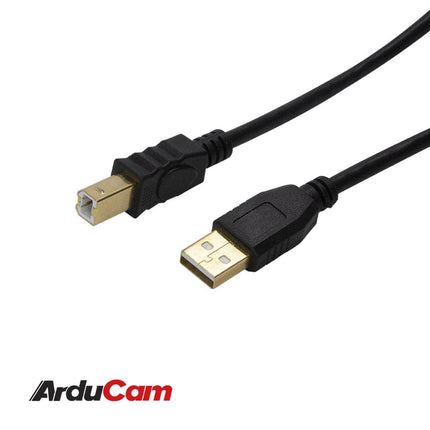

- 1 × 6.56ft (2M) USB 2.0 cable

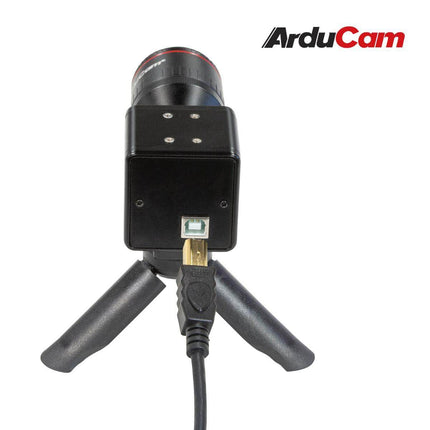

- 1 pcs mini tripod stand
