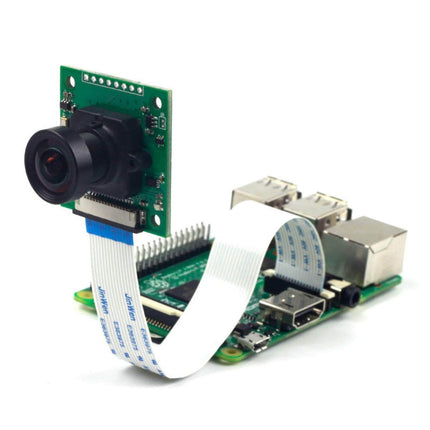

Arducam NOIR 8 MP Sony IMX219 Camera M12 Lens LS1820 for Raspberry Pi (B0152)
ArduCAM team has released a NOIR 8MP Raspberry Pi compatible camera based on the same Sony IMX219 image sensor. It’s capable of 3280 x 2464 pixel static images, and also supports 1080p30, 720p60 and 640x480p video. It attaches to Pi by the dedicated standard CSI interface.
It is supplementary for Raspberry Pi official camera in order to fulfill the demands for different lens mount, the field of view (FOV) and depth of the field (DOF), as well as the motorized IR, cut filter for both daylight and night vision.
There is a wide range of lens options which can choose from Arducam.
Features
- Sensor type: Sony IMX219 Color CMOS 8-megapixel
- Sensor size: 3.674 x 2.760 mm (1/4″ format)
- Pixel Count: 3280 x 2464 (active pixels) 3296 x 2512 (total pixels)
- Pixel Size: 1.12 x 1.12 um
- Lens: M12 mount LS1820 NOIR
- Angle of View: Horizontal FOV 100 degree
- Video: 1280×720 binned and cropped up to 60fps
- 1080P cropped up to 30fps
- 1640×1232 full FOV binned mode, up to 30fps
- 3280×2464 full FOV, 0.1fps to 15fps
- Board size: 36 x 36 mm
- IR Sensitive: Sensitive to IR light
