Arducam Pivistation 5 Hawkeye 64MP Raspberry Pi 5 AI Camera Kit B0513
The Arducam Pivistation 5 is a comprehensive embedded vision kit designed to simplify the development of advanced imaging projects. Integrating the Raspberry Pi 5, it addresses the common challenges of setup complexity and compatibility, providing users with a powerful, ready-to-use solution for various vision applications.
The Arducam Hawkeye camera kit boasts a powerful 64-megapixel sensor, enabling users to capture extremely high-resolution images suitable for detailed analysis and advanced imaging applications. With an integrated autofocus mechanism and up to 10x digital zoom, the Hawkeye ensures sharp, clear images and allows for close-up inspections without compromising quality.

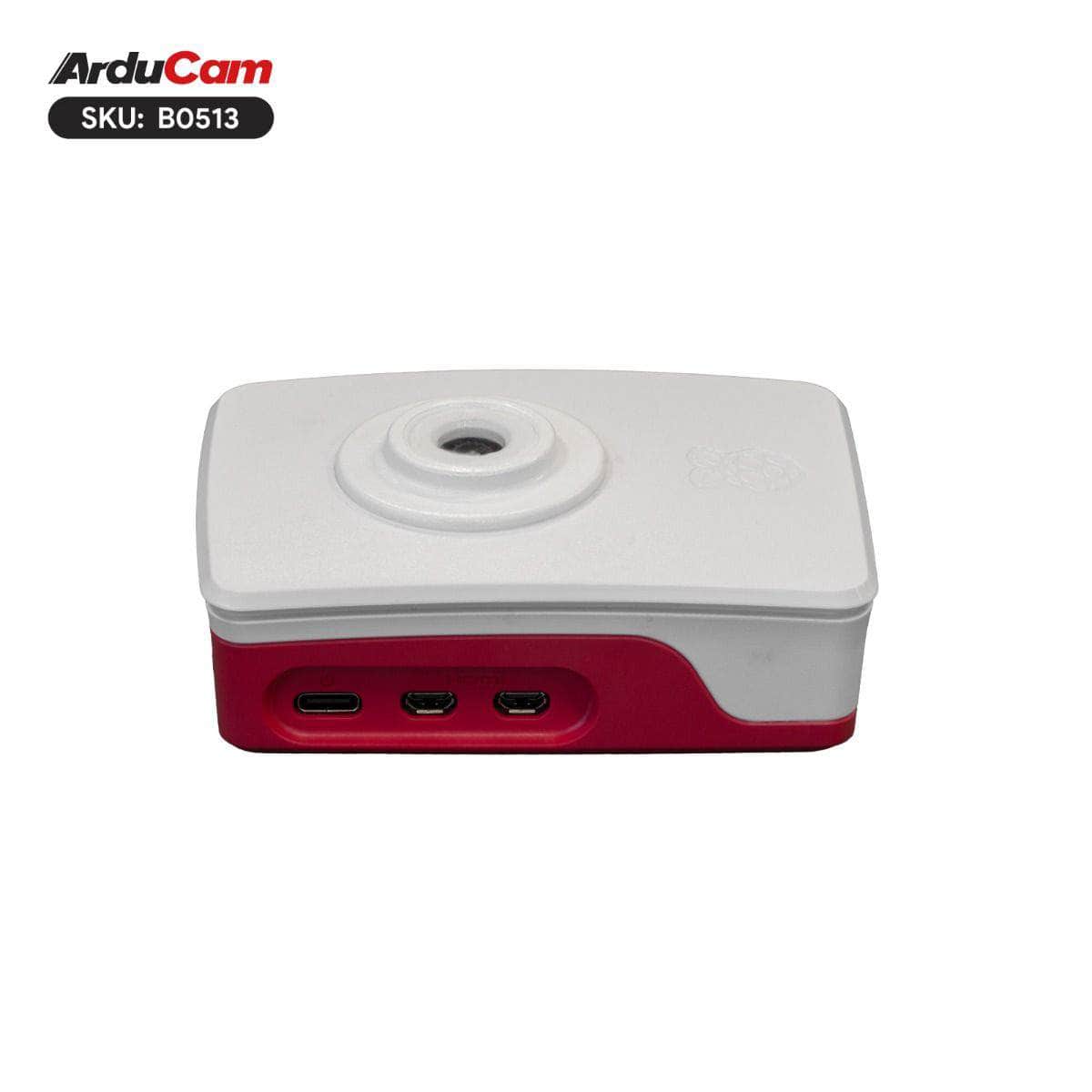

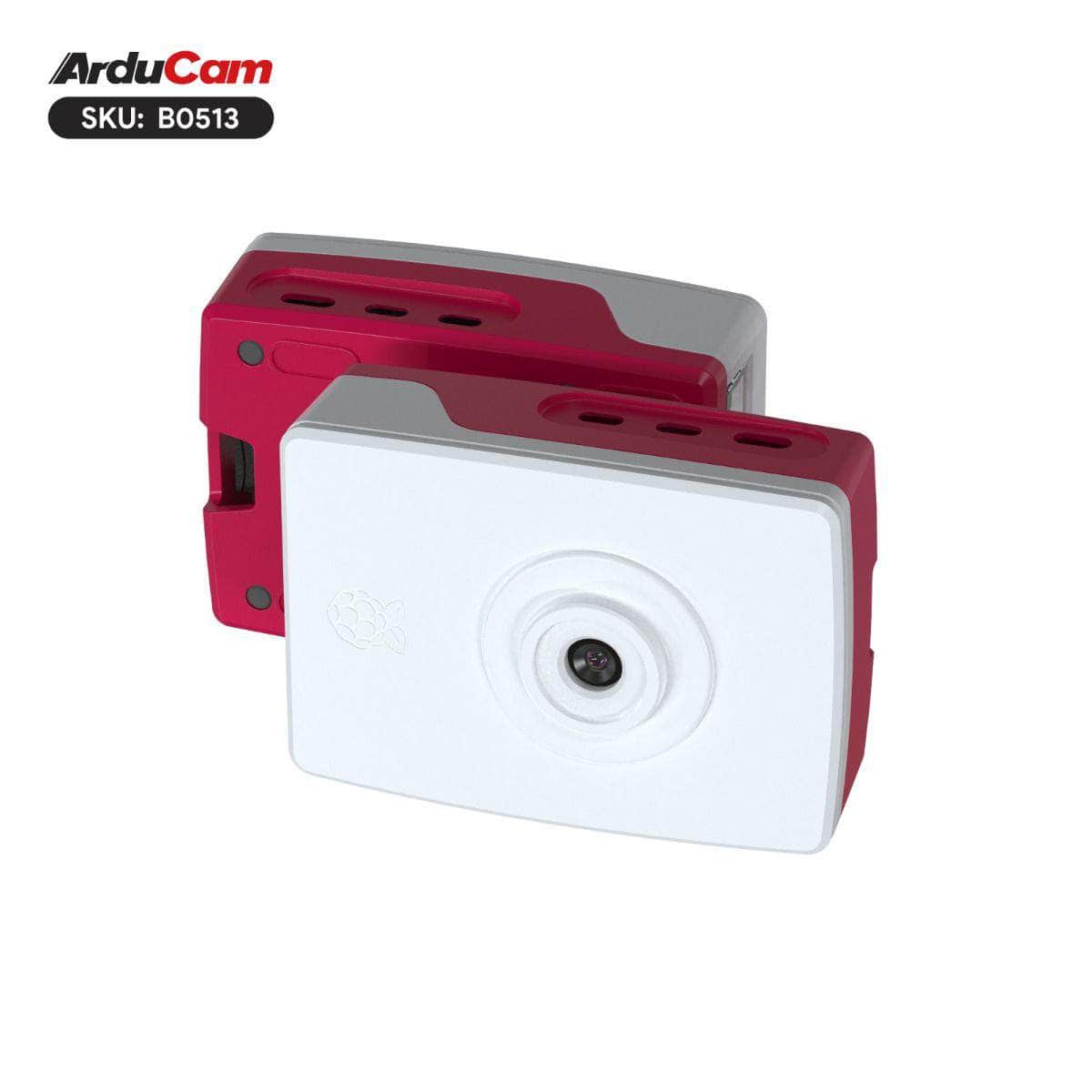

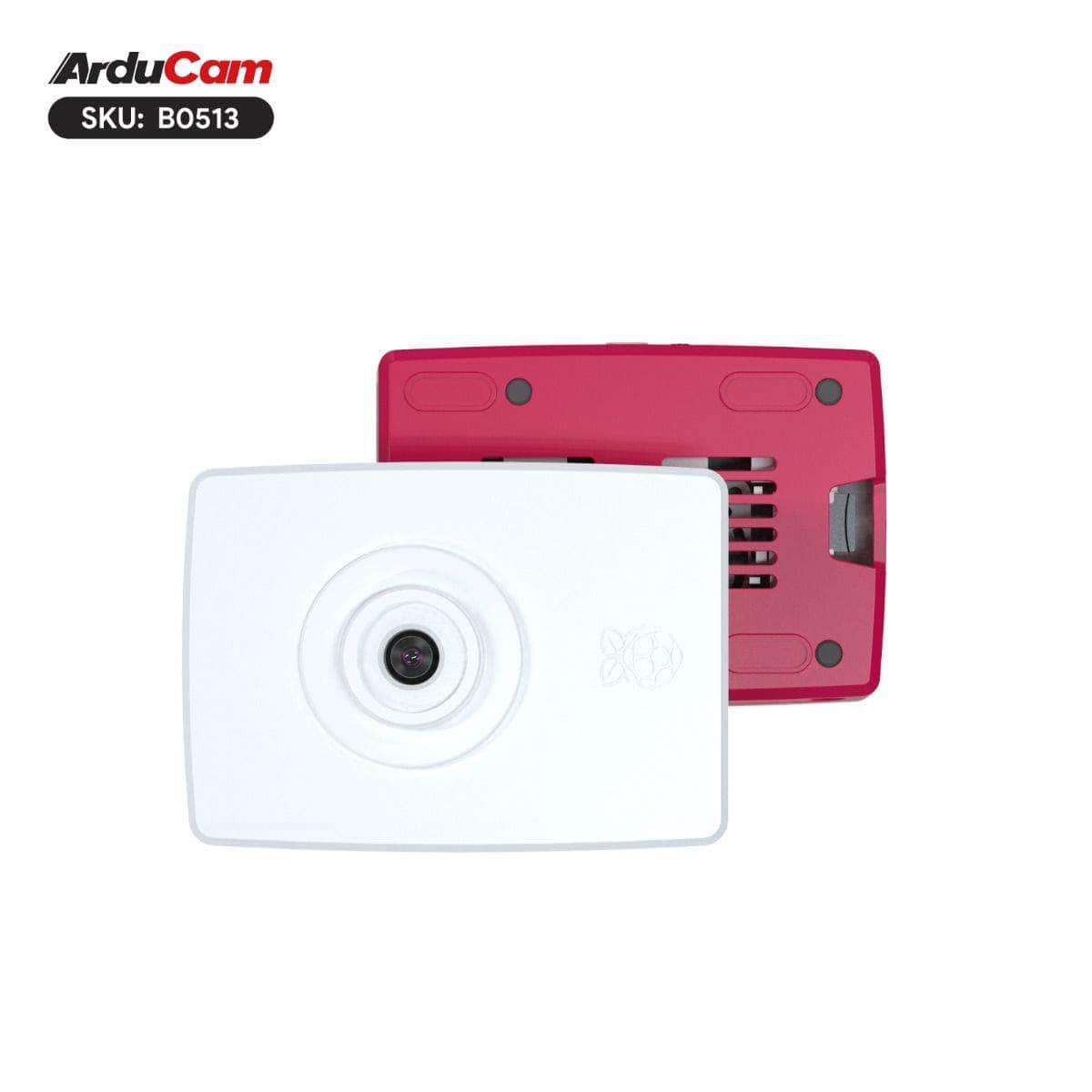

The Pivistation 5 is designed for convenience and efficiency, coming pre-installed with essential software such as OpenCV-Python and TensorFlow. It utilizes the official Raspberry Pi case, which includes a cooling fan for optimal performance and pre-installed tripod hole for easy setup and mobility. This combination of hardware and software ensures a seamless and hassle-free user experience, allowing developers to focus on their projects without worrying about configuration and compatibility issues.
Applications
- Face Recognition
- Fatigue Detection
- Object Recognition
- Anomaly Detection
- Machine Vision
Features
- High-Resolution Imaging and PDAF: Arducam Hawkeye kit features a 64MP sensor, integrated autofocus (PDAF&CDAF), and 10x digital zoom, capturing high-resolution, sharp images for detailed analysis and advanced imaging applications.
- Complete Setup: Includes a Raspberry Pi 5 with 4GB RAM, a 32GB SD card, an official case, and a cooling fan for optimal performance and durability.
- Extensive Software Support: Pre-installed with essential vision software, including OpenCV-Python, TensorFlow, and PyTorch, enabling advanced application development out of the box.
- Robust Enclosure: Encased in an official Raspberry Pi case with a cooling fan, featuring a pre-installed tripod hole for easy mobility and setup.
- Versatile Applications: Ideal for a wide range of embedded vision projects, from quick PoC, research, and development to hobbyist applications.
Specifications
| Image Sensor |
| Image Sensor |
SONY 1/1.7" |
| Still Resolution |
64 MP |
| Color Filter Type |
Color |
| Shutter Type |
Rolling shutter |
| Optical Size |
1/1.7 inch |
| Sensor Output Format |
RAW10 |
| Platform Output Format |
JPEG/YUV/RGB/RAW10 |
| Pixel Size |
0.8 μm×0.8 μm |
| Sensor Active Area |
9152(H) × 6944(V) |
|
| Frame Rate |
1080p30,720p60 and 640×480p60/90 |
| Lens |
| Lens Mount |
Stock lens |
| Focus Type |
PDAF + CDAF |
| FOV |
84°(D) |
| F.NO |
F1.8 |
| E.F.L |
5.1mm |
| Default Focus Range |
8cm-∞ |
| IR Sensitivity |
Integral IR-cut Filter, visible light only |
| Electrical and Mechanical |
| Operating Voltage |
5 V +/- 5% |
| Operating Temp. |
32°F-158°F (0°C to 70°C) |
| Power Requirements |
7.5W |
| Camera Board Size |
24×25mm |
| Overall Size |
99×70×37 mm |
| Functionality and Compatibility |
| Supported OS |
Bookworm |
| Pre-installed Software |
opencv-python, libopencv-dev (C++ version) libcamera, rpicam-apps C++ essential tools (building environment) TensorFlow (Python)/ PyTorch camera-streamer, arducacm camera server |
| Supported Platform |
Raspberry Pi 5 |
Package Including
- 1× Arducam Pivistation 5 Camera Kit
Notes
- Tripod is not included in the package
- This product kit includes the Raspberry Pi 5 with 4GB of RAM and a 32GB SD card preloaded with OS and software. It is recommended to use only this platform.
- For optimal performance, we suggest using the official Raspberry Pi 27W power supply.
