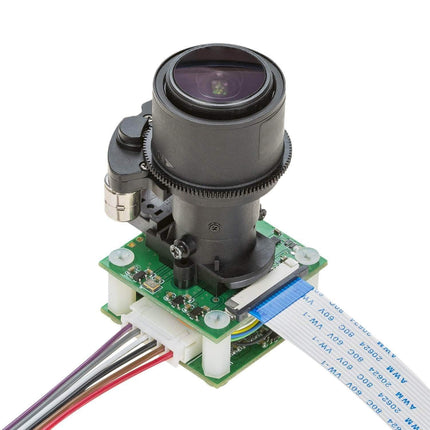

Arducam PTZ Pan Tilt Zoom Camera Controller for Raspberry Pi (B0167)
Real PTZ with servos for directional control and varifocal lens for optical zoom, and it supports autofocus and IR cut switch control.
PTZ is an abbreviation for pan, tilt, and zoom and reflects the movement options of the camera, and a pan–tilt–zoom camera (PTZ camera) is a camera that is capable of remote directional and zoom control. A PTZ camera is not a still camera. Instead, it could move the camera and the lens, and that means a single camera can be used to monitor places that should be covered by multiple ones. You can save a lot of cost and time in purchasing and deploying the camera if a PTZ camera can handle the job. With its moveable lens, you will also be able to zoom the camera to see a specific area that you are interested in. To conclude, it’s “do more with less.”
Features:
- Real PTZ with servos for directional control and varifocal lens for optical zoom now comes to the Raspberry Pi
- Switchable IR Cut through software for your day/night vision
- Make full use of the CSI connector now that a single camera can be used to monitor places that should be covered by multiple ones
- Autofocus control, pan/tilt/zoom keyboard control supported in software
-
Controller Board Connector Part Number: S6B-XH-A-1
Application:
- IoT cameras
- Robot cameras
- Wildlife cameras
- Other security and surveillance projects

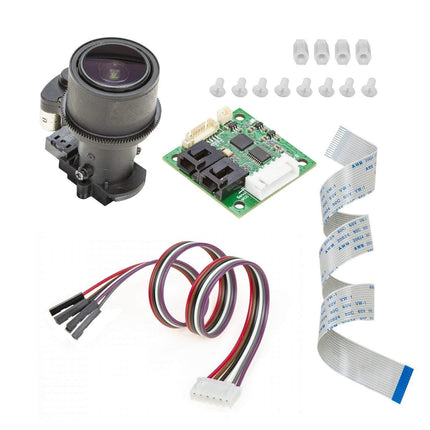

Package Includes:
- 1pcs Arducam PTZ Pan Tilt Zoom Lens for Raspberry Pi
- 1pcs Controller Board
- 1pcs 15-Pin FPC Cable (11.8 in/30 cm)
- 1pcs XH2.54 Jumper wire with 6Pin Female Connector (11.8 in/30 cm)
Important Note:
- Raspberry Pi Development Board is not included
- You need to use: 5MP or 8MP cameras to work with this PTZ controller board for Raspberry pi
- Sensor/Camera Board NOT included.
