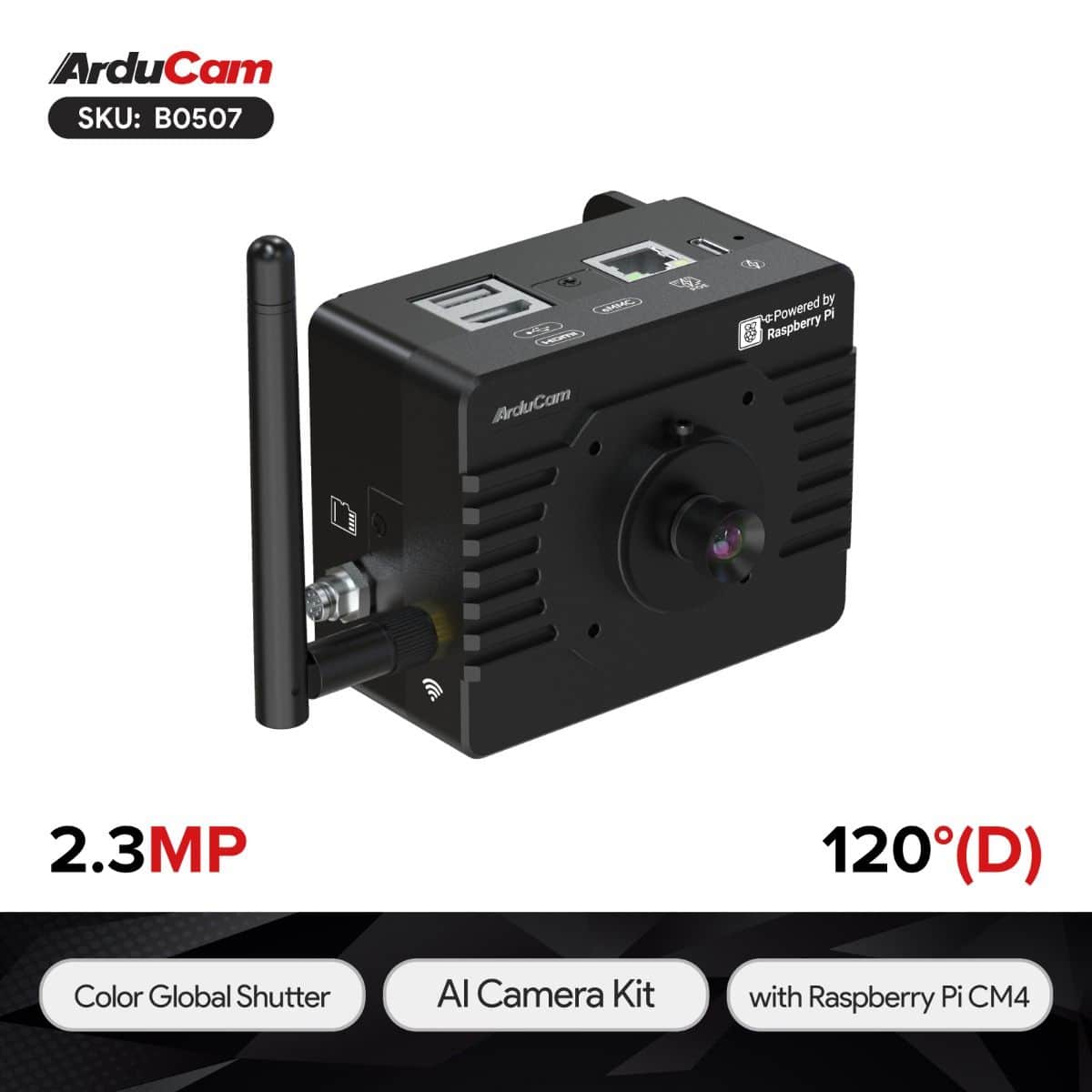

Arducam KingKong, All-in-one Raspberry Pi CM4 AI Camera Kit (B0507)
Arducam KingKong has been authorised by Raspberry Pi and awarded the prestigious "Powered by Raspberry Pi" logo. This recognition underscores KingKong's seamless integration and compatibility with Raspberry Pi, ensuring optimal performance and reliability for users.

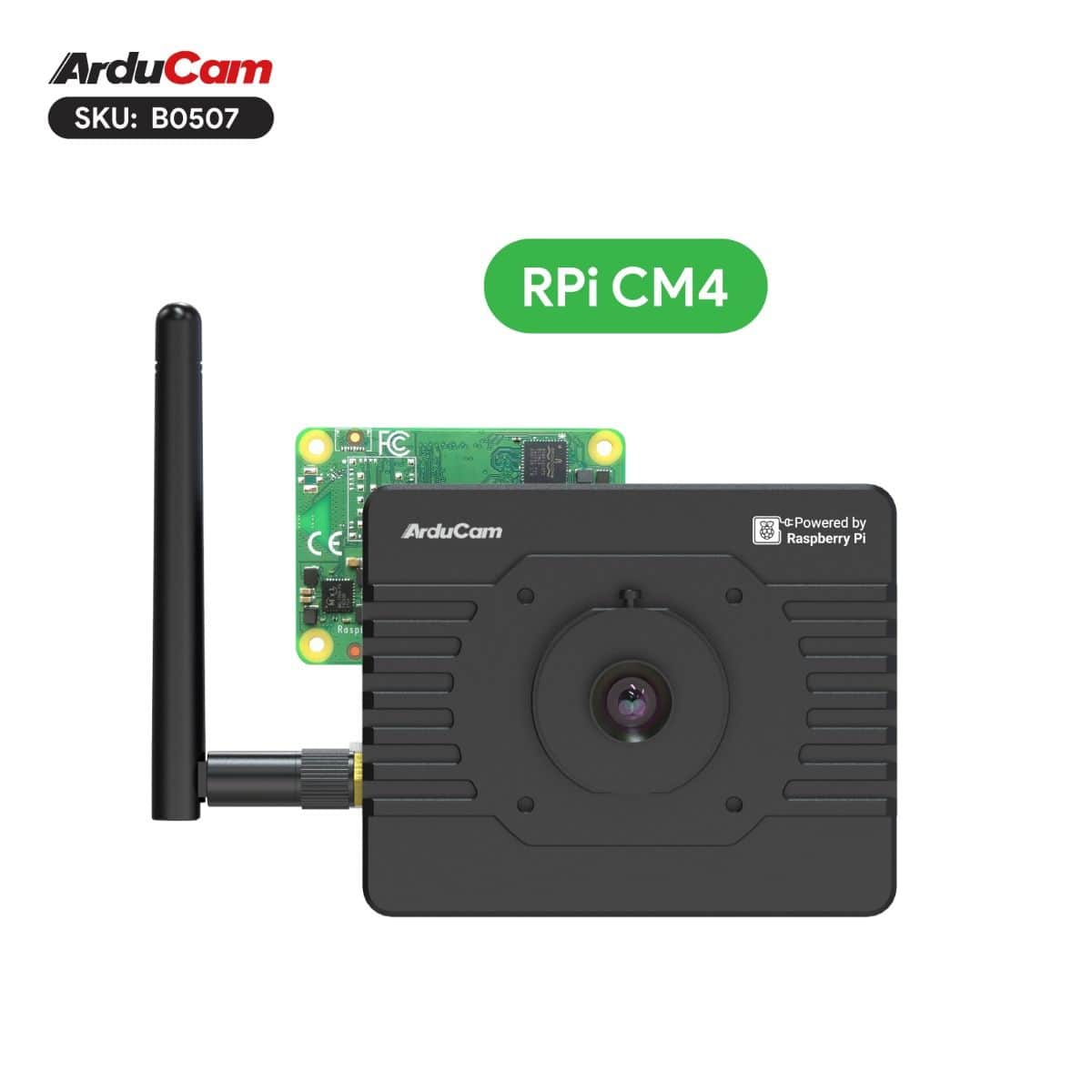

Arducam's debut in the Pivistation Family introduces a smart AI camera seamlessly uniting Raspberry Pi CM4 (4GB RAM Lite 2.4/5.0GHz Wifi&Bluetooth 5.0 CM4104000) and OAK SOM BW1099, unlocking limitless AI potential. This fusion establishes a dynamic platform for cutting-edge vision applications, catering to AI enthusiasts and professionals alike.

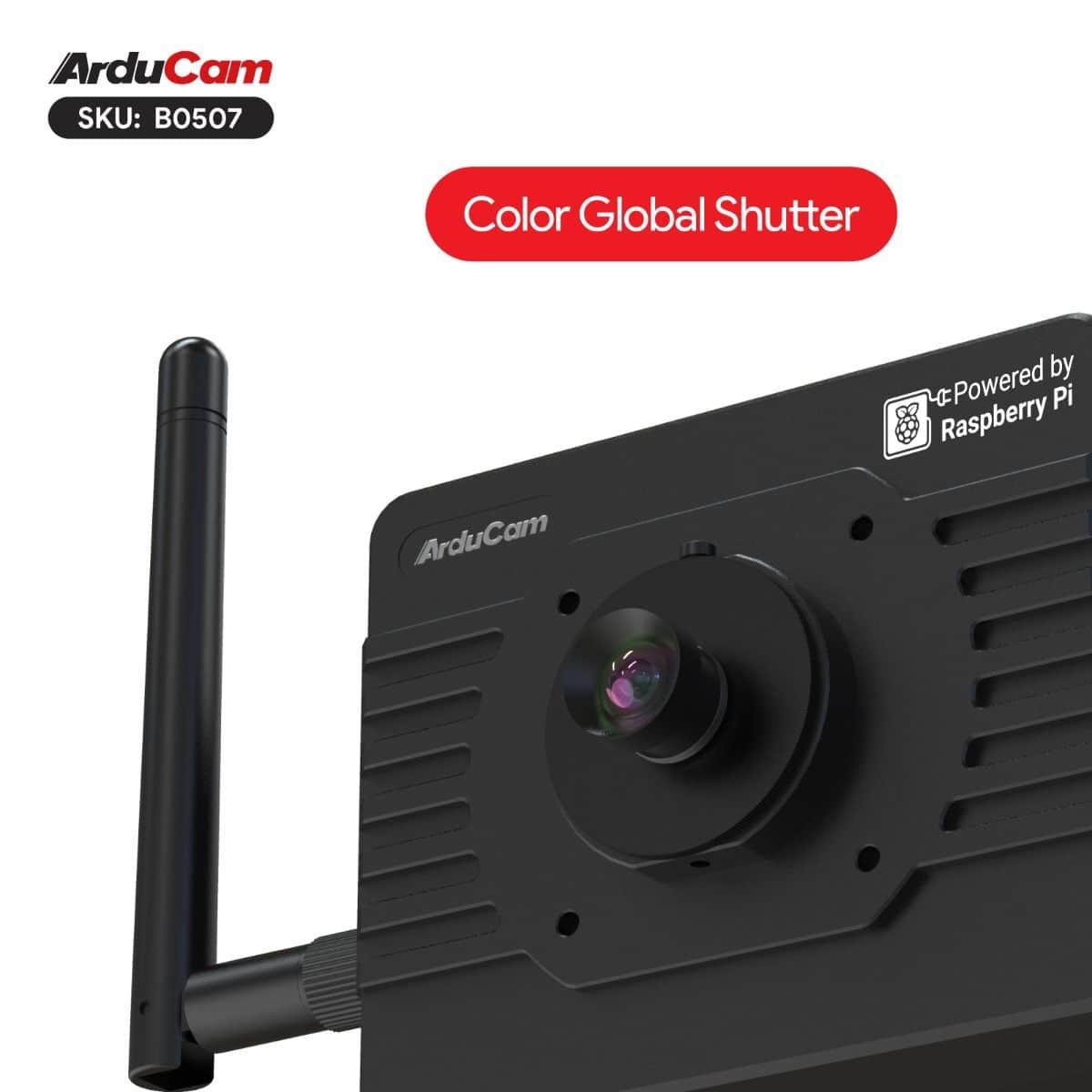

Precision imaging is attained through a global shutter camera. The AR0234 colour global shutter camera, equipped with an M12 lens, guarantees distortion-free and accurate imaging, featuring external trigger functionality. Tailored for applications requiring precise and synchronised image acquisition, this kit excels in capturing fast-moving objects with unparalleled clarity.
Encased in metal, the enclosure not only enhances heat dissipation but also simplifies the core module and camera assembly. With pre-installed software, demos, and an included SD card, users effortlessly delve into AI programming projects. Versatile connectivity options, including HDMI, GPIO, USB ports, and Wi-Fi/Power over Ethernet, provide seamless access to Raspberry Pi hardware functions, ensuring adaptability in project development and integration.
Applications
- Face Recognition
- Fatigue Detection
- Object Recognition
- Anomaly Detection
- Hand Tracker
- Pose Estimation Example
Features
- Powerful AI Integration: Arducam AI Camera Kit combines Raspberry Pi CM4 and OAK SOM BW1099 for seamless AI processing, unlocking advanced vision applications.
- Global Shutter Precision: Equipped with AR0234 colour global shutter camera, offering distortion-free imaging with M12 Lens and external trigger support.
- Pre-Installed Software: Arducam KingKong comes equipped with a comprehensive suite of pre-installed software, including OpenCV, TensorFlow, Web UI, RTSP Streaming. This software arsenal enhances versatility and empowers users with a range of tools for various imaging and AI tasks.

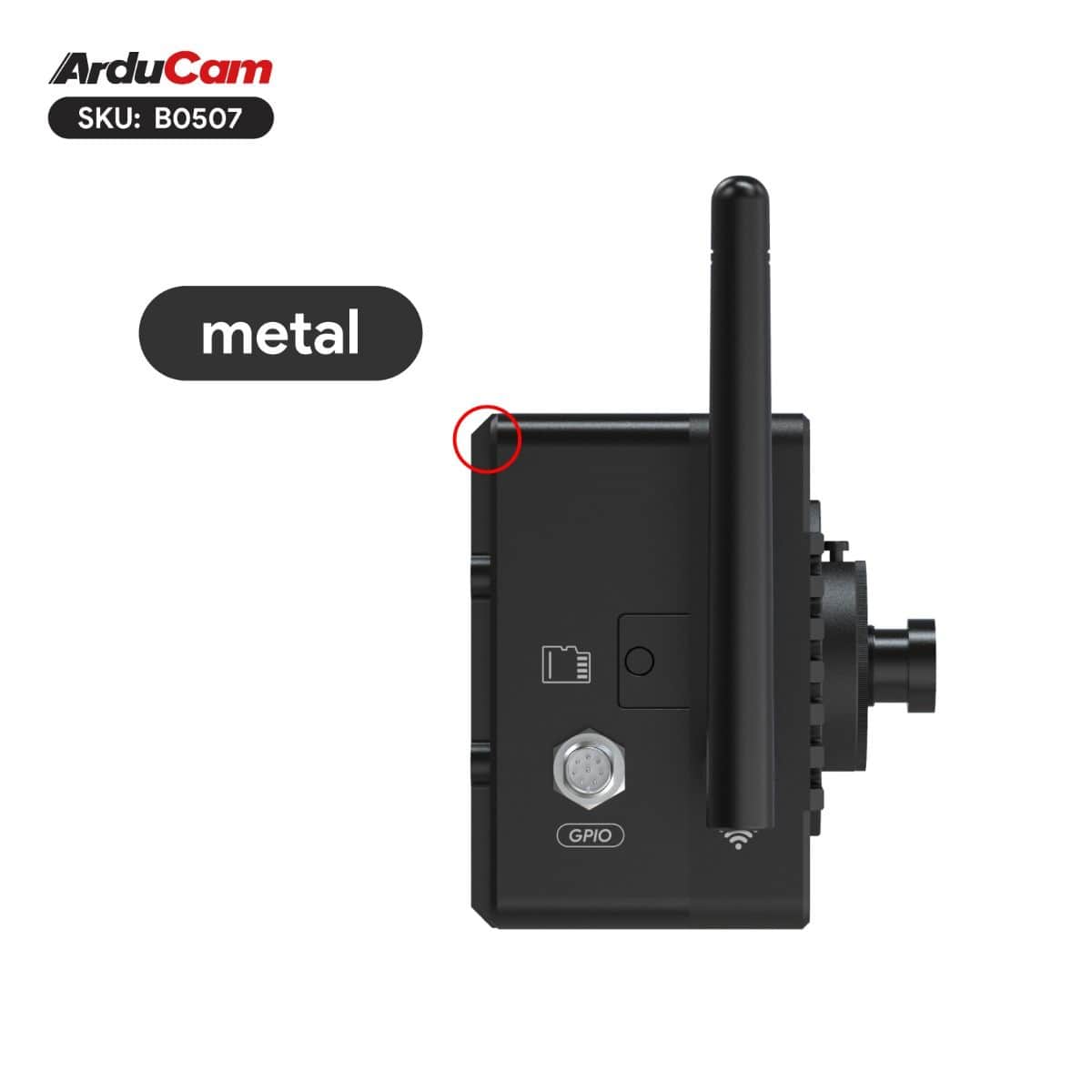

- Efficient Heat Dissipation: Exclusive metal enclosure efficiently merges core module and camera, ensuring optimal heat dissipation for sustained performance.

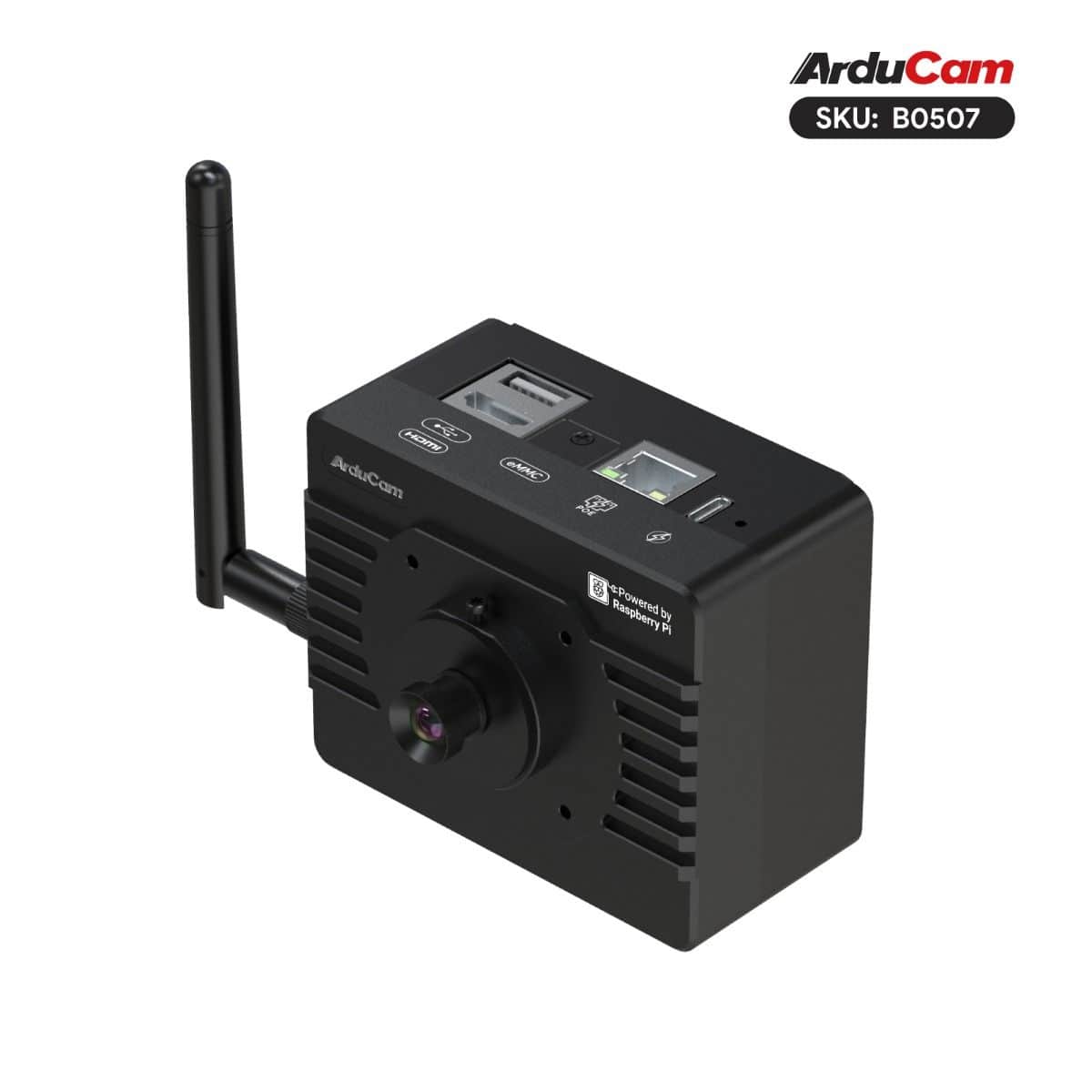

- Versatile Connectivity: HDMI, GPIO, USB ports, and an included antenna provide easy access to Raspberry Pi hardware functions, along with Wi-Fi/Power-over-Ethernet connectivity options.
Specifications
| Image Sensor |
| Image Sensor |
AR0234 |
| Still Resolution |
2.3 Megapixels |
| Colour Filter Type |
Color |
| Shutter Type |
Global Shutter |
| Optical Size |
1/2.6" |
| Pixel Size |
3 µm x 3 µm |
| Sensor Active area |
1920(H)×1200(V) |
| Output Format |
RAW10/YUV/NV12/RGB |
| Video Modes |
1920×1200@30fps, 1920×1080@30fps, 1280×720@60fps |
| Lens |
| Focus Type |
Manual |
| Focal Length |
3.6mm |
| F.NO |
F2.8 |

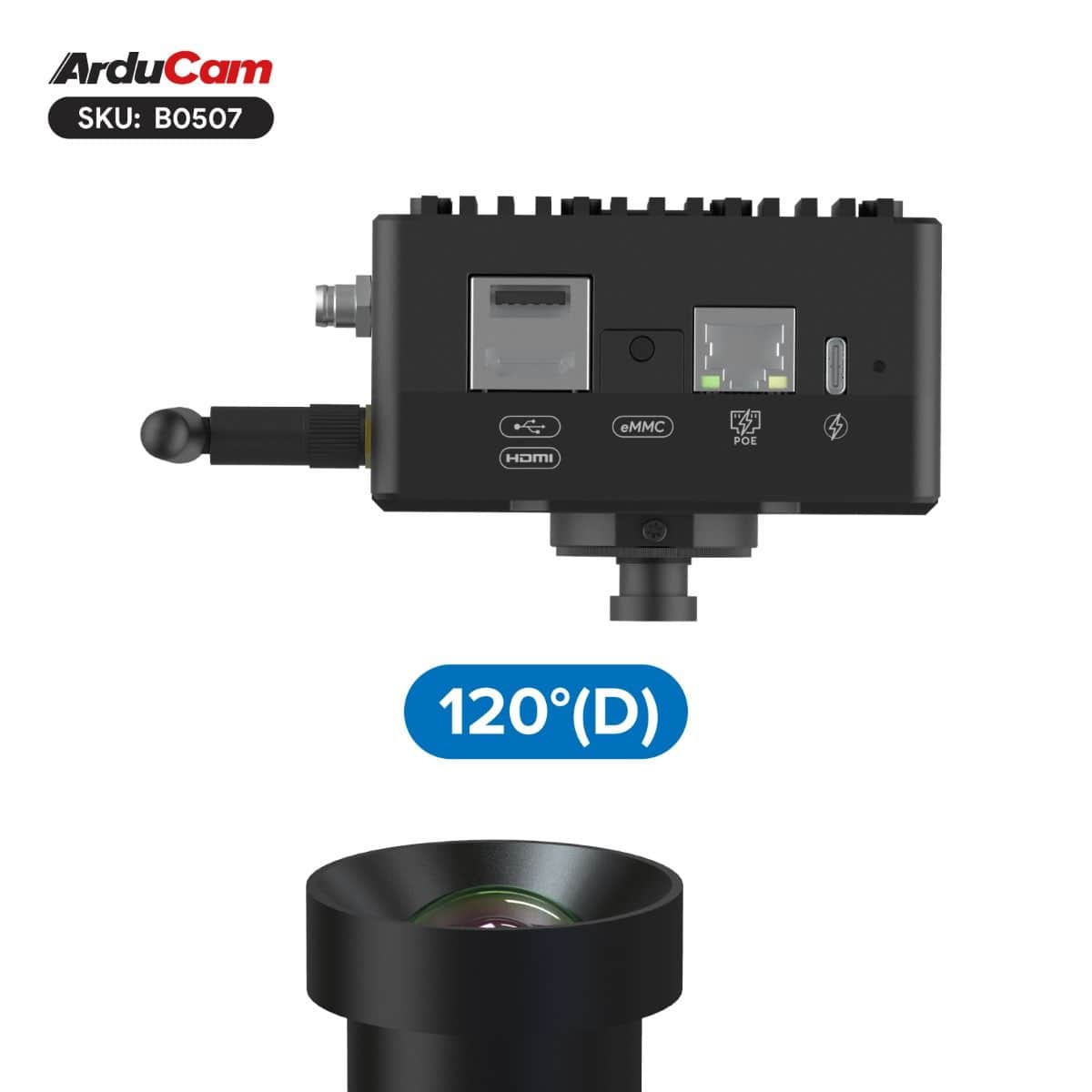

| Field of View(FOV) |
120°(D)×90°(H)×75°(V) |
| Lens Mount |
M12 (S-Mount) |
| Distortion |
＜-0.33% |
| IR Sensitivity |
Integral IR-cut Filter,
visible light only |
| Electrical and Mechanical |
| Overall Size |

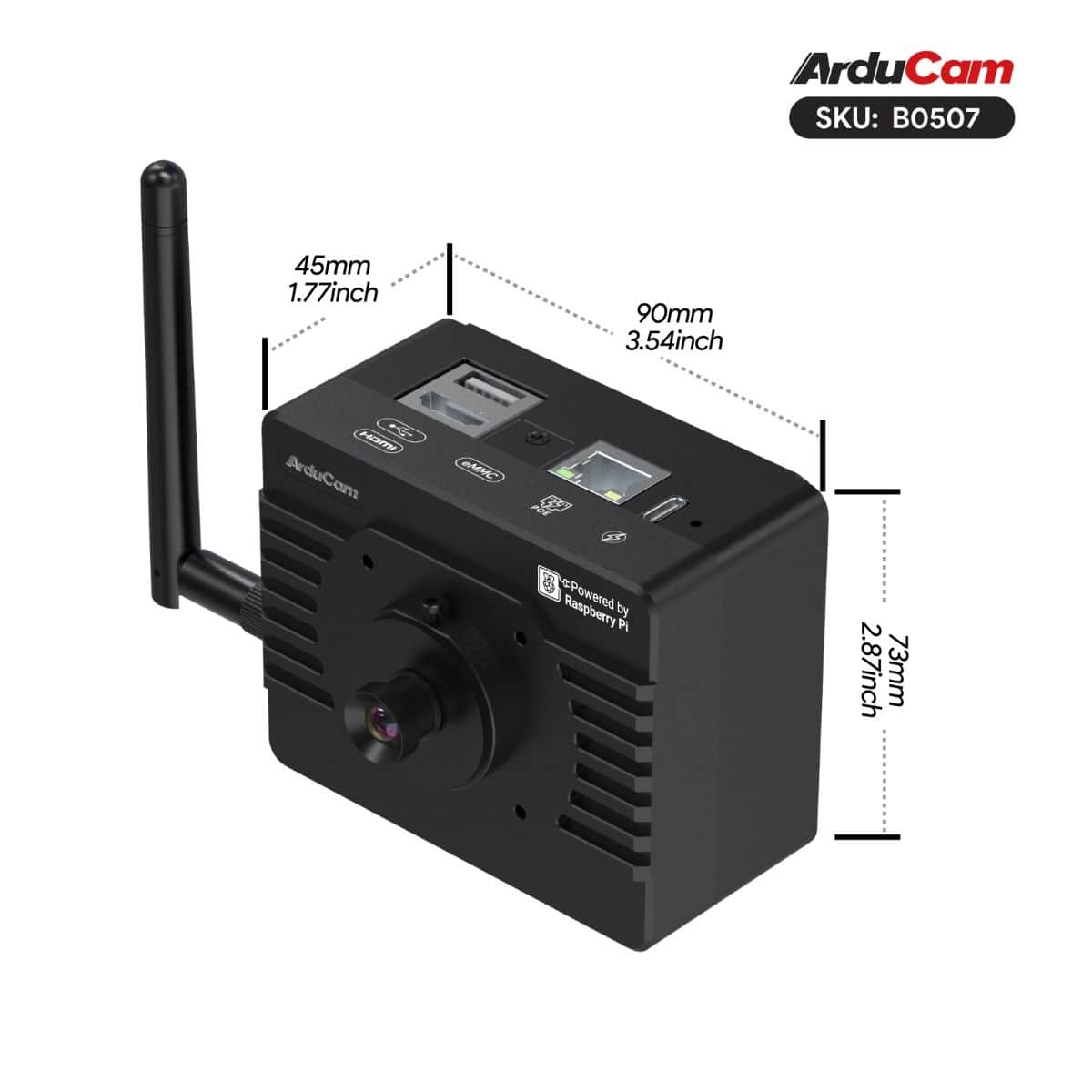

90 × 45 × 73 mm |
| Operating Temp. |
-20°C and 50°C |
| Power Requirements |
USB-C: 5.1V/3.0A
PoE Power Input: IEEE 802.3at PoE/50-57V 600mA |
| Functionality and Compatibility |
| Supported OS |
Raspberry Pi OS |
| Supported Platforms |
Raspberry Pi CM4 |
| ISP Support |
Supported by Raspberry Pi |
| External Trigger |
Support |
Package Including
- 1× Arducam Raspberry Pi CM4 Camera Kit
Notes

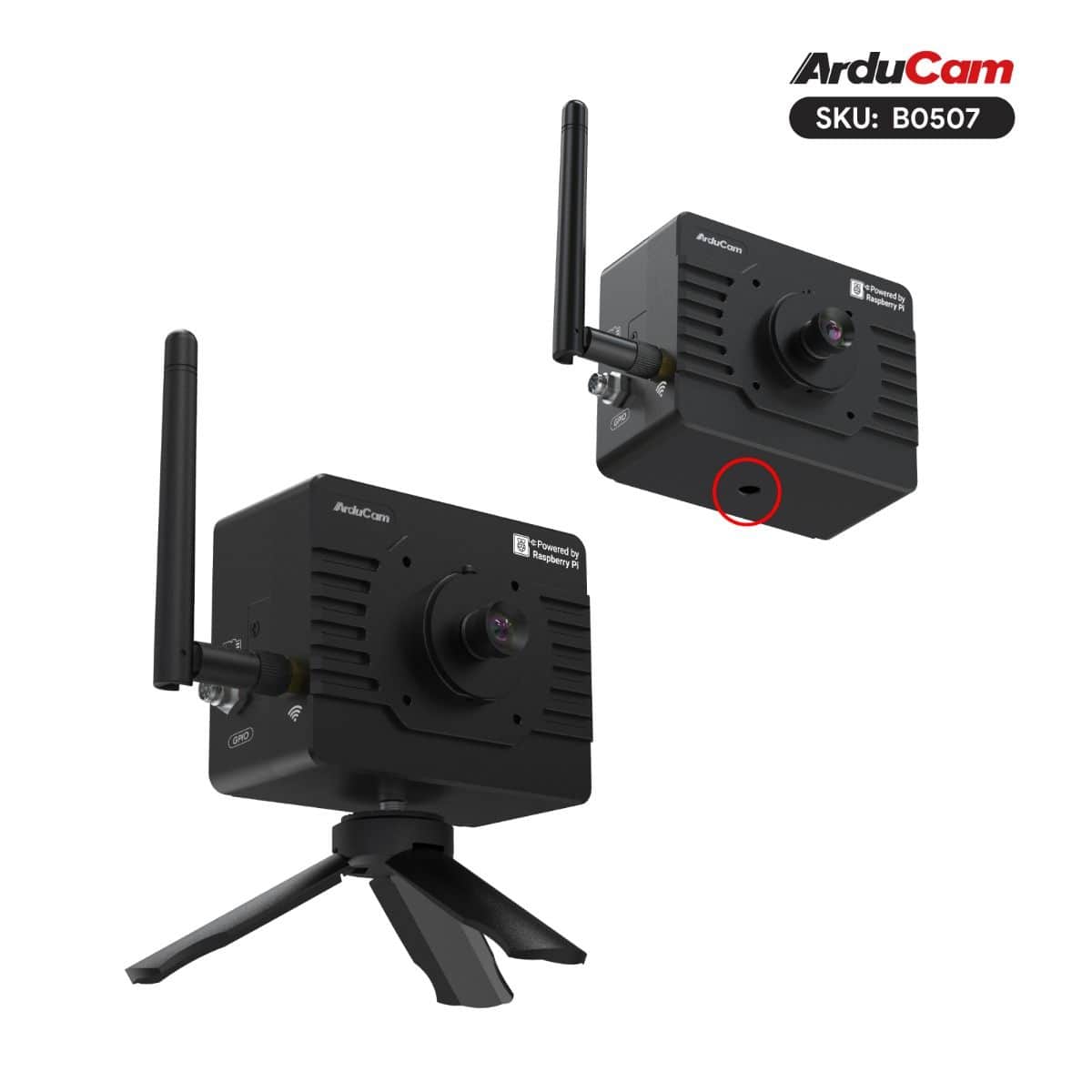

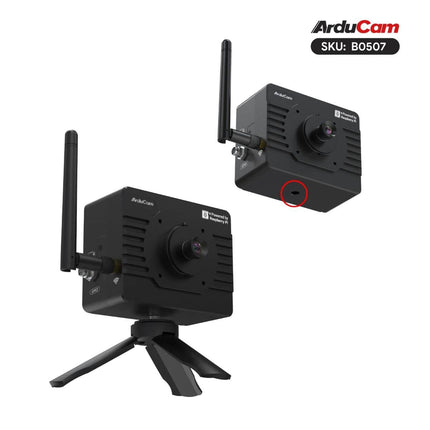

- Tripod is not included in the package; please check UB0224 and UB0216 for additional purchase.
