Arducam High Framerate AutoFocus USB Camera 360FPS 1080P ezBOX-Swift B0559

Description

Arducam High Framerate AutoFocus USB Camera 360FPS 1080P ezBOX-Swift B0559

Arducam ezBOX-Swift combines speed and precision, delivering up to 360 FPS at VGA resolution for capturing fast-moving objects with exceptional clarity. Powered by a SONY 1080P Color Sensor, it supports a wide range of FPS-Res combinations, from 1920x1080@100fps to 640x480@360fps, ensuring versatility and high-quality imaging for dynamic applications.

Applications

  • Robotics
  • Precision Agriculture
  • Motion Analysis
  • Sports Tracking
  • Industrial Automation
  • Traffic Monitoring and Surveillance
  • We Welcome You to Test: Explore the ezBOX-Swift in your own applications and share your results with us—or contact us for custom orders tailored to your specific needs!

Features

  • ezBOX-Swift: Speed and Precision for Dynamic Applications
  • Exceptional Frame Rates Across Resolutions: The ezBOX-Swift delivers unparalleled speed, offering 9 versatile FPS-Res combinations, from 1920x1080@100fps to 640x480@360fps. This flexibility ensures smooth and precise capture of fast-moving objects, making it ideal for applications like motion analysis, sports tracking, and high-speed imaging.
  • SONY 1080P Colour Sensor with Advanced Imaging: Equipped with a SONY 1080P colour sensor, the Swift ensures high-quality imaging even in fast-paced scenarios. Its advanced sensor technology minimizes noise and maximises clarity, delivering sharp and detailed visuals for dynamic applications.
  • Proprietary ISP for Full Control: The Swift features a proprietary Image Signal Processor (ISP) that provides complete control over key imaging parameters, including brightness, contrast, saturation, white balance, gain, focus, and exposure. This level of customisation ensures optimal image quality tailored to specific needs, enhancing its versatility across diverse use cases.

Specifications

Image Sensor
Sensor SONY 1080P Color Sensor
Still Resolution 1080P
Color Filter Type Color
Shutter Type Rolling
Optical Size 1/2.8″
Output Format MJPG
Pixel Size 2.24 µm x 2.24 µm
Sensor Active Area 1920(H) x 1080(V)
IR Sensitivity Integral 650nm IR Filter, visible light only
Frame Rate 1920x1080@100fps, 1280x720@180fps, 640x480@360fps*
Lens
Focus Type Autofocus

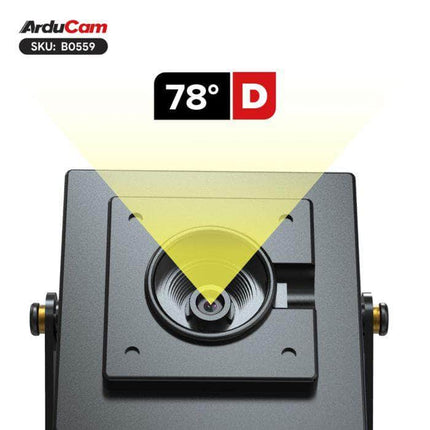

FOV 78°(D)×65°(H)×52°(V)
Lens Mount Stock Lens
F.NO F1.8
E.F.L 3.95mm
Default Focus Range 10cm-∞
USB Interface
Interface USB 2.0 Device

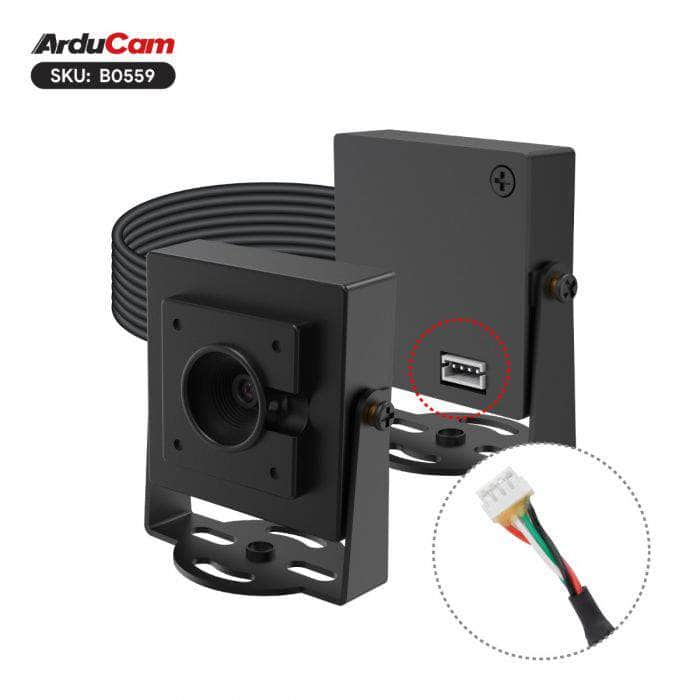

Connector B4B-ZR JST
UVC Compliant No additional drivers required
Electrical and Mechanical
Operating Voltage 5V
Operating Temp. 32°F-158°F (0°C to 70°C)
Power Consumption 1.75W
Camera Board Size 32mmX32mmX1.6mm
Functionality and Compatibility
Supported OS Windows, Linux
Recommend Sample Application Amcap for Windows, qv4l2 for Linux
UVC Controls Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Focus (Auto/Manual), Exposure (Manual/Auto)

640x480@360fps*: Due to the limitation of USB2.0 device descriptor, the software can only report a maximum frame rate of 240fps, but the camera can actually reach 360fps(the actual frame rate can be seen during preview).

Package Including

  • 1 x 1080P High Frame Rate Color USB2 UVC Camera

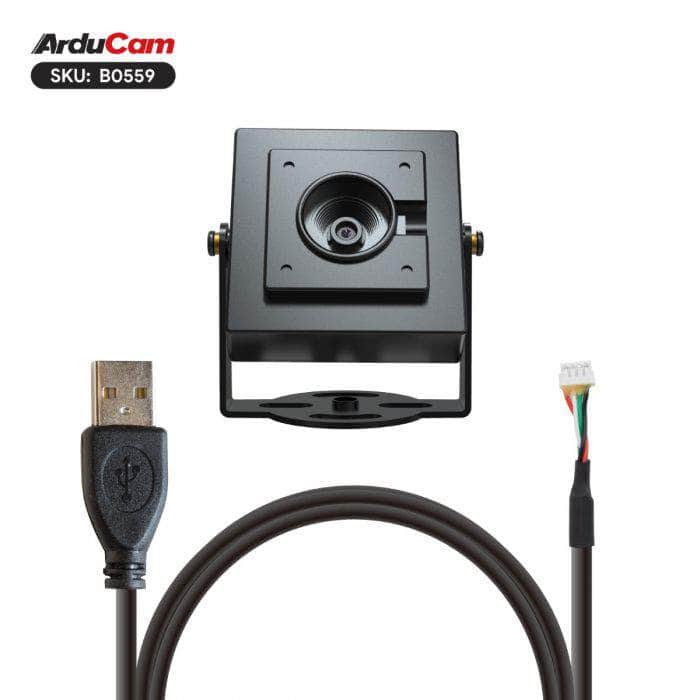

  • 1 x 1m USB2 to B4B-ZR JST Cable

Documentation
