Arducam 4K HDR AutoFocus USB UVC Camera ezBOX-HDR B0560

Description

Arducam 4K HDR AutoFocus USB UVC Camera ezBOX-HDR B0560

Arducam ezBOX-HDR excels in delivering exceptional dynamic range with its SONY 4K HDR sensor, featuring 8.3MP resolution. It maximises the entire active sensor area, ensuring no pixel is wasted and delivering optimal image quality. The HDR functionality is supported across all resolution and frame rate combinations, providing consistent performance in diverse imaging scenarios.

Applications

  • Robotics
  • Precision Agriculture
  • Industrial Imaging
  • Outdoor Surveillance
  • Medical Imaging
  • We Welcome You to Test: Explore the ezBOX-Swift in your own applications and share your results with us, or contact us for custom orders tailored to your specific needs!

Features,

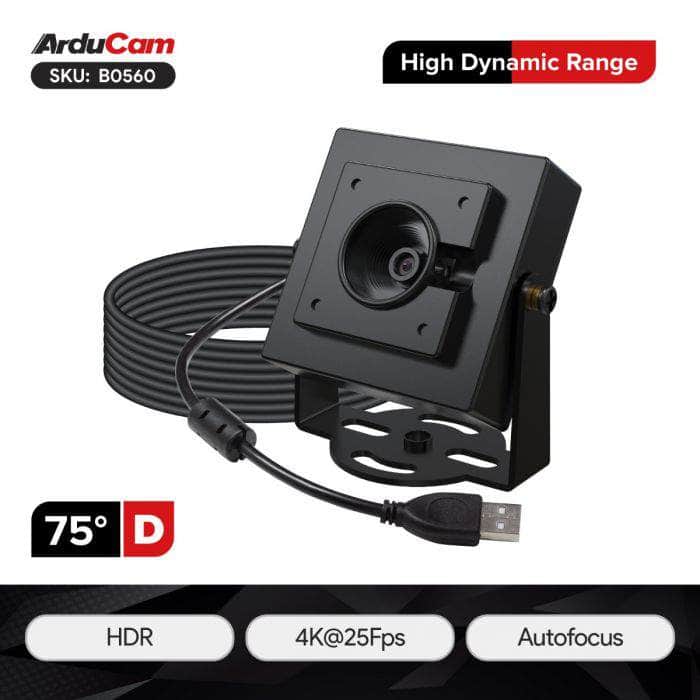

  • ezBOX-HDR: Exceptional Dynamic Range for Diverse Scenarios
  • SONY 4K HDR Sensor for Superior Imaging: The ezBOX-HDR is powered by a SONY 4K HDR sensor, delivering 8.3MP resolution and exceptional dynamic range. Its ability to capture details in both bright and dark areas makes it perfect for industrial imaging, surveillance, and applications requiring high contrast.
  • HDR Across All Resolutions: Unlike many cameras, the ezBOX-HDR maintains its high dynamic range performance across all resolutions, ensuring consistent image quality in diverse lighting conditions. This feature is particularly valuable for scenarios with challenging lighting, such as outdoor environments or high-contrast industrial settings.
  • Maximized Active Sensor Area: The ezBOX-HDR utilizes its sensor’s full active area, ensuring no pixel is wasted. This optimization results in sharper, more detailed images, making it a reliable choice for applications where precision and clarity are paramount.

Specifications

Image Sensor
Sensor SONY 4K HDR Color Sensor
Max Resolution 8.3MP
Color Filter Type Color
Shutter Type Rolling Shutter
Optical Size 1/2.8″
Output Format MJPG
Pixel Size 1.68 µm x 1.68 µm
Sensor Active Area 3840(H) x 2160(V)
IR Sensitivity Integral 650nm IR Filter, visible light only
Frame Rates 3840x2160@25fps, 3264x2448@25fps, 2592x1944@30fps, 1920x1080@30fps, 1280x720@30fps, 640x480@30fps
Lens

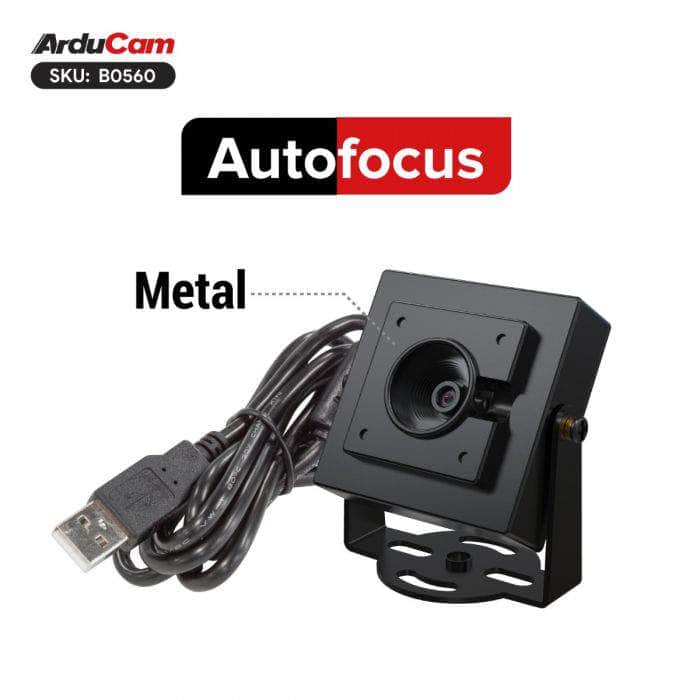

Focus Type Autofocus

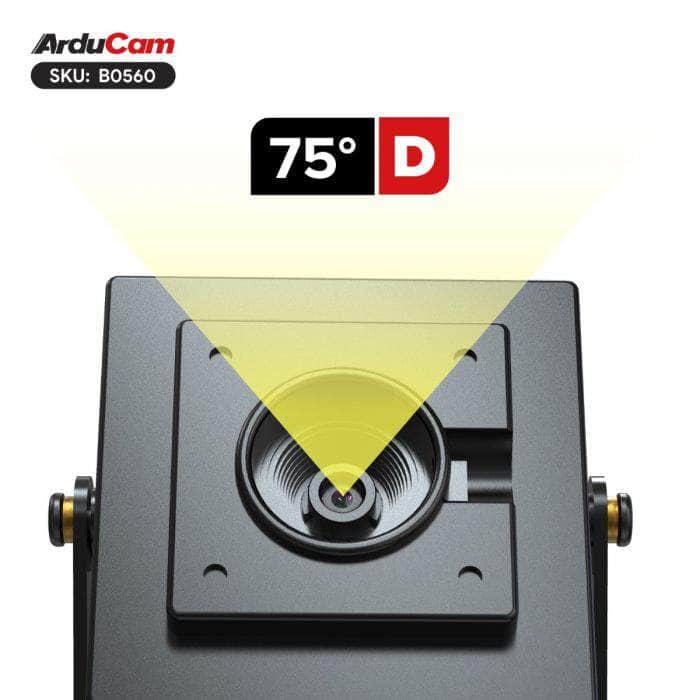

FOV 75°(D)×61°(H)×50°(V)
Lens Mount Stock Lens
F.NO F1.8
E.F.L 3.95mm
Programmable Focus Range 10cm-∞
USB Interface
Interface USB 2.0 Device

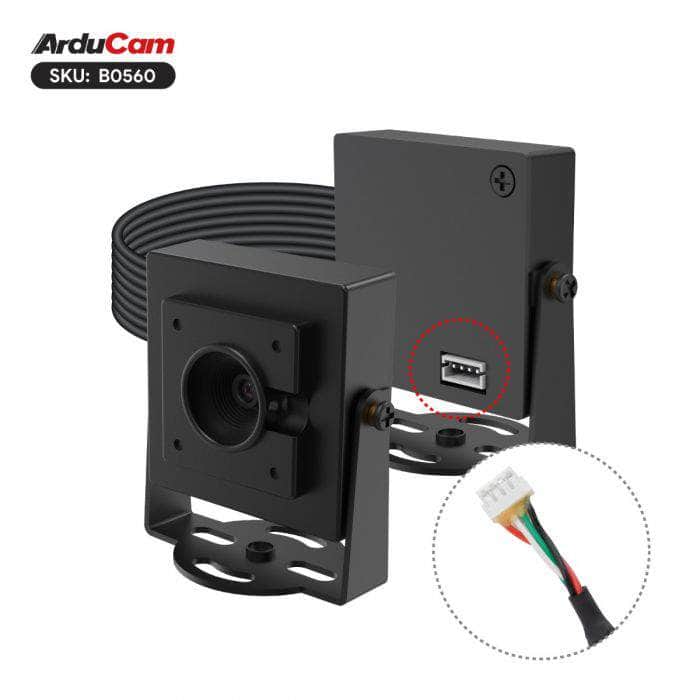

Connector B4B-ZR JST
UVC Compliant No additional drivers required
Electrical and Mechanical
Operating Voltage 5V
Operating Temp. 32°F-158°F (0°C to 70°C)
Power Consumption 1.75W
Camera Board Size 32mmX32mmX1.6mm
Functionality and Compatibility
Supported OS Windows, Linux
Recommend Sample Application Amcap for Windows, qv4l2 for Linux
UVC Controls HDR*, Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Focus (Auto/Manual), Exposure (Manual/Auto)

HDR*: The HDR feature is disabled by default. Activation requires enabling the Low-light Compensation option in the parameters GUI.

Package Including

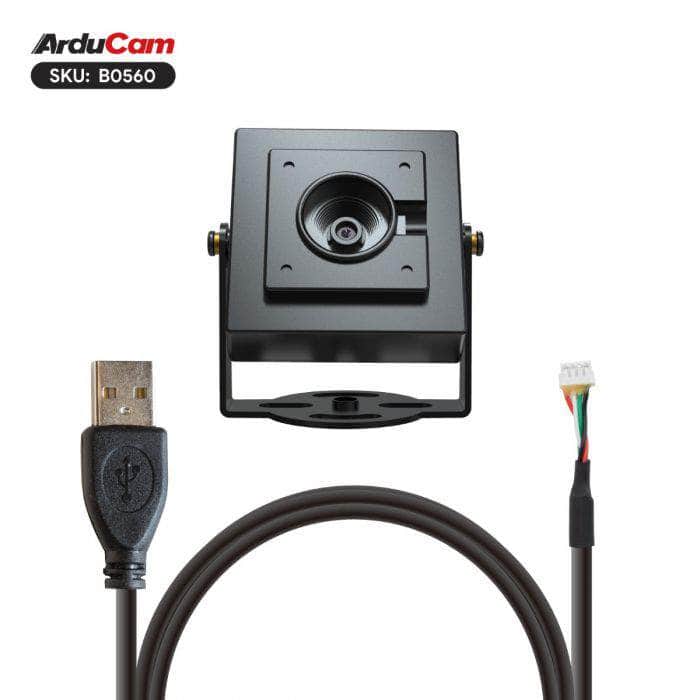

  • 1 x 4K HDR Color USB2 UVC Camera
  • 1 x 1m USB2 to B4B-ZR JST Cable

Documentation

Read more

Arducam 4K HDR AutoFocus USB UVC Camera ezBOX-HDR B0560

Product form
Free pickup in our shop(s)

SKU: B0560

$129.00 $109.00 Excl. GST

$109.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description

    Arducam 4K HDR AutoFocus USB UVC Camera ezBOX-HDR B0560

    Arducam ezBOX-HDR excels in delivering exceptional dynamic range with its SONY 4K HDR sensor, featuring 8.3MP resolution. It maximises the entire active sensor area, ensuring no pixel is wasted and delivering optimal image quality. The HDR functionality is supported across all resolution and frame rate combinations, providing consistent performance in diverse imaging scenarios.

    Applications

    • Robotics
    • Precision Agriculture
    • Industrial Imaging
    • Outdoor Surveillance
    • Medical Imaging
    • We Welcome You to Test: Explore the ezBOX-Swift in your own applications and share your results with us, or contact us for custom orders tailored to your specific needs!

    Features,

    • ezBOX-HDR: Exceptional Dynamic Range for Diverse Scenarios
    • SONY 4K HDR Sensor for Superior Imaging: The ezBOX-HDR is powered by a SONY 4K HDR sensor, delivering 8.3MP resolution and exceptional dynamic range. Its ability to capture details in both bright and dark areas makes it perfect for industrial imaging, surveillance, and applications requiring high contrast.
    • HDR Across All Resolutions: Unlike many cameras, the ezBOX-HDR maintains its high dynamic range performance across all resolutions, ensuring consistent image quality in diverse lighting conditions. This feature is particularly valuable for scenarios with challenging lighting, such as outdoor environments or high-contrast industrial settings.
    • Maximized Active Sensor Area: The ezBOX-HDR utilizes its sensor’s full active area, ensuring no pixel is wasted. This optimization results in sharper, more detailed images, making it a reliable choice for applications where precision and clarity are paramount.

    Specifications

    Image Sensor
    Sensor SONY 4K HDR Color Sensor
    Max Resolution 8.3MP
    Color Filter Type Color
    Shutter Type Rolling Shutter
    Optical Size 1/2.8″
    Output Format MJPG
    Pixel Size 1.68 µm x 1.68 µm
    Sensor Active Area 3840(H) x 2160(V)
    IR Sensitivity Integral 650nm IR Filter, visible light only
    Frame Rates 3840x2160@25fps, 3264x2448@25fps, 2592x1944@30fps, 1920x1080@30fps, 1280x720@30fps, 640x480@30fps
    Lens
    Focus Type Autofocus
    FOV 75°(D)×61°(H)×50°(V)
    Lens Mount Stock Lens
    F.NO F1.8
    E.F.L 3.95mm
    Programmable Focus Range 10cm-∞
    USB Interface
    Interface USB 2.0 Device
    Connector B4B-ZR JST
    UVC Compliant No additional drivers required
    Electrical and Mechanical
    Operating Voltage 5V
    Operating Temp. 32°F-158°F (0°C to 70°C)
    Power Consumption 1.75W
    Camera Board Size 32mmX32mmX1.6mm
    Functionality and Compatibility
    Supported OS Windows, Linux
    Recommend Sample Application Amcap for Windows, qv4l2 for Linux
    UVC Controls HDR*, Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Focus (Auto/Manual), Exposure (Manual/Auto)

    HDR*: The HDR feature is disabled by default. Activation requires enabling the Low-light Compensation option in the parameters GUI.

    Package Including

    • 1 x 4K HDR Color USB2 UVC Camera
    • 1 x 1m USB2 to B4B-ZR JST Cable

    Documentation

    Read more
