Arduino Grove Base Shield V2

Description

Description

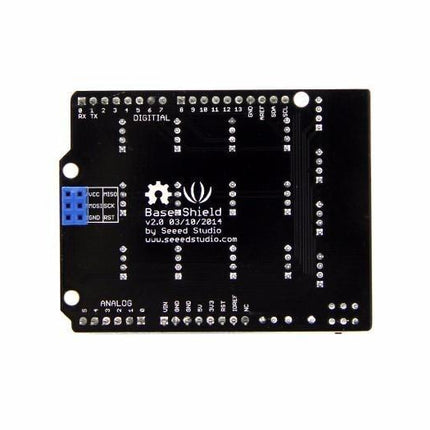

Arduino Grove Base Shield V2

Arduino Uno is the most popular Arduino board so far, however, it is sometimes frustrating when your project requires a lot of sensors or LEDs and your jumper wires are in a mess. The purpose of creating the Grove – Base Shield is to help you get rid of breadboard and jump wires. With the rich grove connectors on the baseboard, you can add all the grove modules to the Arduino Uno very conveniently!

Features

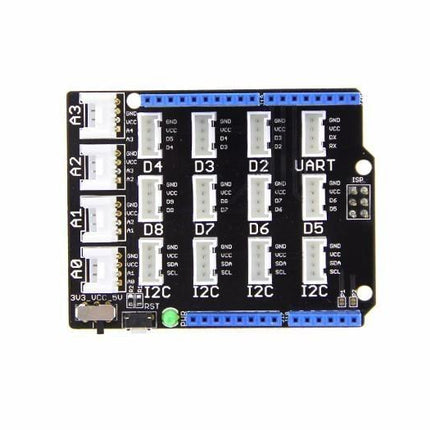

There are in total 16 grove connectors on the Base Shield, here we use a table to show the details.

Specification
Name
Qty
Analog
A0/A1/A2/A3
4
Digital
D2/D3D4/D5/D6/D7/D8
7
UART UART
1
I2C
I2C
4

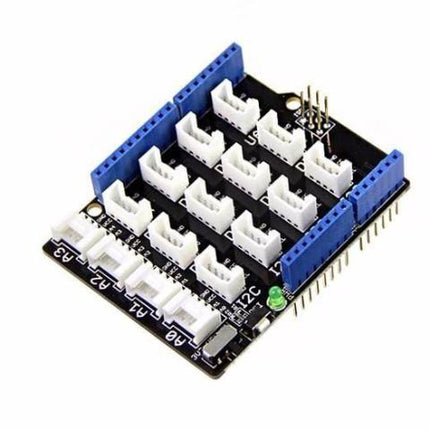

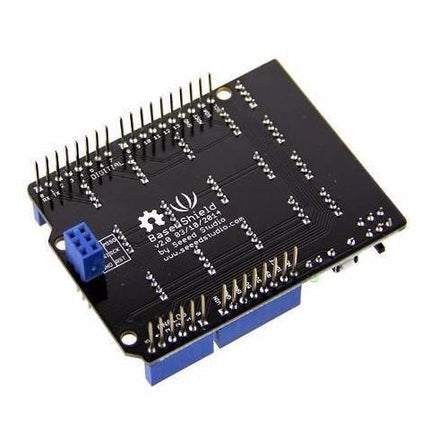

Apart from the rich grove connectors, on the board you can also see an RST button, a green LED to indicating power status, ICSP pin, a toggle switch and four row of pinouts. There is no need to explain the RST button and LED, but you really need to know below two features that is very important for your usage.

1. Power Compatible:

Every Grove connector has four wires, one of which is the VCC. However, not every micro-controller main board needs a supply voltage of 5V, some need 3.3V. That's why we add a power toggle switch to Base Shield v2 so that you can select the suitable voltage of the micro-controller mainboard you are using via this switch.

For example, if you are using Arduino UNO with Base Shield v2, please turn the switch to the 5v position; while using Seeeduino Arch with Base Shield v2, please turn the switch to 3.3v.

2. Board Compatible:

The pinout of Base Shield V2 is the same as Arduino Uno R3, however, Arduino Uno is not the board one that the Base Shield V2 is compatible with, here we listed the boards that we have confirmed that can be used with Base Shield V2.

  • Arduino Uno

  • Seeeduino V4.2

  • Arduino Mega / Seeeduino Mega

  • Seeduino LoraWan

  • Arduino Leonardo / Seeeduino Lite

  • Arduino 101

  • Arduino Due

  • Intel Edison

  • Linkit One

Note

  • If using Base Shield v2 with Seeeduino V3, please solder the pads, P1 and P2.

OPzl1QYRSz4TxporQi0OtuA0.jpgFor all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your using of the product.

Arduino Grove Base Shield V2

Product form

SKU: 103030000

$30.00 $10.00 Excl. GST

$10.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts
