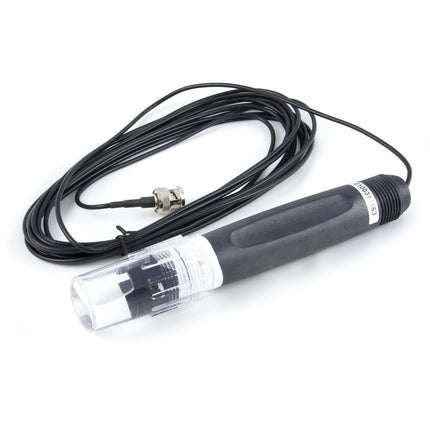

ASPS2121-5M pH Industrial Electrode with thermistor Temperature Compensation
This industrial electrode measures the pH of a solution with thermistor Temperature Compensation and connects to a pH/ORP Adapter.
The ASPS2121 is an economical combination electrode ideal for general industrial processes. It is well suited for testing pool water, sea water or underground water. It can also be used at high temperature in strong acid or base environments.
The electrode provides a fast, stable response and is ideal for prolonged pH readings. The sealed, high polymer gel-filled design requires virtually no maintenance as there is no need to refill the reference chamber.
The outer tube is made of strong PPS plastic and is threaded (3/4" NPT pipe thread) for ease of installation.
The ASPS2121 measures 160 mm (length) x 29 mm (diameter), can withstand temperatures up to 110°C and measures pH levels from 0 to 14.
It comes with a 5-meter cable terminated by a BNC connector and a bottle of pH electrode solution.
Comes Packaged with
- A small bottle of buffer solution
When you receive this sensor, fill the cap with buffer solution and ensure that it has no leaks.
Connection

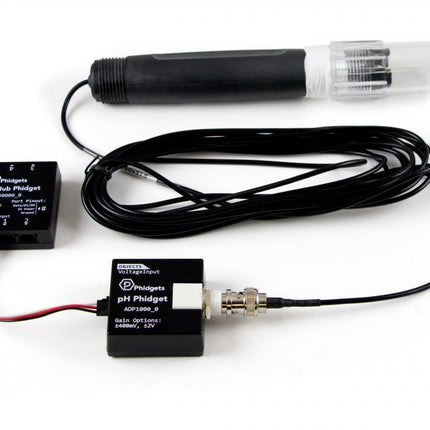

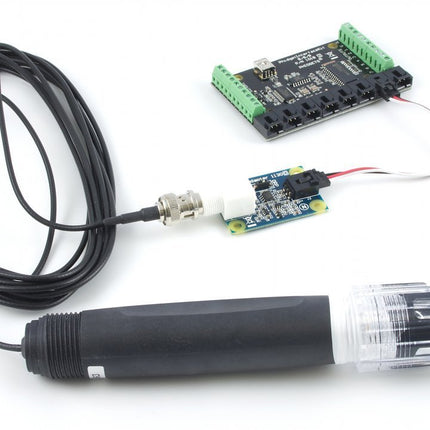

This probe connects to the BNC connector on our pH interface boards. See the "Compatible Products" tab for a complete list of options.
Product Specifications
| Electrode Properties |
| Electrode Type |
Combination Single-Junction (pH) |
| pH Measurement Range |
0 to 14 |
| Electrode Response Time Max |
10 s |
| Operating Temperature Min |
0 °C |
| Operating Temperature Max |
110 °C |
| Physical Properties |
| Exterior Tube Material |
PPS Plastic |
| Maximum Pressure |
87 psi |
| Connector Type |
BNC |
| Rear Thread Type |
3/4" Pipe Thread |
| Length |
160 mm |
| Diameter |
29.3 mm |
| Cable Length |
5 m |
