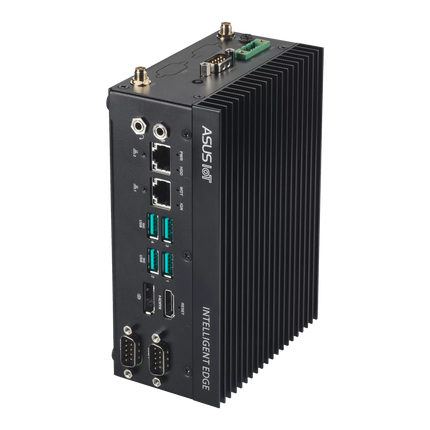

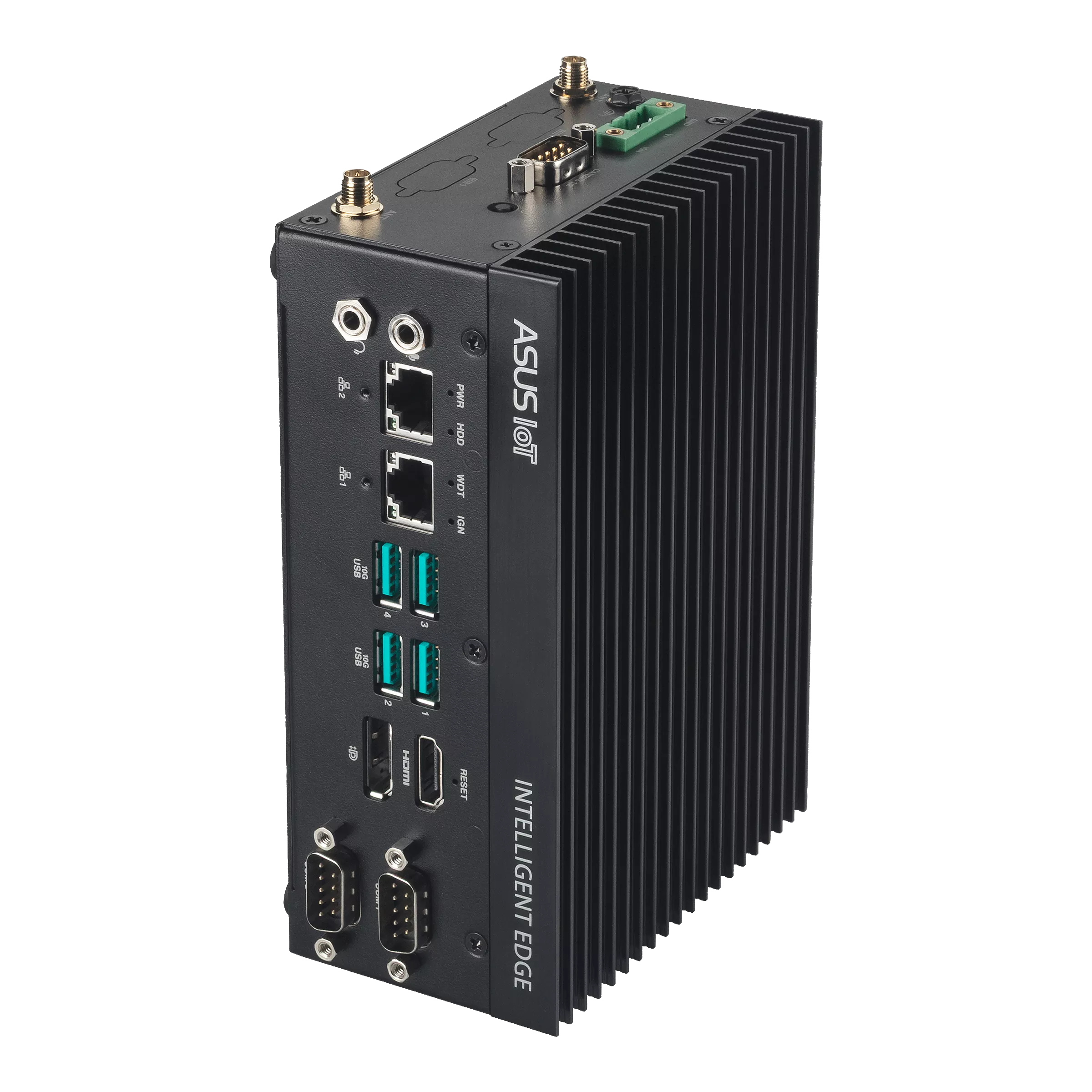

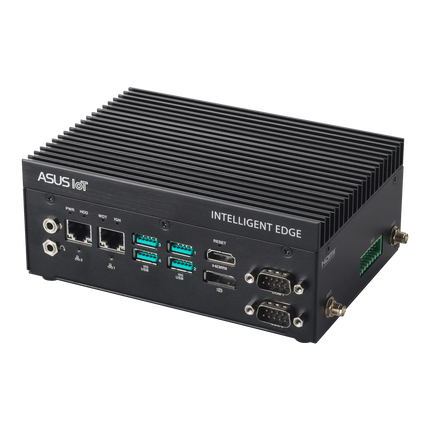

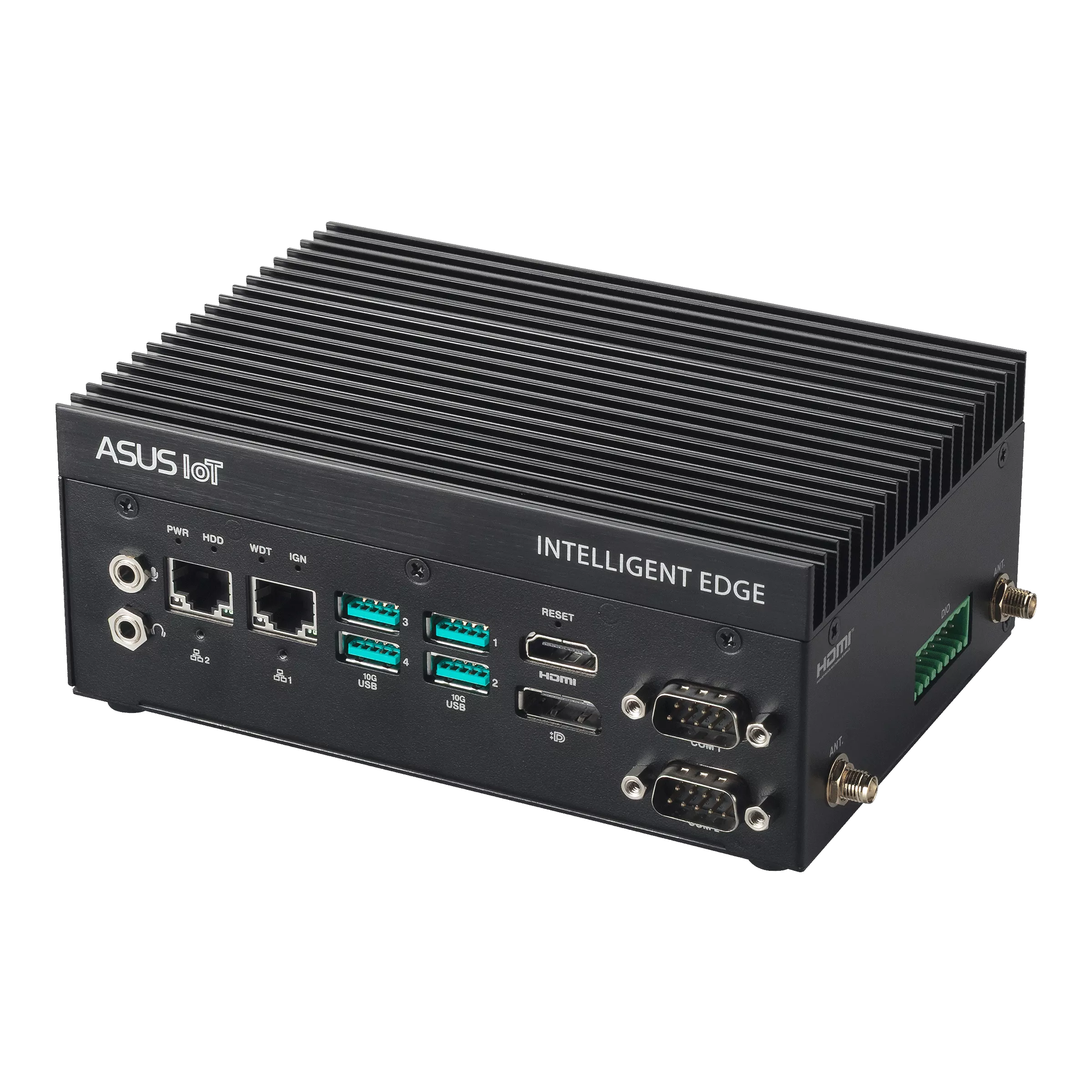

ASUS IoT PE1000U Edge AI Fanless DIN-rail Industrial PC Intel Core Ultra 5 235U and Ultra 7 265U
Ultra-compact and rugged fanless DIN-rail industrial PC with Intel® Core™ Ultra processor (Series 2) Ultra 5 235U and Ultra 7 265U
Include: ADP 160W 20V (-25 to 60°C), AC POWER CORD AS/3P/3C,BLK and Din Rail (default)
- Intel® Core™ Ultra Processors (Series 2), including Ultra 5 235U & Ultra 7 265U (formerly Arrow Lake)
- Rugged fanless design supports din-rail mount
- Rich I/O with up to 4 x LAN, up to 4 x COM and 4 x USB ports
- Wide operating temperature: -25 ~ 70 °C

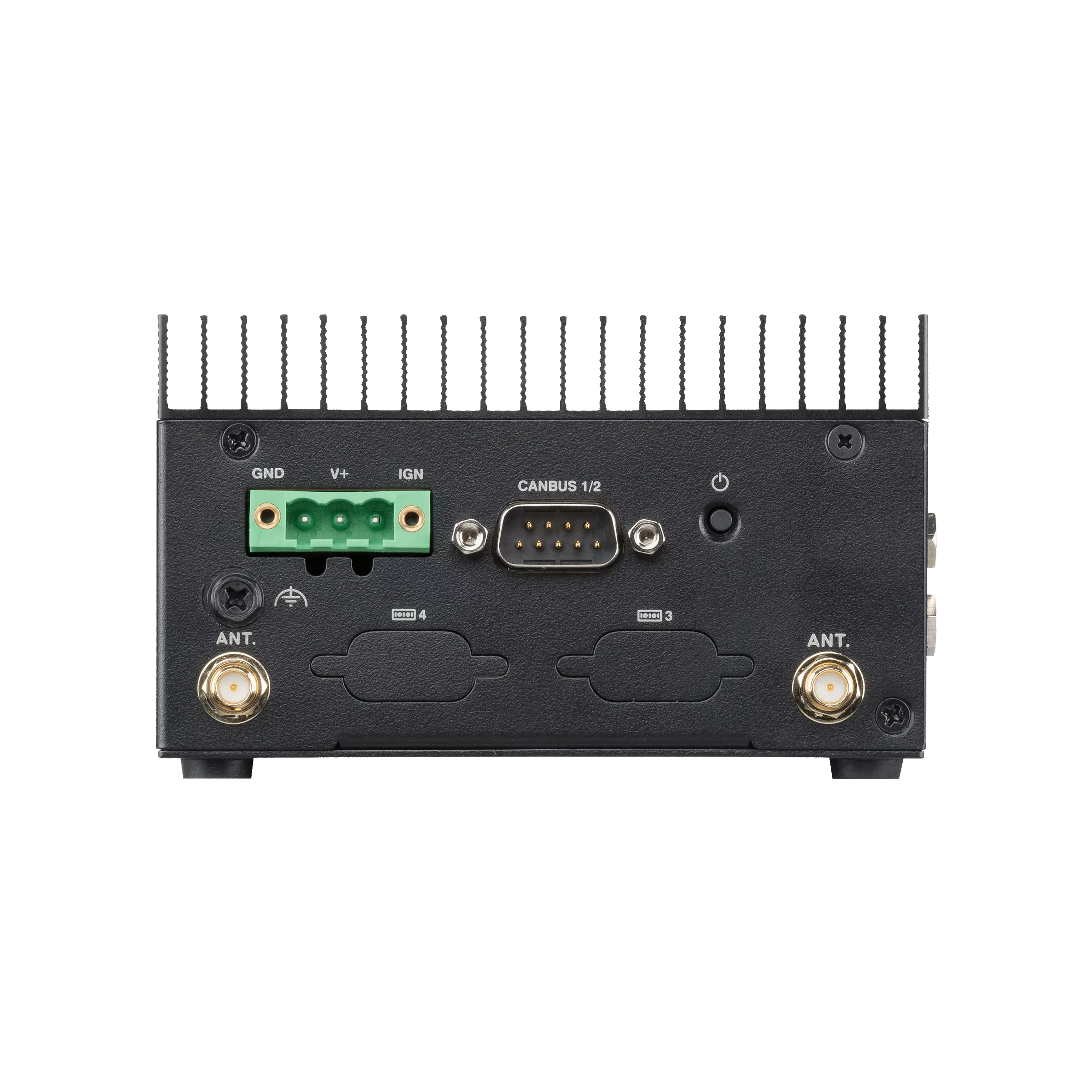

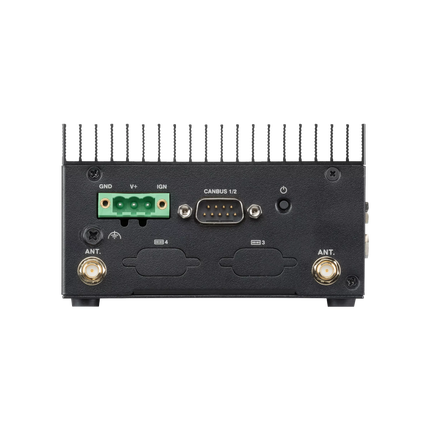

- Power input: 9~ 36 V DC Built-in ignition control with built in 2 x CAN bus
- Rich expansion capacity, including 1 x isolated DIO or 2 x LAN as optional configurations.
- Ready to connect Wi-Fi 6E, BT & LTE, 5G by optional modules
ASUS IoT PE1000U is a compact, high-performance industrial edge computer designed to deliver reliable computing power in harsh environments.
Powered by Intel Core Ultra Series 2 (Arrow Lake U) processors, PE1000U packs advanced performance into a tiny 63x110x160 mm footprint with DIN rail mounting for easy integration into cabinets.

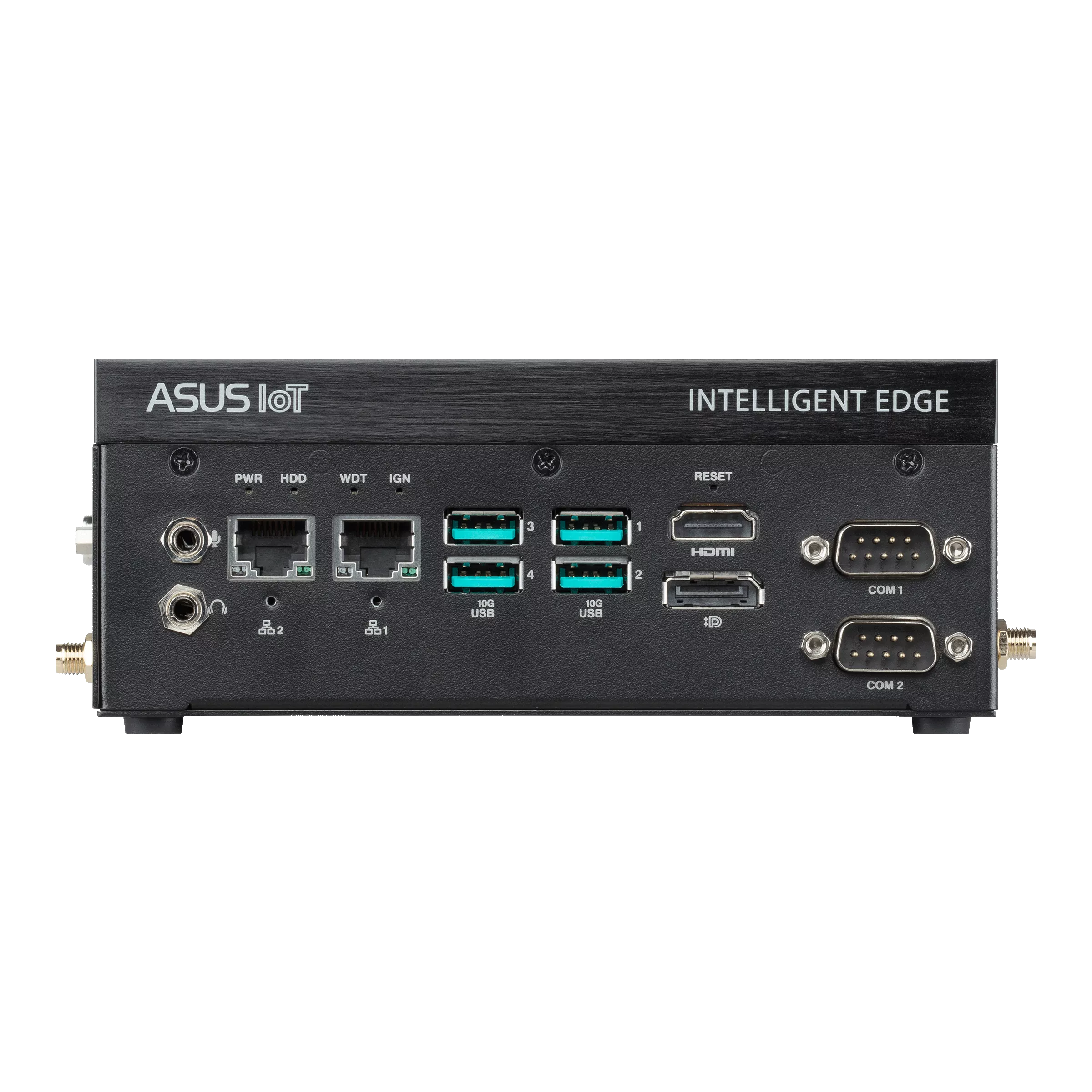

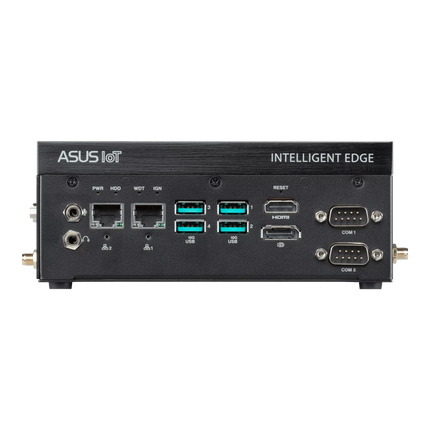

PE1000U is powered by either an Intel Core Ultra 265U or 235U processor paired with hybrid cutting-edge CPU, GPU, and NPU acceleration for high single-thread responsiveness for motion control while simultaneously accelerating AI inference and graphics workloads. Front-access I/O connectors include four USB ports, up to four COM ports, and up to four Ethernet ports (two 2.5G by default) to simplify sensor, camera, and network integration. Onboard dual CAN Bus and an isolated DIO module enhance deterministic control, while DisplayPort™ and HDMI® outputs support up to two 4K displays for HMI or machine-vision monitoring.
Its fanless design and IP4X dust protection ensure long-term durability, while the wide operating temperature (-25°C to 70°C) and 5Grms vibration resistance make it ideal for factory automation. Built-in ignition control enhances suitability for in-vehicle deployments.
Despite its compact size, PE1000U delivers exceptional performance: supporting Intel Core Ultra U processors with up to 15W TDP and offering 22.5 TOPS AI capability, perfect for machine vision and smart manufacturing.
The DIN rail mount and single-side I/O layout simplify wiring in constrained spaces, making installation in control cabinets effortless.
For rugged reliability, PE1000U features a fanless, IP4X dust-proof design and meets MIL-STD-810H standards with 5Grms vibration resistance, ensuring stable operation in AMRs, robotic arms, and roadside cabinets.
Expansion is equally versatile: along with rich native I/O (up to 4xLAN, 4xCOM, 4xUSB 3.2), PE1000U supports M.2 E-Key (Wi Fi 6E) and M.2 B-Key (5G/LTE) for wireless and mobile connectivity.
Certified for global compliance, PE1000U meets FCC, CE, IC, BSMI, UKCA, and CB standards, giving you peace of mind for worldwide deployment.
PE1000U combines compact size, rugged design, and powerful performance, making it the perfect solution for industrial automation, in-vehicle systems, and smart manufacturing.
Optimized for AMR, robotics, and Computer vision
The small footprint and fanless design of PE1000U makes it ideal for AMR, while the four LAN ports, dual CAN Bus, and WiFi 6E or 5G connectivity provide seamless links to LiDAR, cameras, motor controllers, and fleet-management platforms.
For collaborative robots, PE1000U is able to tolerate up to 5Grms vibrations and features screw-lock connectors to ensure mission-critical stability. The Intel Core Ultra processor supplies deterministic compute power required for real-time perception and motion planning. In laser processing and computer vision systems, the DIN-rail form factor with single-side I/O simplifies cabinet wiring. The up to four independent Ethernet ports can accommodate multi-camera arrays, and the isolated DIO can trigger strobes and illumination precisely without introducing electrical noise.
Specifications
| Processor |
Intel® Core™ Ultra Series 2 Processors |
| AI Performance |
Up to 22.5 TOPS |
| Memory |
2× DDR5 SO-DIMM Slots, Up to 64GB |
| Ethernet |
2× 2.5GbE LAN |
| USB |
4× USB 3.2 Gen 2 |
| Serial Ports |
Up to 4× RS-232/422/485 |
| CAN Bus |
2× CAN Bus 2.0 |
| Storage |
M.2 NVMe SSD and 2.5" SATA Storage Support |
| Wireless |
Optional Wi‑Fi 6E, LTE and 5G Modules |
| Power Input |
9V–36V DC |
| Mounting |
DIN Rail (Standard), Wall Mount (Optional) |
| Operating Temperature |
-25°C to 70°C |
| Dimensions |
63 × 110 × 160 mm |
| Operating Systems |
Windows 11 IoT Enterprise, Linux Support |
| Certifications |
CE, FCC, CB, UKCA, BSMI, IC |
Wireless & Expansion Options
These platform expansion capabilities are supported by the ASUS PE1000U hardware architecture and may be selected depending on deployment requirements and system configuration.
| Module / Feature |
Interface |
Category |
Description |
| Wi‑Fi / Bluetooth Module |
M.2 E-Key |
Wireless |
Supports optional Wi‑Fi and Bluetooth connectivity through the onboard M.2 2230 E-Key expansion socket. |
| LTE Module |
M.2 B-Key |
Cellular |
Supports optional LTE connectivity using the onboard M.2 3042/3052 B-Key slot with nano-SIM support. |
| 5G Module |
M.2 B-Key |
Cellular |
Supports optional 5G connectivity using the onboard M.2 3042/3052 B-Key slot with nano-SIM support. |
| Dual 1GbE LAN Module |
M.2 M-Key |
Networking |
Provides LAN3 and LAN4, expanding the system from the standard dual 2.5GbE LAN configuration to include two additional 1GbE RJ45 ports. |
| COM3 / COM4 Expansion |
Internal Option |
Industrial I/O |
Adds two optional RS‑232 / RS‑422 / RS‑485 serial communication ports for industrial devices and legacy equipment integration. |
| 4-LAN Platform Configuration |
Configuration Option |
Networking |
Alternative platform configuration that replaces the default isolated DIO interface with dual additional 1GbE LAN ports. |
| DIO Expansion |
Default SKU |
Industrial I/O |

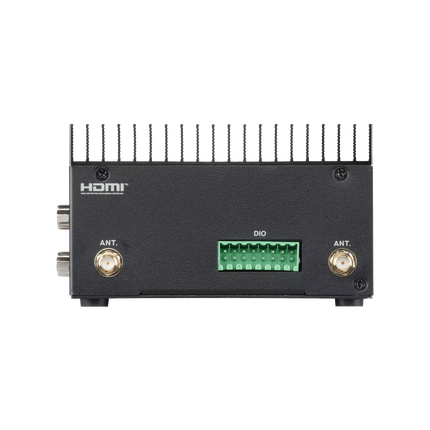

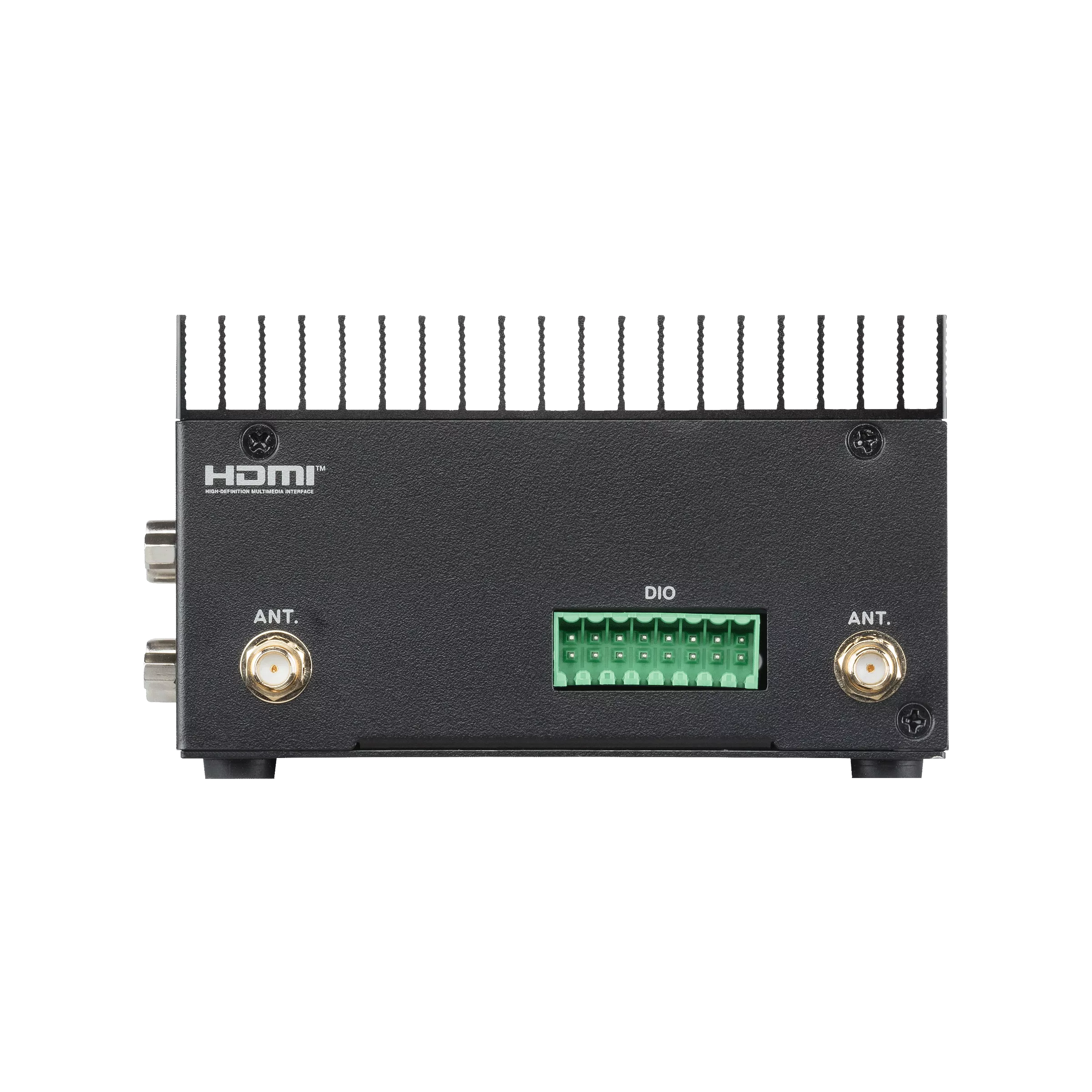

Default PE1000U configuration includes 4 Digital Inputs (DI) and 4 Digital Outputs (DO) with isolation support. |
Configuration Notes: LTE and 5G modules cannot be installed simultaneously. The default DIO configuration and the optional dual 1GbE LAN expansion configuration are mutually exclusive. COM3 and COM4 support RS‑232, RS‑422 and RS‑485 communications.
