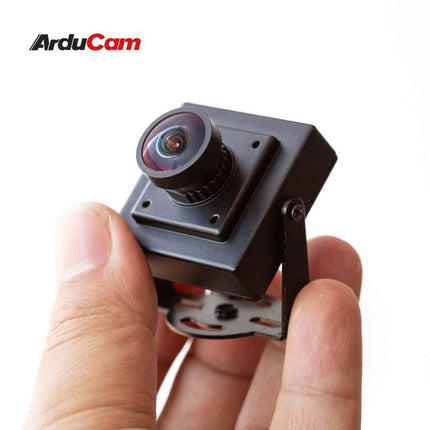

B0268 Arducam 16MP Wide Angle USB Camera IMX298 Mini UVC 4K Video Webcam
Arducam High-Resolution Camera Module B0246 is based on Sony 1/2.8” 16MP Sony IMX298 image sensor, mounted a high quality 105 degree (H) M12 Lens, UVC compliant USB 2.0 cameras.
No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.
Features:
- Ultra HD: This small camera module adopts 16MP IMX298 sensor for sharp image and accurate colour reproduction, still picture resolution: 4656 x 3496 Max.

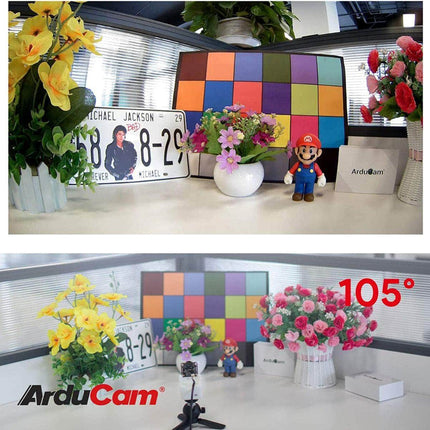

- Wide Angle: Mounted a High quality 105-degree wide view angle (horizontal) M12 lens with IR filter, provides a wilder Field of View.

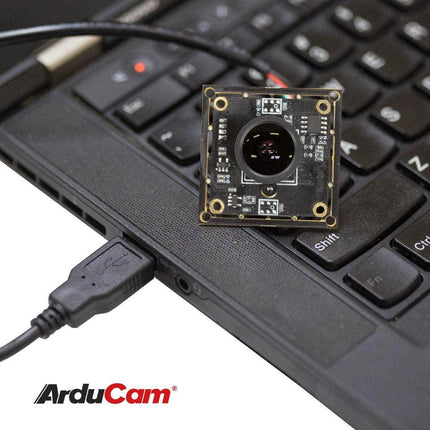

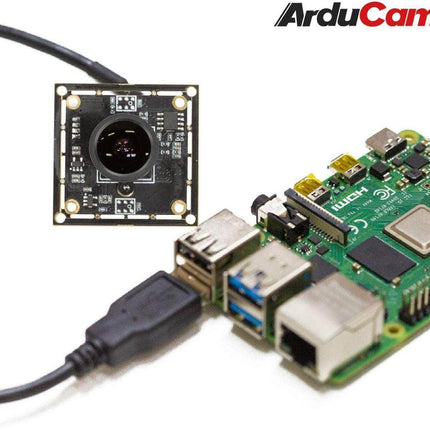

- Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed. For Mac OS, please please open the native software facetime and select the video camera “Arducam IMX298 Camera”.
Specifications

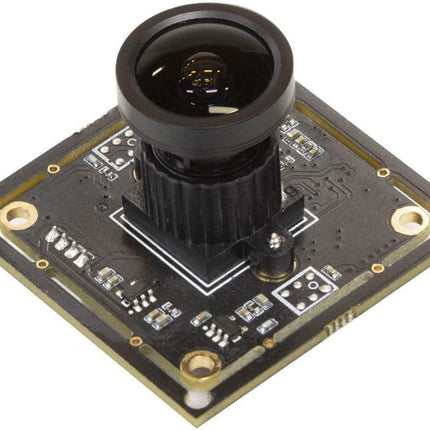

Camera Board
- Sensor: 1/2.8” IMX298
- Data Format： MJPG
- Maximum Effective Resolution： 4656(H)x3496(V)
- Pixel Size: 1.12 µm x 1.12 µm
- IR Sensitivity: Integral IR filter, only visible light
- Auto control： Saturation, Contrast, Acutance, White balance, Exposure.
- Input Voltage： DC 5V
- Working Current： MAX 200mA
- Operating Temp.： -4°F~167°F (-20°C~+75°C)
- Cable Length： Default 1M, optional 2M, 3M, 5M
- System Compatibility： Windows, Linux, Mac, and Android with UVC
- Connector No.： ZHR-4

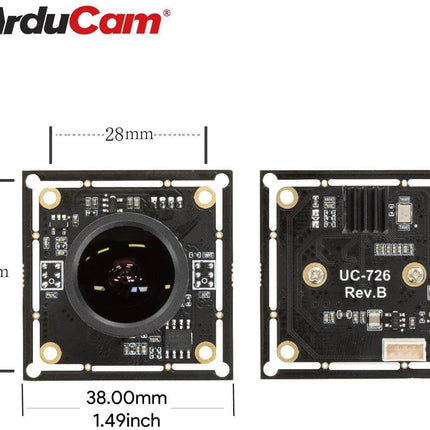

- Dimension： 38mmx38mm
- Hole Pitch： Compatible with 34mmx34mm, 28mmx28mm
- Frame Rate: MJPG 10fps@4656x3496/3264x2448/2592x1944/,
30fps@1080P/720P/1024x768;
YUY2 8fps@1024x768, 10fps@640x768
Lens
- FOV: 105°(H)
- EFL: 2.72MM
- Lens Construction: 5G+IR
- Mount: M12*P0.5mm
Packing Request

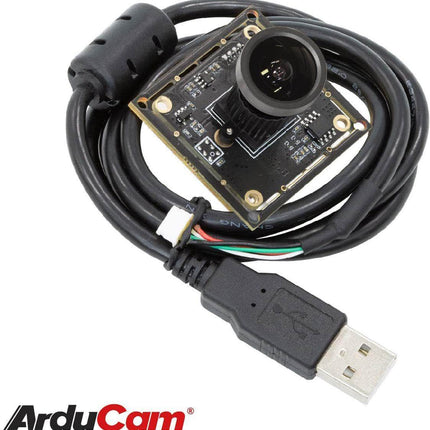

- 1 × 16MP IMX298 USB 2.0 camera board
- 1 × 3.3ft (1M) USB 2.0 cable
Documentations
Datasheet: IMX298 USB2.0 Wide Angle Camera Module B0268
USB 16MP Wide Angle Camera Module
