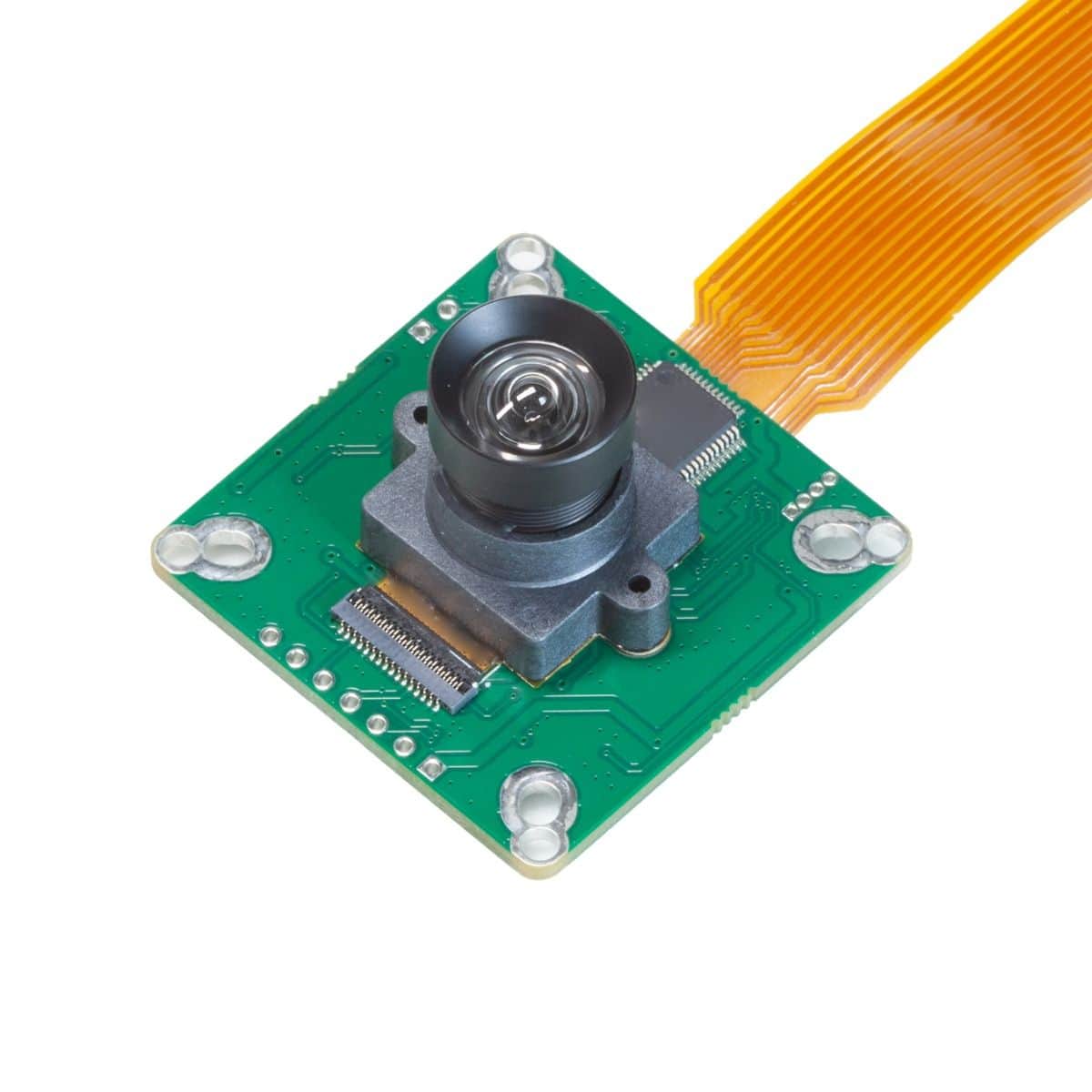

B0353 Arducam Full HD Color Global Shutter Pivariety Camera for Raspberry Pi
- More Applications: Gaze and eye-tracking capabilities, 3D image, depth sensing, etc.
- Color Global Shutter: Based on 2MP AR0234 Color Global Shutter sensor
- Piavriety Solutions: Arducam Pivariety camera solution for this camera

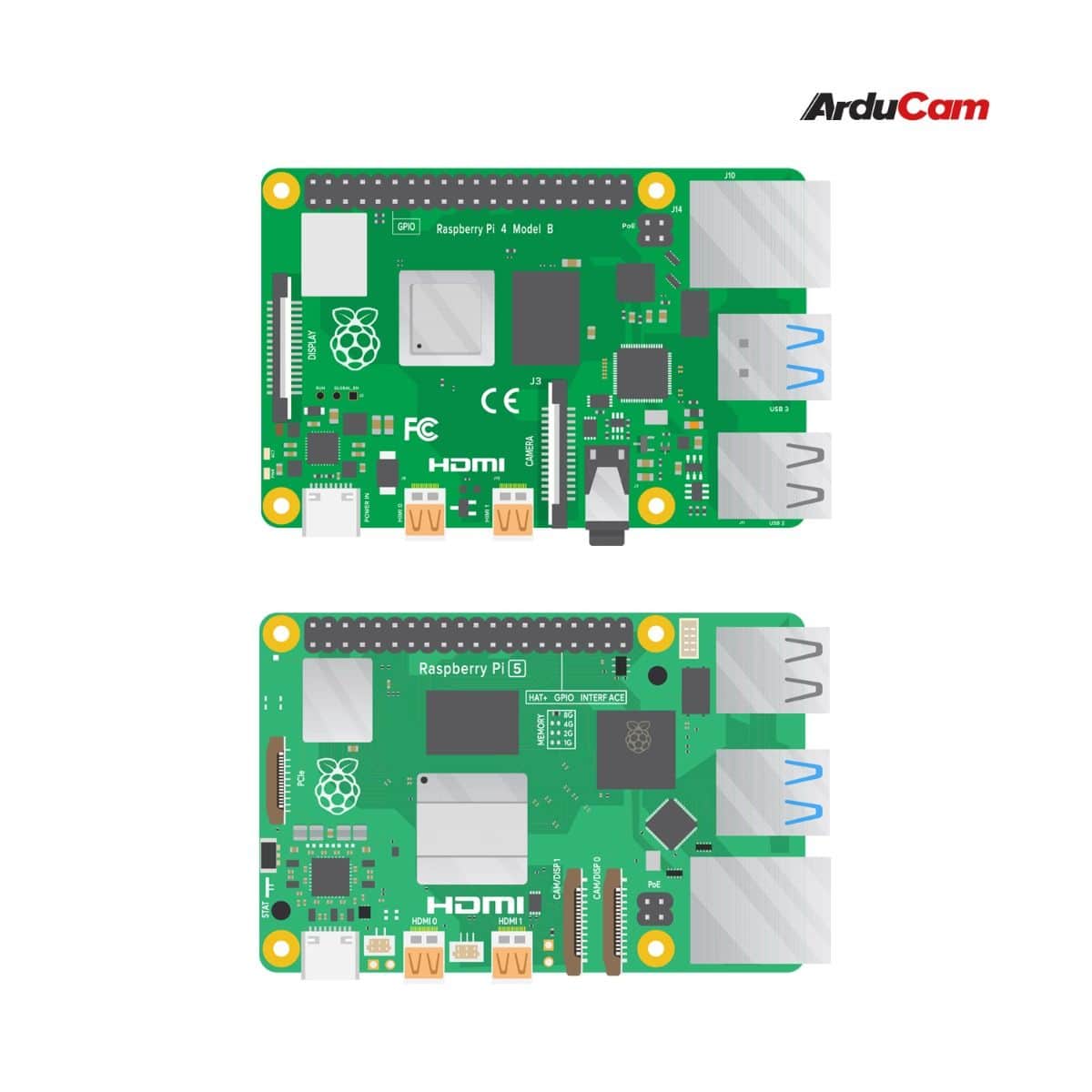

- Easy to Set Up: Connected directly to RPi’s CSI-2 camera interface without additional hardware
- External Trigger Function: Support External Trigger Function
Arducam Pivariety is a Raspberry Pi camera solution to take the advantage of using its hardware ISP functions. Pivariety camera modules make users get better performance and a wider variety of camera, lens options. In other words, Pivariety breakthrough the limitations of the closed-source official supported camera driver and camera modules (V1/V2/HQ).
Pivariety made it possible to be well-tuned ISP with Auto Exposure, Auto White Balance, Auto Gain Control, Lens Shading Correction, etc.

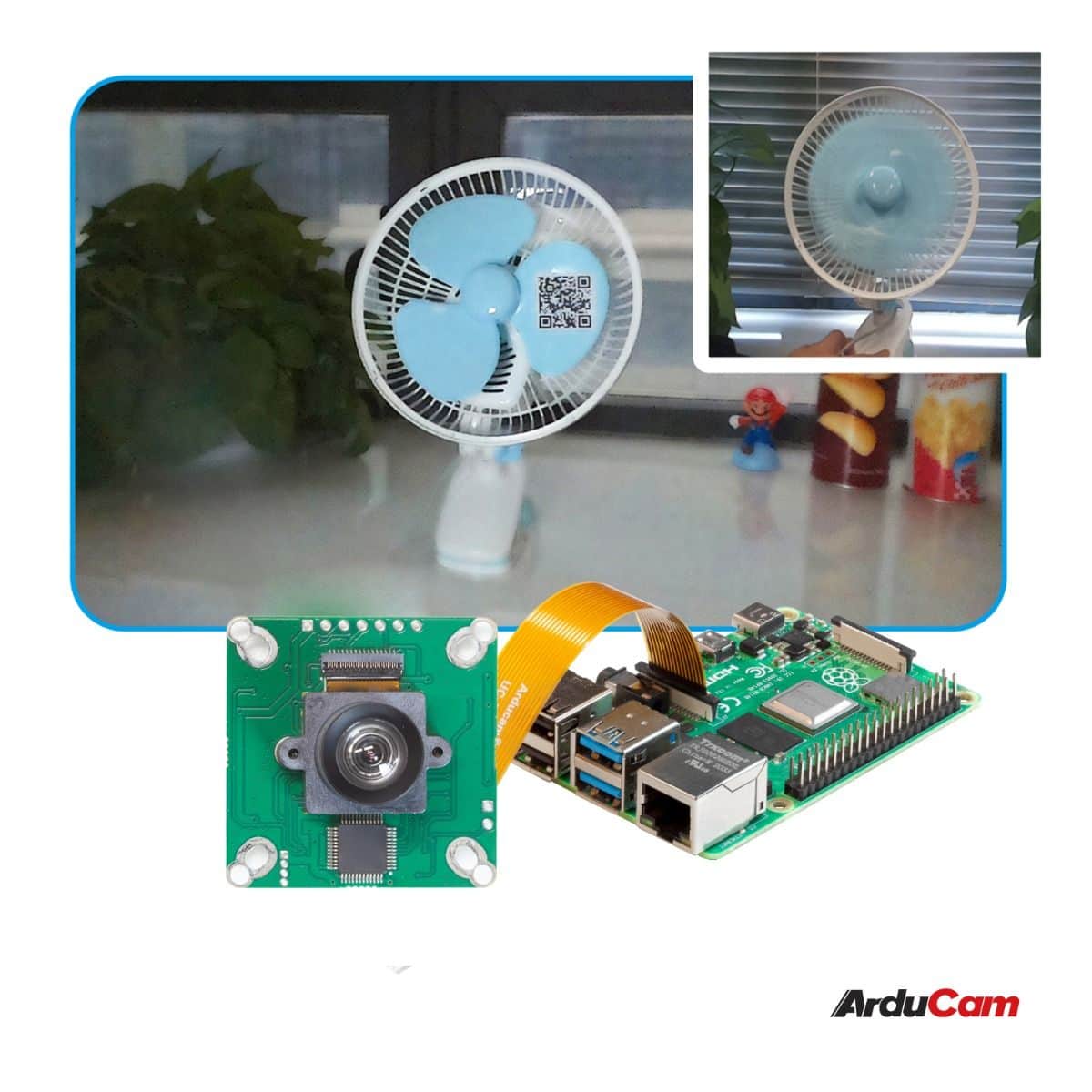

This Pivariety AR0234 Color Global Shutter Camera is migrated Raspberry Pi Cameras, which eliminate rolling shutter artifacts to shoot high-speed moving objects in color sharp images.
Applications
- Augmented and virtual reality
- Drones
- 3D imaging
- Machine vision
- Industrial bar code scanning
- Industrial automation, etc.
Features
- Based on AR0234 Color Global Shutter Sensor: 2.3MP AR0234 global shutter color sensor, maximum frame rate up to 60fps.
- Wide Angle: 90 deg (H) wide view angle
- Gstreamer is supported with this camera
- Support libcamera apps for the ISP processing image and official V4L2 apps
- Compatible with all libcamera-based apps maintained by the RPi foundation
Specifications
| Image Sensor |
Color Global Shutter AR0234 |
| Optical Size |
1/2.6” |
| Resolution |
2.3MP 1920×1200 |
| Pixel Size |
3 μm x 3 μm |
| Max Frame Rate |
920x1200＠60fps, 1920x1080@60fps, 1280x720@120fps |
| Effective Focal Length |
3.6mm |
| F.NO |
2.8 |
| Lens Mount |
M12 Mount |
| Focus Type |
Manual Focus |
| Field of View(FOV) |
120°(D), 90°(H), 75°(V) |
| IR Sensitivity |
Integral IR-cut filter, visible light only |
| Output Format |
RAW10 |
| ISP Output Format |
Image: JPG, YUV420, RAW, DNG/Video: MJPEG, H.264
|
| Output Interface |
2-lane MIPI serial output |

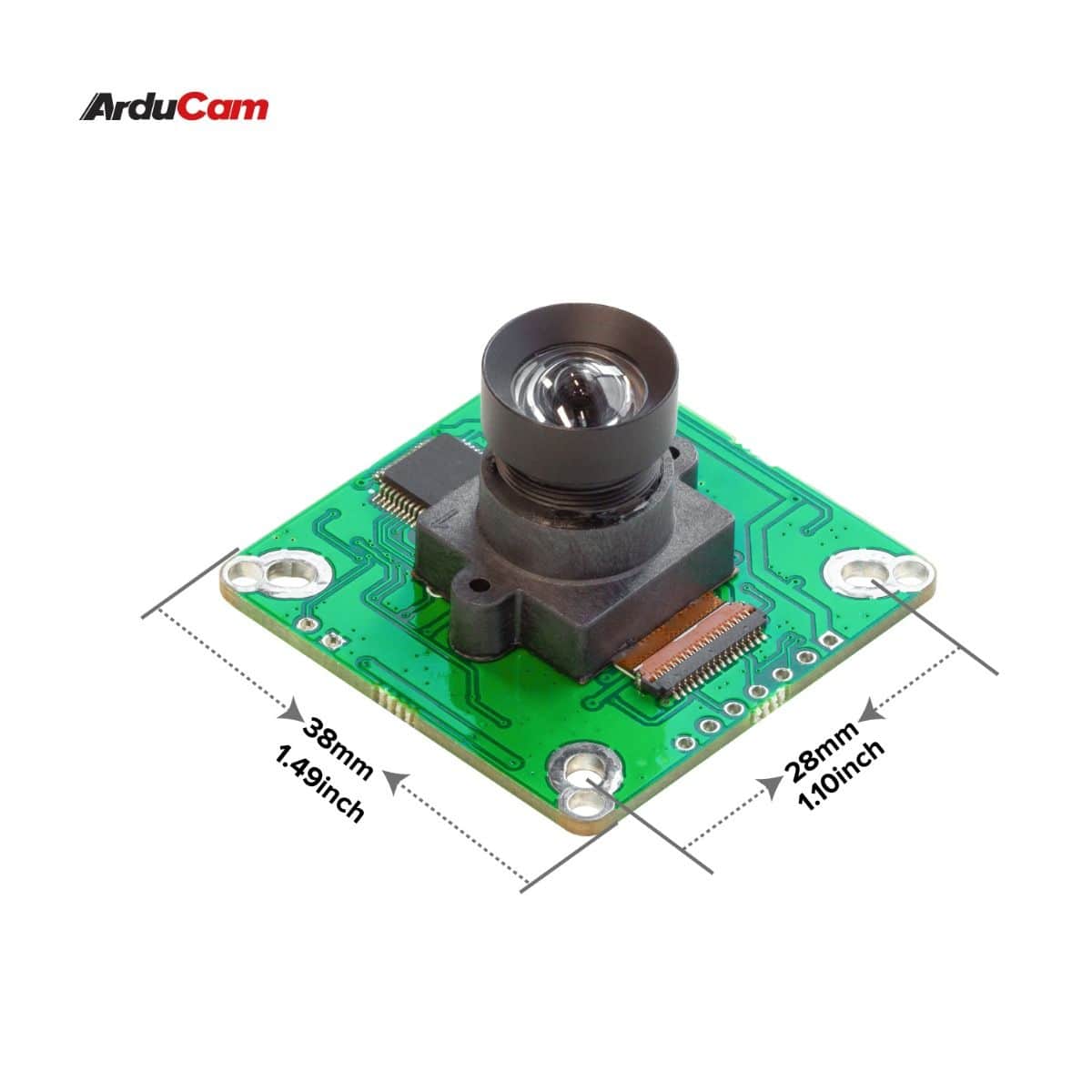

| Camera Board Size |
38mm x 38mm |

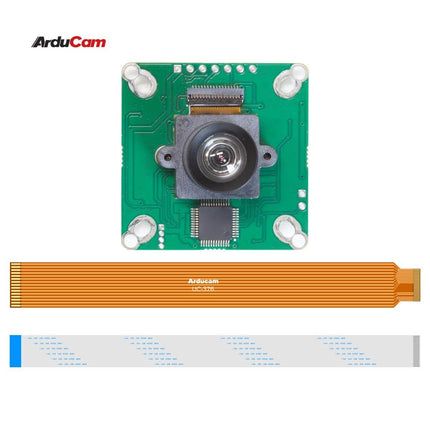

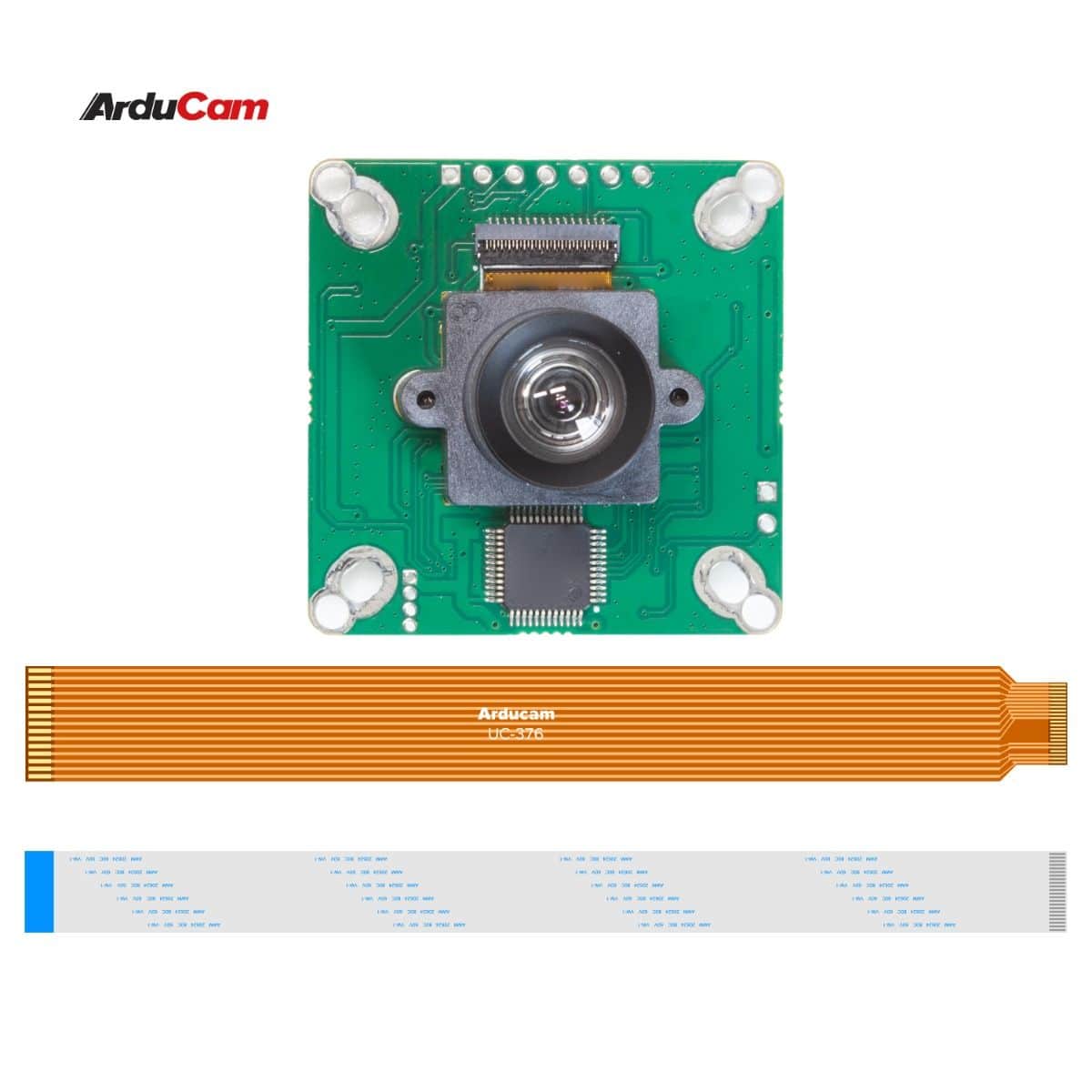

Package Including
- 1 x Arducam 2.3MP AR0234 ISP Camera Module
- 1 x 150mm 15pin to 22pin FPC cable
- 1 x 150mm 22pin to 22pin FPC cable
