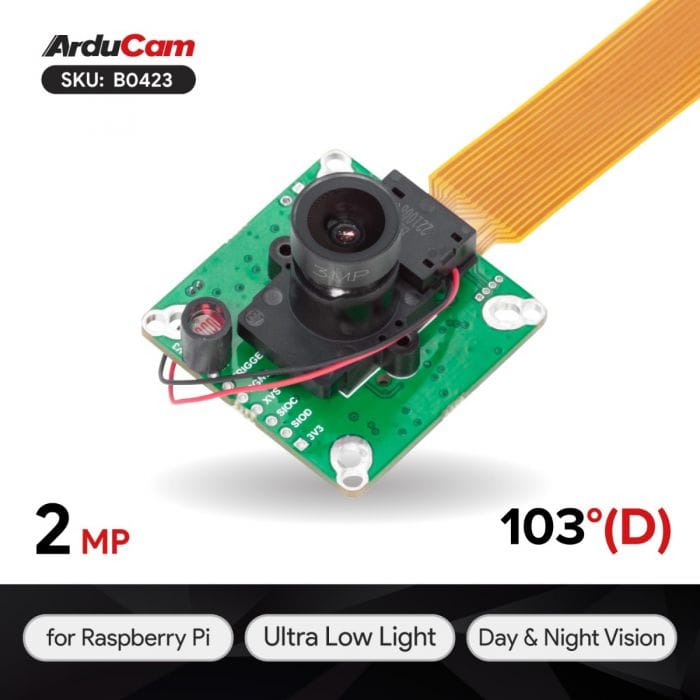

B0423 Arducam 2MP Ultra Low Light STARVIS IMX462 Motorized IR-CUT Camera Raspberry Pi
Arducam 2MP IMX462 Motorized IR-CUT Camera is capable of capturing visible and near-infrared images with very low noise even in extremely low-light conditions or no light (near 0 lux). This high-speed camera captures uncompressed Full HD images at 50fps at full resolution. This is great for minimizing inter-frame distortion and reducing motion blur, resulting in sharper images with more scene detail when capturing moving objects. High sensitivity, low dark current and no smear can be achieved through the adoption of R, G and B primary color mosaic filters.
Applications
- Surveillance cameras
- FA cameras
- Industrial cameras
- Autonomous mobile robots, UGV/UAV, ADAS, etc.
Features
- Input frequency: 74.25 MHz / 37.125 MHz
- Pixels: Approx. 1920 (H) × 1080 (V) 2.07 million pixels
- Maximum frame rate in Full HD 1080p mode: 30 fps
- 10-bit/12-bit A/D converter
- CSI-2 serial data output: 2 Lane, RAW10 / RAW12 output
Specifications
| Sensor |
SONY STARVIS IMX462 |
| Optical Size |
Type 1/2.8'' (Diagonal 6.46 mm) |
| Pixel Size |
2.9μm×2.9μm |
| Shutter Type |
Rolling Shutter |
| Number of the Active Pixels |
1920x1080 |
| Color Filter |
Bayer RGB |
| Frame Rates |
1920x1080@60fps;1280x720@60fps |
| Supported Platform |

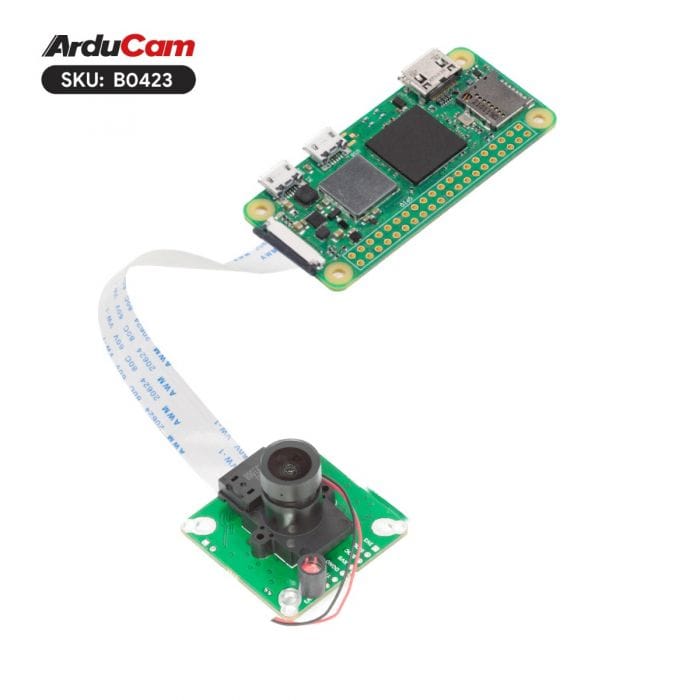

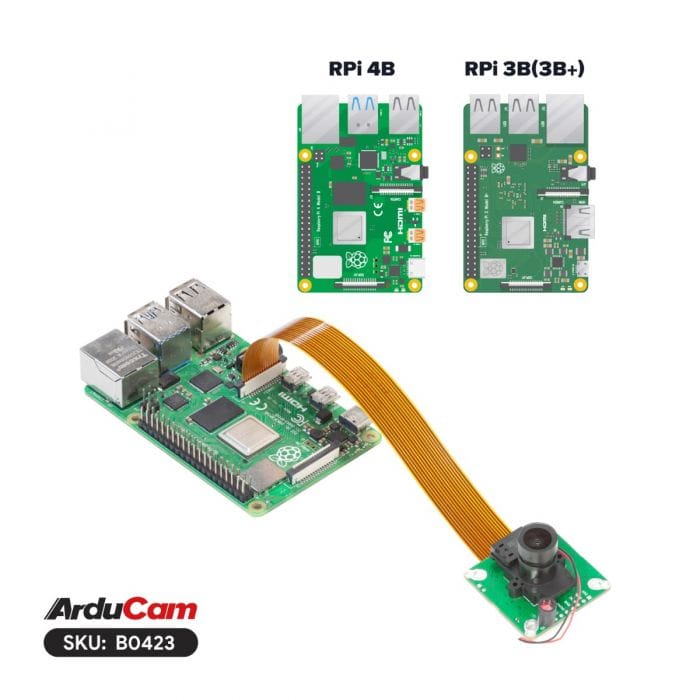

Pi 4/3/Zero/CM3/CM4 |
| Output Format |
RAW10/RAW12 |
| Focus Type |
Manual Focus |
| Lens Mount |
M12 Mount |
| F.NO |
1.6±10% |
| Effective Focal Length |
4.3±5%mm |
| MOD. |
2.0 |
| Back Focal Length |
5.43±0.2mm |
| Field of View(FOV) |
103°(D) x 90°(H) x 74°(V) |
| IR Sensitivity |
Motorized IR-cut |

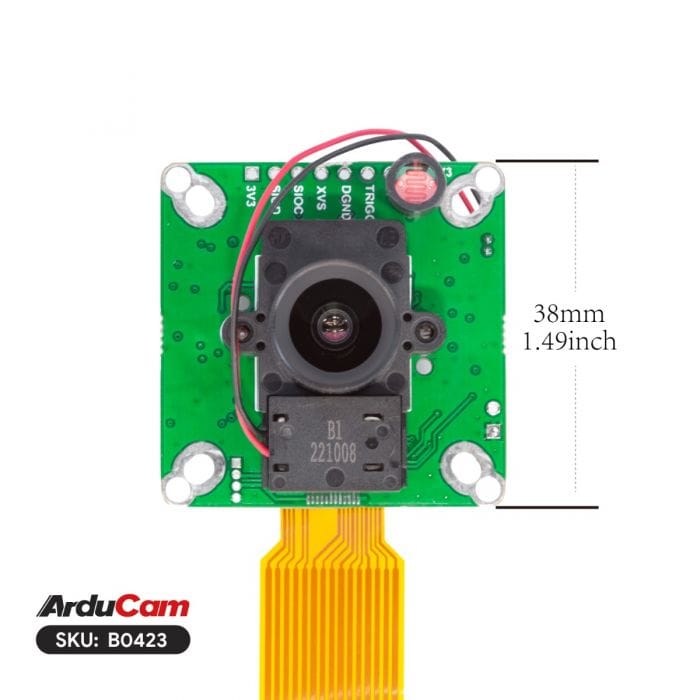

| Camera Board Size |
38mm x 38mm |
Comparasion
Among the Sony STARVIS series sensors, IMX290, IMX462, and IMX327 are some of the more popular ones. Though they are all belong to the STARVIS series, there are some differences between them. Please see the following table about the similarities and differences:
| Specifications |
Sensor |
| IMX462 |
IMX290 |
IMX327 |
| Mega Pixels |
2.10MP |
2.07MP |
2.07MP |
| Max Resolution |
1920x1080 |
1920x1080 |
1920x1080 |
| Optical Size |
1/2.8'' |
1/2.8'' |
1/2.8'' |
| Pixel Size |
2.9μm×2.9μm |
2.9μm×2.9μm |
2.9μm×2.9μm |
| G Sensitivity* |
10471 |
5486 |
10471 |
| Max Frame Rate |
120fps(sensor) |
120fps(sensor) |
90fps(sensor) |
| NIR Sensitivity(850nm)* |
~1 |
~0.5 |
~1 |
G Sensitivity*: Gravity sensitivity is an important indicator of camera performance in low light conditions. Higher the G sensitivity, better is the low light performance.
NIR sensitivity*:NIR imaging performance is one of the most crucial features for smart surveillance, smart traffic monitoring, and agricultural applications.
- If low light sensitivity is your key requirement, then choosing IMX462(B0423) and IMX327(B0425) will better suit your requirements
- If you need a higher frame rate for your project, then the higher frame rate IMX462(B0423) and IMX290 (B0424) will be your first choice
- Among the above three sensors, IMX462 has relatively high near-infrared sensitivity. If you need this feature more, it is recommended that you choose IMX462 (B0423)
Package Including
- 1 x IMX462 Motorized IR-CUT Camera Module

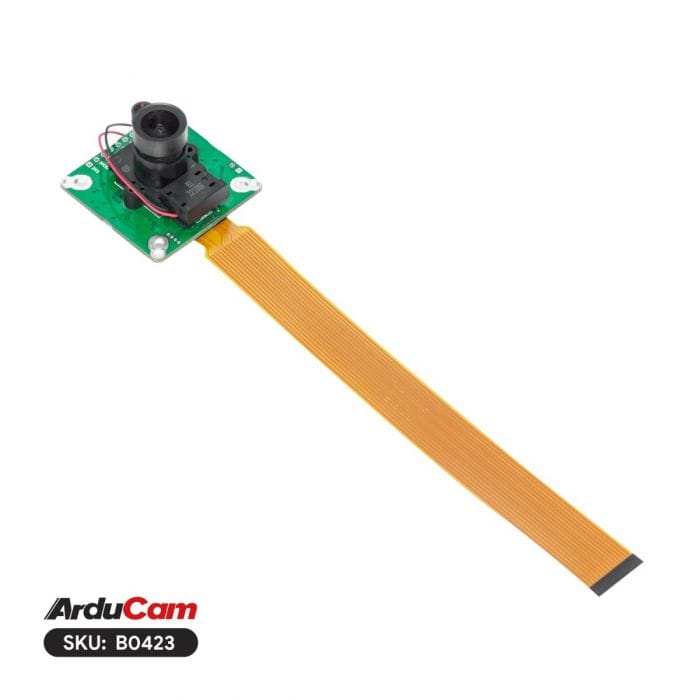

- 1 x 150mm 15pin to 22pin flex cable
- 1 x 150mm 22pin to 22pin flex cable
Notes
- For any issues when using the camera, you can directly contact support@arducam.com .
- If you have any custom requirements for this camera module, you can directly contact sales@arducam.com for help.
