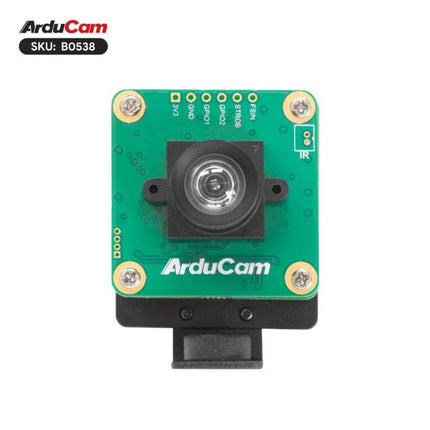

B0538 Arducam 5MP OG05B1B Mono Global Shutter USB 3 Camera
This 5mp is a black-and-white global shutter camera from Arducam’s USB 3.0 series, engineered for exceptional imaging performance. Featuring high sensitivity, low noise, and enhanced quantum efficiency (QE) in the near-infrared (NIR) spectrum, this camera excels in low-light conditions.
This camera offers a maximum resolution of 2592×1944 and supports smooth video capture at 25fps in full 5MP resolution. The included M12 low-distortion lens complements the sensor's capabilities, ensuring sharp, accurate, and distortion-free images.
Arducam’s USB 3.0 cameras also incorporate advanced Image Signal Processing (ISP) technology, including de-Bayer, gamma correction, and color correction, to deliver vivid, high-quality images. The plug-and-play ensures compatibility with Windows and Linux systems without the need for additional drivers, while backward compatibility with USB 2.0 ports adds convenience.
Applications
- Mobile Facial Authentication
- Active Stereo Vision/Structured Light Vision
- Automatic Identification and Data Capture (AIDC)/QR Readers/Drones
- Smart Home Appliances
- SLAM for Robotics/Smart Home Appliances
Features
- High-Performance Sensor: Black-and-white global shutter camera with high sensitivity, low noise, and enhanced NIR performance.
- Crisp Imaging: 2592×1944 resolution, 25fps at 5MP, ideal for fast-moving objects with no distortion.

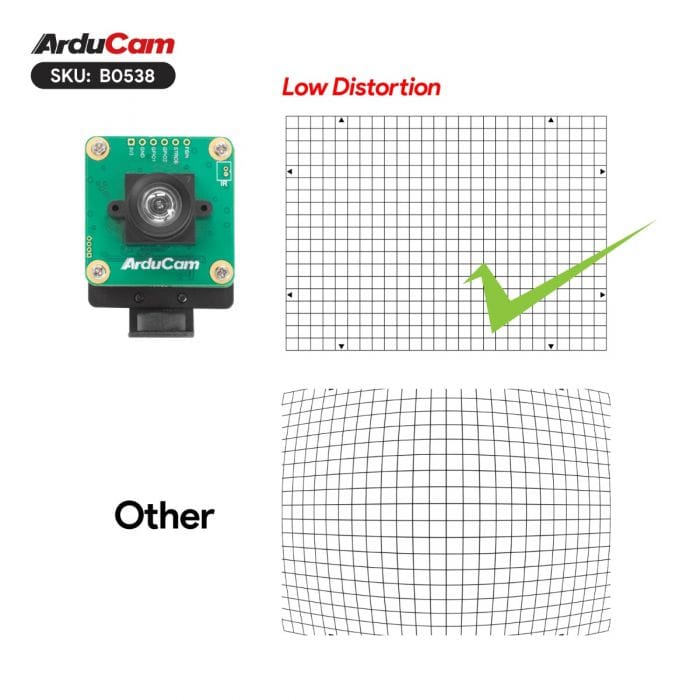

- Premium Optics: Equipped with an M12 low-distortion lens for sharp, accurate, and realistic image capture.
- Advanced ISP Features: De-Bayer, gamma, and color correction ensure vivid and detailed image quality.

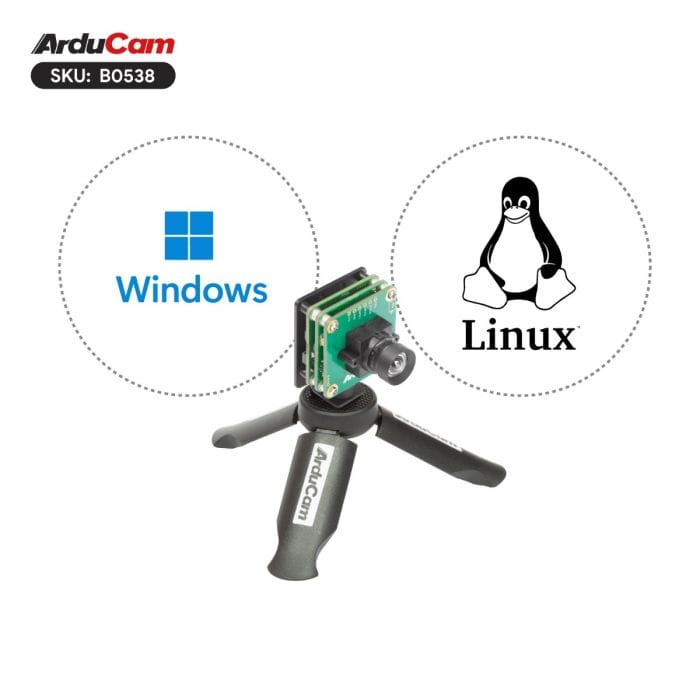

- Plug-and-Play Convenience: Compatible with Windows/Linux, no drivers needed, and supports USB 2.0 and 3.0.
Specifications
| Image Sensor |
| Sensor |
OG05B1B |
| Still Resolution |
5MP |
| Color Filter Type |
Mono |
| Shutter Type |
Global Shutter |
| Optical Size |
1/2.53" |
| Output Format |
YUY2 |
| Pixel Size |
2.2 μmx 2.2 μm |
| Sensor Active Area |
2592 (H)×1944 (V) |
| Frame Rate (USB 3.0) |
2592×1944@25fps |
| Frame Rate (USB 2.0) |
2592×1944@5fps |
| Lens |
| Focus Type |
Fixed Focus |
| Default Focus Range |
1m-∞ |
| Lens Mount |
M12 (S-mount) |
| F.NO |
F2.8 |
| E.F.L |
3.6mm |
| IR Sensitivity |
No IR-cut filter, sensitive to IR |
| FOV |
95°(D)×82°(H)×66°(V) |
| USB Interface |
| Interface |
USB 3.2 Gen 1 device, backward compatible with USB 2.0 hosts |
| Connector |

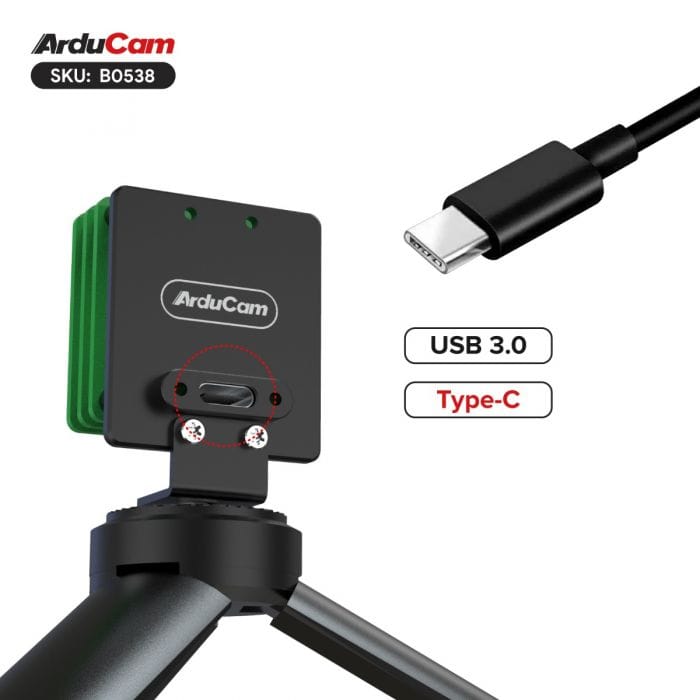

Type-C reversible interface connector |
| UVC Compliant |
No additional drivers required |
| Electrical and Mechanical |
| Operating Voltage |
5 V +/- 5% |
| Operating Temp. |
32°F-158°F (0°C to 70°C) |
| Power Requirements |
Max: 1.5W |
| Camera Board Size |
34×34 mm |
| Functionality and Compatibility |
| Supported OS |
Windows, Linux |
| Recommend Sample Application |
PotPlayer for Windows, qv4l2 for Linux |
| UVC Controls |
Brightness, Contrast, Gain, Exposure (Manual/Auto) |

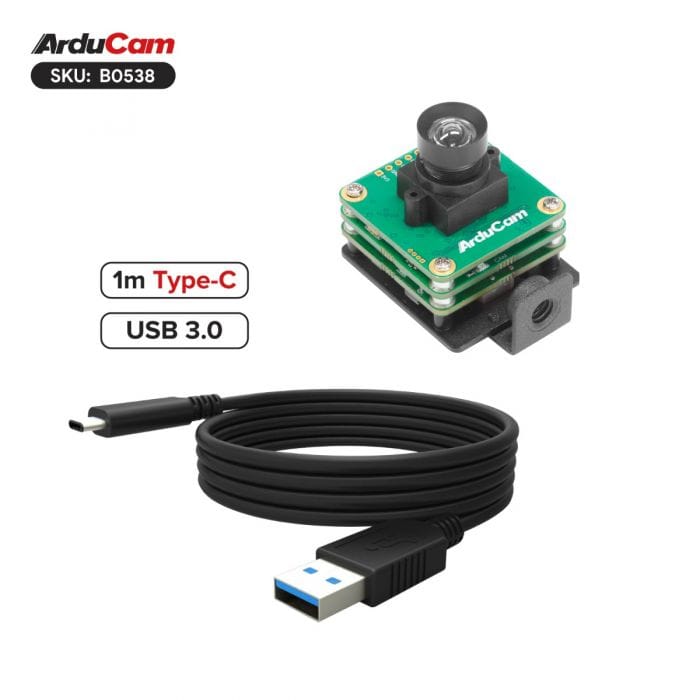

Package Including

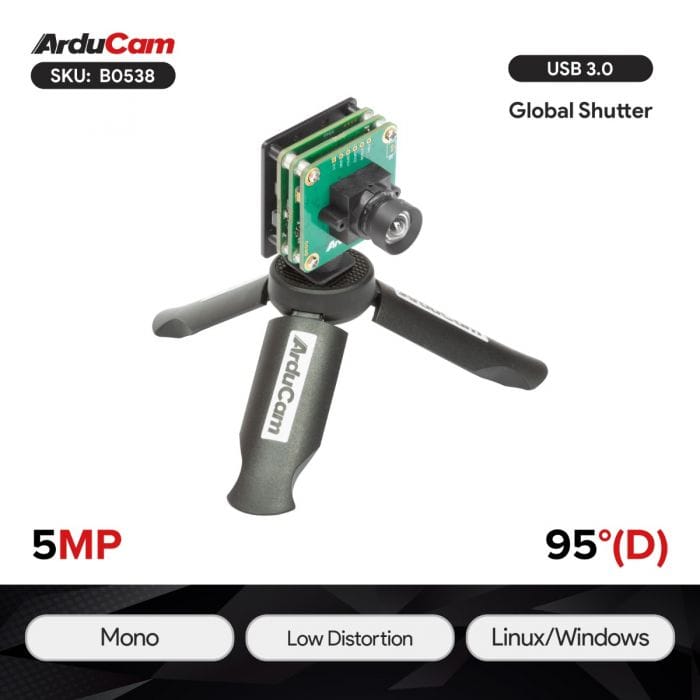

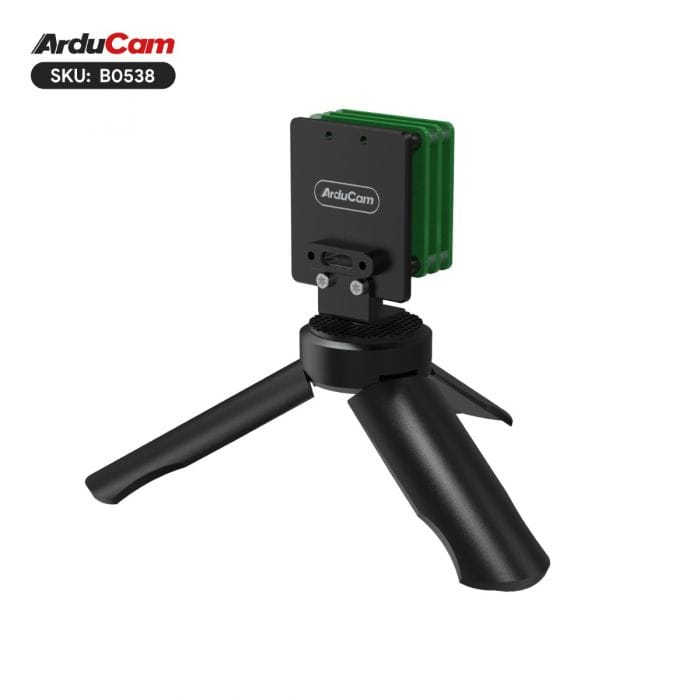

- 1 x Arducam 5MP Mono USB3 Camera with Back Cover and Tripod Adapter
- 1 x USB A to Type-C Cable (1m)
Notes
- The package contains small contents, please keep it away from children to avoid accidental ingestion
- After receiving the package, please confirm whether the contents of the package are consistent with the description
- Tripod is not included in the package, please check UB0224 and UB0216 for additional purchase.
